1. Pure aluminum ADC 12, nice painting
2. CREE COB LED chip ,CRI>80 or CRI>93 , low light decay<20% after 3 years
3. Advanced optical technology , even and natural light

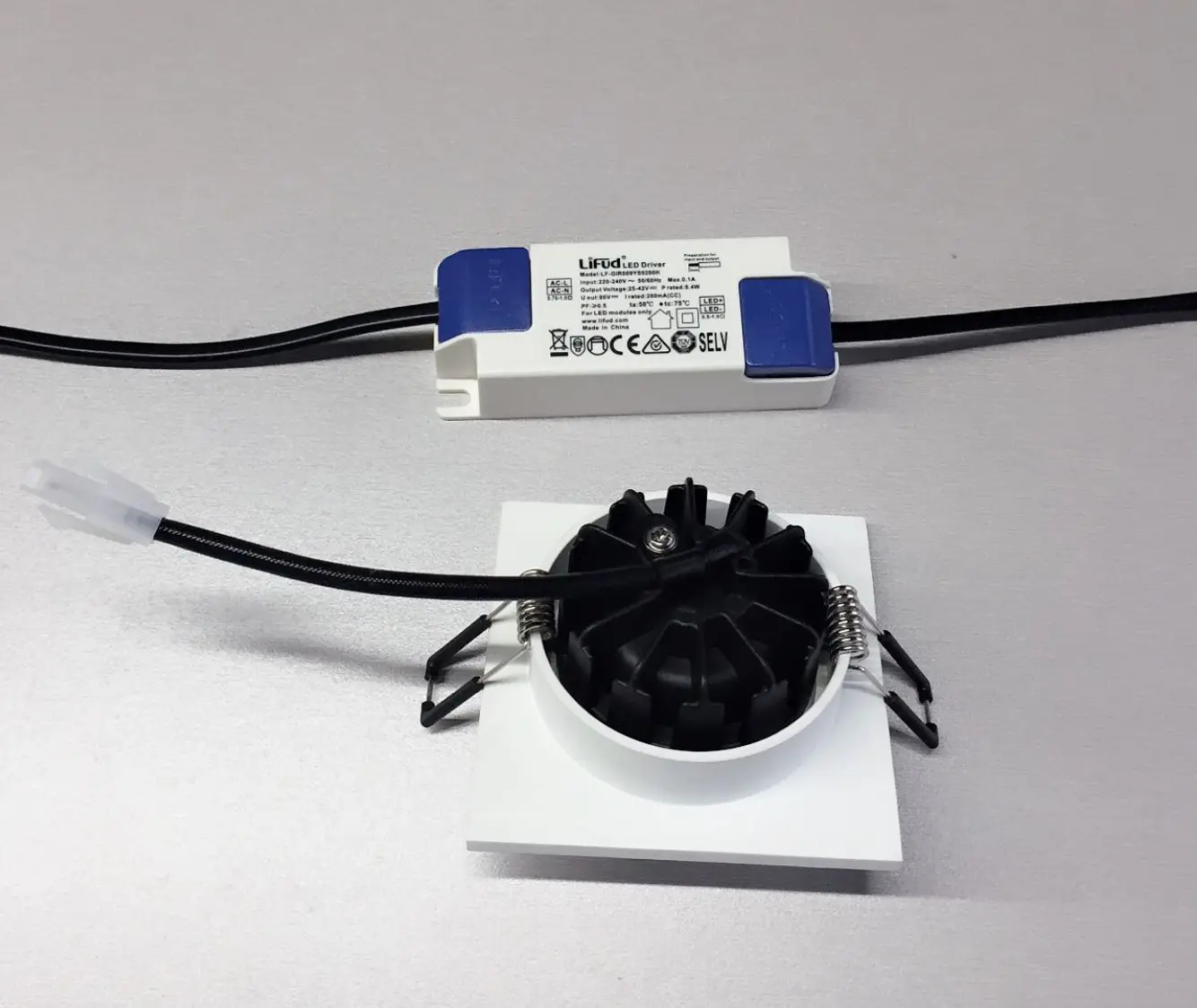

4 Lifud,philips, Tridonic constant current driver, PF>0.9 for above 8W,flicker free
== Specification ==
Model | Watt | Total Lumens | Size (mm) |
Cut out (mm) |
Material |
Finishing | CCT | Beam Angle | Input voltage | Output | CRI |
Dimmable |
CZ0301-A1T1 |
5W 7W |
450lm 630lm |
85*85*H48 | 72 |
Aluminum +PC |
White Black silver |
2700K 3000K 4000K 5000K |
15° 24° 38° 60° |
110-240VAC | DC36V |
>80 >90 |
Triac DALI 0-10V PWM
|
CZ0301-A2T1 |
7W 9W 12W
|
630lm 810lm 1080lm |
85*85*H58 | 72 |
Aluminum +PC
|
White Black |
2700K 3000K 4000K 5000K
|
15° 24° 38° 60° |
110-240VAC |
DC36V |
>80 >90 |
Triac DALI 0-10V PWM |
