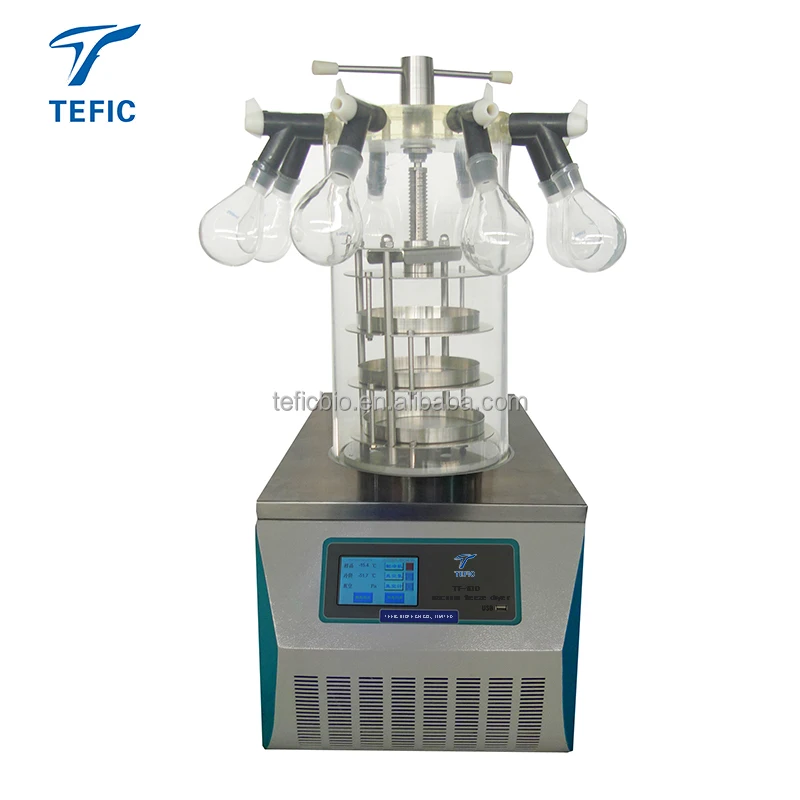

vacuum freeze dryer for laboratory equipments vacuum freeze dryer lyophilizer freeze drying equipment
- Category: Vacuum Drying Equipment >>>
- Supplier: TEFIC BIOTECH CO . LIMITED
Share on (60543742287):
Product Overview
Description
Product Description
The Freeze Dryer is suitable for freeze drying test of laboratory biomedical samples.

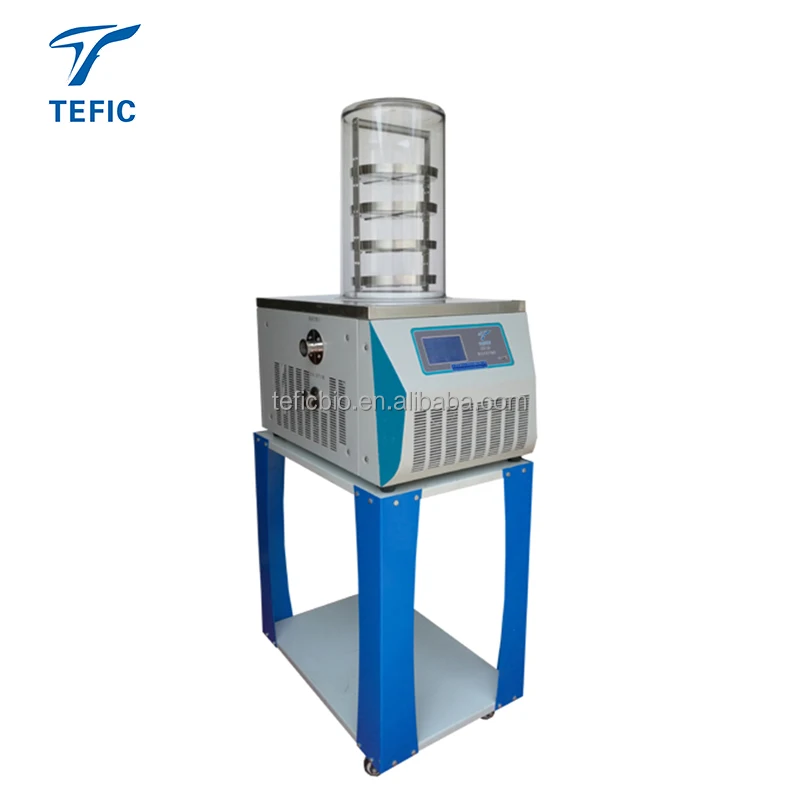

The table top type and vertical type Freeze Dryer is suitable for freeze drying test of laboratory biomedical samples.
Widely used drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Features:
1. The 7 inch LCD display panel.
2. With historical data inquiry function.
3. The machine is equipped with USB interface on control panel.
4. Large capacity Ice condenser trap and without coil inside.
5. Cascade refrigeration technology.
6. The pre-freeze shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying cabinet is transparent which is visual and safe.
9. The shelves are stainless steel, which can be adjustable per the requirements
Technical Parameters:

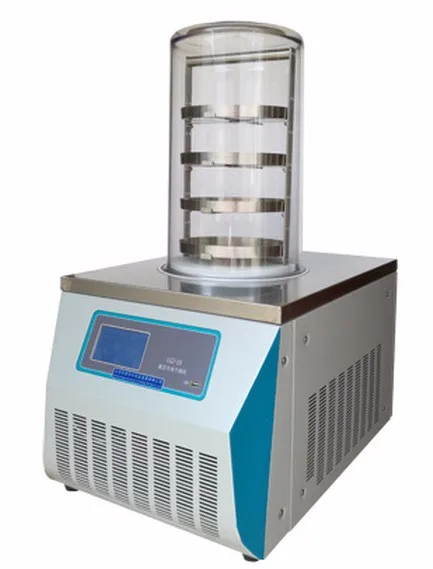

| Model | TF-10A | TF-10B | TF-10C | TF-10D | |||

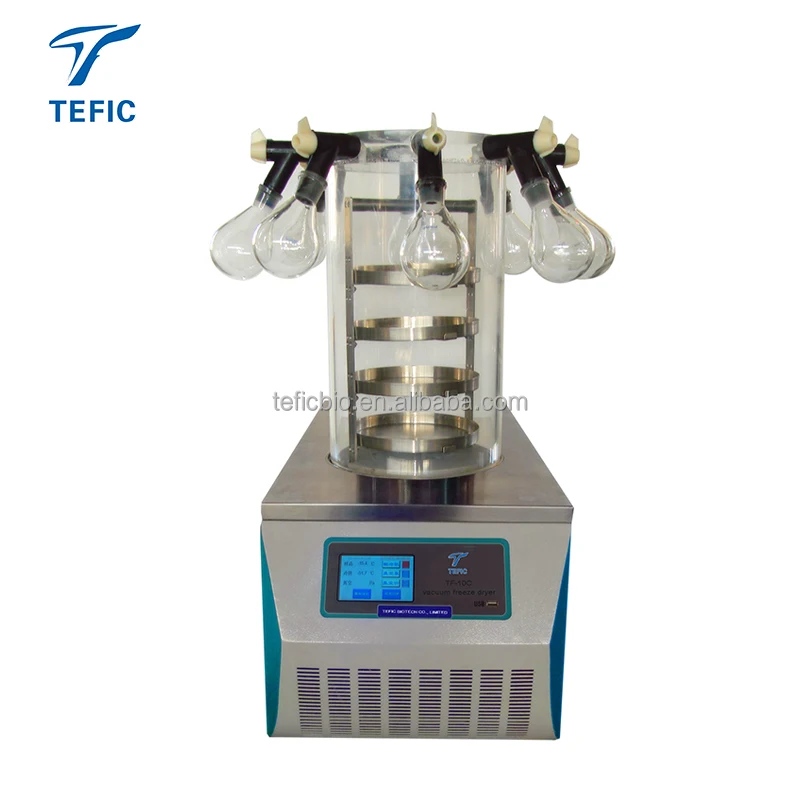

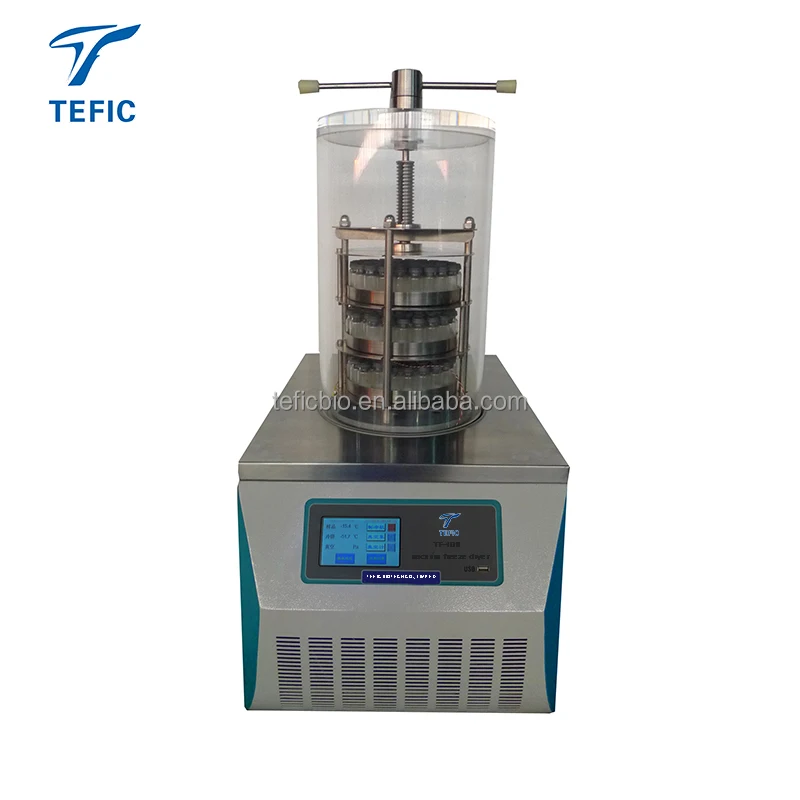

| Type | Standard chamber | Stoppering chamber | Standard chamber with 8 port manifold | Standard stoppering chamber with 8 port manifold | |||
| Final Condenser Temp (ºC) | ≤-56 | ≤-56 | ≤-56 | ≤-56 | |||
| Vacuum Degree (Pa) | <10 | <10 | <10 | <10 | |||
| Freeze Drying Area (m2) | 0.12 | 0.09 | 0.12 | 0.09 | |||
| Ice Condenser Capacity (Kg/24h) | 3 | 3 | 3 | 3 | |||
| Shelves | 4 | 3 | 4 | 3 | |||
| Material Loading Capacity/Shelf (ml) | 300 | 300 | 300 | 300 | |||
| Material Loading Capacity (ml) | 1200 | 900 | 1200 | 900 | |||
| Freeze Drying Time (H) | 24 | 24 | 24 | 24 | |||

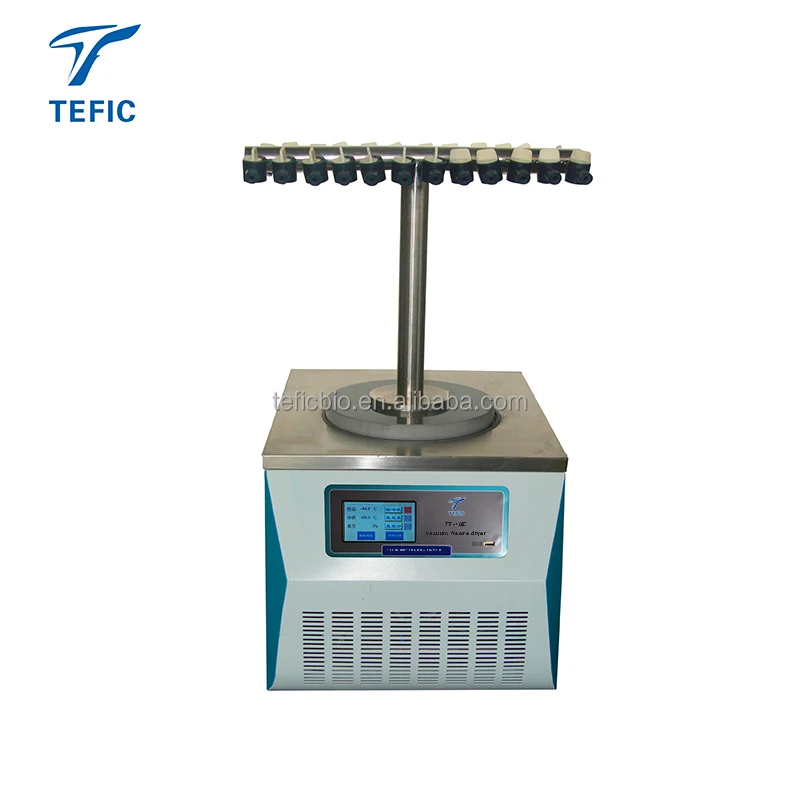

| Manifold | / | / | 8 pieces | 8 pieces | |||
| USB Interface | Yes | Yes | Yes | Yes | |||
| Drying Chamber (Standard) | Transparent acrylic | ||||||
| Vacuum Pump (Standard) | Model: 2XZ-2, Speed: 2L/s (China-Made) | ||||||
| Control System | Microprocessor, touch screen | ||||||
| Power Supply | AC220V±10%,50/60Hz | ||||||
| External Size (W*D*H) | 580*625*530/960mm | ||||||
| Package Size | Main Body | 670*660*610mm | |||||
| Drying Chamber | 350*350*570mm | ||||||
| Vacuum Pump | 570*370*190mm | ||||||
| Gross Weight | 105kg | 110kg | 110kg | 110kg | |||
Note | Shelf(plate) heating and cold trap(ice condenser) defrosting function are optional; The vacuum pump, standard drying chamber and all other accessories,like valve, flask etc. are standard accessories; The vacuum pump is independently packed in a separate package. | ||||||

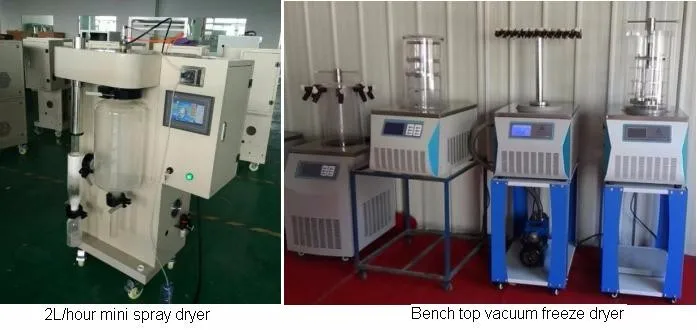

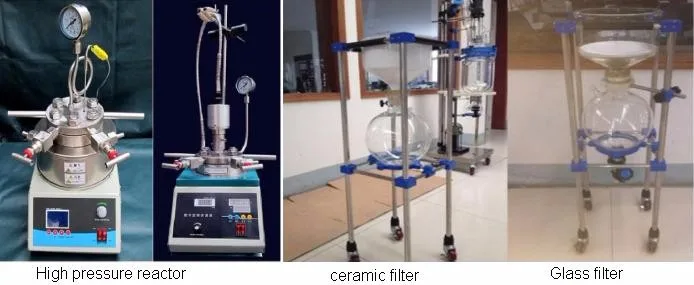

Our main products

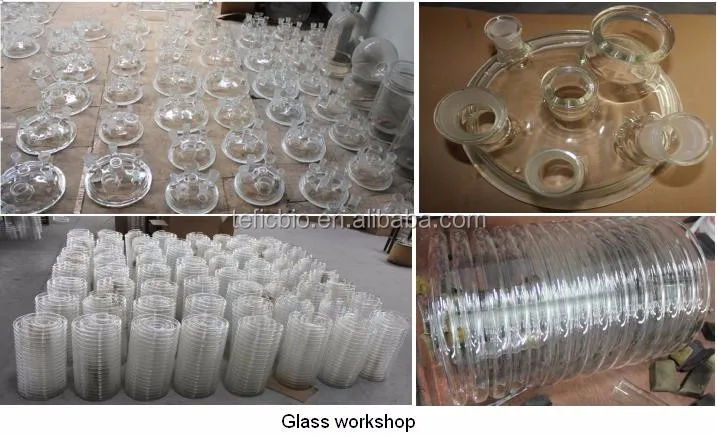

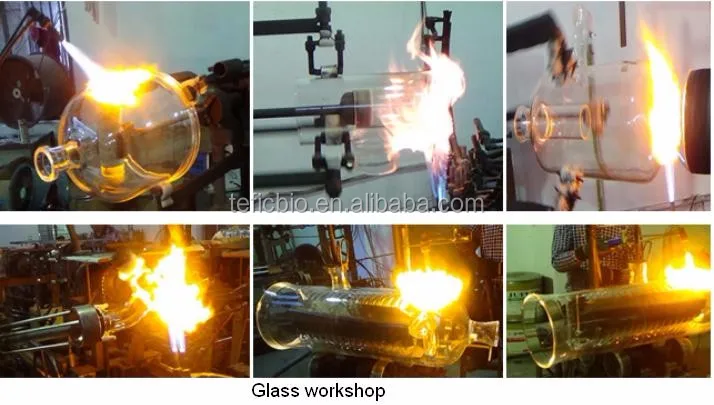

Our workshop
