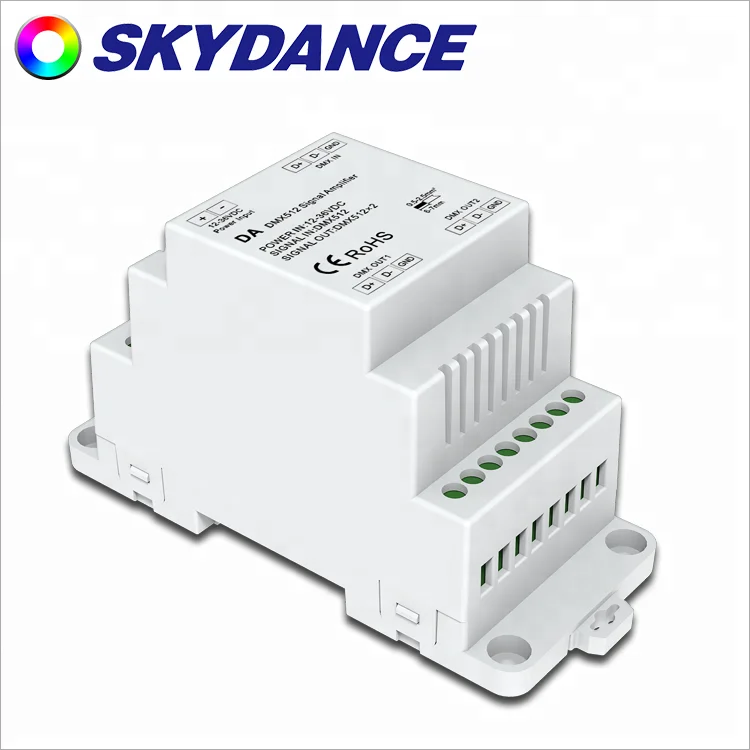

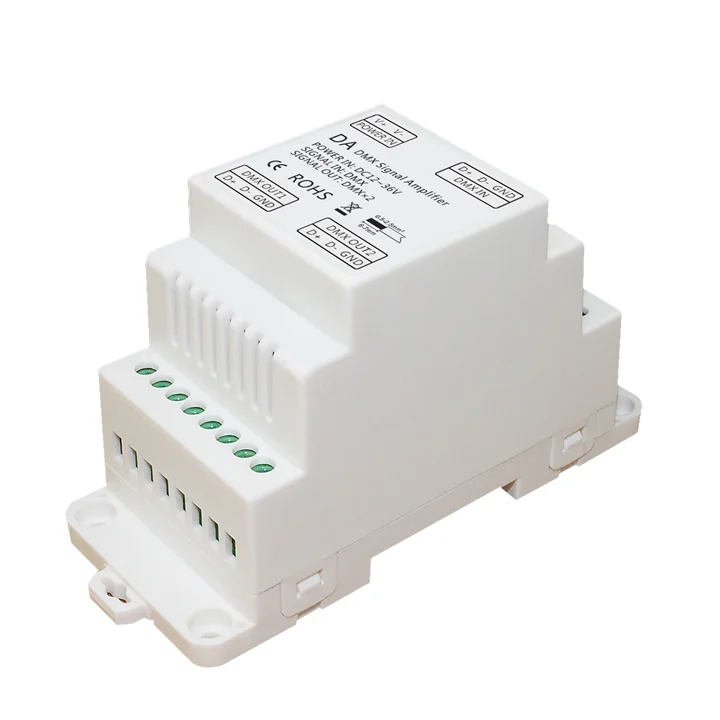

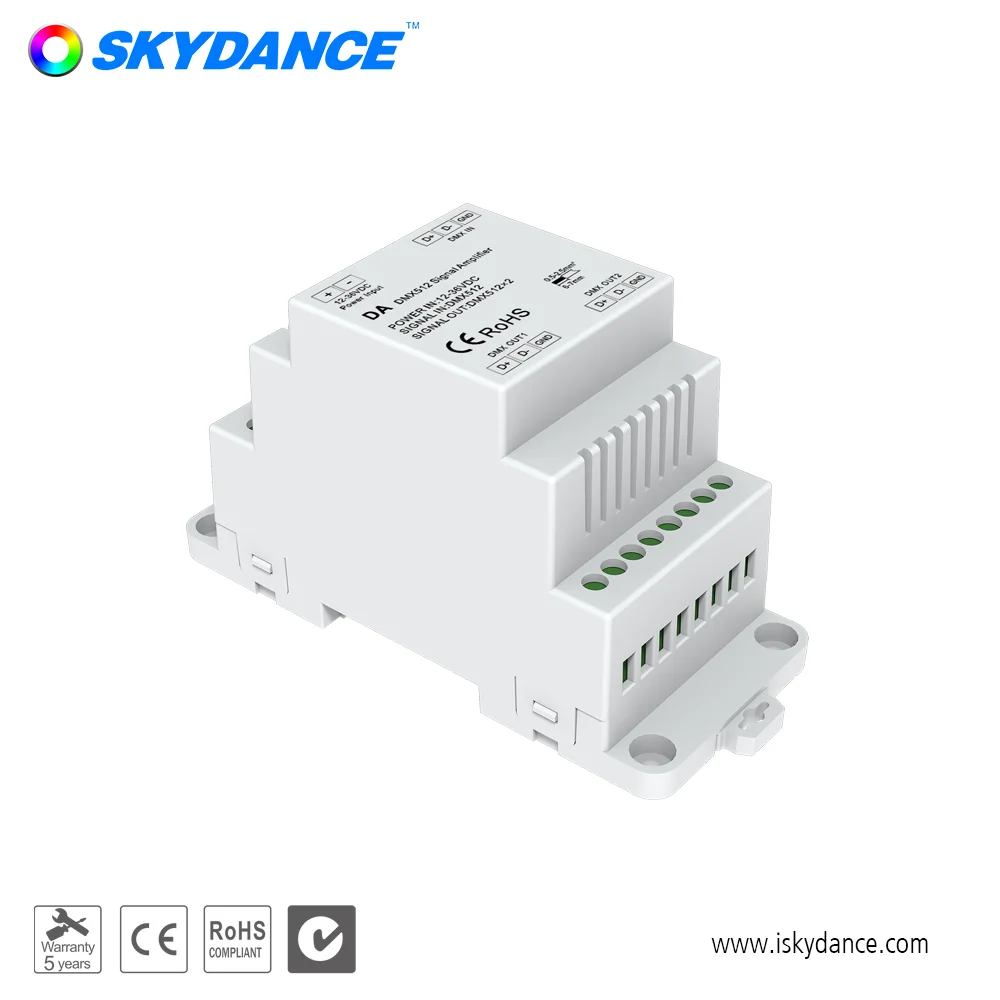

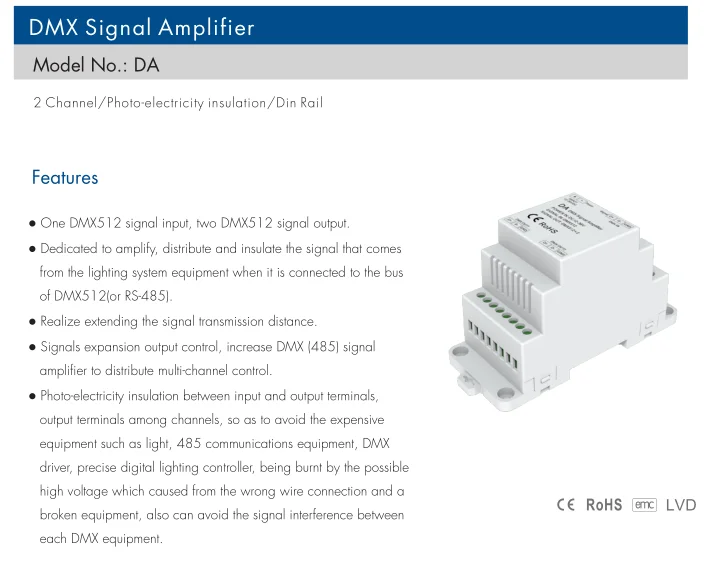

Skydance DA 4 Channels Din Rail DMX 512 RDM signal splitter signal amplifier in din rail 2 way

Summary

1. Din rail mounted DMX512 constant current decoder, four channel output,
200-1800mA(customized) per channel.
2. With standard DMX512 compliant interface, DMX address can be set easily and shown on
the digital numeric display.
3. Compatial with our DMX masters such as T12,T13,T15,T16,T17, and any other high quality
DMX master.
4. It can also work as stand-alone RGB/RGBW controller, have 30 kinds dynamic mode,
adjustable speed and brightness.
5. It can also work as stand-alone 4 channel dimming controller, each channel adjust
brightness independently, and save up to 8 groups brightness.
6. Work with power repeater to expand output unlimitedly.

Technical Parameters

 Input voltage: 12-48VDC
 Input signal: DMX512
 Output type: PWM constant current
 Output current: CH,200-1800mA/Output current 4 CH(customized)
 Output power: 14.4-57.6W(300mA)
 Decode number: 1/2/4 DMX Channel
 Dimming range: 0-100%
 Working temperature: -30℃~55℃
 Dimension: L115×W48×H67mm
 Weight: 120g

 OEM/ODM Customized Service

Skydance provides OEM or ODM services for software or hardware products of specific customers, as well as overall solutions for the lighting management system apply to a room, a floor or a building.Also provide customized product sticker and package accordingly.

1 plastic bag in a white box/Color box

Skydance specialized in produce a variety of LED controlling options, including DMX512 System,1-10V dimmer, SPI System,RF DIM/CCT, RF RGB/RGBW, Power Repeat and WIFI Controller etc. With our customer, we actively explore the ideas in archi tectural,residencial, commercial, industrial lighting controlling effects.

Skydance will provide the users with high quality products, incorporate solutions and service systems. Skydance insist to use the highest quality parts and the strict quality control techniques to ensure the reliability and long life of our products, and devote into research that continually gives rise to new technologies for improving Led lighting controlling effects, and steadfast pursuit in researching, designing and building our products.

We take pride in designing each product with the goal of providing the best lighting controlling performance possible in its price range.skydance can match operating temperature, power voltage and current of LED light source accurately and guarantee the 100,000 hours long life lighting solution of LED to a greater extent.It is applicative in all kinds of lighting applications, such as the office, retail, industry and outdoors and products that meet the requirement of various customers.

1. Are you a manufacturer or a trading company?

We are a manufacturer.

2. What kinds of export certifications of Skydance products?

All Skydance items pass CE and RoHS.

3. Could you provide the OEM or ODM service?

We provide OEM service for customers according to customer demand.

4. Are Skydance products self-development?

 Yes, all of our items are self-research and self-development.

5. What is the warranty for Skydance product?

All Skydance products have 5 years warranty from the purchase date, free repairs or replacements during  this period.

6. What' s the main products of Skydance?

Skydance specilized in Dimmer, CCT controller, RGB controller, DMX512 controller, SPI controller, 0-10V dimmer and power repeater.

7. How to purchase Skydance products?

Directly buy from our website, including alibaba.com and our official website.

More details and series,please send your inquiry at the bottem of this page.click "send" now!
