7 inch rugged handheld PDA UHF HF LF RFID reader barcode scanner finger print
- Category: PDAs >>>
- Supplier: Shenzhen Meskware International Trade Co. Ltd.
Share on (60545408245):
Product Overview
Description
Product Description

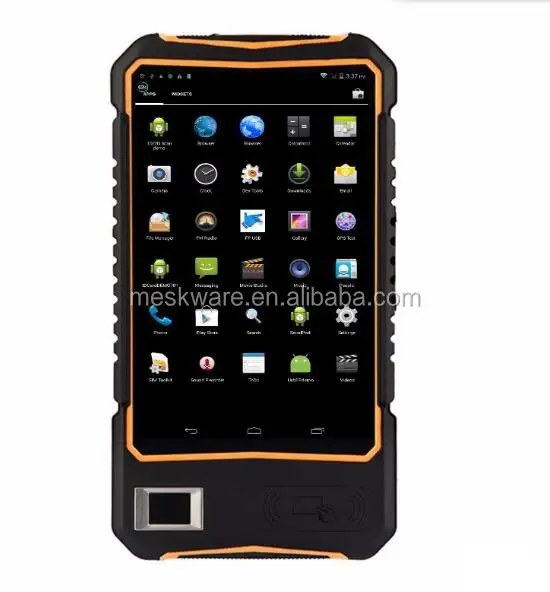

7 inch rugged handheld PDA UHF HF LF RFID reader barcode scanner finger print
Features
- Android 4.4.2
- 1GB RAM, 16GB ROM
- 1D/2D Barcode Scanner
- RFID LF/HF/UHF/NFC
- 7 inch 1024*600
- Rugged IP65/1.5 m Drop Tolerance
- Rechargeable 10000mAh Battery
- Rear Camera 5 MP, auto-focus with LED flash
- Support 3GWifi/GPS/BT
| Physical characteristics | ||||
| Dimension | 208mm(H)x130mm(W)x20mm(D)±2 mm | |||
| Weight | Net Weight :500g (including battery&wrist strap) | |||
| Display | 7.0 in. TFT-LCD(1024x600)touch screen with backlight | |||
| Backlight | LED backlight | |||
| Keypads | 3 TP keys, 6 function keys, 4 side buttons | |||
| Expansions | 2 PSAM, 1 SIM, 1 TF | |||
| Battery | Rechargeable li-ion polymer, 3.7V, 10000mAh | |||
| Performance | ||||
| CPU | Cortex A7 1.3GHz quad-core | |||
| Operating System | Android 4.4.2 | |||
| Storage | 1GB RAM, 16GB ROM, MicroSD(max 32GB expansion) | |||
| USER ENVIRONMENT | ||||
| Operating Temp. | -20℃ to 50℃ | |||
| Storage Temp. | -20℃ to 70℃ | |||
| Humidity | 5%RH to 95%RH(non-condensing) | |||
| Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range | |||
| Sealing | IP65, IEC compliance | |||
| ESD | ±15kv air discharge, ±8kv direct discharge, ±8kv indirect discharge | |||
| Development | ||||
| SDK | HHW Software Development Kit | |||
| Language | Java | |||
| Environment | Android Studio or Eclipse | |||
| Data communictaion | ||||
| WWAN | WCDMA(850/1900/2100MHz), GSM/GPRS/Edge 850/900/1800/1900MHz) | |||
| WLAN | IEEE 802.11 b/g/n | |||
| WPAN | BT Class v2.1+EDR, BT v3.0+HS, BT v4.0 | |||
| GPS | GPS(embedded A-GPS), accuracy of 5 m | |||
| Barcode scanner (Optional) | ||||
| 1D barcode | 1D laser engine | Honeywell N431x | ||
| Symbologies | All major 1D barcodes | |||
| 2D barcode | 2D CMOS Imager | Honeywell N6603 | ||
| Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. | |||
| Cameras | ||||
| Resolution | Rear 5.0 megapixel ,Front 2.0 megapixel; | |||
| Lens | Auto-focus with LED flash | |||
| RFID (Optional) | ||||
| RFID LF | Frequency | 125KHz/134.2KHz(FDX-B/HDX) | ||
| Protocol | ISO 11784&11785 | |||
| R/W Range | 2cm to 10 cm | |||
| RFID HF | Frequency | 13.56MHz | ||
| Protocol | ISO 14443A&15693 | |||
| R/W Range | 2cm to 8cm | |||
| RFID UHF | Frequency | 865~868MHz or 920~925MHz | ||
| Protocol | EPC C1 GEN2/ISO 18000-6C | |||
| Antenna Gain | Circular antenna(2dBi) | |||
| R/W Range | 1 m to 1.5 m(tags and environment dependant) | |||

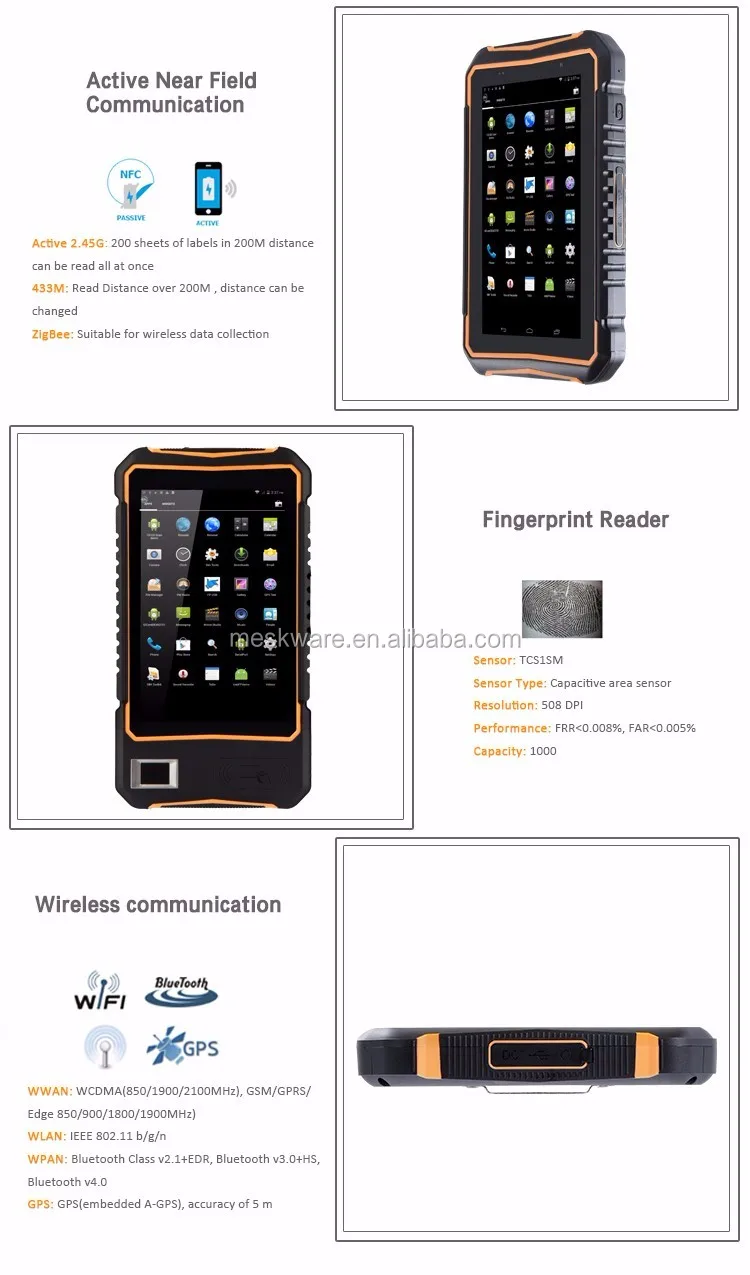

| Active 2.45GHz | Read range more than 200 m | |||
| 433MHz | Read range more than 200 m | |||
| ZigBee Reader (Optional) | ||||
| Protocol | IEEE 802.15.4 | |||
| Reading Range | 100 m to 200 m | |||
| Fingerprint reader (Optional) | ||||
| Sensor | TCS1SM | |||
| Sensor type | Capacitive, area sensor | |||
| Resolution | 508 DPI | |||
| Performance | FRR<0.008%, FAR<0.005% | |||
| Capacity | 1000 | |||
| PSAM Security (Optional) | ||||
| Protocol | ISO 7816 | |||
| Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 | |||
| Slot | 2 slots(maximum) | |||

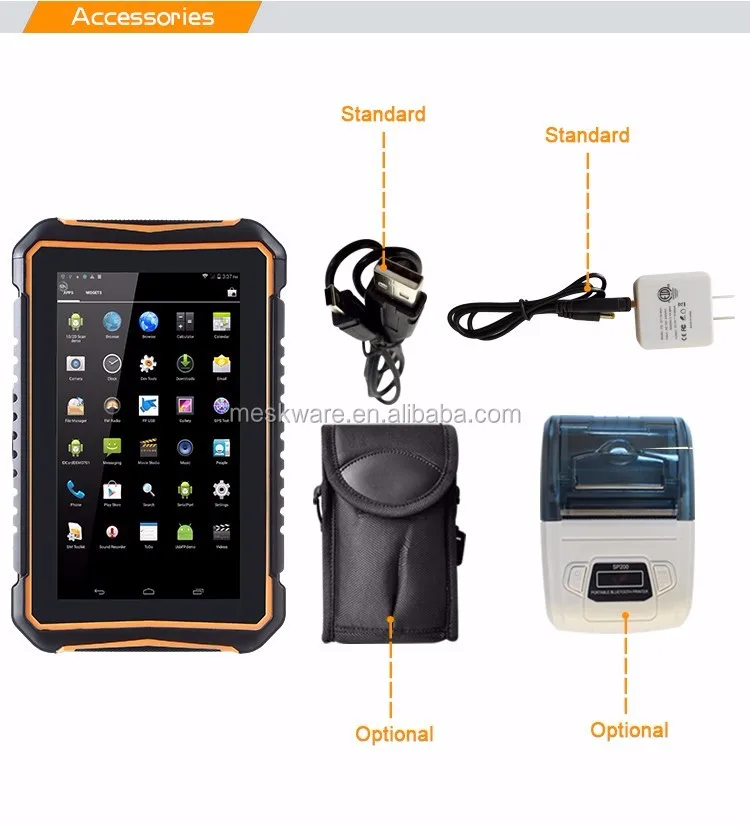

| Accessories | ||||
| Standard | 1xPower Supply | |||
| 1xLithium Polymer Battery | ||||
| 1xDC charging cable | ||||
| 1xUSB data cable | ||||
| Optional | Carry case | |||
| Thermal Printer | ||||
Related Products
Packaging & Shipping
Standard giftbox and carton package
OEM package available
Shipment by DHL, UPS, FedEx or by Sea
Our Services
OEM service avaiable
Start-up screen
Logo print
OEM package
FAQ
Q: How can we get a sample for testing first.
A: Please contact our sales to get latest price and freight, then proceed the sample online or offline. After receiving the payment, we will deliver samples to you.
Q: Is ODM/OEM service available?
A: Yes, we offer ODM/OEM according to clients requirement, like logo on device, start-up screen, customized package, Apps pre-install etc.
Q: Is discount available for bulk order?
A: Yes, we offer discount for bulk order. Please contact sales to get your special discount.
Q: What kinds of payment do you support?
A: T/T, Paypal, Western Union
Q: What shipment methods do you use?
A: DHL/UPS/FedEx is the mostly used way, or other shipment methods required by clients.
Q: How long will it take for delivery?
A: Mostly it takes 3-5 working days. For remote area, it takes longer time.
Q: How long is your warranty period?
A: We offer one year warranty.
