Product Overview

Description

benchtop wave solder

Wave Solder Benchtop LF230A

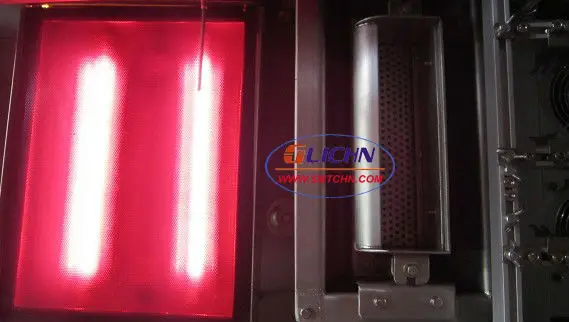

LF230A Wave solder machine with bench top design and lead free solder, using less solder and energy; Occupy small space and complete middle volume production; High performance shot light preheat and reliable fluxer (foam or spray available)







Features



benchtop wave solder

1 Easy operation and control;
2 Solder temperature and time are digital display on the controlling panel;
3 High temperature heat elements are in the machine to ensure wave solder stable performance and best reliability.
4 Wave solder machines with bench top and lead free are widely application. The unit has replaced iron and dip solder furnace to do soldering in small-middle batch production.
5 PCB productions are up to 200 pcs within 8 hours, high efficiency in university, research and design factory.
High efficiency: Reasonable price, long life Small size and low power consumption.
6 Titanium pot for lead free soldering is advance and environmental; Long use life and best price;
7 Small dimension, saving space, the best choice for research and low volume production.









Specification



Model

Bench top lead free wave LF230A

Max power consumption

5Kw

Solder pot capacity

60--80Kg

PCB Size

200 * 260 mm (It can be made by order)

Solder temperature range

Room~300°C adjustable

Preheat Temperature range

Room~200 °C

Wave height adjust range

5~ 12mm

Melt time

60min

Flux spray

Foam spray

Power supply

AC 220V 50HZ

Conveyor speed

0.5~ 2 m /min

Dimension

900 * 668* 580mm

Weight

Approx 150kg

Packing

Exemption wooden packing

Packing size

L110* W800 * H700mm



 benchtop wave solder

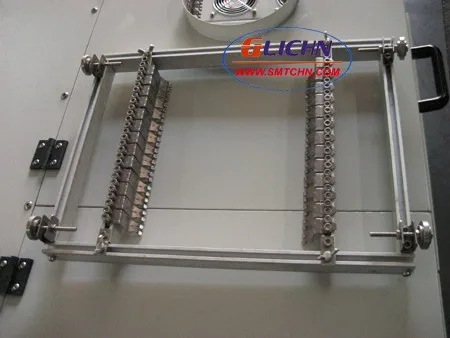

Adjustable Titanium Finger Conveyor

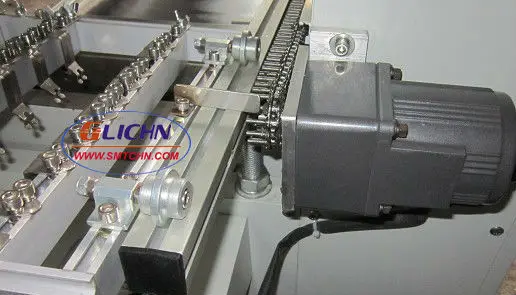

Adjustable carrier, with titanium fingers on pallet automatically indexes boards on chain-drive conveyor.

Pallets are available for Multi-piece small boards to process soldering.
Foam Flux

Integrated automatically activated foam flux with adjustable wave height.

Whole soldering process

PCB boards move downward to flux and preheat, then it will reverse to solder and cool-down. The board wave soldering is completed and load new board.

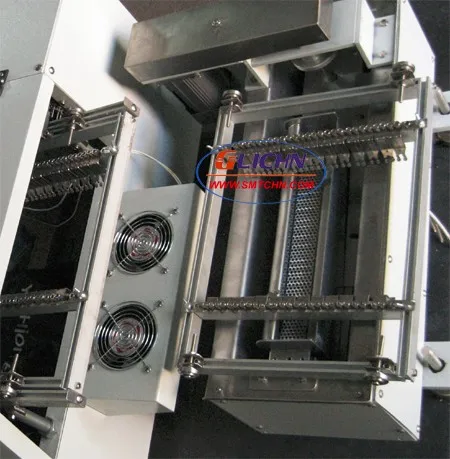

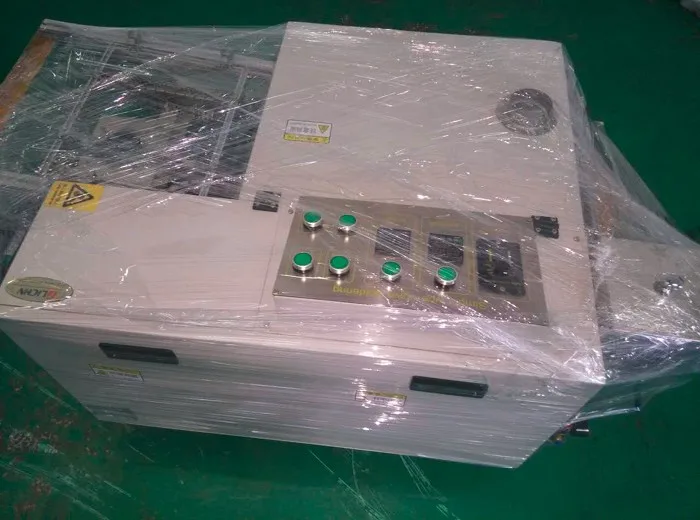

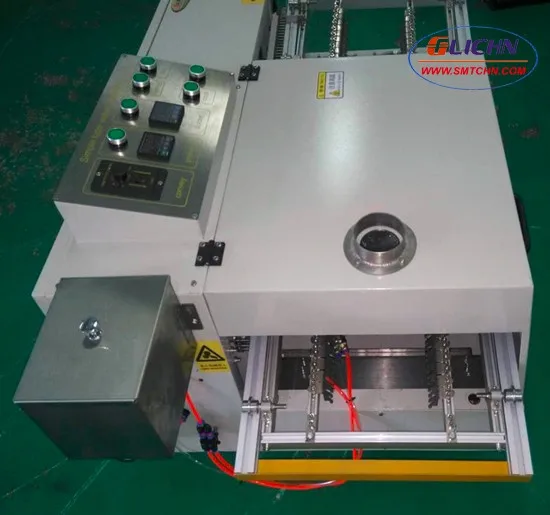

Benchtop wave soldering machine.jpglead free wave solder.jpgtable top wave soldering.jpgwave solder machine 230a.jpg

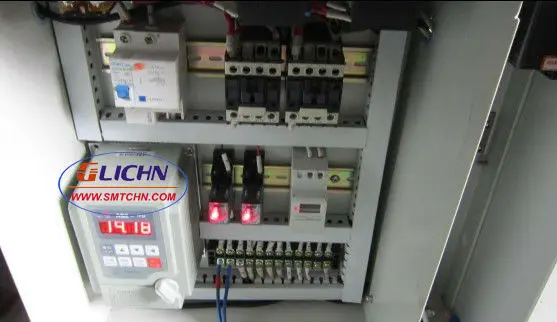

wave soldering benchwave soldering table topwave solder table top
