Product Overview
Description
Product Description
Product Application
The hydraulic pipe bending machine is applicable for bending stainless steel and other kinds ofthin-wall metal pipes into arc shapes. It is suitable for round, square and rectangular pipesand features smooth round bending.
Model | WG-76 | WG-76(2) | ||
Bending diameter range | 4-76mm (thickness:2-3mm) | 4-76mm (thickness:2-4.5mm) | ||
Bending Speed | 8r/min | 6r/min | ||
Max Bending Angle | 180 | 180 | ||
Min Bending Angle | 5 | 5 | ||
Motor power | 4kw | 5.5kw | ||
Power supply | 380V,50HZ,3P | 380V,50HZ,3P | ||
Foot switch voltage | DC 5V | DC 5V | ||
Overall dimension （mm） | 1000*900*1100 | 1100*900*1100 | ||
Total weight | 350kg | 400kg | ||
MOQ | 1 set | 1 set | ||
Remarks: this type of machine without molds, the molds is customized as client’s request. | ||||
WG-76 model
WG-76(2)model

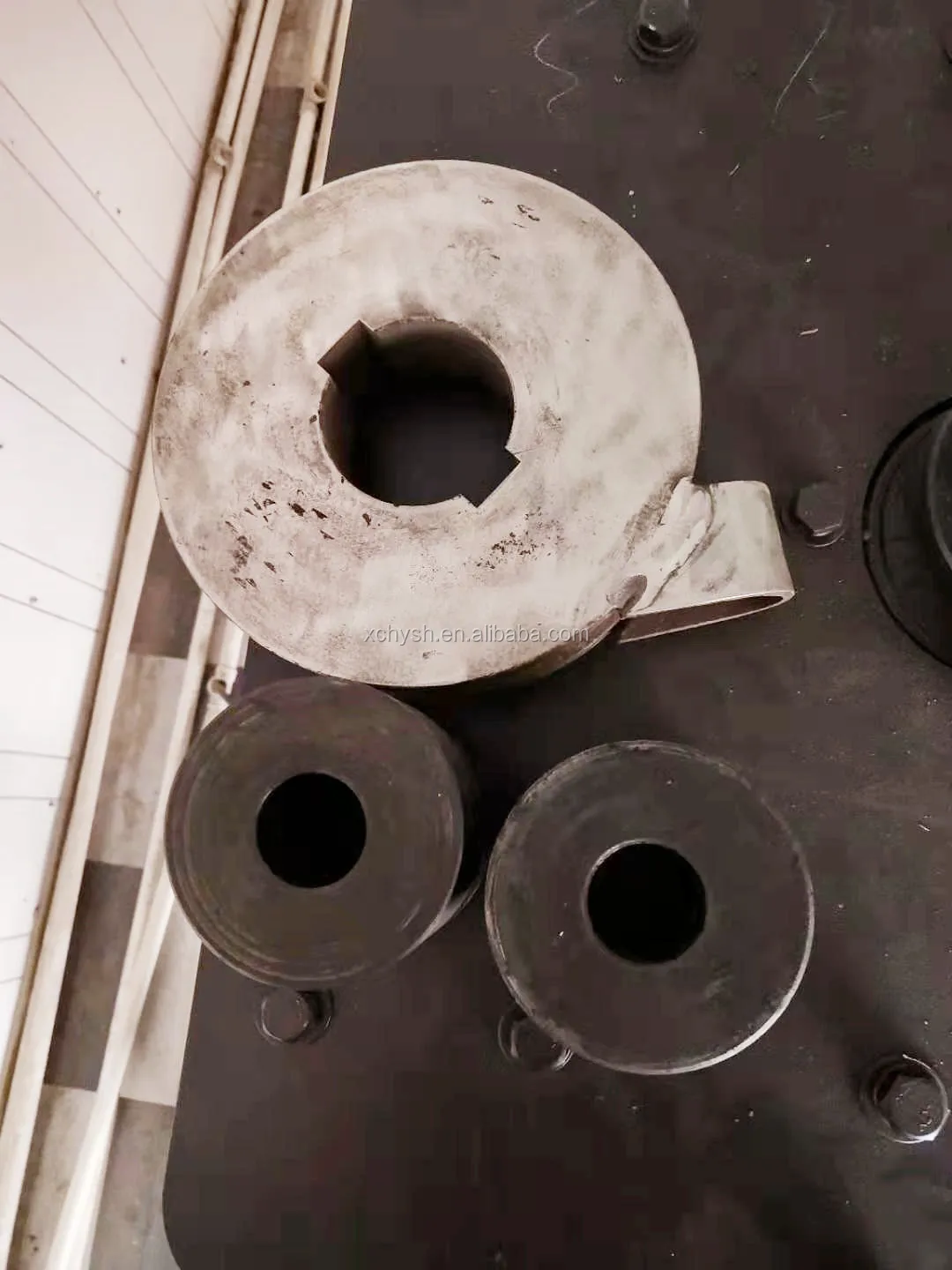

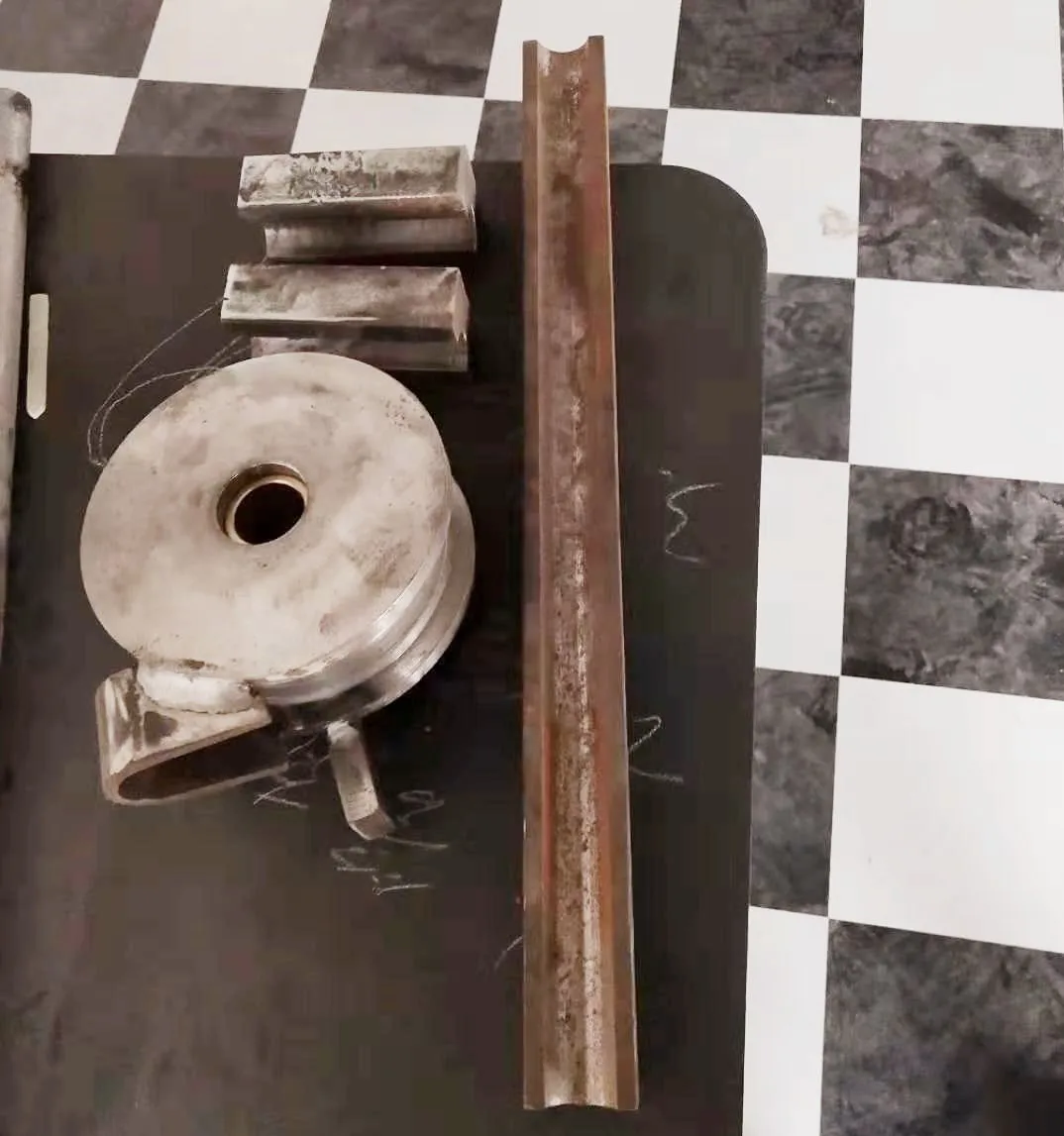

About mold
Detailed Images
First: ensure the diameter and thick of the tubes
Second: ensure the steering of the motor
Third:adujust the angle according to the need
Forth:put the tubes into the dies and impact the pinch roller

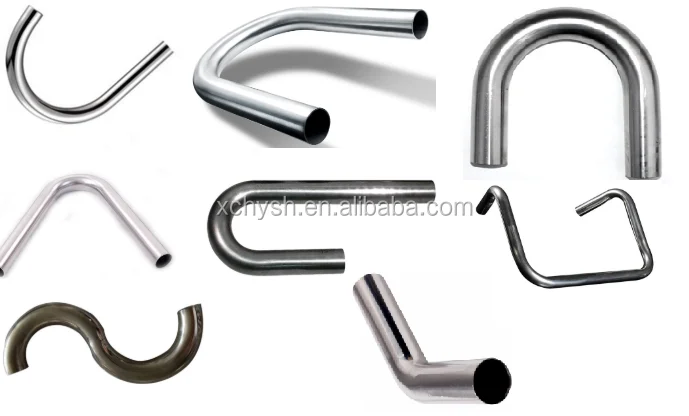

Bending effect
