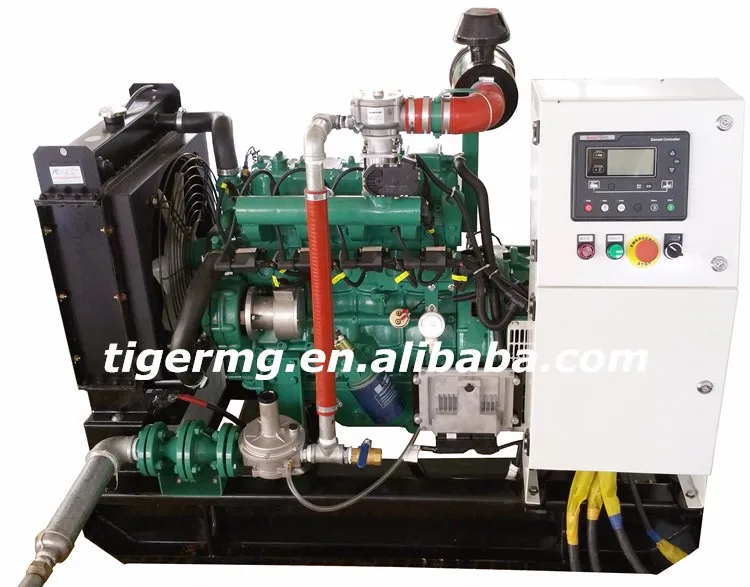

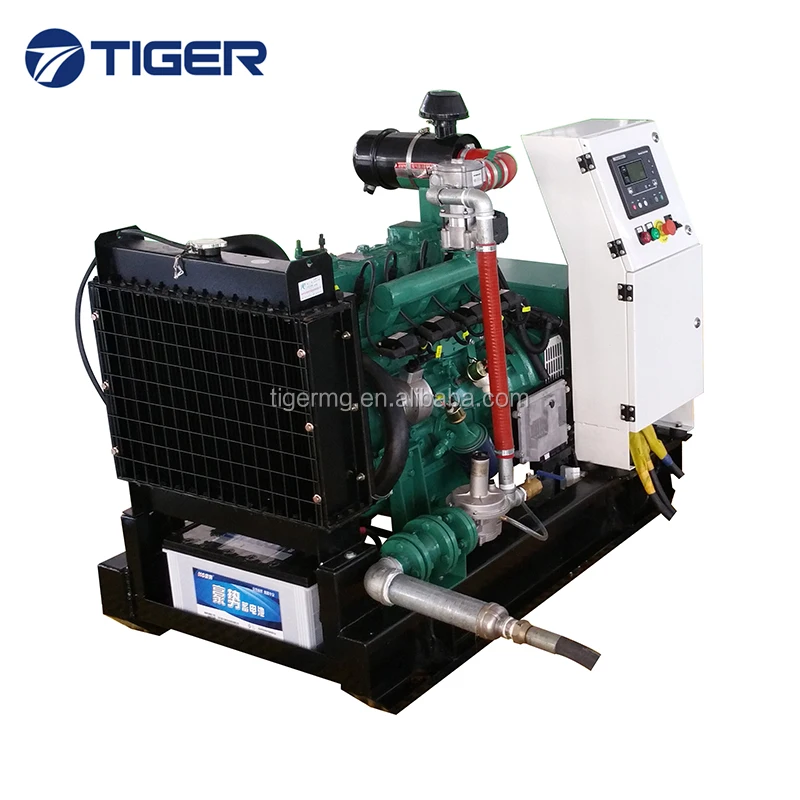

Home Use Small Power Convenient Operation 10KVA Lpg Generator
- Category: Gas Turbine Generators >>>
- Supplier: Shandong Tiger Machinery Technology Co. Ltd.
Share on (60568634833):
Product Overview
Description
Product Description
Advantages of 10kva LPG generator
Adopt the completely computer optimized parts specially used for gas engine:
1) Alloy air valves & seat rings, eradicate air leakage problem, ensure sufficient engine power.
2) Pistons with heat-resisting & wear-resisting coating, extend the lifetime greatly.
3) Specially designed combustion chamber, ensure the sufficient burn & engine power.
4) The gas & air is mixed out of the cylinder, mix better and burn sufficiently.
5) Integrated control technology, adjust the gas intake quantity automatically according to the load variation.

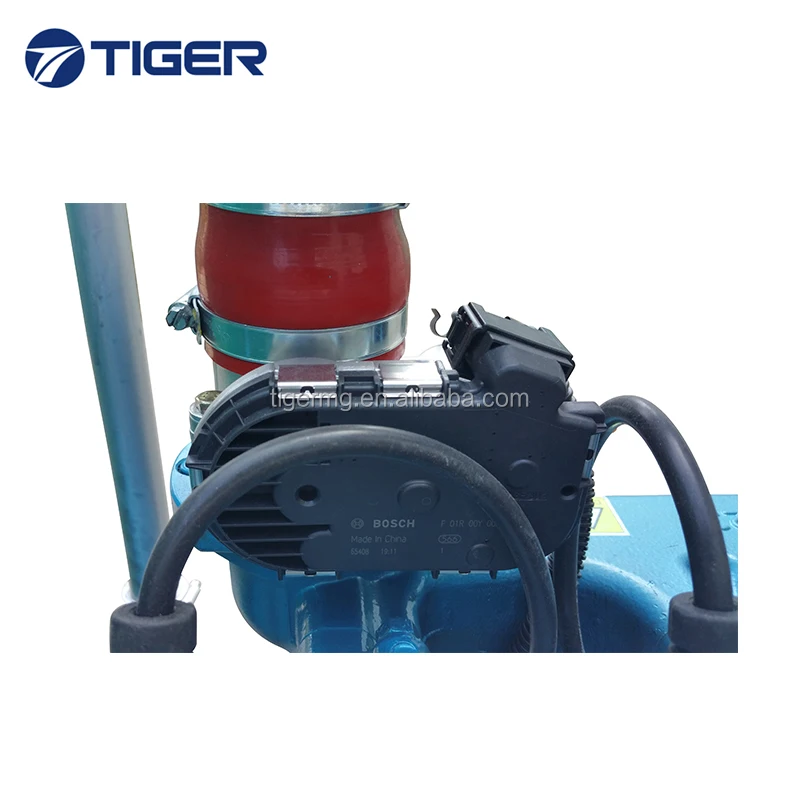

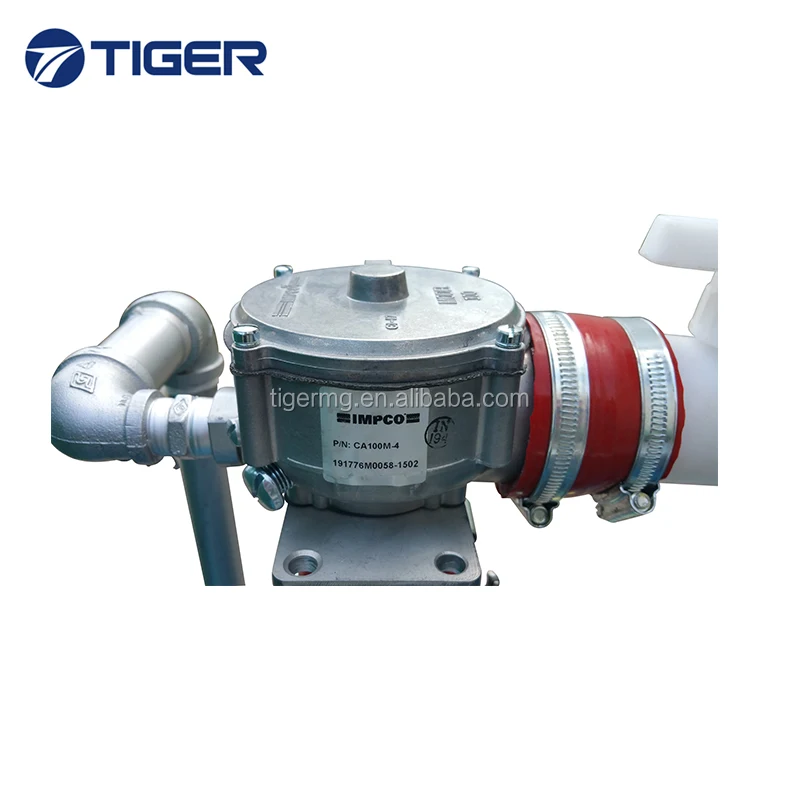

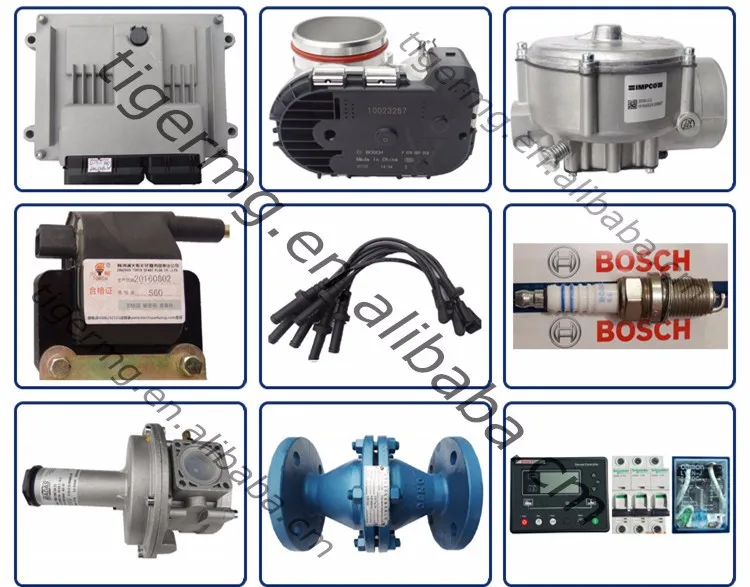

6) The ignition coils & cables, ECU are from Weichai group, with Bosch electric throttle & spark plugs, USA Impco gas & air mixer, ensure the accurate gas intake volume.
7) With industrial class fire blocker, the fire or explosion accident will never happen.
8) Italy Madas brand gas pressure reducer, make sure the gas pressure is steady.
Basic parameters of 10kva LPG generator
Generator set parameters | |
Type | Open type |
Continuous power | 10kw |
Electric Parameters | 3 phase, 50HZ, 230V / 400V, PF=0.8 |
Connect method between engine and alternator | Single bearing by elastic steel disc plate |
Control system ( brand & model) | ComAp MRS10 |
Base steel frame thickness | 3-7 mm |
Fuel tank volume | n/m |
Generator set color | As per client request |
Painting | Ground paint & surface paint for anti-rust |
Engine basic parameters | |
Model | Ricardo 4100D-NG |
Type | Water-cooled,4-stroke,direct injection |
Continuous power/speed | 20kw/1500rpm |
Standby power | 22kw/1500rpm |
Intake method | Turbo charged, air to air intercooled |
Governor type | Electronic type |
Rated Fuel Consumption at 100% load | 0.29 m3/kw.h |
Max. lub oil consumption | 1.23 g/kw.h |
Starting method | 24V electric start |
Alternator basic parameters | |
Brand | Stamford or Wattek |
Type | Brushless, 100% copper wires stator & rotator |
Copper wires vernished times | 3 times |
Rated output power | 10kw |
Overload capacity and time | 10%, 1 hour every 12 working hours |
Voltage Regulate method | Adjusted automatically by AVR |
Protection class | IP21 |
Insulation Class | H |
Total offer list | |

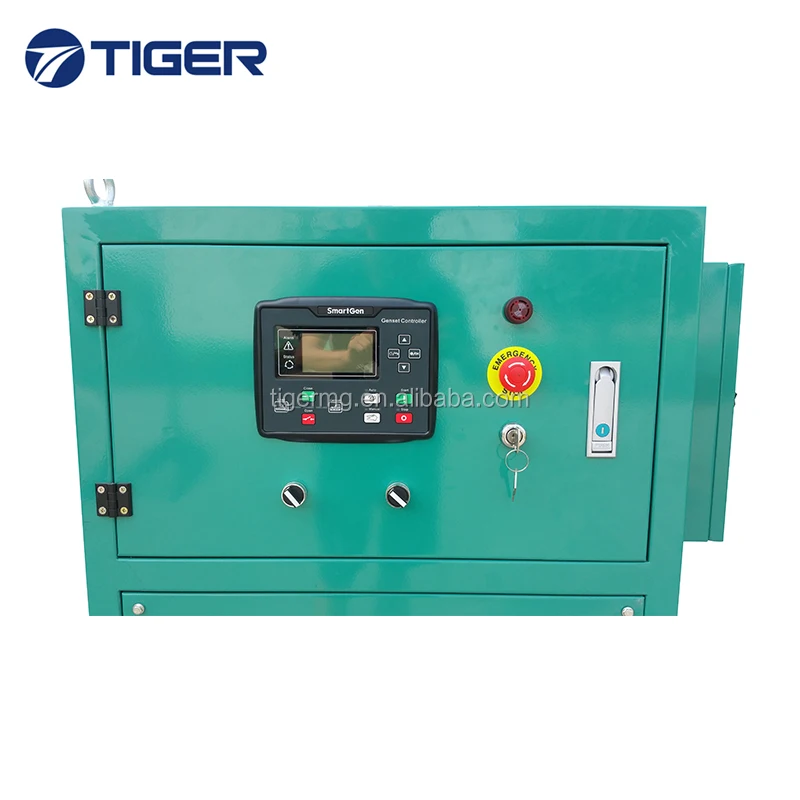

1) Gas engine ( with corrugated tube, silencer, switch for battery, starter relay, alternator AVR, USA Baldwin filters, stainless steel heat-shield cover,high quality sensors, tool case, free spare parts, parts catalogue & instruction manual) 2) Alterantor (with air breaker, AVR, instruction manual) 3) Small control cabinet( with Smartgen 6120UC controller, battery float charger, Schneider breaker, Omron relay) 4) Base steel frame ( with industrial shock absorbers, forklift work hole) 5) Free-maintenance battery (include connecting cables)(lead-acid) 6) Strong woodcase packing. | |
Optionals | |
1) Engine quality upgrade kits, completely reinforce the parts quality 2) Alternator PMG system | |

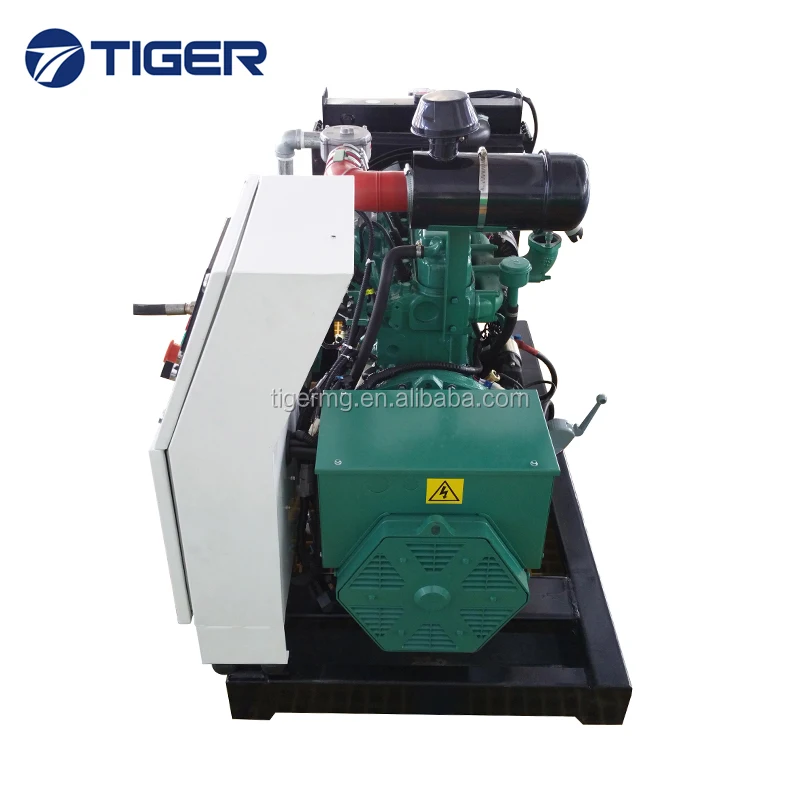

Alternator
Advantages of alternator ( 2 years warranty) for 10kva LPG generator
Pack & delivery
Services
Quality control
1) Engines: Only choose high quality engines with excellent quality parts like P type injectors, Bosch fuel pump etc
2) Alternators: Only choose 100% copper wires alternator, with China top brand breakers & AVR.
3) High quality parts like Schneider breaker, Omron relay, ComAp controller etc.
4) Professional 8 Hours test on 25%, 50%,75%, 100%, 110% load before delivery.
Worry-free service
1) Service before sales: professional advices for generator set choice, configurations, installation, investment amount etc to help you find what you want. No matter buy from us or not.
2) Trade-assurance purchase: make the safe deal through Alibaba, no matter money, quality or service, all is guaranteed!
3) Production service: keep tracking for the progress of production, you will know how they are produced.
4) Service after sales: free instructions for installation, trouble shooting etc. Free parts are available within warranty time.

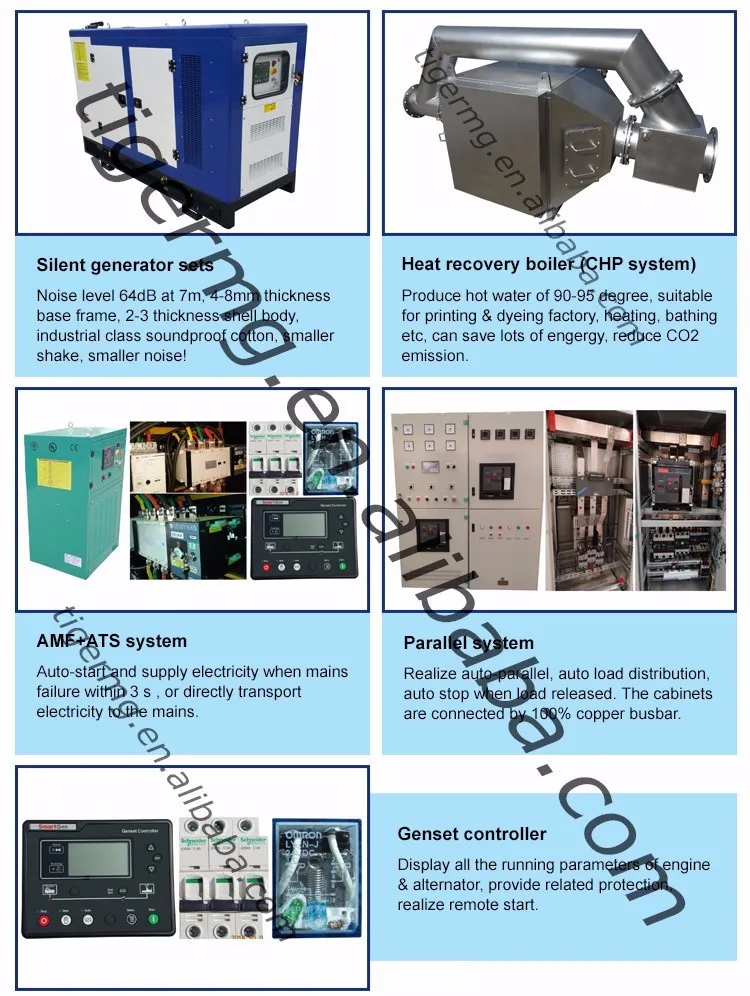

Optionals
Following configurations are recommended according to different working requirement

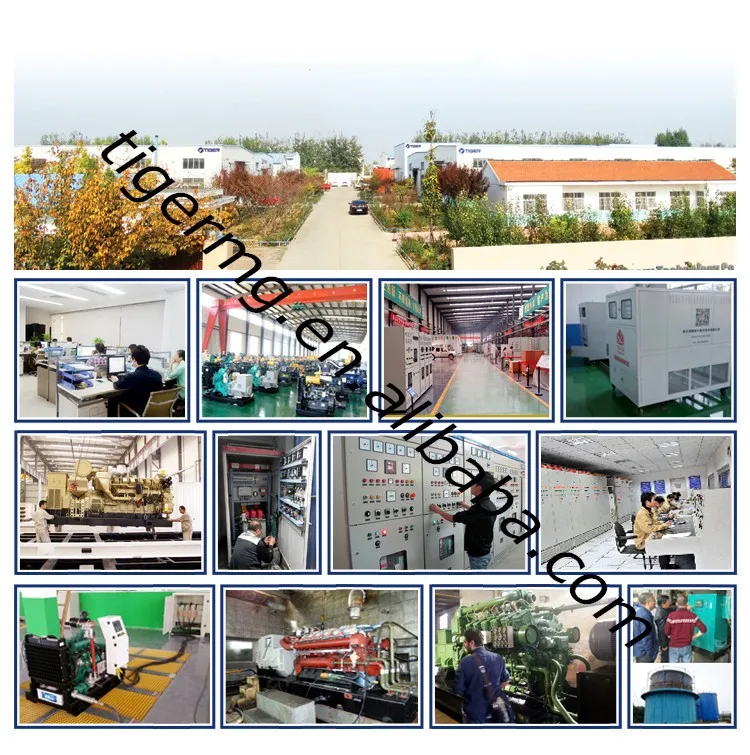

About us
1) Experienced workers, responsible atitudes, advanced equipments !
2) Super long warranty & worry free service!
Clients & fairs

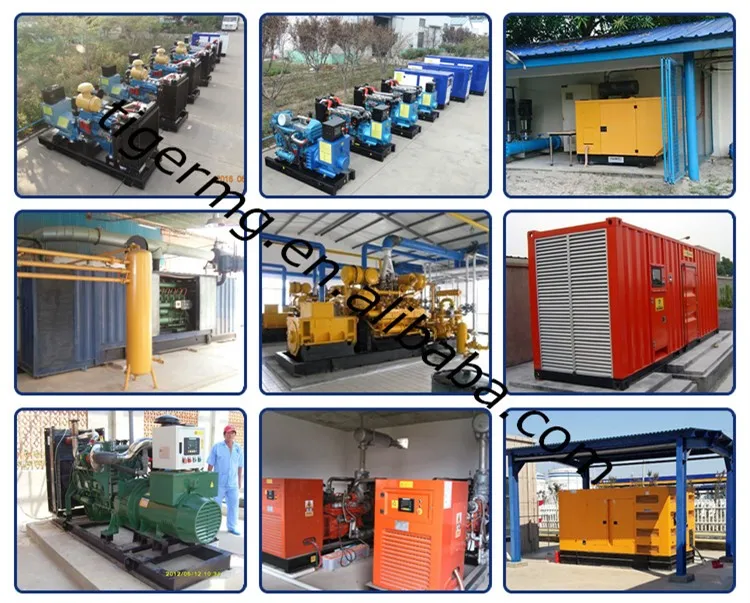

Cases
The reliable quality & service make us win the customer's deep trust.
