1. Automatic assembly and test solution in accordance with special technical requirement of switch 2. Alerting system that will warn the operator if lack of materials or breakdown of machinery 3. custom-design vibratory bowl feeders keep each kind of material supply in time separately 4. Well performed control system consist of PLC and touch panel ensure equipment working stable and reliable 5. Providing after sale service both domestic and overseas

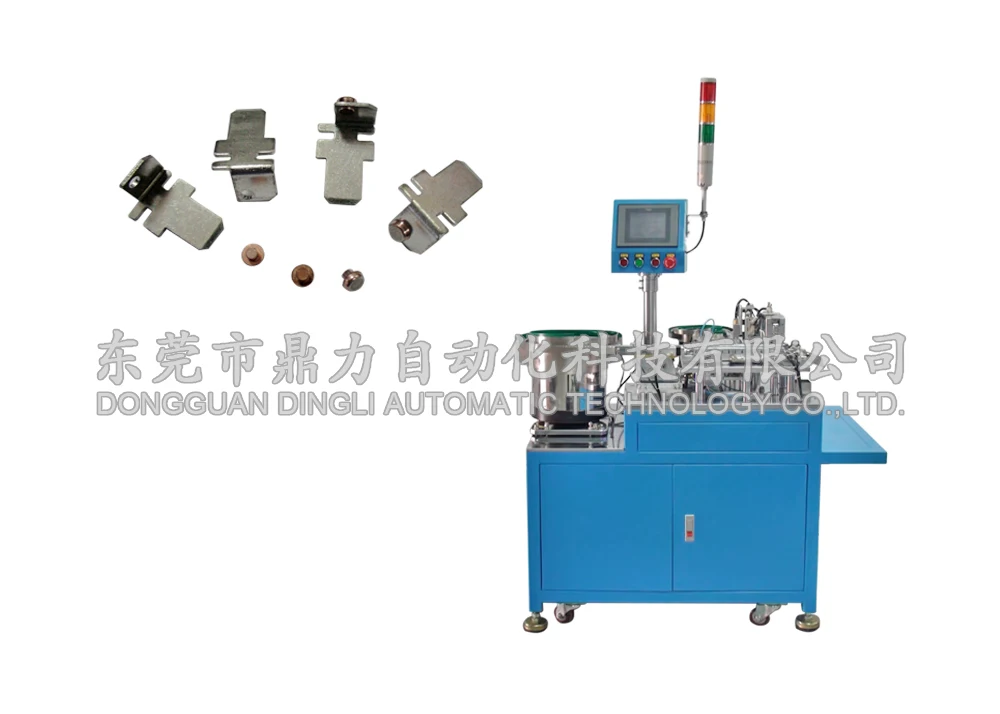

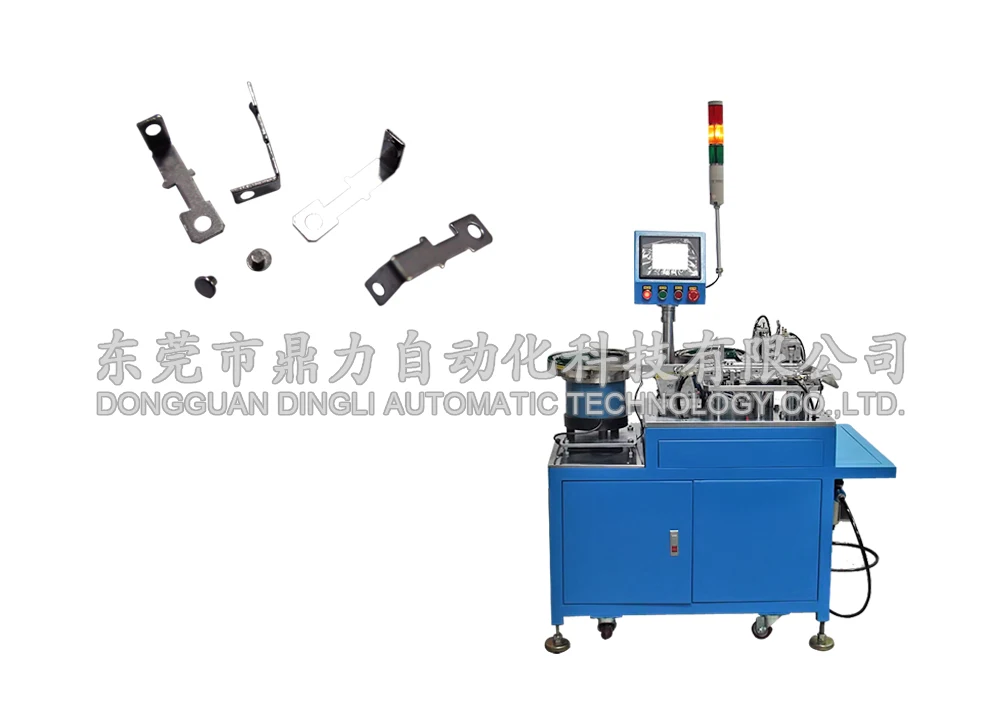

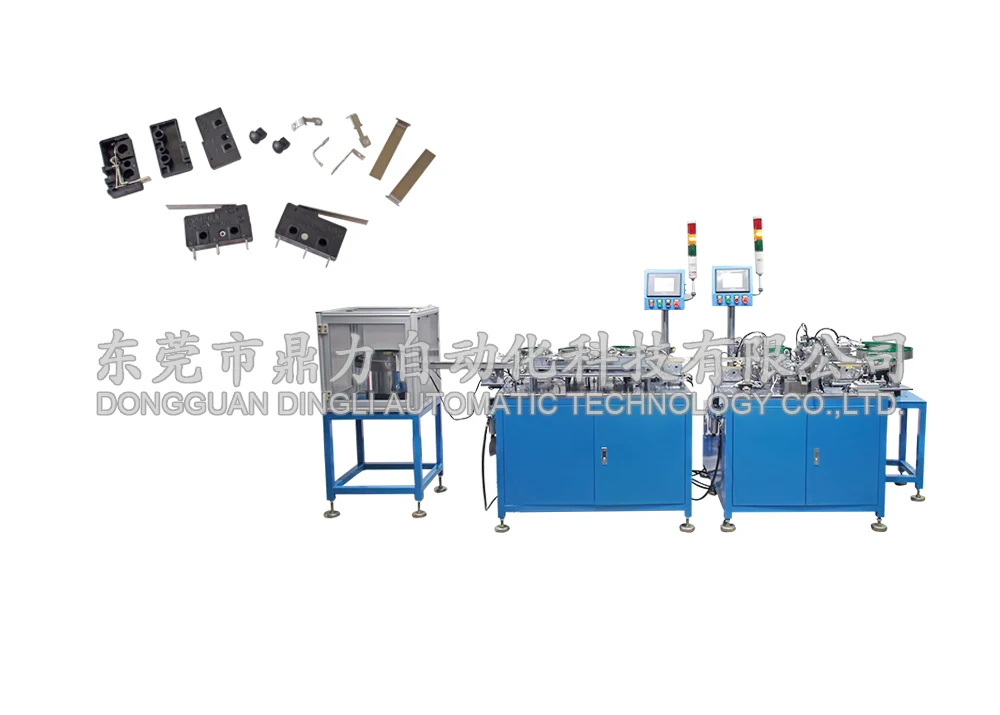

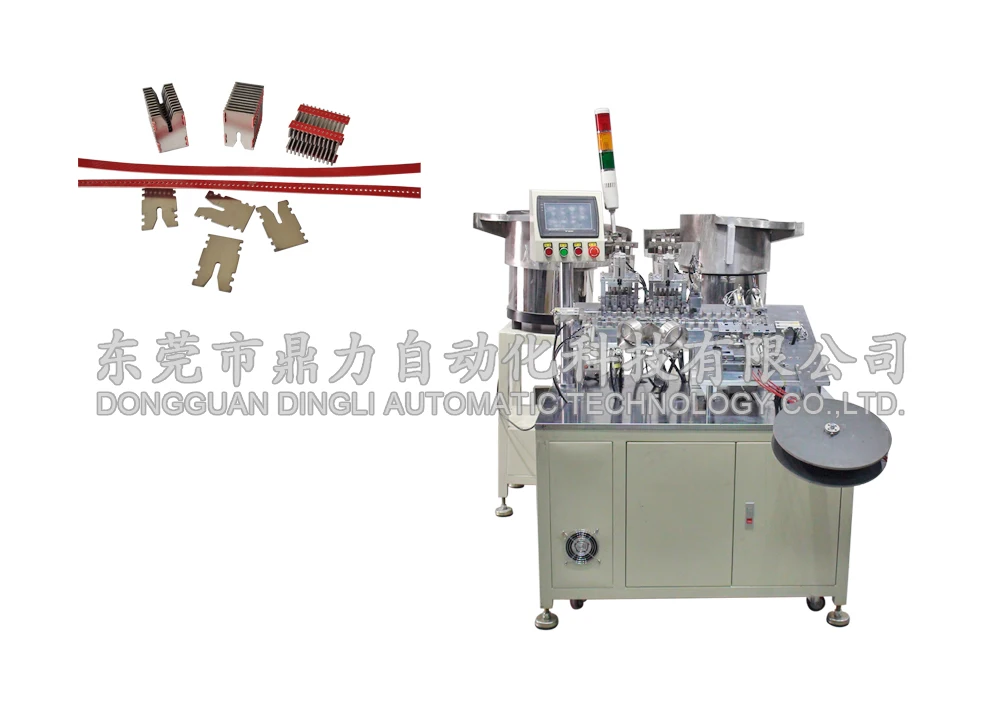

aumomatic Electric Switch/rocker switch/rotary switch/micro switch Assembling Machine
No.
Items
Parameter value
1
model number
DL-SW-10X04
2
voltage
110-240V, 50/60Hz
3
Power(W)
2 kw
4
Dimension(L*W*H)
Approx. 1200*750*780mm
5
Feeding Method
Automatic vibratory bowl, reel and tape
6
Productiviy
35pcs/min
7
Driven Type
Pneumatic
8
Weight
Approx. 185kg
Main Features
1. Holding technological parameter of processing and without reenters when next time operating, convenient for operator and improve working efficiency. 2. The Pneumatic component or parts are introduced with branded Air TAC,SMC ,Festo that enables the process more stable and accurate; 3. With the user-friendly human machine interface (HMI) and touch control panel, easy to operate and also protect the safe of the operator. 4. The machine frame employs electrostatic spraying & paint-drying processes with the purpose to anti-rust;
Certifications
Detailed Images
Machine Parts
Name: CCD
Brand:
Original:
Main Features
Name: vibration bowl Brand: Original:
Machine Parts
Name: indexing table Brand: Original:
Main Features
Name: Jack conveyor Brand: Original: Germany
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
2123 (L) * 980 (W) * 985 (D)
Weight
1.2 T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
1023 (L) * 910 (W) * 789 (D)
Weight
0.8 T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
