Машина для выдувного формования пластиковых бутылок VICTOR MSZ40L

Product Overview

Description

VICTOR Plastic bottle injection blow molding machine MSZ40L





VICTOR Plastic bottle injection blow molding machine MSZ40L specification:

Injection system	Unit	MSZ60
Screw Diameter	mm	50
Screw L/D		20.6-23 :1
Injection weight(HDPE)	g	280
Max.screw speed	rpm	10-235
Heating capacity	KW	10.8
Clamping & blowing system
Clamping force of injection	KN	572
Clamping force of blowing	KN	89
Max.Platen size(L*W)	mm	740*390
Min.Mold thickness(H)	mm	280
Heating capacity of mould	KW	6
Stripping system
Stripping stroke	mm	200
Dry cycle	sec	6
Driving system
Motor power	KW	30
Hydraulic pressure	Mpa	15

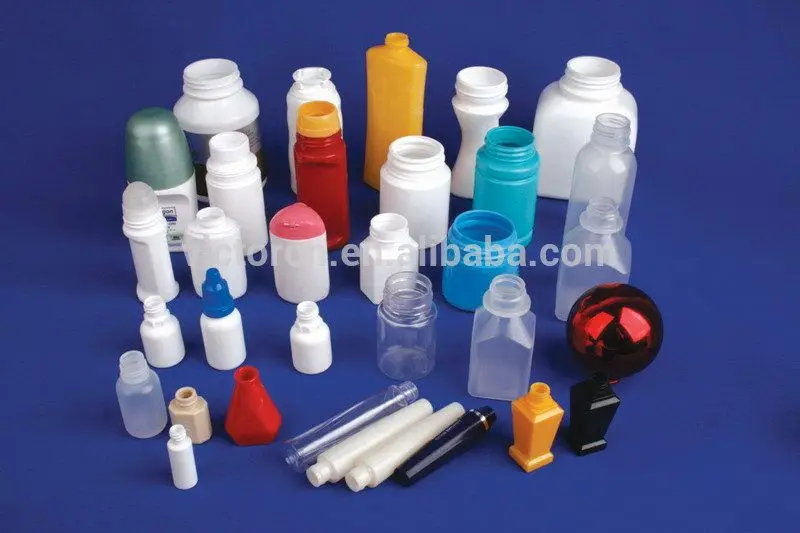

Product range
Suitable bottle range	ml	3-800
Max.bottle height	mm	≤200
Max.Dia.of bottle	mm	≤100



VICTOR Plastic bottle injection blow molding machine MSZ40L advantage:

Horizontal injection system,plasticing reliable and operation easy.

Single crossbeam style clamping system,easy for mould amounting.

Variable delivery pump driving system, energy saved and effcient high.

Big mould dimension,output higher than same level machine.

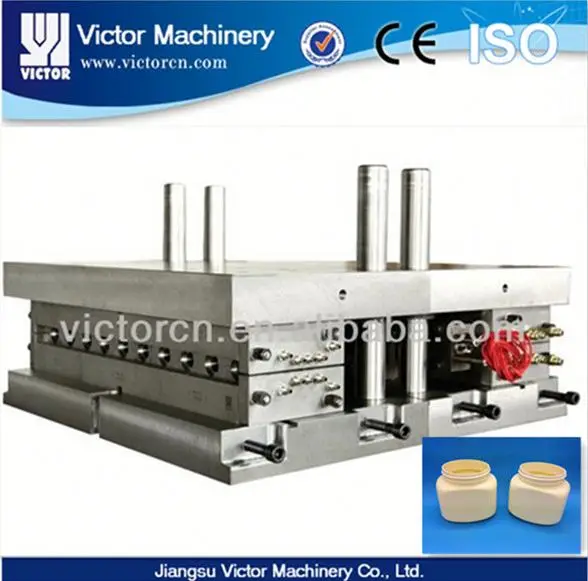

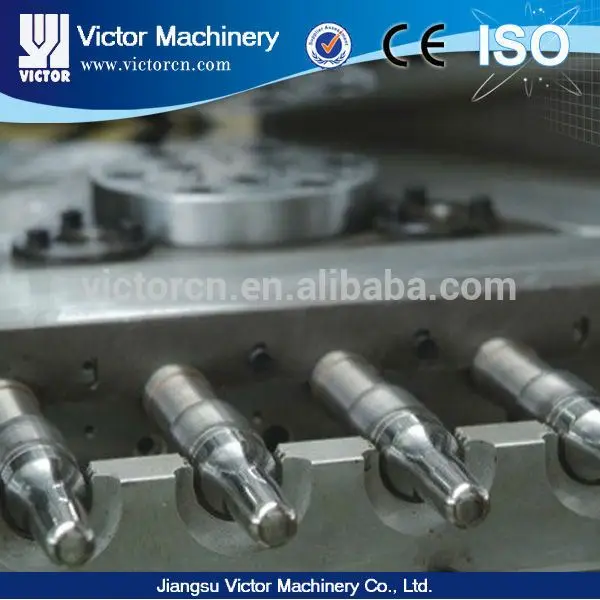

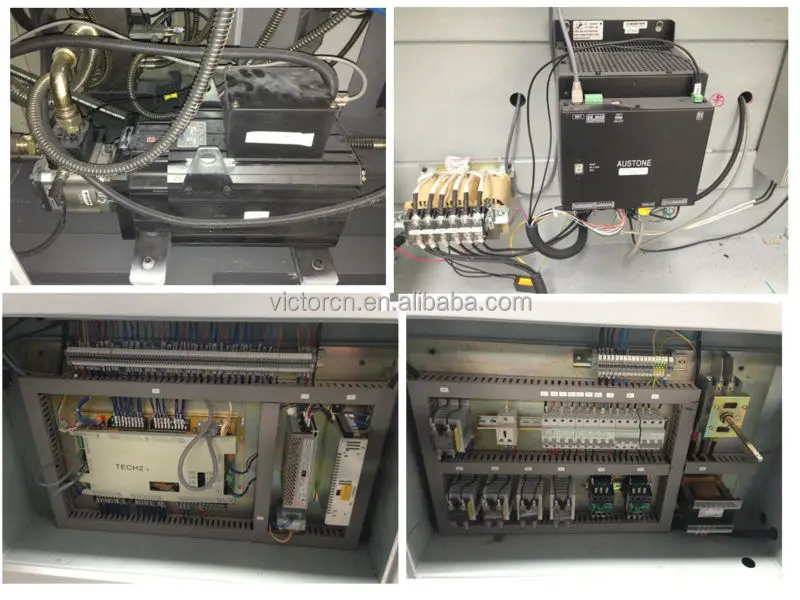

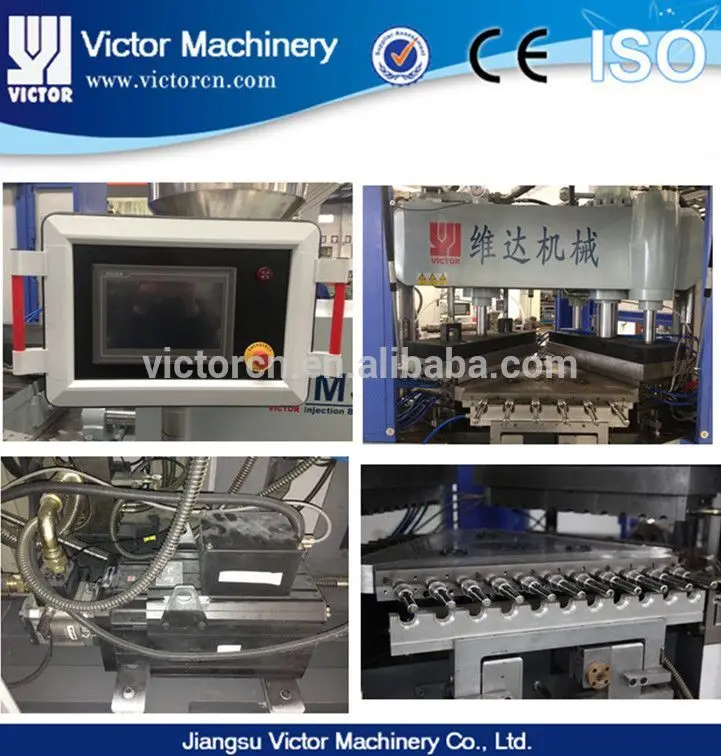

parts of VICTOR Plastic bottle injection blow molding machine MSZ40L :







Payment Terms:

30% of the PI amount paid advanced as deposit by T/T,

Balance of the PI amount paid byT/Tbefore delivery at sight.

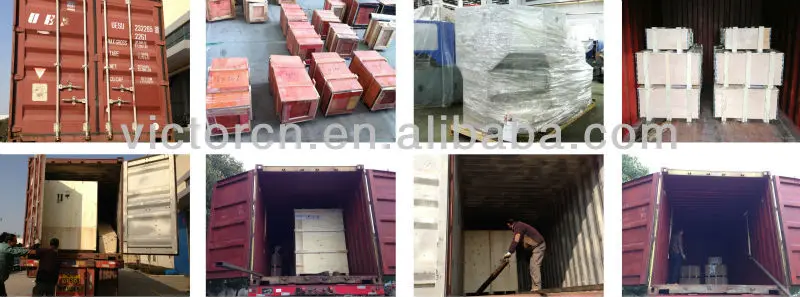

Packing Information:









Why choose Perfect VICTOR Plastic bottle injection blow molding machine MSZ40L

 VICTOR MACHINERY, one leading manufacturer of plastic machines for packing industrial, we make plastic extruder and sheet extrusion line, injection blow molding machine and moulds,  PET rotary blowing molding machine and Bi-injection molding machine,  also many precision moulds for caps. We are the key unit of China Plastic Machinery Association, High-tech Corporation in Jiangsu Province.Established in 1958, we located south of Jiangsu, only 110km to Shanghai City. We have advanced tooling machines, and some imported CNC lathe machine and milling machine. With the mind of Sincerity, Innovation and Service, we have excellent team for design, tooling , molding and thin sheet extrusion, all the Whole Plant Equipment we sold to overseas and domestic market got good feedback. We are ISO9001:2000 quality control system and CE certificated, and our products well sold in Asia, Europe ,South America, Middle East and Africa countries.Choose VICTOR,you can find the best solution and partner.

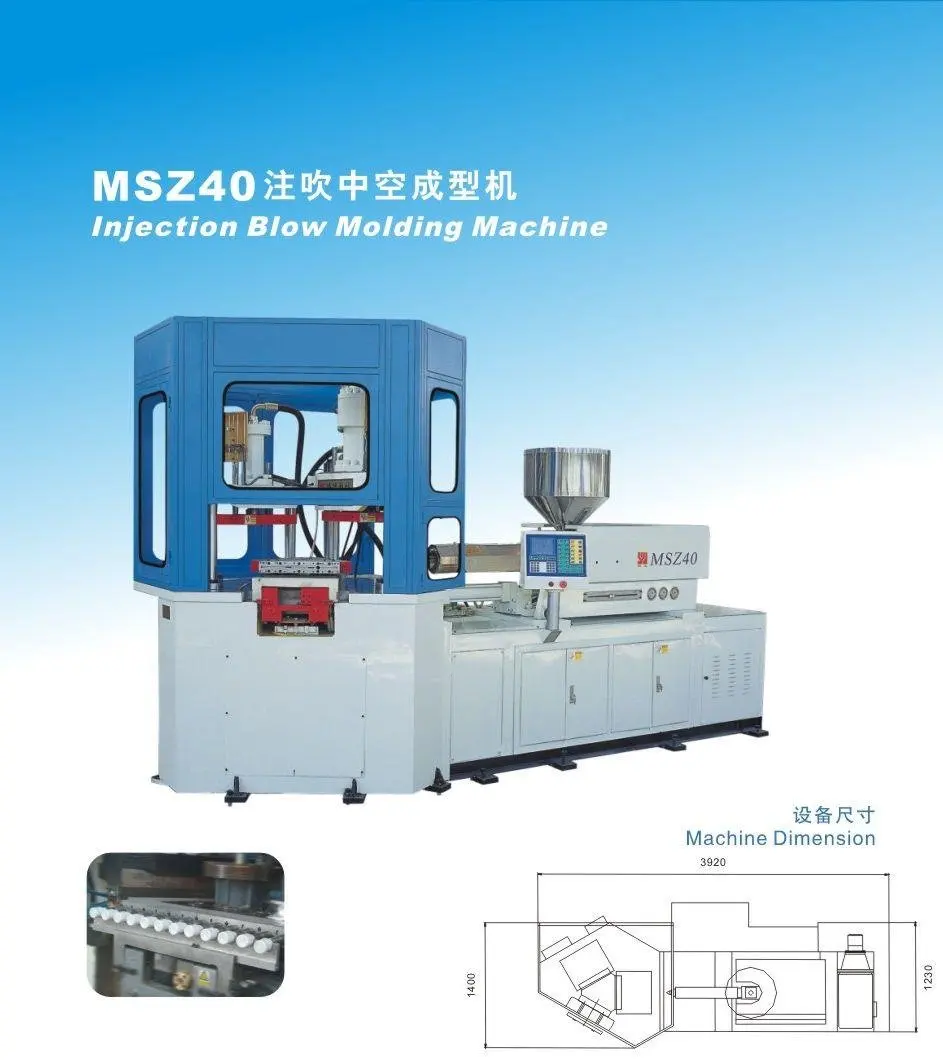

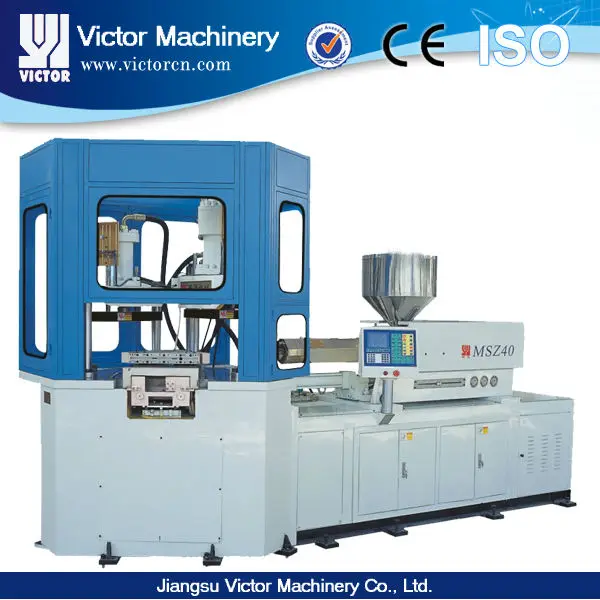

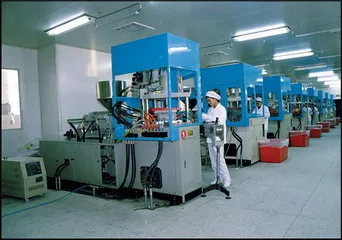

VICTOR Plastic bottle injection blow molding machine MSZ40L Photoes:









VICTOR Plastic bottle injection blow molding machine MSZ40L Office building:









VICTOR Plastic bottle injection blow molding machine MSZ40L Certificate:
