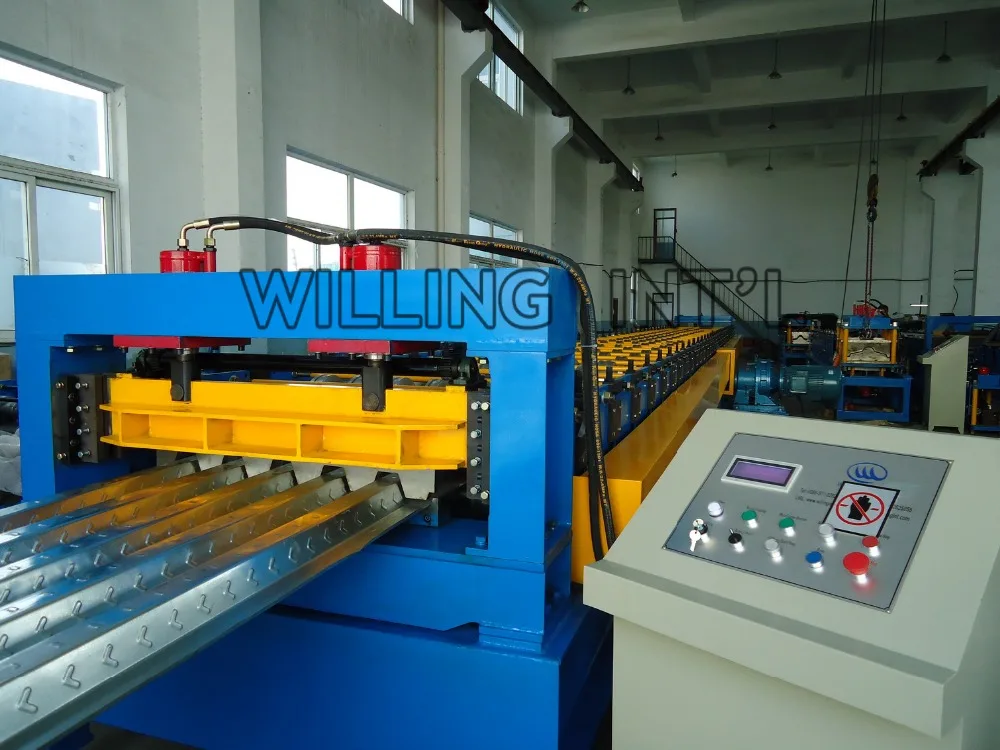

Customized Metal Galvanized Steel Floor deck sheet roll forming machine

Product Overview

Description

Machines can be designed according to your requirement or the profile you provide. We also produce 76-305-915 and 60-250-750 etc.



1.Product name

Decking Machine



2. Working flow

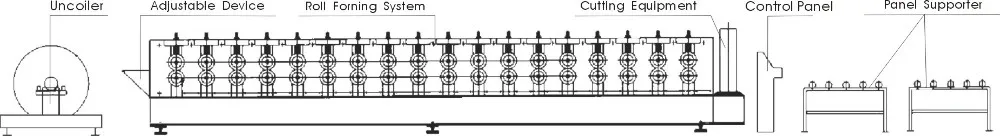

Uncoiling→Sheet Guiding→Roll Forming→Measuring Length →Cutting the panel → Sheet to Support Table.(option: automatic stacker).





3. Technical parameters

1) Material Spec:	Galvanized steel sheet
2) Thickness of Coil Sheet:	0.8 --1.2 mm
3)Main Motor Power:	18.5kw
4)Forming Speed:	10--12m/min
5)Hydraulic Station Power:	3kw
6)Quantity of Stands:	About 24 groups
7) Hydraulic Pressure:	10~12Mpa
8)Controlling System:	PLC
9) Index Error of Length:	10m±2mm
10)Total Weight:	About 1800kg
11) Voltage:	380V 3 phase 60Hz or at buyer’s requirement

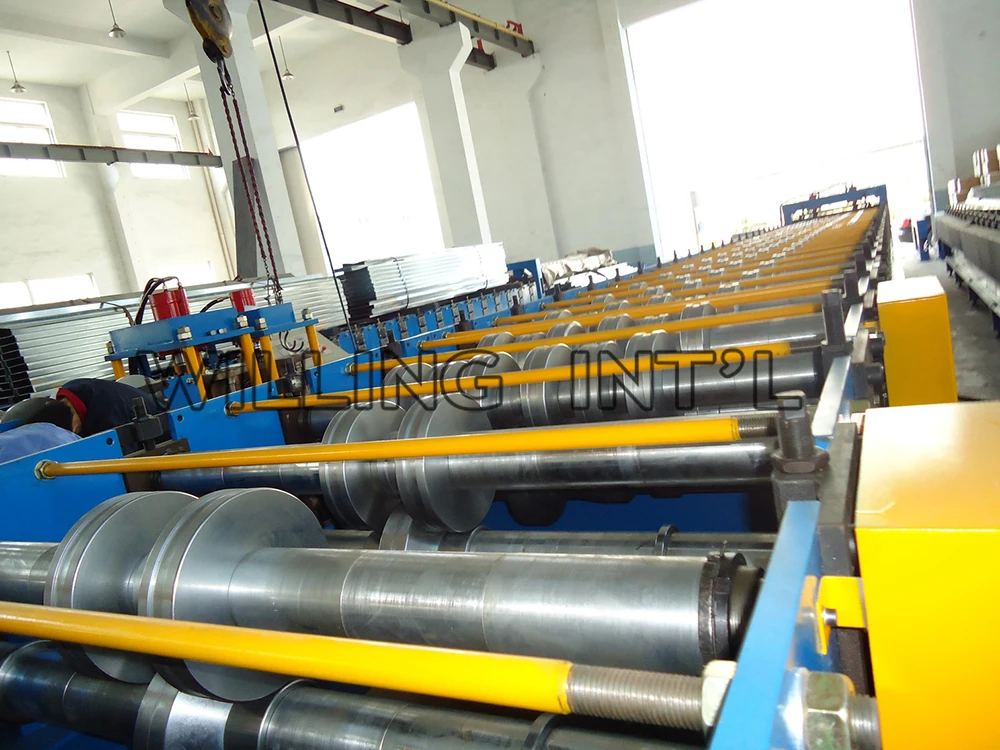

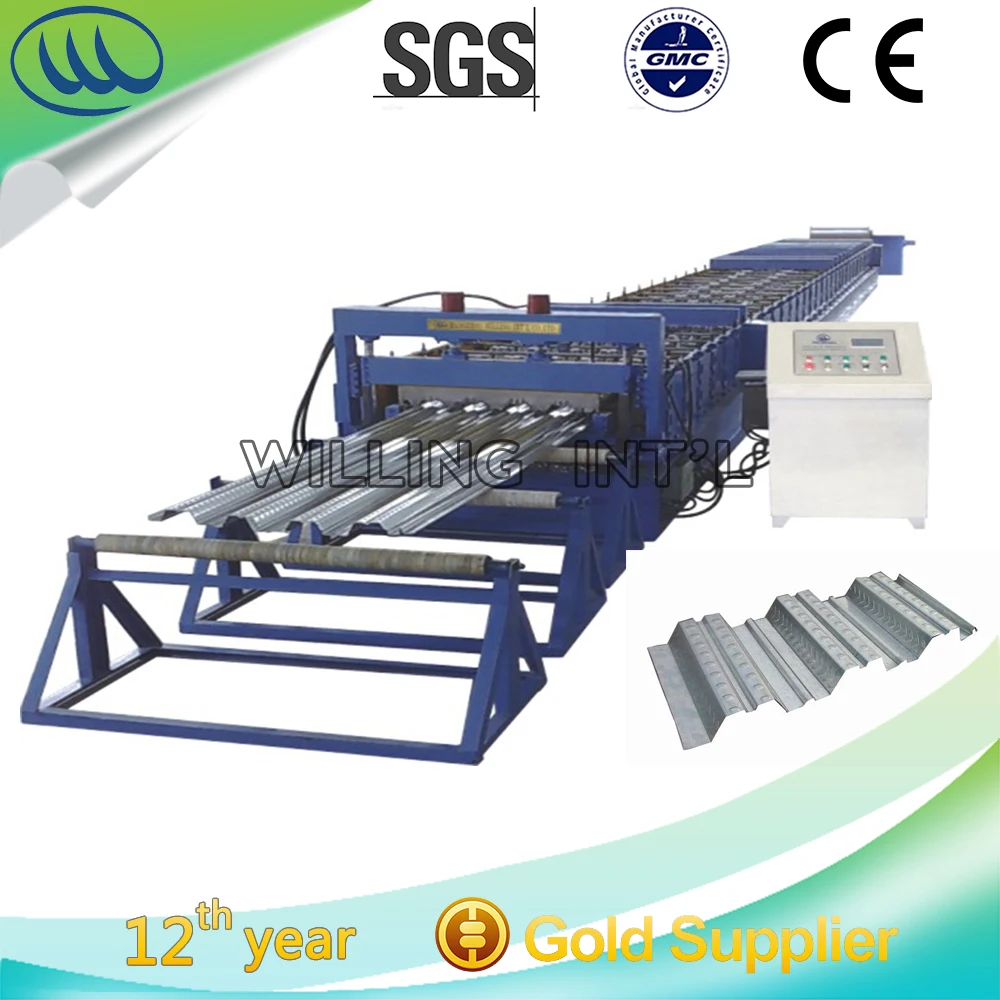

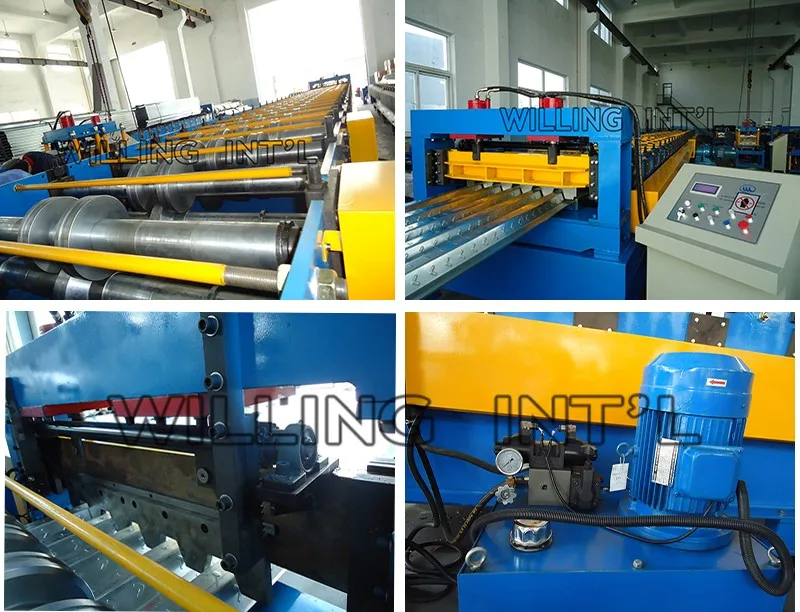

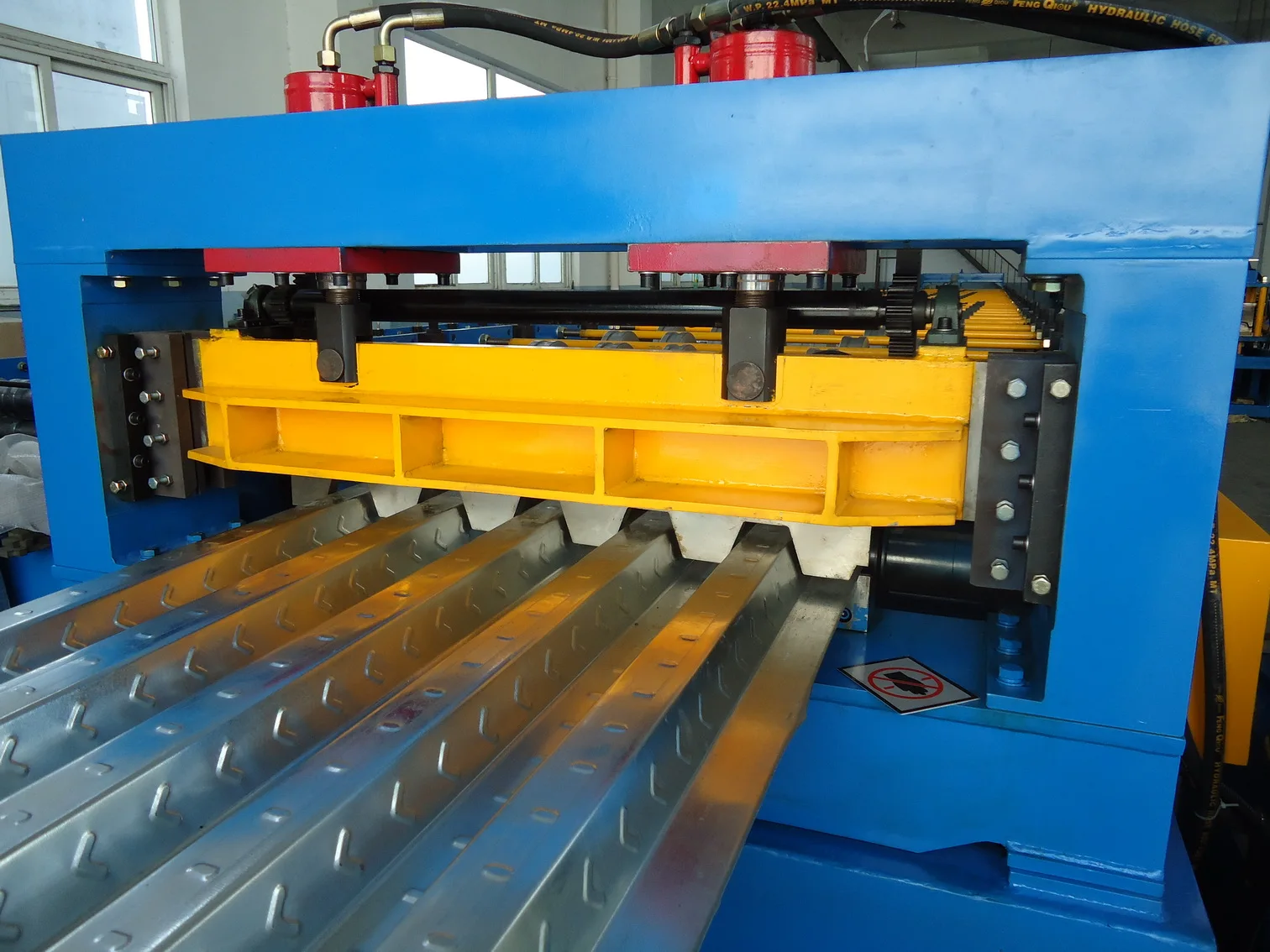

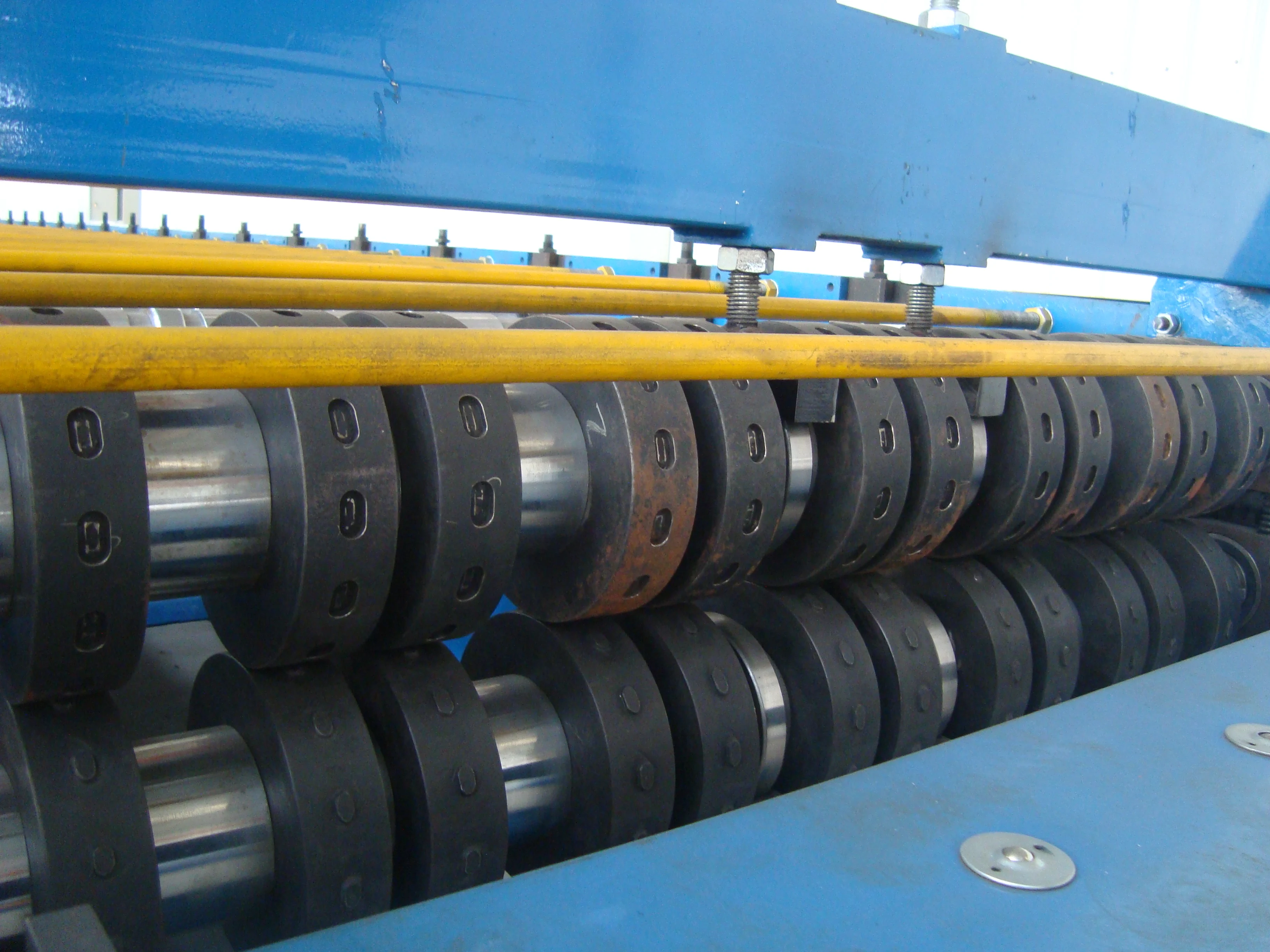

4. Machine pictures



5.Other machines

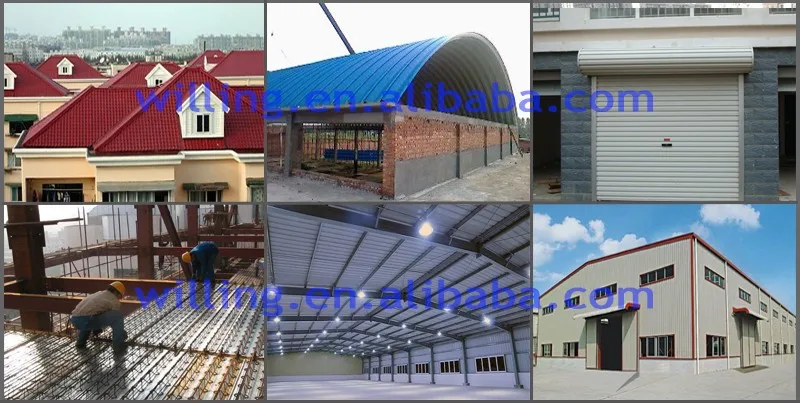

6.Scene application

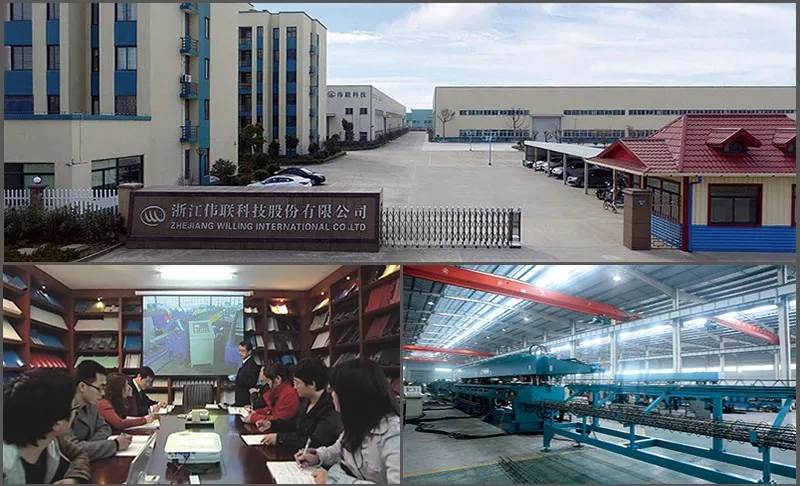

7.Our factory



8.Introduction
We can design and manufacture various types of machines according to the customers' requirement and we could provide technical guidance, production, installation, debugging and maintenance service to customers.

9.Terms of payment
a.Payment type: 30% T/T for advance payment and balance should be paid before delivery.
b.Delivery time: 60 days after received advance payment.
c.Guarantee period: 12 months.

10.Installation and training
a.If buyers visit our factory and inspect the machines, we will teach you how to install and operate the machine, and also train buyer's workers/technicians on live.
b.No visit, we will send you instruction manual and videos to teach you how to install and operate.
c.If buyer needs our technicians to go to their factory, it needs round air ticket, accommodation and etc.

11.After service
a.One year guarantee for the whole machine.
b.24 hours technical support by email, Skype, WhatsApp, Wechat or phone call.
c.Suppose some parts were damaged, we would replace for free by express delivery within warranty period.



12.Certificates
