Copeland compressor cold room small monoblock refrigeration unit

Product Overview

Description

Features

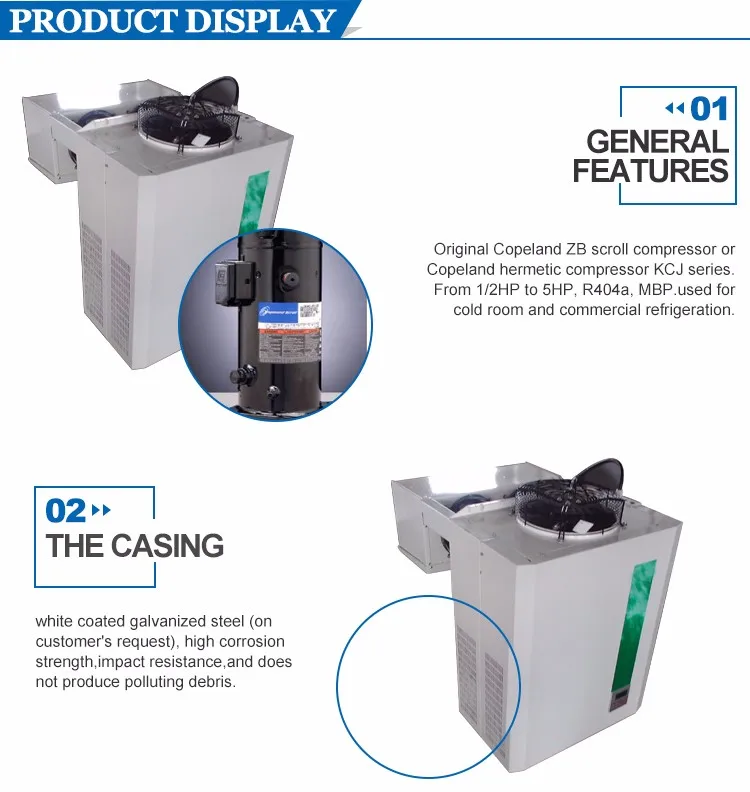

* Compact and sophisticated outlook

* Fully assembled and ready to be installed to save on assembly and applied cost

* Wide operating range

   - LT and MT from -10℃ to +10℃ cold room temperature

  - Same unit for either MT or HT cold room application

  - Reduce inventory for distributors and contractors

*  Monoblock design for easy installation,easy service,cost saves.

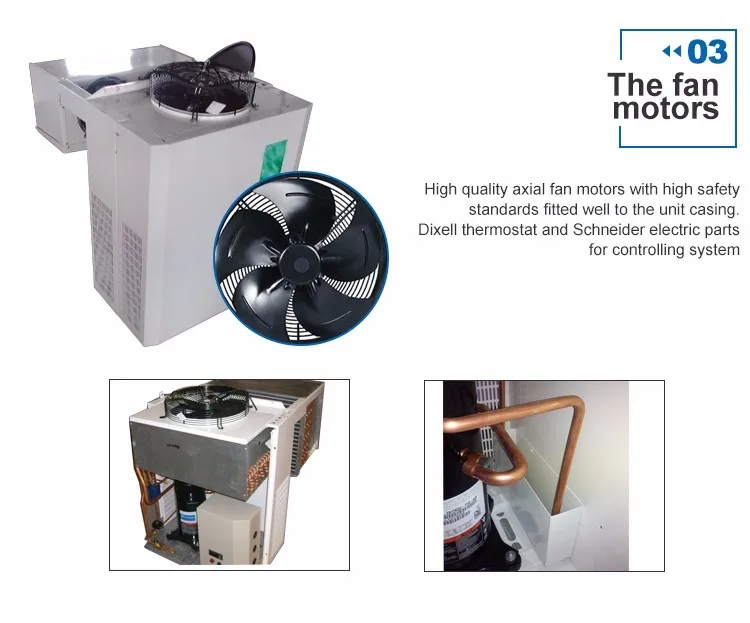

*  Built-in Dixell thermostat and Schneider electric controlling system

*  Suit for R404a and R407F refrigerant.



Copeland compressor Monoblock refrigeration unit

HMBP                    R404a,R407F

Nominal data

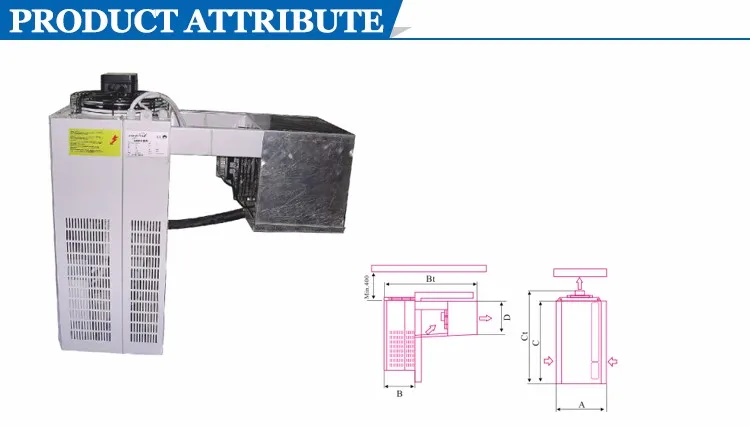

Model	Voltage	Compressor		Condenser		Evaporator		Shot	Weight	Dimensions
	V-Ph-Hz	HP	KW	N°X diameter	m3/h	N°X diameter	m3/h	m	kg	L	W	H
LKPG048M	230-1-50/400-3-50	1/2	0.37	1 X 254	965	1 X 200	870	5	53	796	400	714
LKPG068M	230-1-50/400-3-50	3/4	0.55	1 X 254	965	1 X 200	870	5	56	796	400	714
LKPG100M	230-1-50/400-3-50	1	0.74	1 X 254	965	1 X 200	870	5	65	796	400	714
LKPG150M	230-1-50/400-3-50	1.5	1.1	1 X 300	1810	2 X 200	1740	5	83	887	650	814
LKPG200M	230-1-50/400-3-50	2	1.47	1 X 350	2100	1 X 350	2100	8	109	1184	690	880
LKPG300M	230-1-50/400-3-50	3	2.2	1 X 400	2100	1 X 350	2100	8	111	1184	690	880
LKPG400M	400-3-50	4	2.8	1 X 450	3500	1 X 400	3000	9	125	1200	800	900
LKPG500M	400-3-50	5	4.1	2 X 350	4200	2 X 300	3500	9	145	1200	900	900



Cooling capacity

Model	HP	Compressor	Voltage	Cooling capacity(W)
				Evaporating temperature(°C)
			(V-Ph-Hz)	-15	-10	-5	0	5
LKPG048M	1/2	KCJ438CAL	230-1-50/400-3-50	530	700	860	1090	1330
LKPG068M	3/4	KCJ461CAL	230-1-50/400-3-50	940	1270	1544	2010	2390
LKPG100M	1	KCJ484CAL	230-1-50/400-3-50	1300	1700	2110	2680	3230

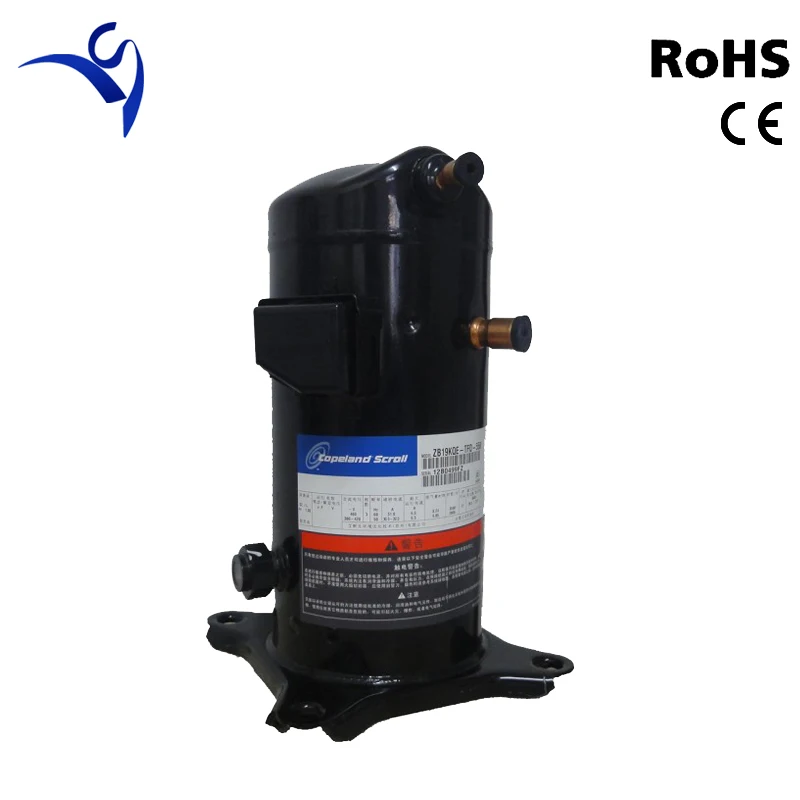

LKPG150M	1.5	ZB15KQE	230-1-50/400-3-50	2040	2500	3060	3655	4377
LKPG200M	2	ZB15KQE	230-1-50/400-3-50	2040	2500	3060	3655	4377
LKPG300M	3	ZB21KQE	230-1-50/400-3-50	3180	3860	4670	5560	6580
LKPG400M	4	ZB29KQE	400-3-50	4330	5270	6330	7565	8960
LKPG500M	5	ZB38KQE	400-3-50	5480	6630	7990	9520	11300
TEST CONDITION: Condensing Temperature: 50°C
