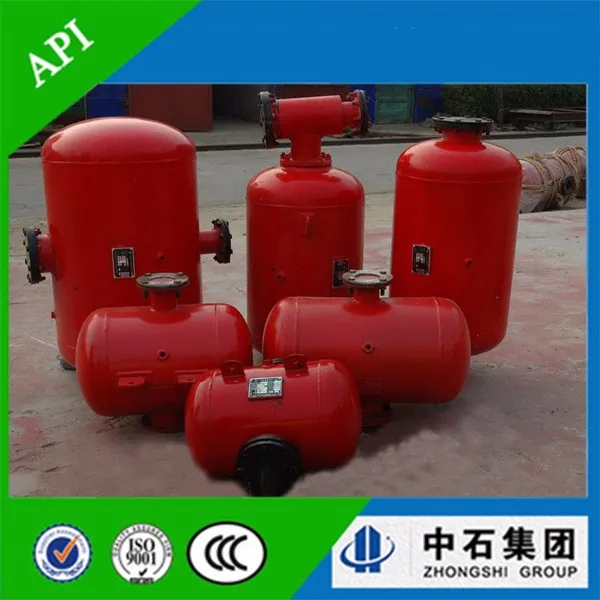

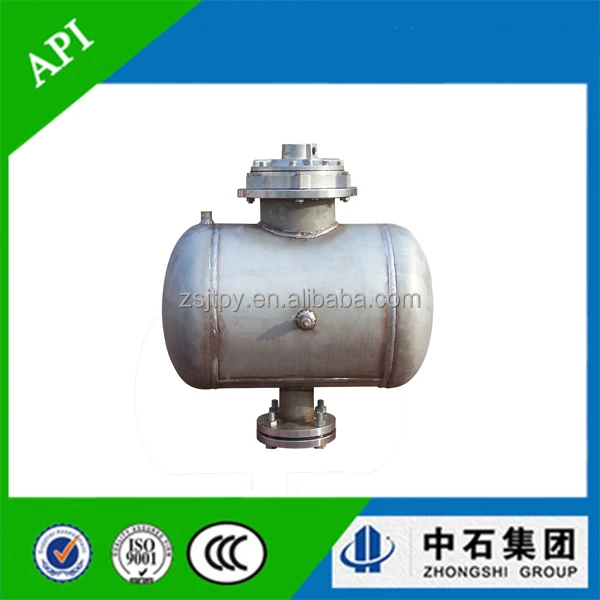

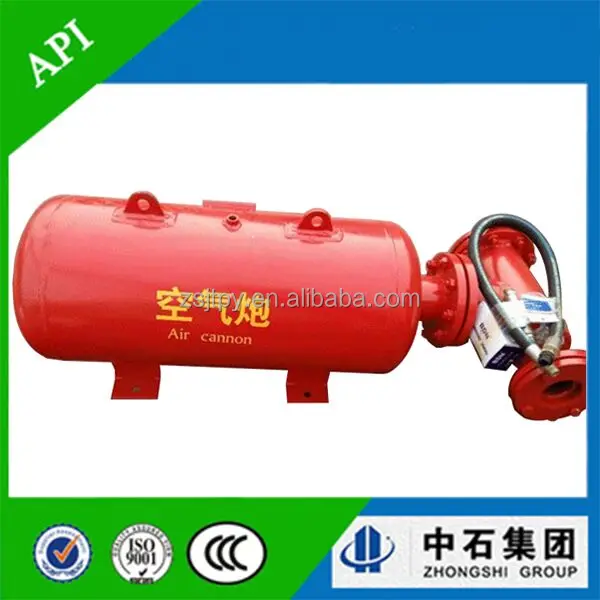

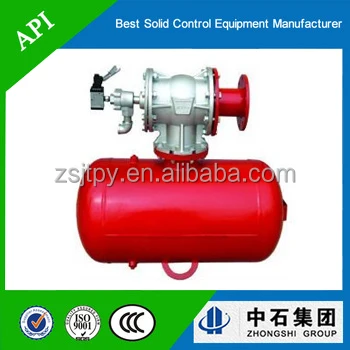

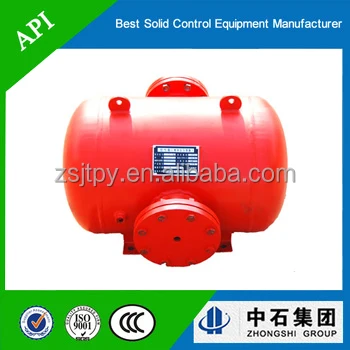

50L 100L 150L 200L blockage clear air cannon air blaster for sale

Industry Applicable Air Blaster

Air cannon or Air blaster, also known as air flow-aiding machine or bunker dredger (block clearer), is a special device for preventing and removing material arching and blocking in various types of silo, hopper, pre-heater kiln, piping crotch and draw shaft and slide slope. Air cannon, as a good flow assistant systems, it can effectively prevent the buildup of materials and solve the blocking problems in transfer chutes, storage vessels, and process equipment such as pre-heater towers and clinker coolers.

For the industrial and mining enterprises who posses the silo hopper, tube wells and draw shaft ,it replaces the means of the manually stabbed smash, wind blowing pressure, blasting explosives, machine vibration, slides and others which is old, unsafe and much expensive to help the flow. It not only reduces the labor intensity, ensures the safe production, but also has brought considerable economical efficiency for the enterprise.

The product can blast with strong impact energy, nuisance free, pollution free, environment friendly, is the most advanced, is the most advanced, most advanced, most economical, most ideal, most eco-friendly, most safe, dredge equipment.

Air cannon depends on the air flow of compressed air that squirt suddenly, the airflow dash into the blocked fault area where the scattered material is stored directly by the speed exceeding a Mach(sound velocity).The inflation shockwave that release suddenly, overcome the friction among material, make supplies of container flow again, it utilizes aerodynamic principle, use air as working fluid, based on one differential pressure device and automatically controlled fast vent valve, can change air pressure to air fluidics kinetic force penetrate, can produce strong shock power, it is a kind of clean, pollution-free, low power ideal slag-blowing equipment.

With bunker, hopper, pipes, and mine chute of the corporations, it replaces the artificial channel, pressure wind blowing, explosives are used, some old, such as mechanical vibration, skateboarding is not safe and a big broken arch help flow method, not only reduces the intensity of labor to ensure the safety in production, but also bring considerable economic benefits.

The blasting impact energy, pollution-free, pollution-free, is currently the world's most advanced, the most economical, the most ideal, the most environmental protection, the safety of arch flow equipment.

The air cannon is of simple structure, safe and convenient to handle. It has the basic characteristics such as: great shock power, safe, energy-conservation, auto control, easy to operate, no damage to storehouse, etc. It is the most ideal dredge equipment at present.

It is divided into three series A, B, C, a variety of models, and it can work normally in 1300°C after several technological transformations. It has low noise, more energy, simple operation, non-pipeline injury hopper, and other basic characteristics. It is the best break device to help arch-flow, and is the strong opponent of hopper block!

2. Application

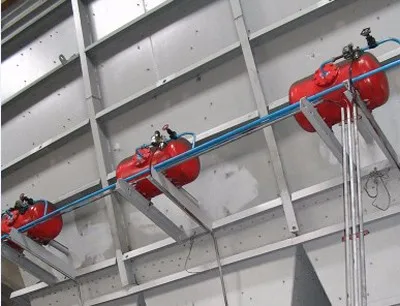

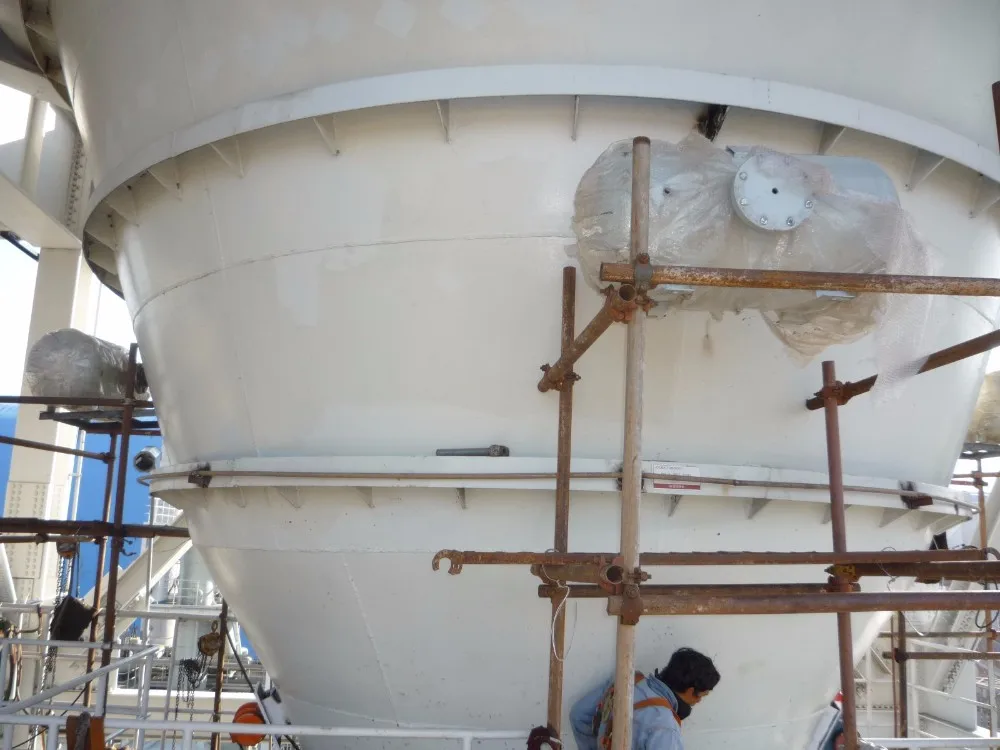

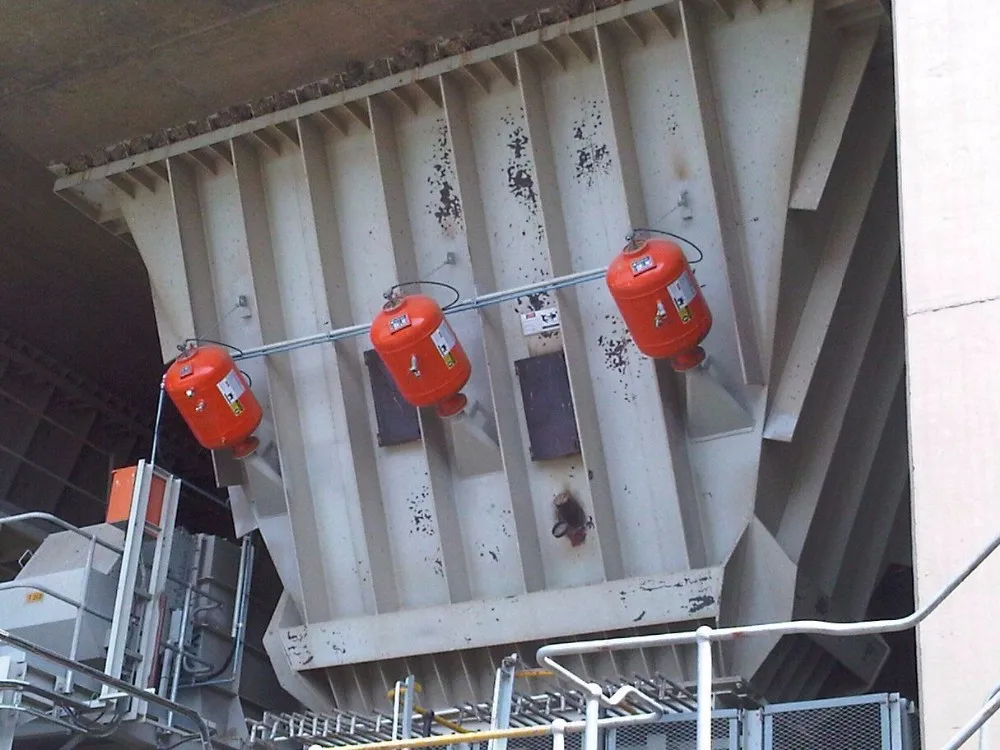

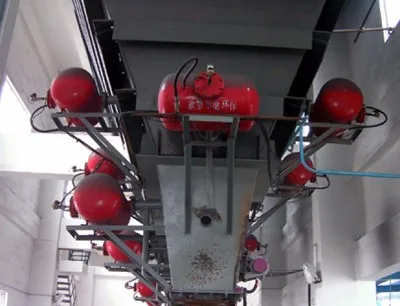

Air Cannon can be used on steel, concrete and wood-based hopper. It is widely used in the coal, metallurgical, chemical, thermal power, cement and other industries.

3. Composition

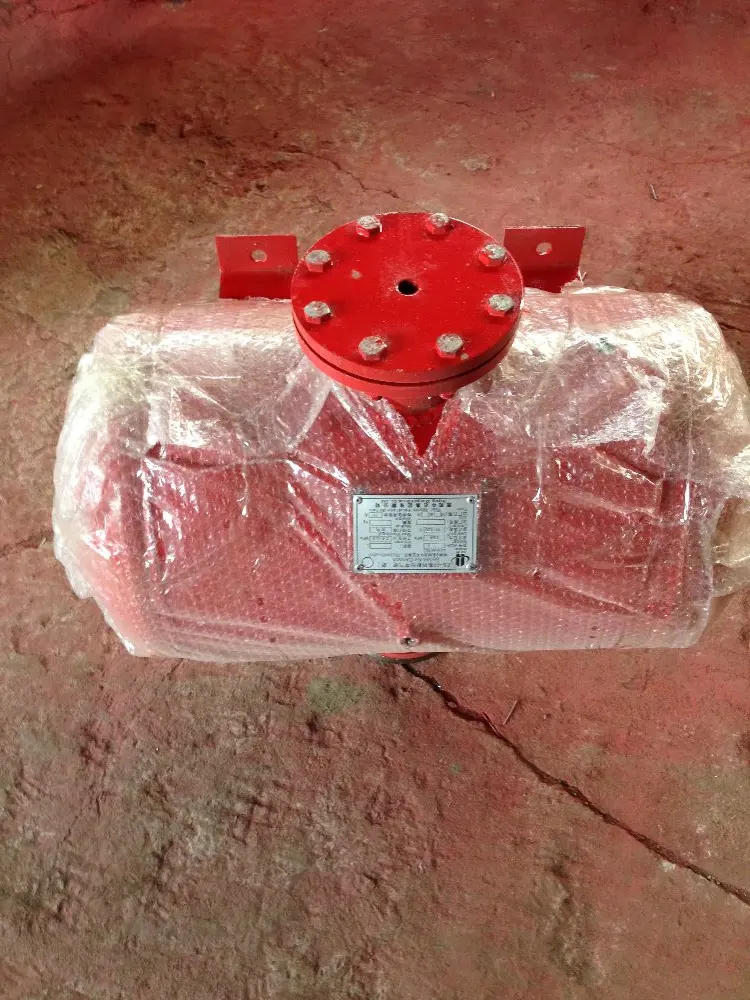

Cannon body: Store air. Cannon body is made of Q235-B steel plate. Mainly adopt automatic submerged arc welding and carbon dioxide arc welding for steel plate welding. After X-ray crack detection, mechanical properties test, water pressure test for strength and blasting performance test, it is qualified and safe for use.
Outrigger or rings: Fix air cannon.
Water Discharge Machine: In the course of time water and oil may be accumulated in the body. Unload the twisted wire then blocking dirt can be discharged out.
Safety valve: It is spring-loaded safety valve, whose start pressure is 0.4-0.8Mpa(users can self-adjust). If there is a reliable safety valve on the gas source, the safety valve on the cannon may be cancelled.
Piston: It’s made of nylon 66, and is sealed by its piston ring. There’re a number of rubber plates at the top of the piston. There is a spring at the rear of the Pistons, so that Piston’s reduction activities can buffer spring in order to prevent materials entering the Piston and cannon body.
Solenoid valve: It is the main components in air-cannon’s action which can be prepared in accordance with the user’s requirement. Remarks: air control valve and explosion-proof solenoid valve are used under ground while the effect is the same.
Cylinder: Adopt alloy steel, and is manufactured by the advanced coating technology.
Piston Rubber Seat: Rubber seat is added to the rear piston to ensure that the compressed spring is not overloaded, to keep flexible energy of the spring.
Asbestos rubber gasket: Play the role of pressing and sealing.
Sealing surface: The cannon exhaust pipe end in the body with specialized technology and equipment for grinding, good sealing performance, preventing from leaking when store gas, energy conservation, ensures the air pressure in the cannon body so that make sure the impact effect when it’s blasting.

4. Technical Specification
