best price of chengli brand new 18m3 garbage compactor truck with good performance

Product Overview

Description

best price of chengli brand new 18m3 garbage compactor truck with good performance

As a professional garbage waste truck manufacturer in China, we have garbage dump truck, garbage compactor truck, swing garbage truck, hook lifter garbage truck, side self-loading garbage truck, etc.





Brief introduction of garbage compactor truck



The garbage compactor truck is usually called compactor garbage truck,waste compactor truck, compression garbage truck,garbage compact truck,compressed refuse truck,etc.



Our garbage compactor truck for sale is constructed with 12# low alloy steeland 5mm, 4mm, 10mm steel.The body is fitted on the chassis by the truck beam.The body floor is fully sealed.All the sewage can go directly into the sewage tank,so as not to corrode the body and chassis .Moreover,it can also prevent the sewage leakage while the truck is driving on the road and avoid the secondary pollution.



The compactor waste truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.



There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.by the use of hydraulics,the barrel is locked during the overturning process,which is very safe and reliable.



As a professional garbage compactor supplier in China, with ISO9001-2008 quality system and 3C certificate, the waste garbage compactor trucks we produce is from 4m³ to 18m³.



Structure drawing of compactor garbage truck for sale





Technical Parameters of brand new dongfeng 15m3 garbage compactor truck



Items	Descriptions	Specifications and Types
General	Truck Name	Garbage Compactor truck Basura compactador camiones
	Drive Type	4*2
	Curb Weight (kg)	14990
	Overall Dimensions(mm)	10300×2500×3300
Engine	Engine Model	B210 33
	Engine Brand	Cummins
	Fuel Type	Diesel
	Power	155kw/210HP
	Emission Standard	Euro III
	Displacement(ml)	5900
Chassis	Tire No.	10+1
	Tire Specification	10.00R20 Steel tire
	Wheelbase  (mm)	4350+1300
	Axle No.	3
	Steering wheel	Left Hand Drive with power-assisted
	Gear Box	8 speed forward with 1 reverse, manual
	Brake	Air brake
	Radiator	Suitable for tropical climate
Garbage Container	Garbage Container Volume(m3)	18.0
	Garbage Container Material	Q345
Equipment: 1. Equipped with completely sealed container, hydraulic system, operation system. 2.Equipped with rear turnover mechanism,can hook dustbin or loading garbage by itself. 3.Equipped screeds and push shovel, compress by itself.High compression ratio. 4.The sewage will flow to sewage tank automatically, avoid second pollution. 5.Good sealed performance, easily operation,high safety.

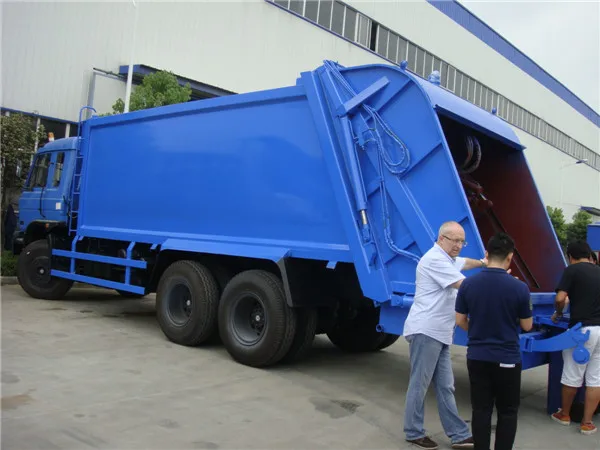

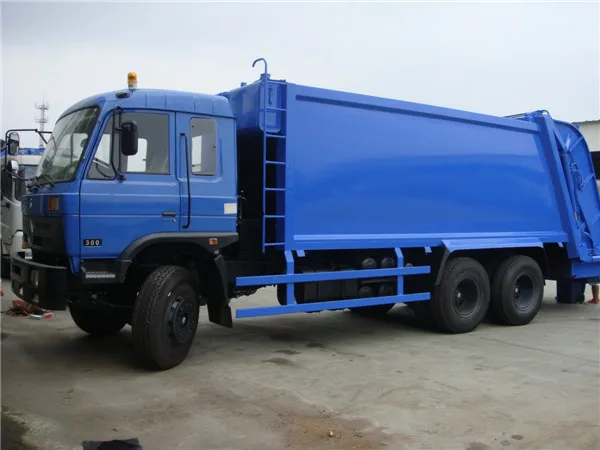

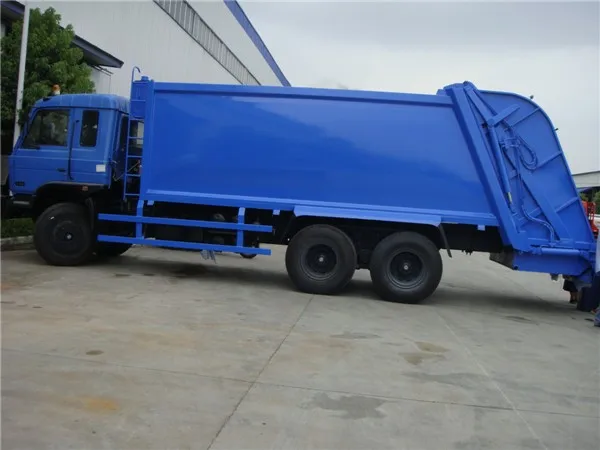

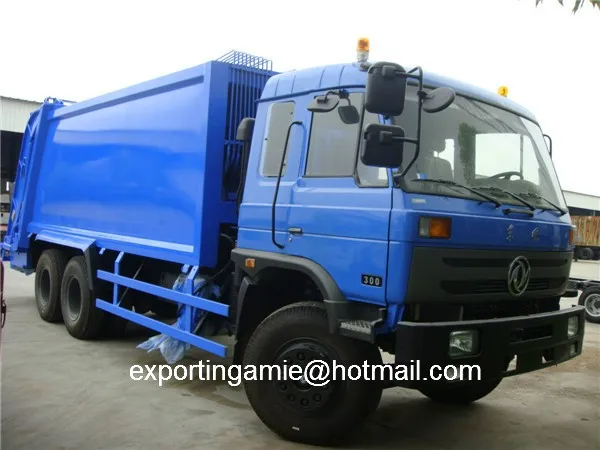

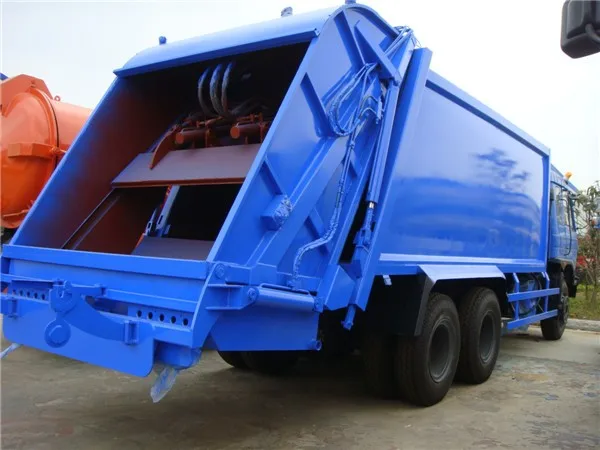

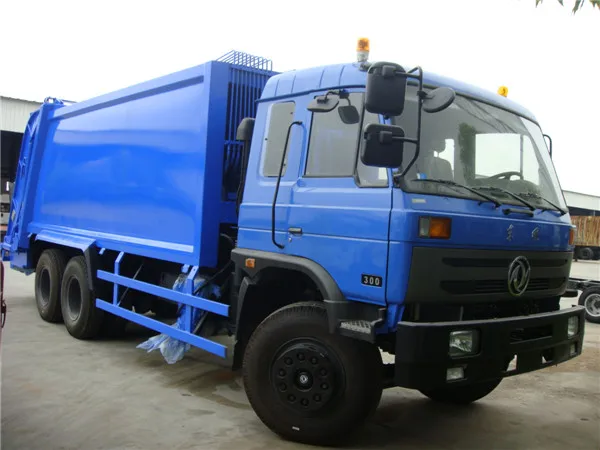

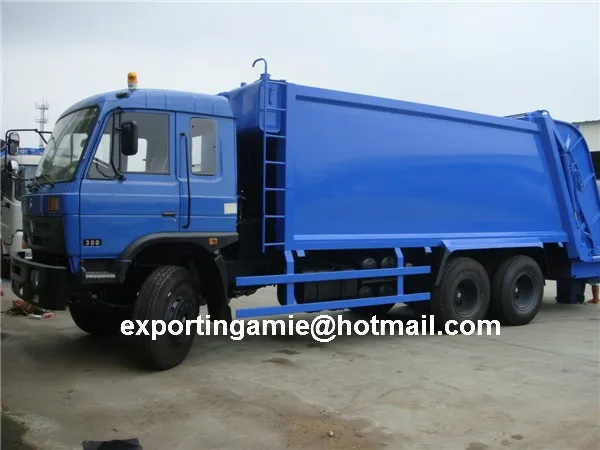

Pictures of china 10 wheels cheapest sinotruk compactor garbage truck







The compactor garbage truck capacity is from 5m3 to 18m3. Besides 4x2 garbage truck, we alos have 6x4 waste truck. We have dongfeng trash truck, foton garbage truck, jiefang waste truck, etc. More garbage compactor truck price, trash truck pictures or other details, please feel free to contact me.

The new waste trucks usually shipped by bulk vessel, roro vessel or containers.











 Our product range





1. Water Tanker/Sprinkler Truck/Pesticide Spraying Truck/Dust Removable Truck



2. Garbage Truck/Garbage Compactor/ Sealed Garbage Truck/ Skip Loader/ Self-loader/ Butt-type Garbage Truck/ Hook Loader



3. Sewage Suction Truck/Fecal Suction Truck/ Sewer Cleaning Truck



4. Aerial Working Truck/ Crane Truck



5. Road Wrecker



6. Road Sweeper



7. Oil tanker/ Refuelling Truck



8. LPG Storage Tanker



9. Chemical Liquid Tanker



10. Bulk Cement Tanker



11. Milk Transport Truck



12. Concrete Mixer/ Concrete Pump Truck



13. Tractor Head



14. Asphalt Distributor



15. Fire Fighting Truck



16.Van Truck/ Refrigerator Truck/ Explosion Proof Truck



17. Mobile Stage Truck/ LED Advertising Truck



18. Dump Truck/ Tipper



19. Feed Delivery Truck



20. Semi-trailer/ Flatbed Semi-trailer/ Container Semi-trailer/ Skeleton Semi-trailer/ Low flatbed Semi-trailer/Stake Semi-trailer/LPG tanker Semi-trailer



Besides above finished special truck, we also provide CKD and SKD of our trucks. Meanwhile, we can provide the installation manual and technical support you. All our trucks are enjoy one year quality gurantee.





Chengli Special Automobile Co., Ltd. is a big enterprises production of various types of specialized vehicles which is appointed the Ministry of Industry and Information Technology of China. It is located in the southern suburbs of Suizhou City, Hubei Province, China. It is founded in September 16th, 2004. It now covers 530 acres, the existing building area is 23000m2.



We have roundly passed ISO9001-2008 quality management system, ISO14001 environmental management system, ISO18001 Occupational Health and Safety Management System, the National military standard certification GJB9001B-2009 and 3C (China Compulsory Certification), with independent trade import and export rights. We also get ADR certificate and ASME certificate. Our company is one fo China top 500 enterprise and Hubei top 100 enterprice.



Our products have exported to Africa, South America, Middle East etc. and other countries.



Factory Show







More trucks for sale





Factory Certificate













Q1. Are you trading company or factory?
===> We are real factory. And our factory is located at Suizhou City, Hubei Province, R.P. of China.

Q2. How many is your MOQ?
===> The min order quantity we accept is one set.

Q3. How long is the guarantee period?
===> All of our trucks enjoy one year quality gurantee.

Q4.How long is the leading time?
===> Different model with different leading time, normally it is about 10 working days.



Cooperation Partner





Customer Visiting Pictures









if you are interested in any of brand new waste trucks and want to waste compactor truck price and learn more about chengli compactor garbage truck factory. Please feel free to contact me. Also, welcome to China and visit our factory anytime.
