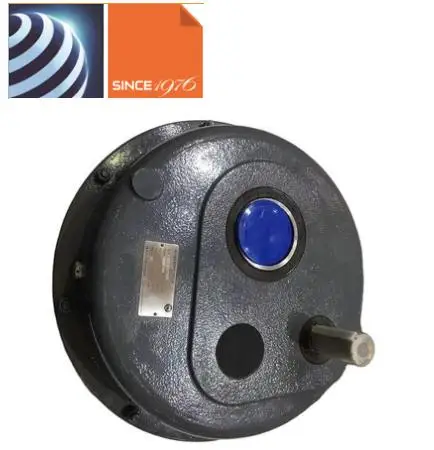

FIXEDSTAR China SMR Shaft Mounted Gear Speed Reducer
- Category: Speed Reducers >>>
- Supplier: Hangzhou Sino-Deutsch Power Transmission Equipment Co. Ltd.
Share on (60587542471):
Product Overview
Description
Detailed Images

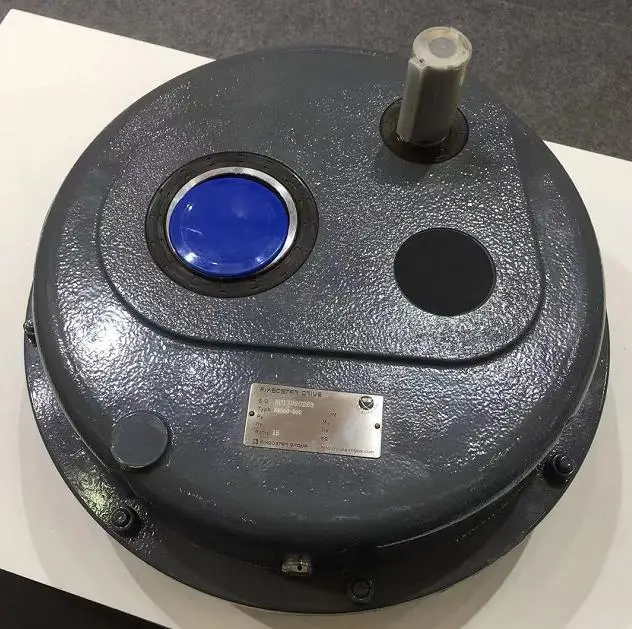

Detailed Images of Three Types China SMR Shaft Mounted Gear Speed Reducer
Detailed Dimensions of China SMR Shaft Mounted Gear Speed Reducer
Product Description
Helical shaft mount gear unit gearbox
FIXEDSTAR China SMR Shaft Mounted Gear Speed Reducer
1. Precision High Quality Gearing
Computer designed helical gears, strong alloy materials for high load capacity, ground profile (some intermediate pinions are shaved). Crown tooth profile, in conformance with ISO 1328-1997, 98% efficiency for per stage, smooth quiet operation with several teeth in mesh.
2. Output Hub
*Standard or alternative output hole diameter for choice as follow.
ITEM | Standard output hole diameter | Alternative output hole ø |
B5 | ø30 | ø25/35/40 |
B13/20 | ø30 | ø25/35/40 |
C5 | ø40 | ø35/45/50 |
C13/20 | ø40 | ø35/45/50 |
D5 | ø50 | ø45/55/60/65 |
D13/20 | ø50 | ø45/55/60/65 |
E5 | ø55 | ø50/60/65 |
E13/20 | ø55 | ø50/60/65 |
F5 | ø65 | ø60/70/75 |
F13/20 | ø65 | ø60/70/75 |
G5 | ø75 | ø70/80/85 |
G13/20 | ø75 | ø70/80/85 |
H5 | ø85 | ø80/90/95/100 |
H13/20 | ø85 | ø80/90/95/100 |
J5 | ø100 | ø90/95/105/110/105120 |
J13/20 | ø100 | ø90/95/105/110/105120 |
3. Strong Alloy Steel Shafts
Strong alloy steel, hardened, ground on journals, gear seatings and extensions, for maximum torsional loads. Generous size shaft keys for shock loading and conform to ISO standards.
4, Back Stops
Alternative parts, anti-run back device, are available on all 13:1 and 20:1. Ratio units and do not recommend for 5:1.
5. Torque Arm Assembly
For easy adjustment of the belt.
Packing & Delivery
Packing Images of China SMR Shaft Mounted Gear Speed Reducer
Inner Packing: PP bag with carton;
Outer Packing: Caton boxed and wooden cases;
Shipment: 20-30 days upon receiving the deposit.
