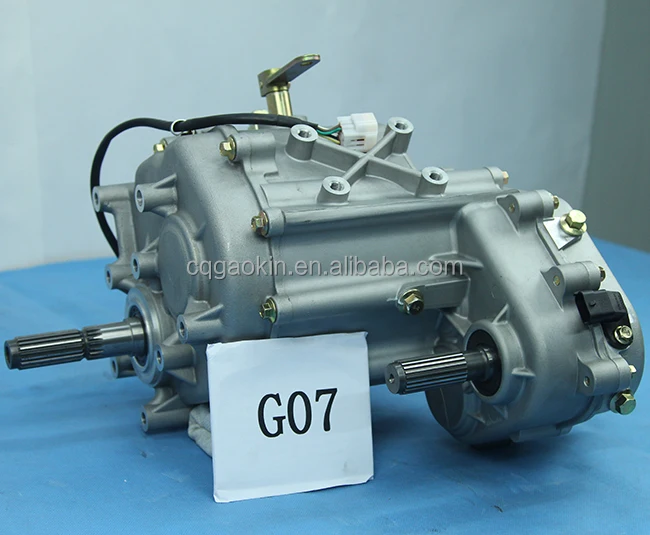

G07 Gearbox for ATV UTV

Product Overview

Description

 G07 ATV Motorcycle Engine Gearbox



S/N	Technical Specification
1.	Gearbox type	Gear transmission
2.	Drive ratio from input shaft to front output shaft(high speed)	1.768
3.	Drive ratio from input shaft to front output shaft(Low speed)	3.561
4.	Drive ratio from input shaft to front output shaft(reverse)	4.017
5.	Rear output shaft to front output shaft transmission ratio	1.12
6.	Speed sensor signal gear-output shaft transmission ratio	1.158
7.	Speed sensor signal gear teeth No.	57
8.	Max. input torque	300
9.	Outline dimension   mm	270×405×454
10.	Net weight Kg	28.75



 G07 Gearbox Dimensions



 G07 Gearbox
