Трапециевидная машина для резки металлических пластин

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

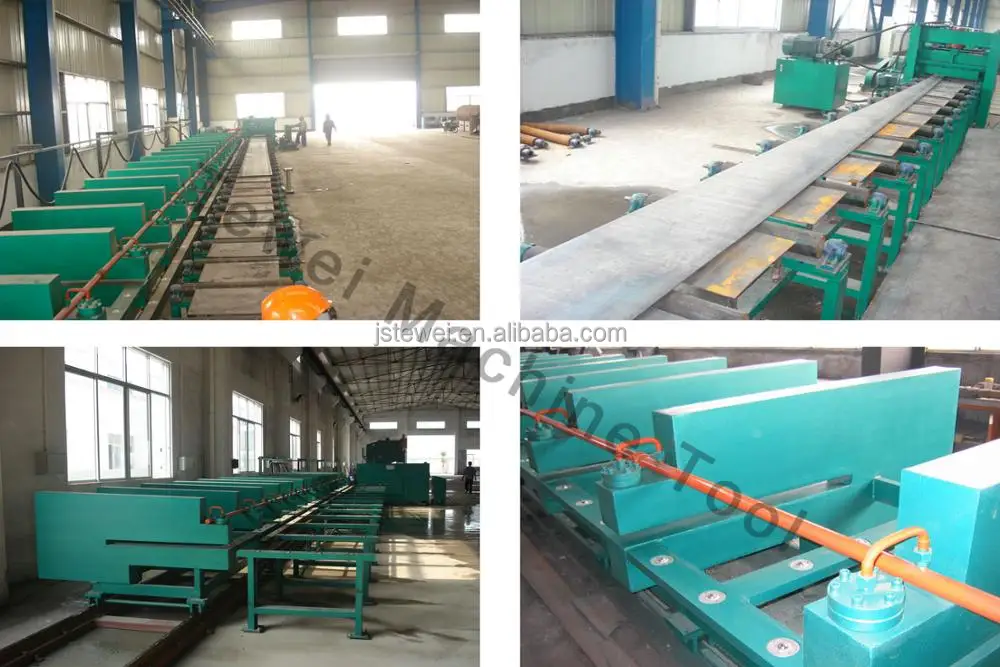

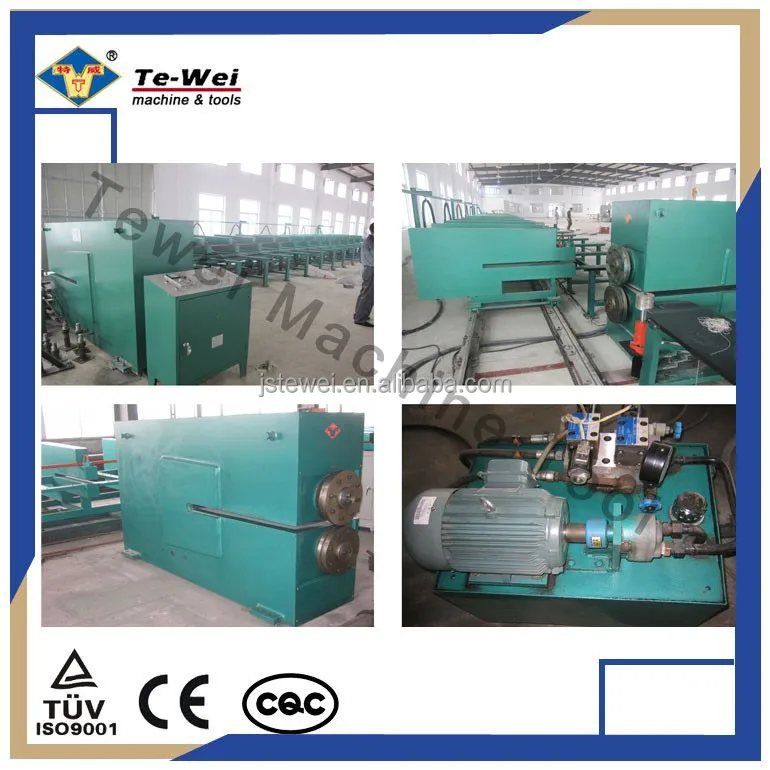

This machine is suitable for the plate cutting processing specially the long plate. Easy of operating and processing of optional length of the plate make the machine productive. Pressing the plate which needs to cut to walking-equipment through the hydraulic cylinder and shear it by revolving cutter accompanied the movement of the walking-equipment. It can also cuts taper plate according to the request inclination. Therefore, this machine widely used in the processing of light pole, vessel, metal structure, ships, building, hardware and so on.




Specification


SN
Description

Value

Unit
1
Shearing Length

14000

MM
2
Max Shearing Thickness

8

MM
3
Max Shearing Width

2400

MM
4
Walking Device Speed

25

M/MIN
5
Roller Shear Head Motor
Model
Y-112M-4

2*3KW
6
Feeding Device Motor
Model
YCT200-4B

5.5KW
7
Oil Pump Motor
Model
Y160M-4

11KW
8
Feeding Motor
Model
Y100L2-4

3KW
9
Oil Pump
Model
25MCY14-1B

25ML/R
10
Gear Pump
Model
CB-25B

25ML/R
11
Max Pressure Of System

20

MPA


12


Machine Size

L
34000
MM



W
4600
MM



H
1800
MM
13
Weight
17500
KG


Spare Parts Suppliers


SN
Name
Spec.
Qty
Supplier
1
Oil Pump
25 Above Displacement
1set
Shanghai
2
Oil Pump Motor
11 KW
1set
Siemens
3
Gear Pump
25 Above Displacement
1set
Huaiyin
4
Gear Pump Motor
3 KW
1set
Siemens Motor
5
Walking Gear
NGW11-14
1set
Taixing
6
Rolling Shear Gear Head
Bwd220
2sets
Dajiang
7
Walking Speed Motor
5.5KW
1set
Siemens
8
Rolling Shear Head Motor
3 KW
2sets
Siemens
9
Feeding Device Motor
3 KW
1set
Siemens
10
Round Blade
400
2pcs
Shanghai
11
Sealings
Full Set
1set
import From Japan
12
Electric Components

1set
Schneider
13
Hydraulic Oil
46# Anti-Wear
1.5
Barrel
Shanghai(Charged By User)
14
Hydraulic Valve Stack
Professional System
1set
Home Made
15
Pressure And Feeding Cylinder
Professional System
1set
Home Made


Company Profile


Our company is located in Jiangdu of Yangzhou City, on the side of Jianghang Channel, the cross point of Jinghu and Ningtong Expressway. We are engaged in forging machinery manufacturing industry. We specialize in producing plate benders, plate bevel shearing lines, mechanical scribing machines, hydraulic scribing machines, pipe straighteners, pipe benders, semi-automatic submerged arc welding lines, hydraulic plate cutting machines, mechanical plate cutting machines, three-roll bending machines, and large milling machines, as well as common type plate processing in the fields of light pole, electrical pole, machinery, electron, automobile, shipbuilding, electrical home appliance, cooking equipment, and building decoration.




FAQ


1. who are we?
We are based in Jiangsu, China, start from 2002,sell to Domestic Market(60.00%),Southeast Asia(15.00%),South Asia(10.00%),South America(5.00%),Eastern Asia(5.00%),Central America(5.00%). There are total about 1-4 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Press Brake,Welding Machine,Shearing Machine

4. why should you buy from us not from other suppliers?
We are the first manufacturer of whole set light pole production line.
Specialized in light pole production line.
Can provide the whole machines in the production line, and we have cooperator who specialized in galvanizing plant.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
