WZPK 338 RTD Pt100 Sensor

Product Overview

Description

 I.Name:WZPK-338 RTD Pt100 Sensor



II. Specification of RTD Pt100 Sensor



◊.Material: SS321/304/316

◊.Class A & B

◊.Aluminum Junction Box

◊.Three Wire System



III. Introduction of  RTD Pt100 Sensor



RTD action principle: RTD measures temperature by utilizing the characteristics as follows: When the material has the temperature change ,the resistance itself varies accordingly . When temperature gradient exists in the measured medium, it is the average temperature of the medium within the locating range of temperature-sensing element .

  RTD element is mainly made of Pt or Cu. Filaments are enenly double-wrapped in insulating ceramic skeleton. It is called ceramic element. It has the advantage of fine high-temperature stability . But because of high manual manufacture cost, it always gets weak resistance value.





W	Temperature meter
Z	Resistance thermometer
Resistor material	P)platinum resistance C)copper resistance
install and fixed type	1)Without fixed device type 2)fixed thread type 3)movable flange 4)fixed flange type 6)fixed thread taper protect tube type
junction box type	2)splash proof type 3)waterproof type Un-standard:socket mount type,small junction box type and so on
design series number	0)16mm protecting tube 1)12mm protecting tube Un-standard:all sizes of protecting tubes



 We are the manufacture of armored thermocouple, assemble thermocouple, high temperature thermocouple, screw thermocouple, Pt100 Sensor, thermometer, thermocouple cable and so on.If you are interested in them, please feel free to mail me

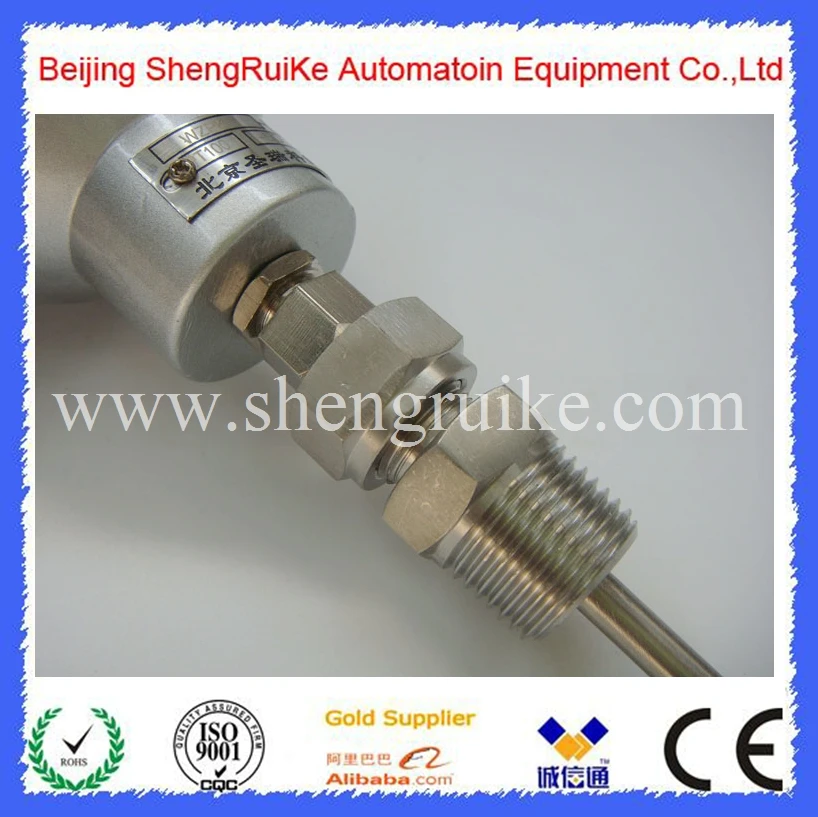

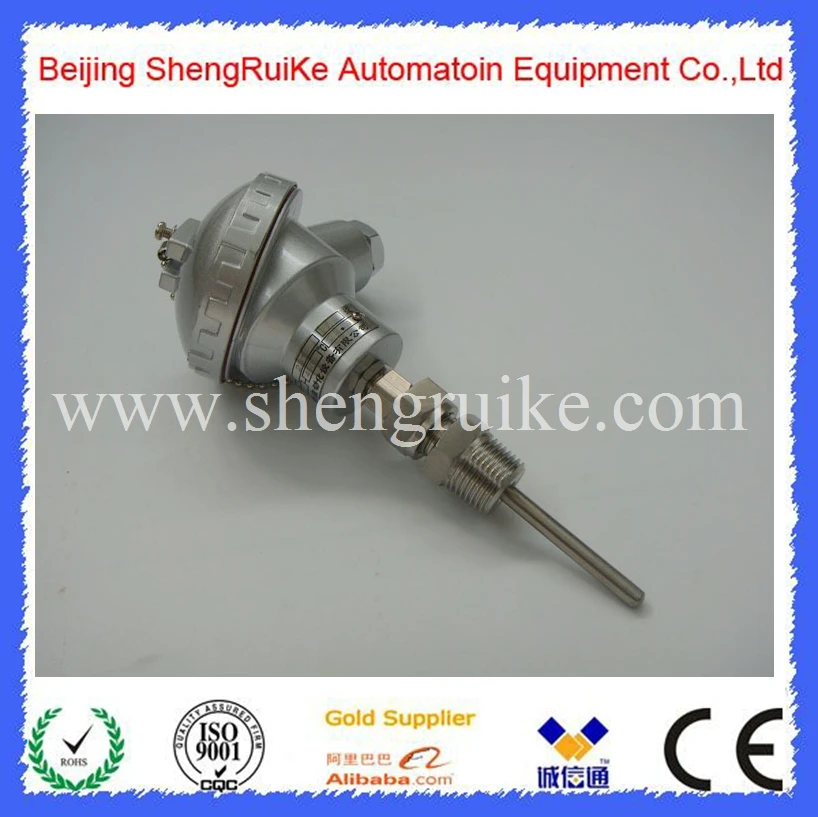

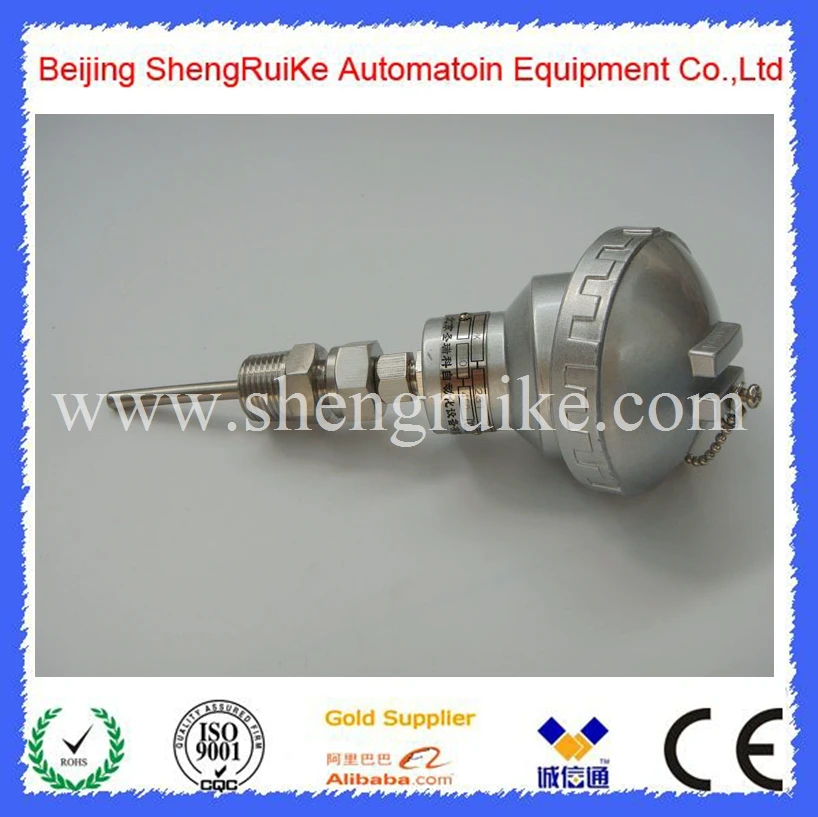

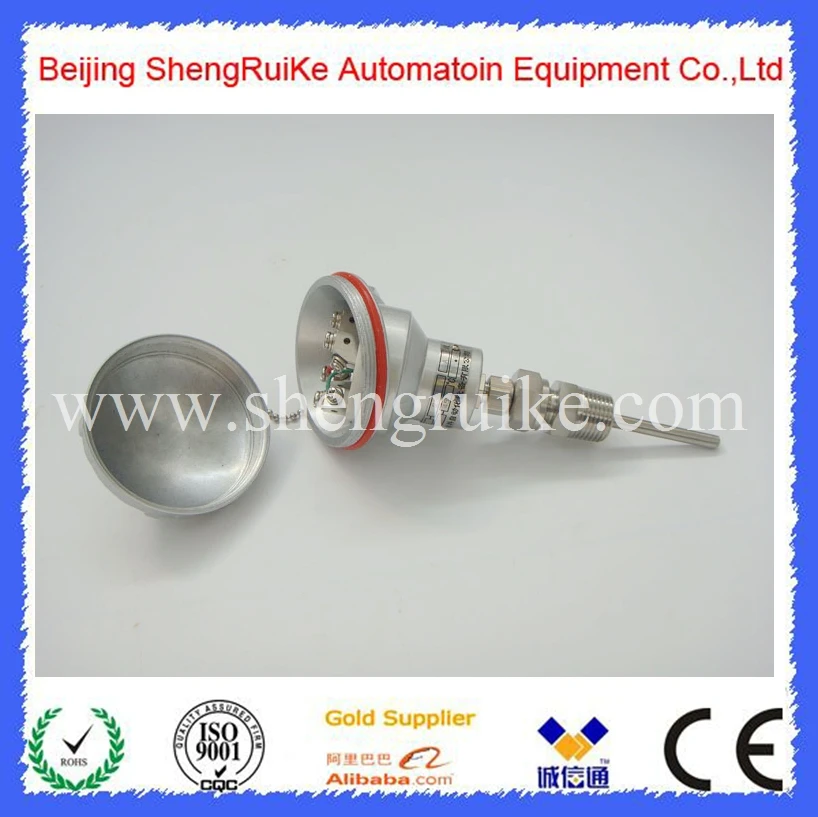

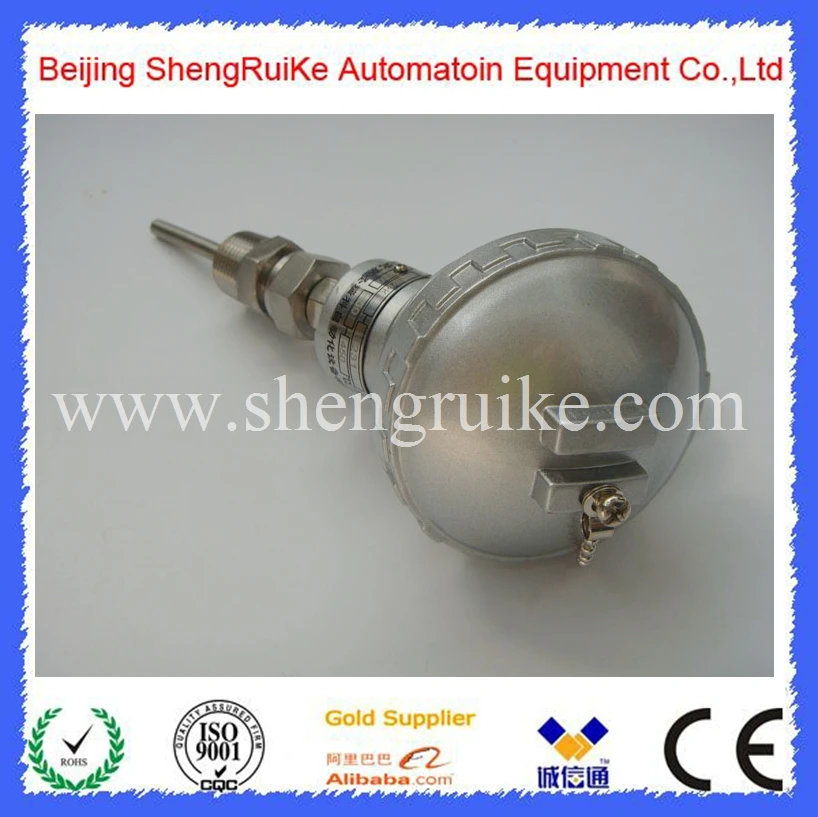

IV. Show of  temperature sensor pt100
