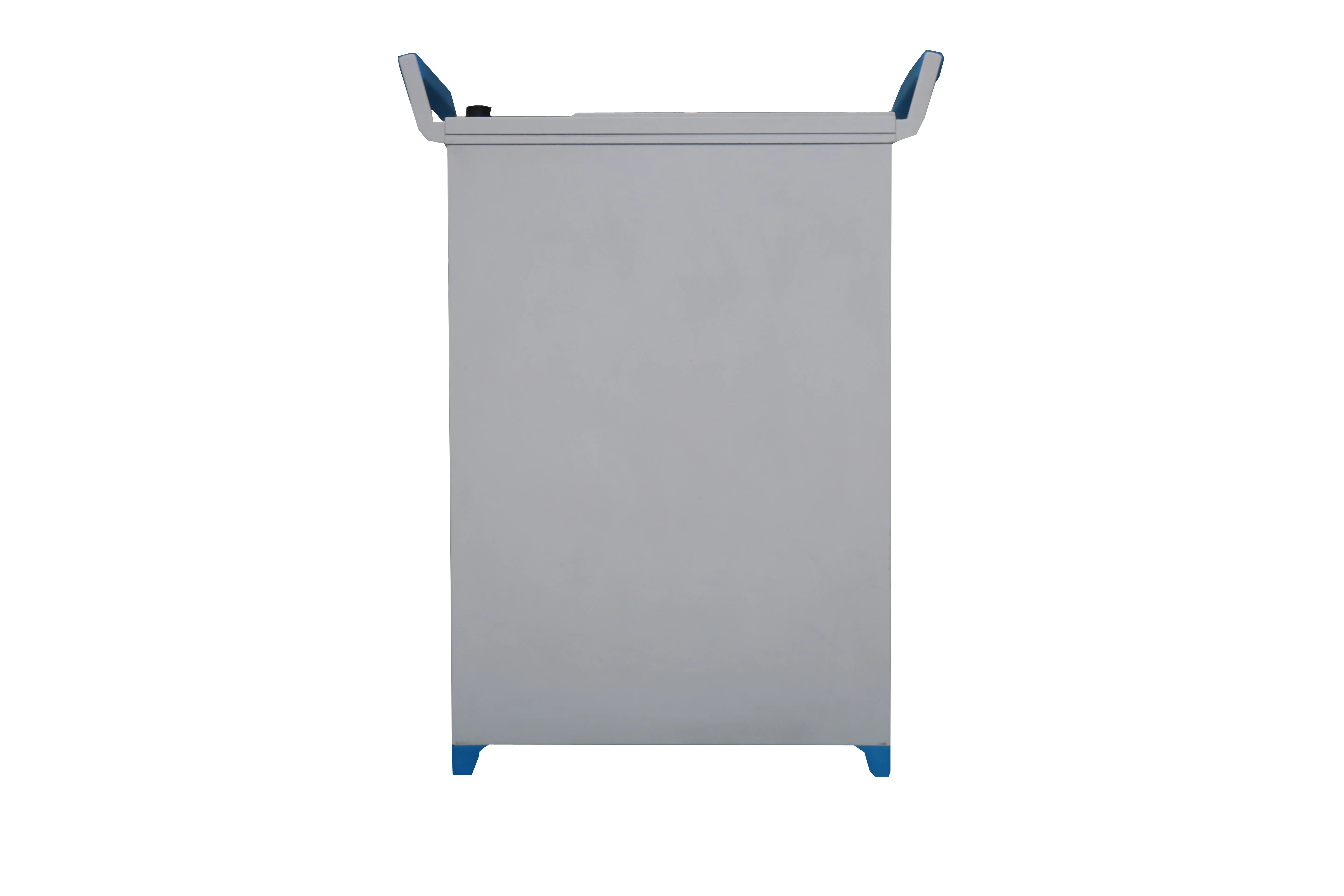

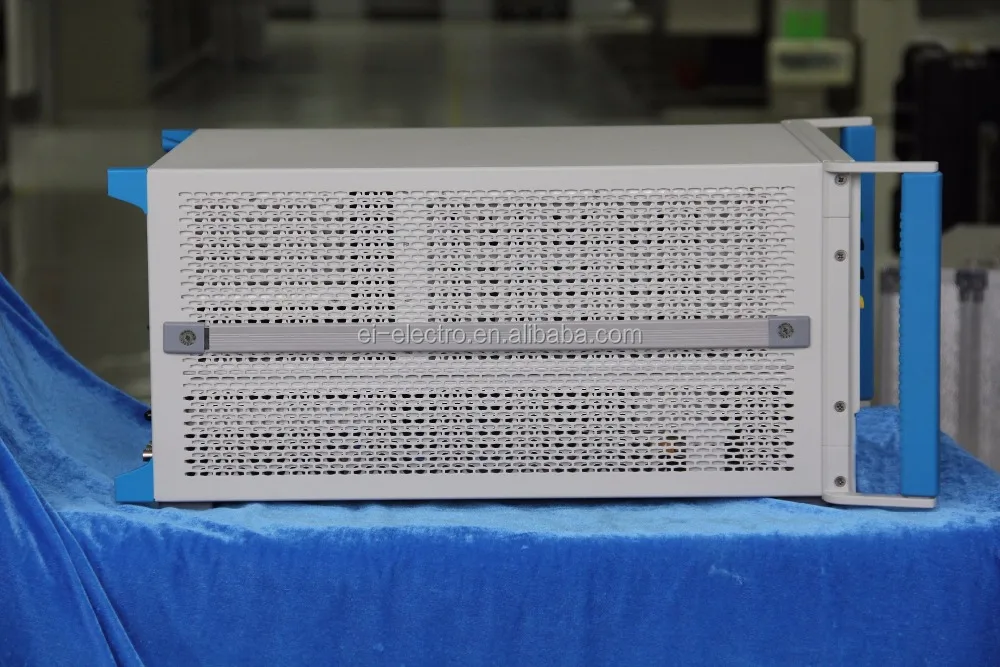

  3672A/B/C -S Vector Network Analyzers

(10MHz~13.5 GHz/26.5 GHz/43.5 GHz)











Product Overview

     3672*-S Series Vector Network Analyzers include 3672A-S (10MHz~13.5GHz), 3672B-S (10MHz~26.5GHz), 3672C-S (10MHz~43.5GHz). 3672*-S Series reduce cost and enhance price-performance ratio but still maintain the same critical technical specifications with those of high performance instruments, such as sweep speed, dynamic range etc. AV3672*-S Series offer multiple calibration types including frequency response, single port, response isolation, enhanced response, whole dual-port and E-cal. Multiple display types are embedded like logarithm amplitude, linear amplitude, phase, group delay, Smith chart, polar coordinates. Many standard interfaces are available including USB, LAN, GPIB, VGA etc. They can precisely measure characteristics of amplitude-frequency, phase-frequency, and group delay and so on.







Main Characteristics

1. Flexible calibration types, compatible with multiple cal kits

2. Support complicated testing solutions with many windows, multiple channels and fast operation

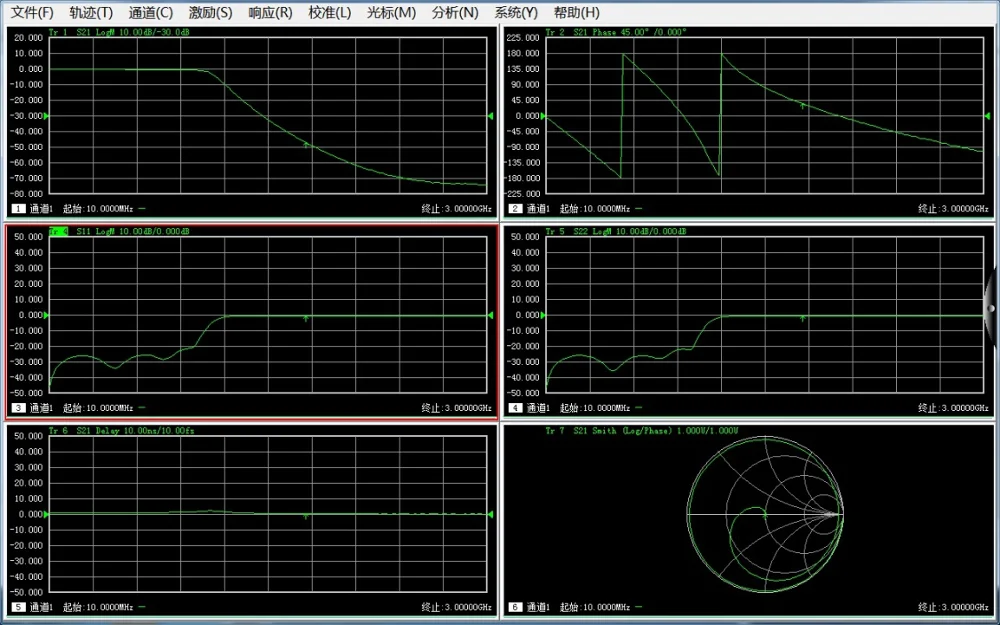

3. Multiple display types like logarithm amplitude, linear amplitude, standing-wave ratio, Smith chart etc

4. With USB, GPIB, LAN and VGA

5. Chinese/English operation interfaces, 12.1 inch high-resolution touch screen Record/Run, one-button operation simplifies measurement setup and improves working efficiency





Flexible calibration types, compatible with multiple cal kits





Multiple windows display all measurement channels

     The analyzer supports up to 64 channels and displays up to 16 measuring windows simultaneously, with up to 8 traced curves displayed in each window at the same time, allowing more visual observation and more convenient operation.



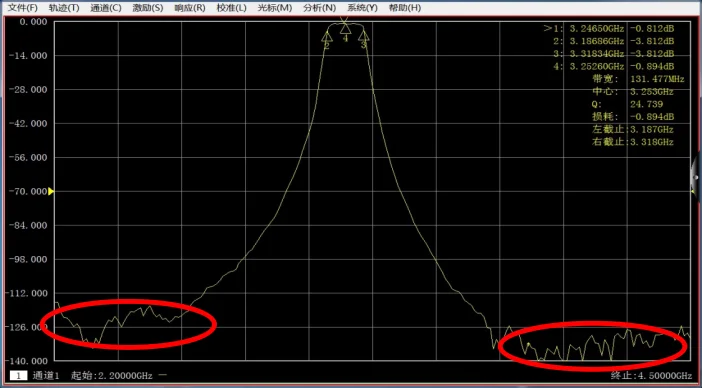

Wide dynamic range

     3672*-S Series implements the design concept of mixing reception to extend dynamic range during your complete main units testing, and to meet test requirements of large dynamic range.

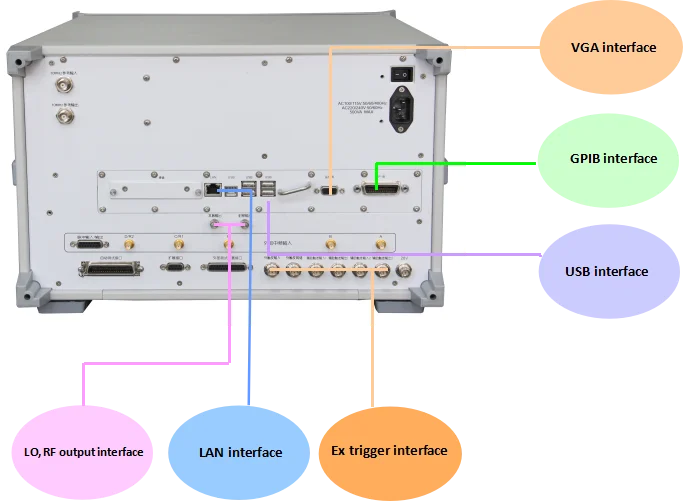

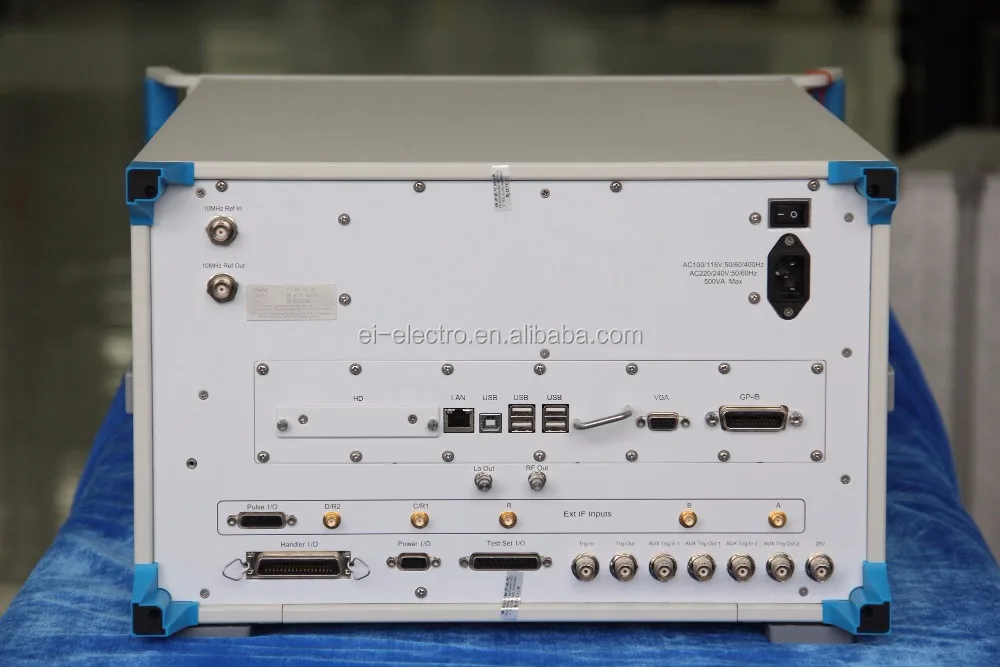

Rich peripheral interfaces, flexible and practical

     3672*-S Series realize the perfect combination of the instrument and PC through the hardware and software platform consisting of embedded computer module which is compatible with PC and Windows operation system. The users can use the rich I/O interface (including GPIB, USB, LAN) to realize the optimum selection of data communication.



Time domain analysis can characterize the design thoroughly

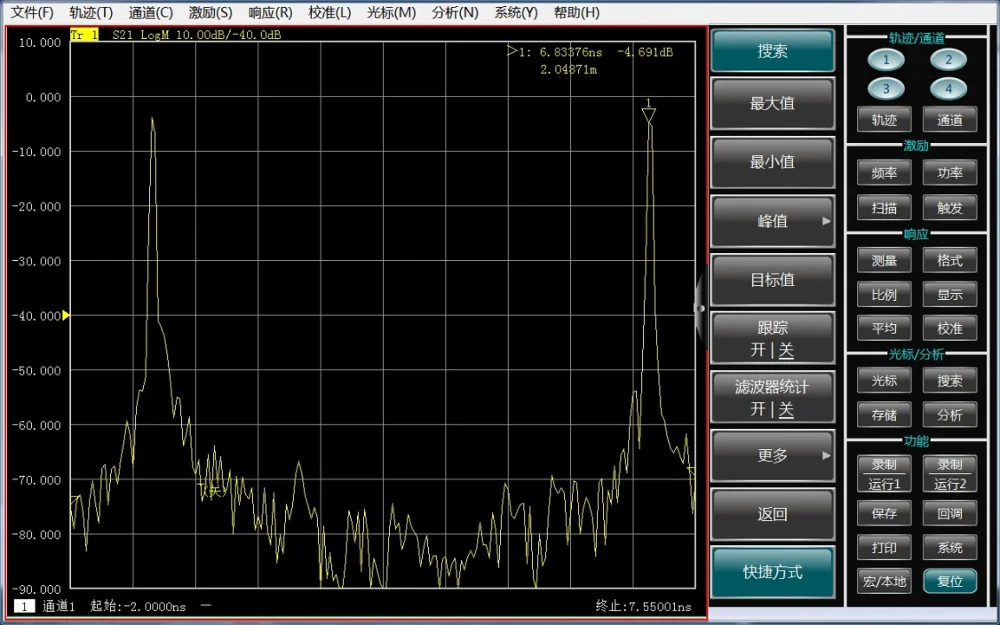

    Time domain option can facilitate the switching between frequency domain and time domain of measuring results, which can be used to identify the discontinuous points of device, fixture or cable to realize the accurate positioning to fault.









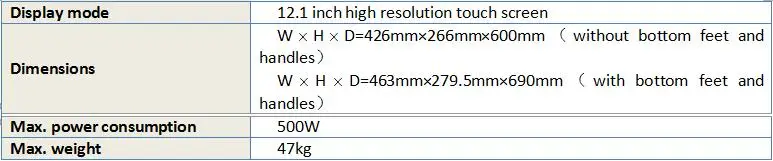

Technical Specifications

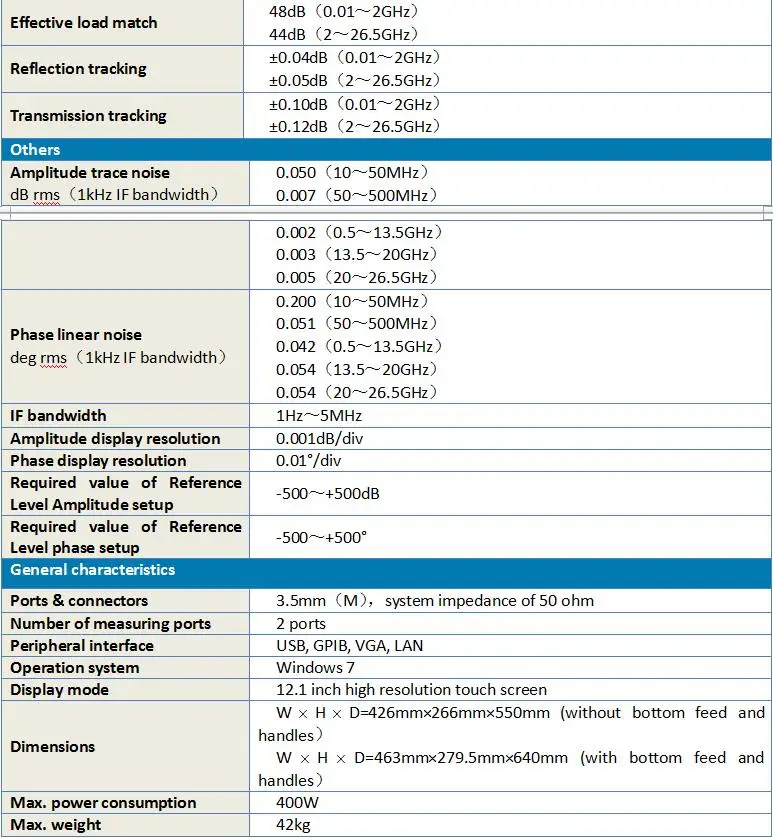

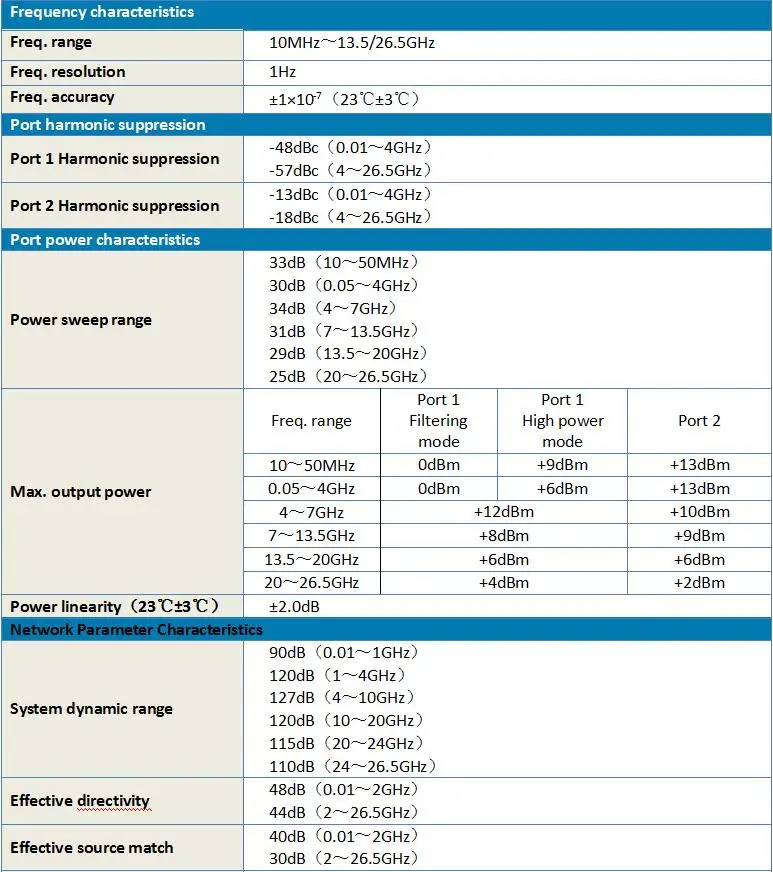

  3672A/B-S Technical Specifications

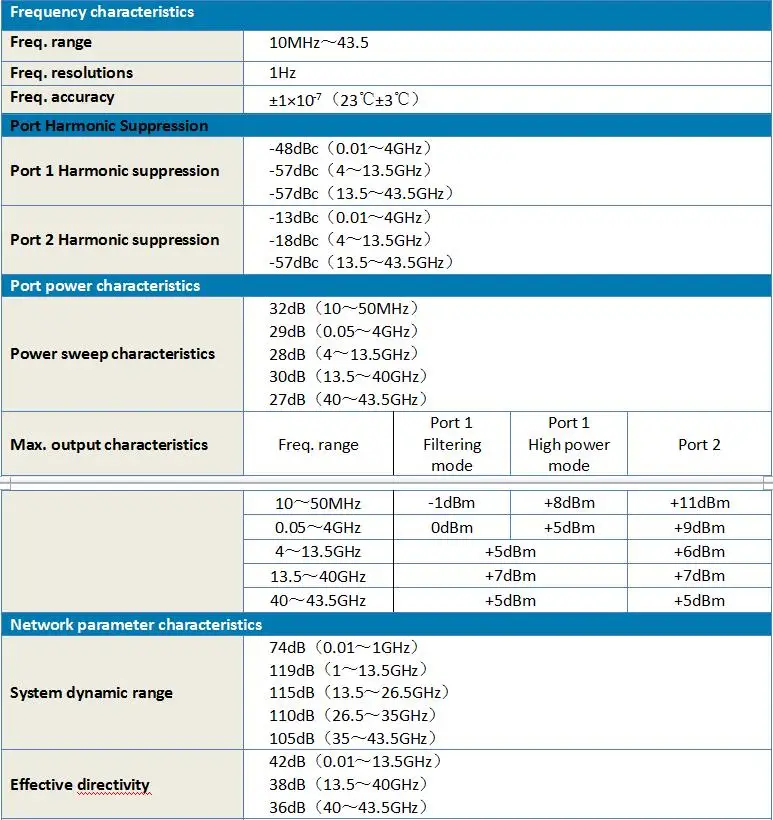

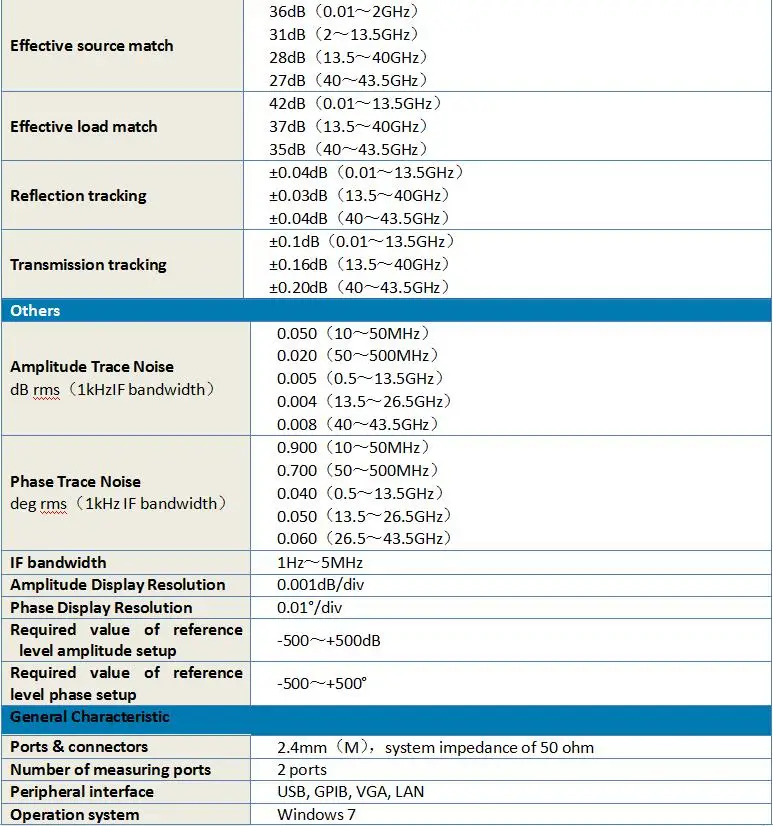

   3672C-S Technical Specifications
