Ceyear 4456 series Digital Phosphor Oscilloscope

Product Overview

Description

4456 Series Digital Phosphor Oscilloscope





                                      AnyAcq^P technique

                               ---supplies fresh use experiences



Fast waveform capture rate of 70 million frames /sec

256-grade gray scale and four palettes for display

200Mpts/CH, deep storage

Precise digital triggering

Serial-bus triggering and analysis

Capacitive screen, multi-point touch









Product Overview

      4456 Series Digital Phosphor Oscilloscope has six models, 350MHz-1GHz bandwidth, 5GSa/s sample rate, up to 500Mpts/CH memory depth, up to 1,000,000 wfms/s waveform capture rate. The originally developed Any Acquire Phosphor technique provides brand-new use experiences of oscilloscope for clients.  4456 Series Oscilloscope Integrates Digital Oscilloscope, logic analyzer, function generator, protocol analyzer and digital voltmeter, has many functions including waveform autoset, automatic measurement of waveform parameter, cursor measurement, histograms measurement, arithmetic operation, FFT analysis, serial protocol trigger and analysis, limit and mask test, power measurement and analysis, waveform record and replay, mixed signal analysis, arbitrarily function generator and so on. To supporting Ethernet remote control, integrated development and application are easy and convenient. The 4456 series digital phosphor oscilloscope includes the standard type 4456C/D/E and the economical type 4456CM/DM/EM. The oscilloscope and digital voltmeter are standard, and the logical analyzer, function generator and protocol analyzer are optional.

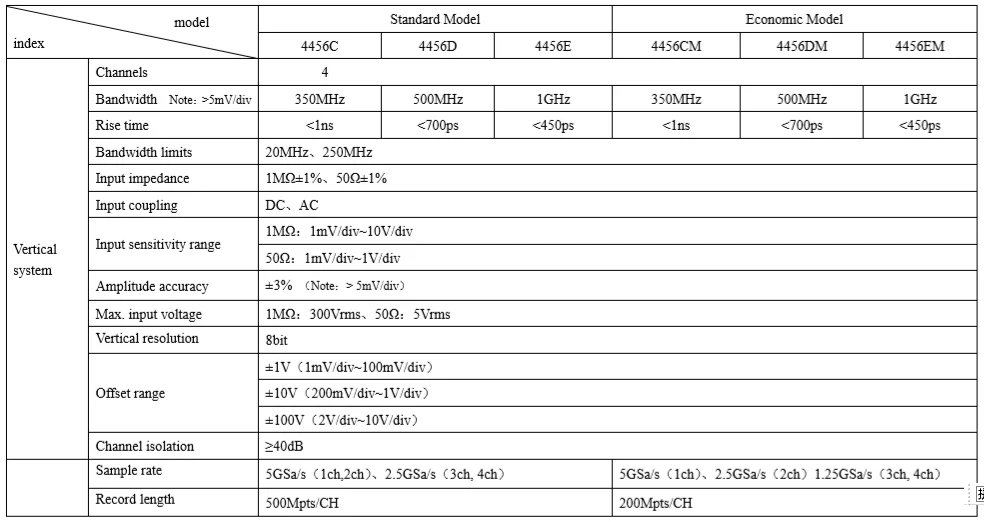

Technical Specifications
