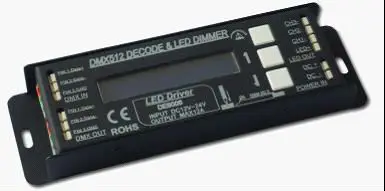

RGB manual led DMX decoder Model DE8006

SUMMARIZE:

Thank you for using DMX512 Decoder series.It adopts the advanced micro-computer control technology, it converts the DMX-512/1990 standard digital signal adopted widely in international to the analog control signal.Output 1~3 Channels for option and each channel able to achieve 256 levels of brightness controlling,and also it can be used as the connector of PC digital-light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Features of RGB DMX512 Decoder:

1,Meets DMX512/1990 Signal with screwsless DMX In/Out connection .

2,256-levels brightness,full-color with driver controls.

3,Power without flashing, low jitter free.

4,Output 3 channels,4A/CH.Max current is 12A.

5,Can achieve asynchronous color changes effect under working with controller.

6,Cooperating with lighting control system, can realize rich change effect.

7,Setting up the DMX address freely by LCD display .

8,Modularizing and can be matched with different LED module neatly.

9,Custom-made available.

Tech-parameter: Model DE8006

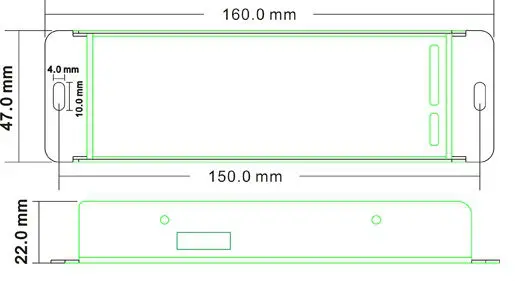

Size

Function Instruction

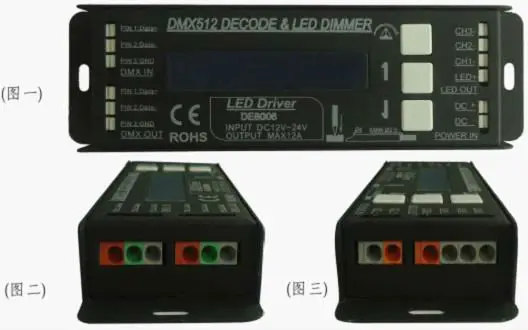

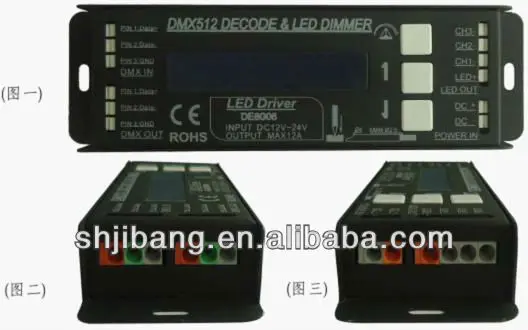

(Graph one):Product panel instructions, through the LCD screen show content, by button menu options, adjust the address code and internal program. When press HOME BUTTON move the DMX512 external control and internal dimming light program menu . Setting address andadjusting the brightness can press UP/ DOWN BUTTONS to adjust.

(Graph two): DMX input/output terminals. See the panel and connectcorrectly.

(Graph three): 4 PIN driver output interface (of anode output driver, with a LED +, 3 channels CH1-, CH2-and CH3-output interface). 2 PIN terminals for 12 -24 V power input,(supply the power for decoder itself and decoder with lamps).

SELF-TESTING: Set DMX adress 000, full channels output 3 seconds, then each color gradient

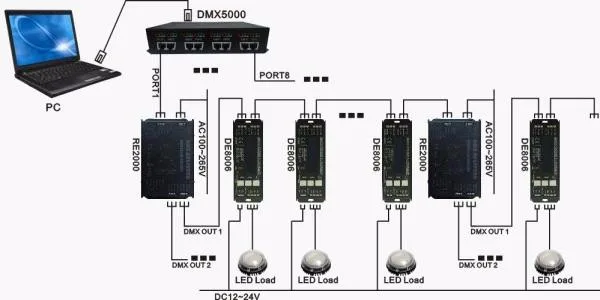

Wiring Diagram

DMX-512 Control signal connection
1,DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end,
in pressure welding DMX signal line plug should pay special attention to polarity.
DMX512 controller output signal positive, signal negative, signal ground with DE8006 input interface
corresponding connection.
2,DMX5000 output and DE8006's transmission lines can't be over 300 meters.
3,DMX5000 each interface can with not more than 170 pieces of DE8006. eight output interface.
Through the JBLED FLASH light making software and can with computer on line control. Realize
infinite contact the DMX lights.
4,When connected 32 pieces of DE8006, DMX signal must add a signal amplifier RE2000 .
RE2000 Cascade can't more than 4 PCS.
