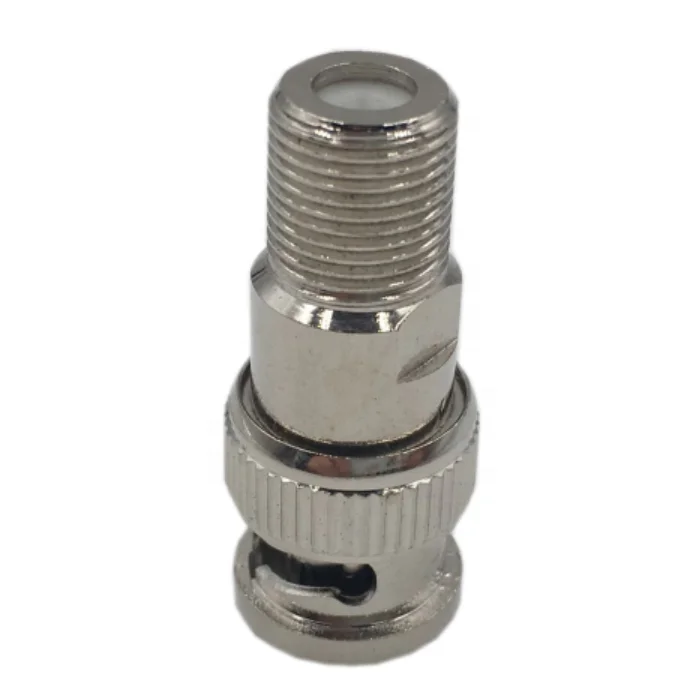

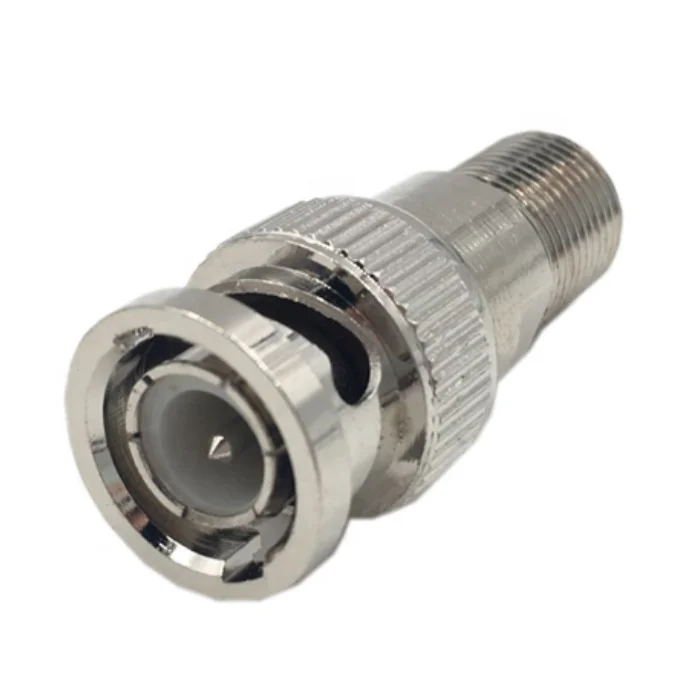

RG58 RG59 RG6 RF coaxial BNC plug CCTV connector adapter (60609225549)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


These connectors are for low power ,quick connect / disconnect applications using a bayonet type coupling mechanism and can be interchangeable with the same type connectors of aborad. They are widely used connect of the RF coaxial -cables in electronic equipment and instuments. Characteristic impedance 50Ω ,  75Ω









































Temp.range:-40~+60°CInsulation resistance:≥ 1000 MΩ
Impedance :75ΩWithstand voltage at sea level : 750V
Frequency range:0~1GHzWorking voltage :170V max
Center conductor withdrawal force:≥0.49NVSWR : Straight ≤1.2   Angle≤1.3
Contact resistance: center conductor ≤6mΩ , outer conductor  ≤1mΩDurability : 500 cycles




Temperature  range------ -55~+155°C
Impedance------50 Ω  Or  75 Ω
Frequency range (required for the application is 2,4 GHz)-------0~2 GHz


Voltage rating-----------1500V


Contact resistance of center and outer conductor--------center ≤ 1.5 mΩ outer ≤ 1 mΩ
VSWR---------- Straight ≤ 1.22 , Right angle ≤ 1.30
Durability (in cycles)--------500 cycles
Dielectric withstanding voltage------ ≥ 5000 MΩ


22422241








Company Information





We're professional electronic products supplier have strong OEM&ODM ability, RF coaxial connector products is our mainly products, have high quality level, strong develop capacity to produce custom design product. RG58,RG59,RG6,RG7,RG11....F connector and BNC connector, verious kinds of RF coaxial connector product. Zinc material and Copper material are all can produce into same high quality level.


12








FAQ


1. How about your lead time?
A: it depends on order quantity. Usually 15-30 days.

2.How can we get a sample.
A: Free sample, Freight collected by your side.

3.How to contact us?
A: Just send us enquiry online via Alibaba. Our worker will reply you in 24 hours.
