GPRS zigbee module water pressure level sensor wireless with LCD real time display
- Category: Test Instruments >>>
- Supplier: Atech Sensor Co. Ltd.
Share on (60609517208):
Product Overview
Description
GPRS zigbee module water pressure level sensor wireless with LCD real-time display
This series of pressure sensor is featuring small size, stable performance and mass production.It is a Piezoelectric pressure sensor applied in HVAC , air compressor,air conditioner,pipeline pressure testing,liquid pressure system,pressure switch,industrial,water treatment and hydraulic pressure test. It is work as industrial pressure measurement can be use as engine fuel pressure sensor, gas pressure industries, hydraulic pressure sensor, oil pressure sensor, water pipe pressure sensor, steam pressure sensor, pipe pressure sensor, pressure sensor lpg, The pressure sensor are made of 316 stainless steel. The pressure sensing elements and chips are selected from German international brands. The products are approved with CE, intrinsically safe, and explosion proof certificates, so can be use in gas, lpg industry.
Product Description
GPRS zigbee module water pressure level sensor wireless with LCD real-time display
Description of PL350 water level sensor wireless
PT350 intelligent wireless pressure transmitter is a low-power, with intelligent wireless communications instruments, advanced industrial-grade MCU as the core, high-quality sensor for the collection front-end,
combined with industrial-grade wireless GPRS data module, the use of China Mobile's mature GPRS network, to achieve the field instrument data to the cloud wireless transmission. The instrument reports the data according to the set interval, customers through the Web page to achieve remote instrument configuration and data access, upload and distribution of data are stored in the database, to facilitate the latter part of the query.Through the Internet PC or mobile terminal to access the relevant Web site to obtain instrument data and to achieve the collection of data statistics, analysis, form report and data curves, with intuitive, accurate and efficient features.
Product Detail of zigbee water level sensor
| Pressure range | 0~3 m(diesel) water level sensor wireless |
| Overload of zigbee pressure sensor | 150%FS water level sensor wireless |
| Output signal | 4~20mA, 0.5 ~4.5V, 0~ 5V zigbee water level sensor |
| Accuracy | 0.5%FS (standard) water level sensor wireless |
| Power supply of zigbee pressure sensor | 10VDC -35VDC 3.6VDC(battery supply) |
| Operating temperature range | -25~+85c of zigbee water level sensor |
| Process connection | G1/4 or others you can OEM |
| communication frequency band | 2.405GHz~2.480GHz |
| Type | Resistance Sensor, pressure sensor, ultrasonic sensor |
| Warranty of pressure transducer | 12-18 months |
| Product Keywords | water level sensor wireless, zigbee water level sensor |

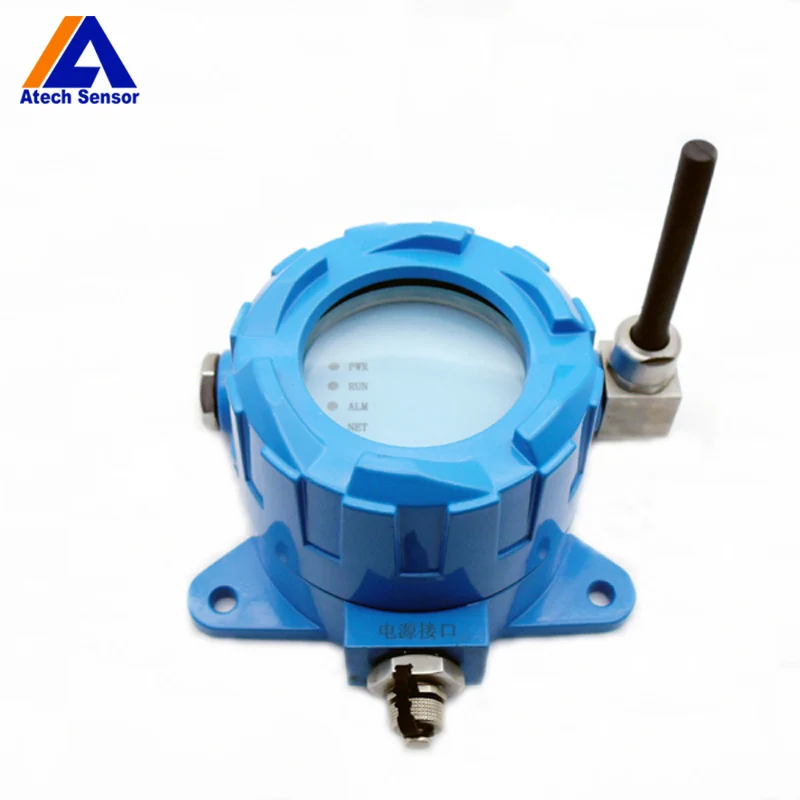

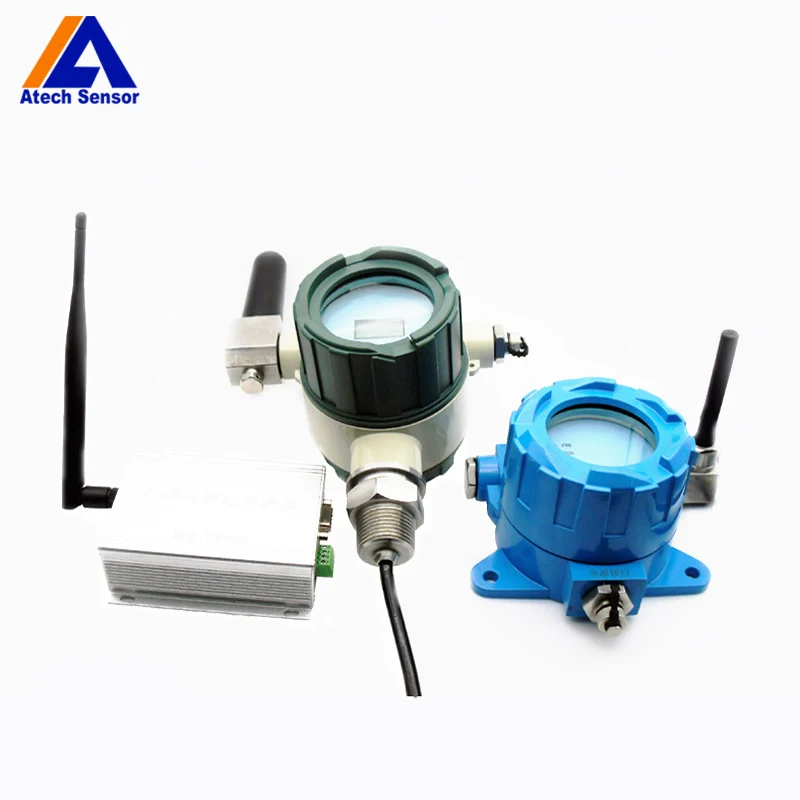

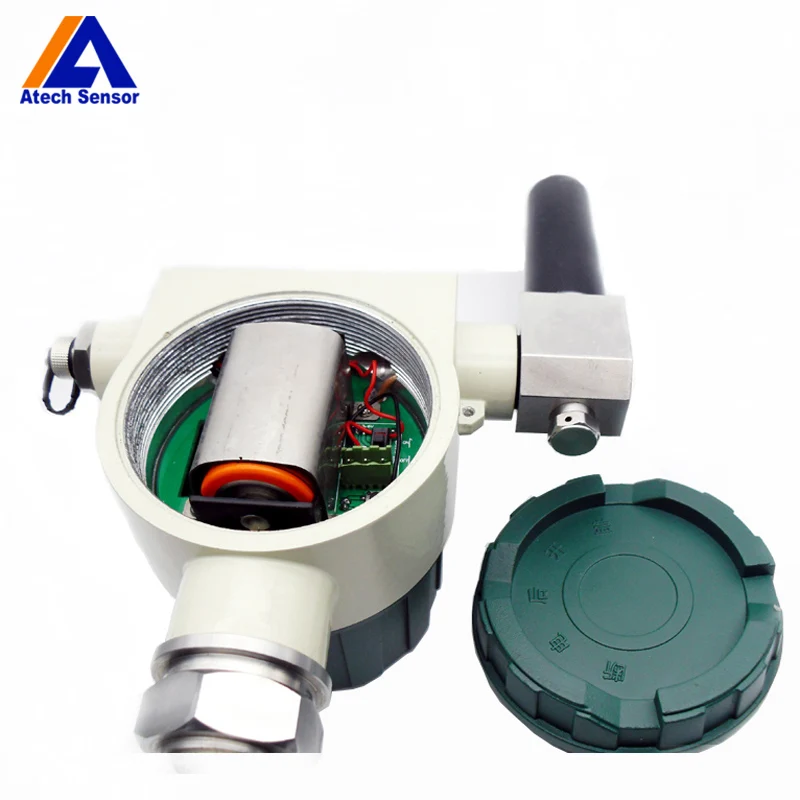

Product image of water level sensor wireless
Features of PL350 wireless water level sensor
1. GPRS network wide range application
2. LCD real-time display
3.The power supply reverse connect protection
4. Upper and lower limit alarm function
5. Networked automatic calibration,Broken network
automatic reconnection
6. Button operation, can configure the instrument
7. Web side view and remote configuration instrument,
support SMS query data
8. With functions of shockproof, moisture-proof, adapt to
the outdoor environment
Speifications of PL350 wireless water level sensor
pressure medium of zigbee water level sensor | liquid compatible stainless steel |
pressure ranges | 0~3 m(diesel) |
overload pressure | 150%FS water level sensor wireless |
output signal of zigbee pressure sensor | 4~20mA, 0.5 ~4.5V, 0~5V zigbee pressure sensor |
accuracy of zigbee window sensor | 0.5%FS (standard) |
load resistance of pressure sensor | RL = (U-10)/0.02(ohm) (4~20mA current output), >20Kohm (voltage output) |
long term stability | 0.2%FS/year |
Power supply | 10VDC -35VDC 3.6VDC(battery supply) |
compensated temperature range | -20~80°c |
operating temperature range | -25~+85°c |
storage temperature range | -25~+85°c |
temperature coefficient of zero | 1.5%FS (Max) |
temperature coefficient of span | 1.5%FS (Max) |
communication frequency band | 2.405GHz~2.480GHz |
working time of zigbee window sensor | 180s~60000s of water level sensor wireless |
insulation resistance | 100MΩ@ 250VDC |
Process connection | G1/4 or others you can OEM |
Protection grade | IP65 of zigbee pressure sensor |
material of wetted part and housing | 1Cr18Ni9Ti |
material of pressure membrane | 316L of 5v gps module |
Response time | 1ms of zigbee water level sensor |
Dimension of PL350 water lever sensor wireless
Applications of PL350 zigbee water level sensor
1. Hydraulic monitoring
2. Water pipe pressure
3. high pool level
4. Environmental parameter detection
Company Information
Factory of our level sensor sensor
Certificates of level sensor
FAQ
1.Q: How long is the delivery?
-- Mostly within 10days
2.Q:Can I get a sample?
-- Sure, contact our sales please
3.Q:What is your MOQ?
-- 1pcs
4.Q: How about warranty time?
-- 12-18month
5.Q: How can I visit your factory?
-- Fly to Xian Yang air port, it’s our pleasure to pick you up.
6.Q:How do you control your quality ?
-- We have EPR system .we control from parts, process, testing, packing ,retesting.
Every Sensor will be tested two times before reach you, after that sport test for the third time. Make sure about the quantity.
Ordering guide:
In order to recommend the suitable sensor, please kindly advise us the following information
1..What is your testing medium ? oil, water, gas, waster water, or others.
2.Working temperature of the sensor ? -40°C~100°C or others
3.Pressure range ? -1-0bar,0-1bar,0-16bar,0-40bar,0-100bar,0-600bar or others
4.Output signal? 4-20mA, 0-5V ,0.5-4.5V,0-10V,RS485 or other
5.Electronic connection ? DIN43650 ,Packard, Aerial plug, direct cable or others.
6.Screw ? M20×1.5,G1/4,G1/2,R1/2,NPT1/2
