BC CR918 common rail injector test bench mechanical injection pump test bench

Product Overview

Description

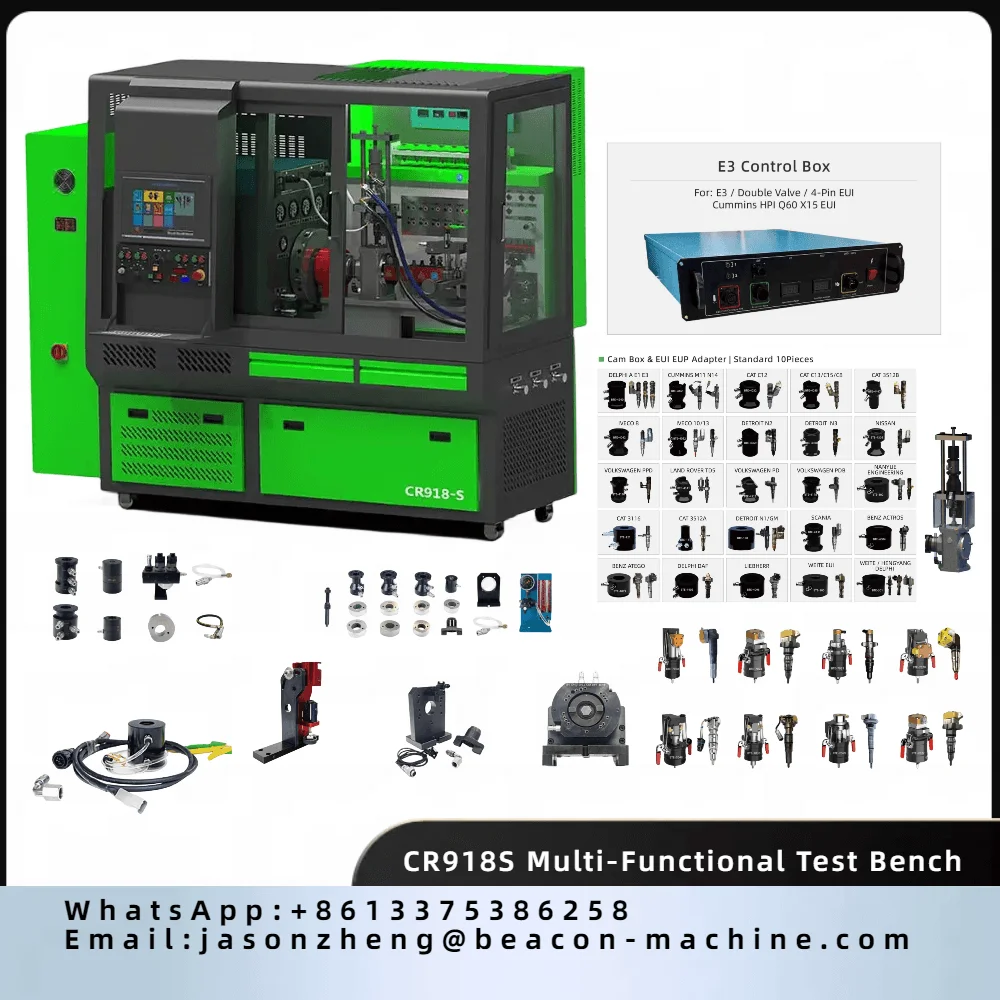

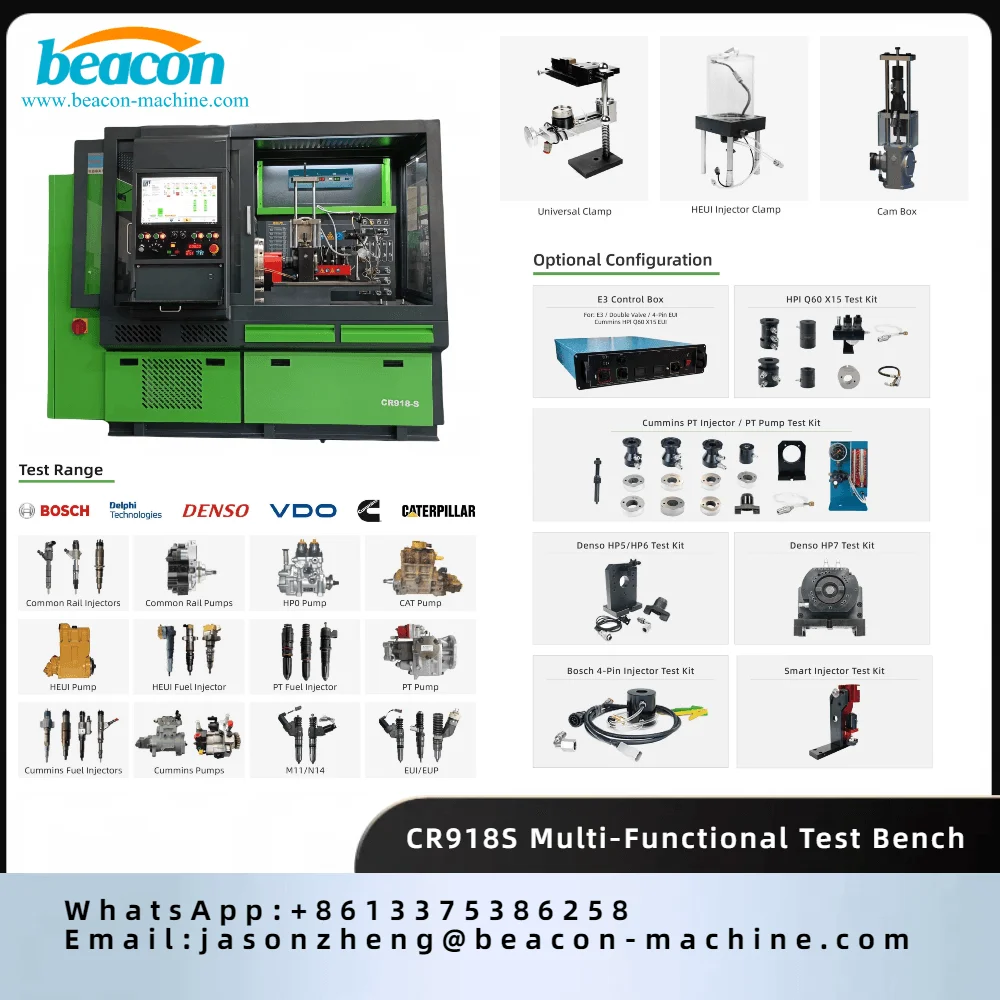

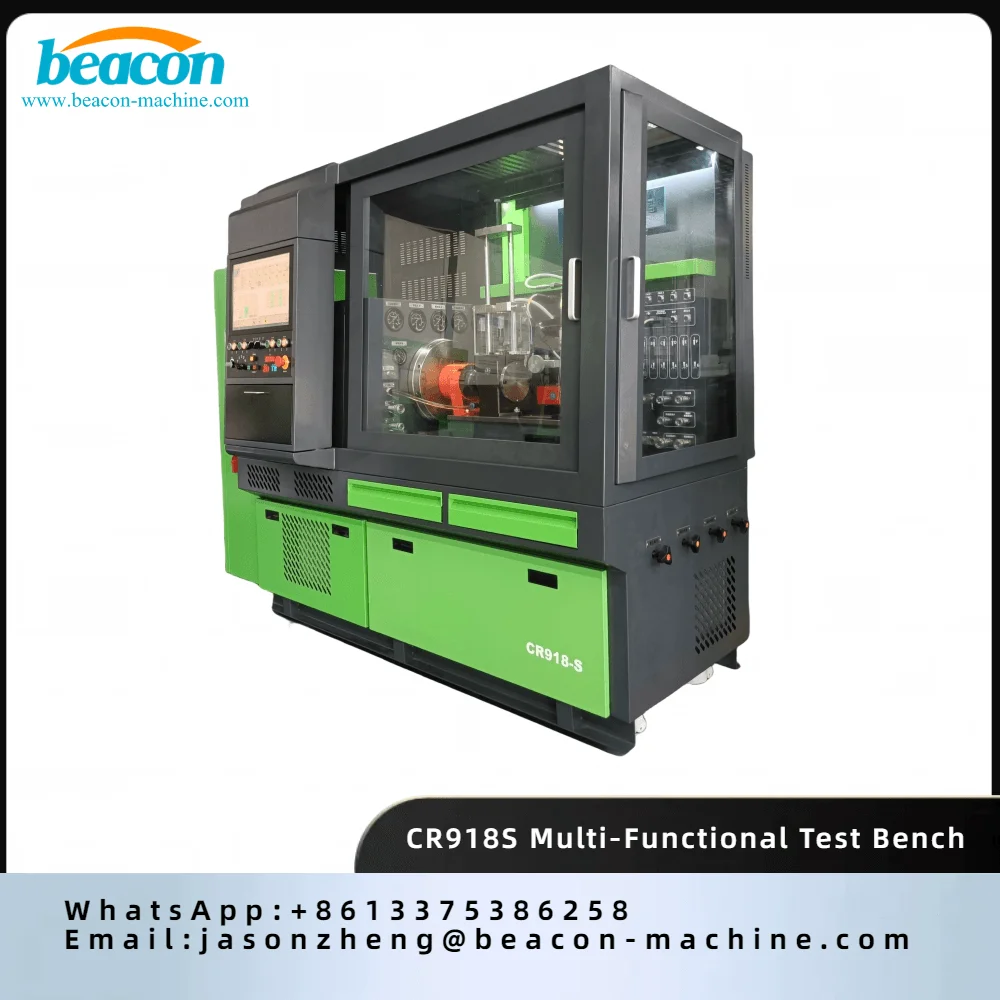

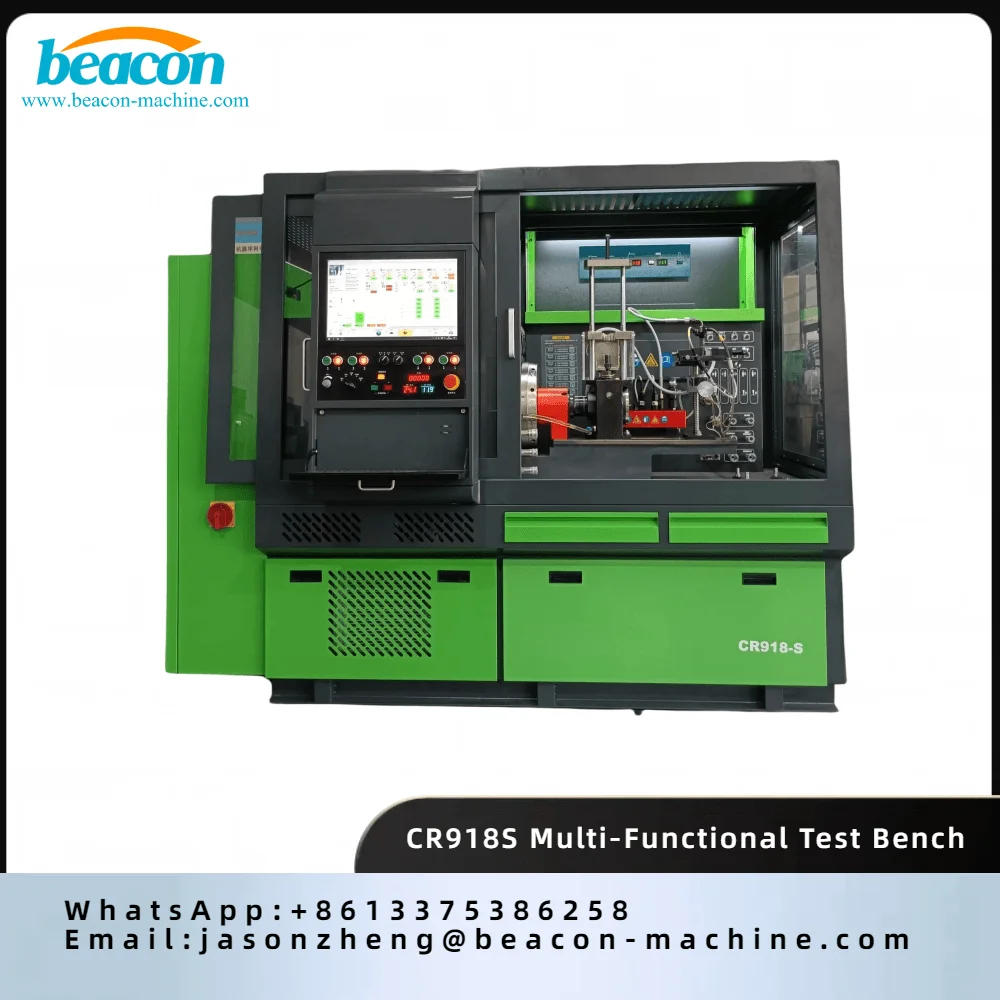

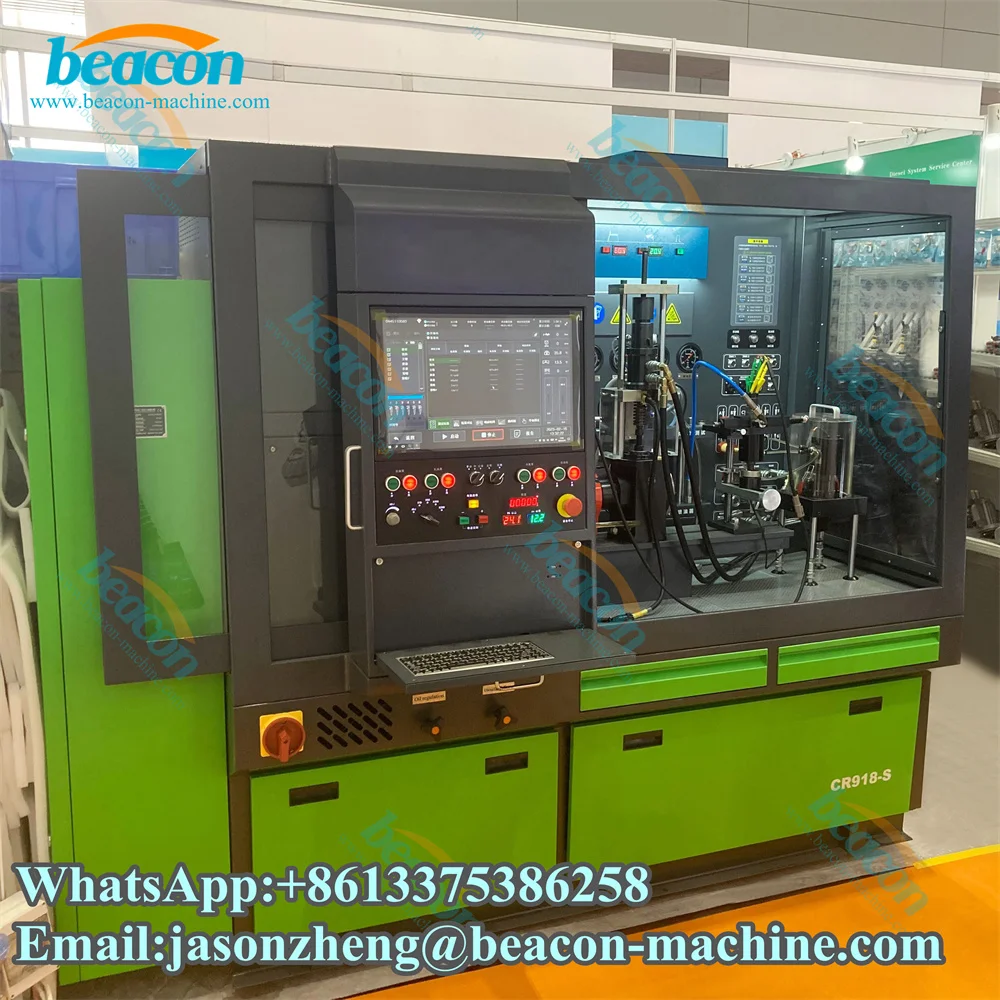

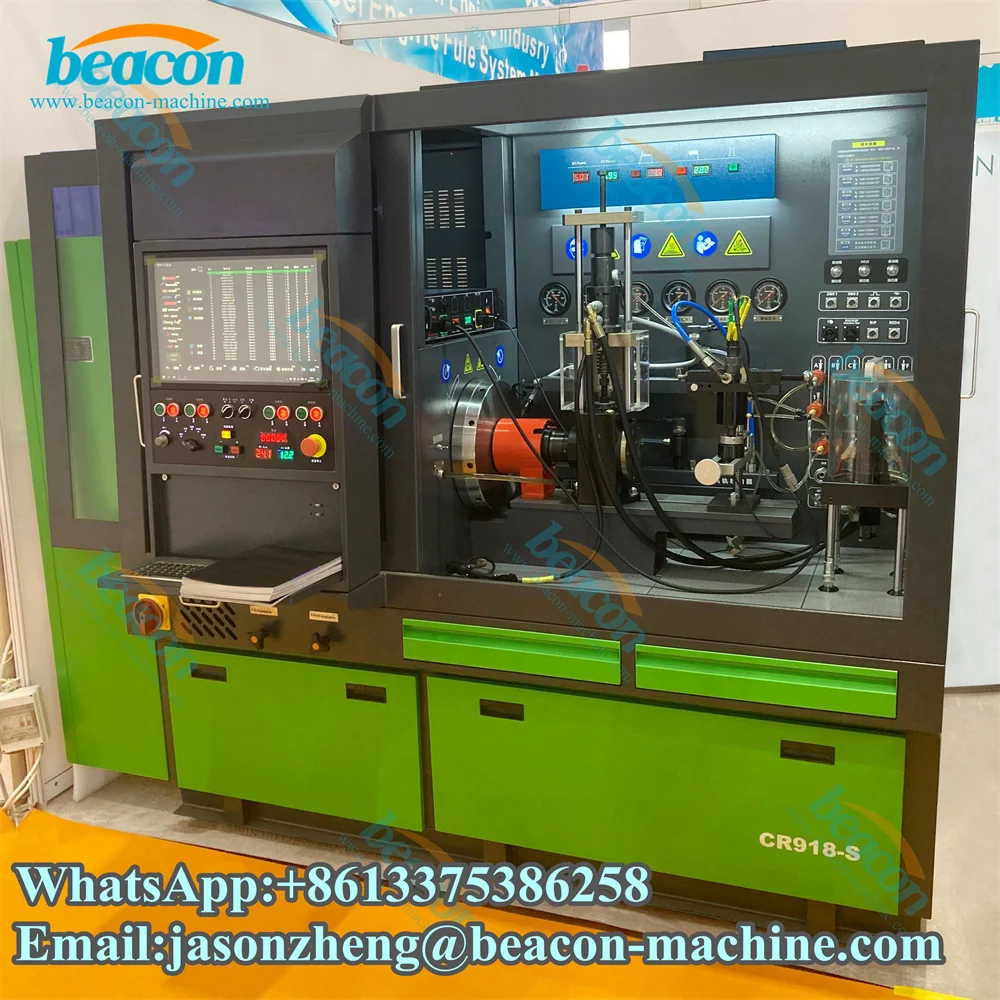

BC-CR918 common rail injector test bench mechanical injection pump test bench

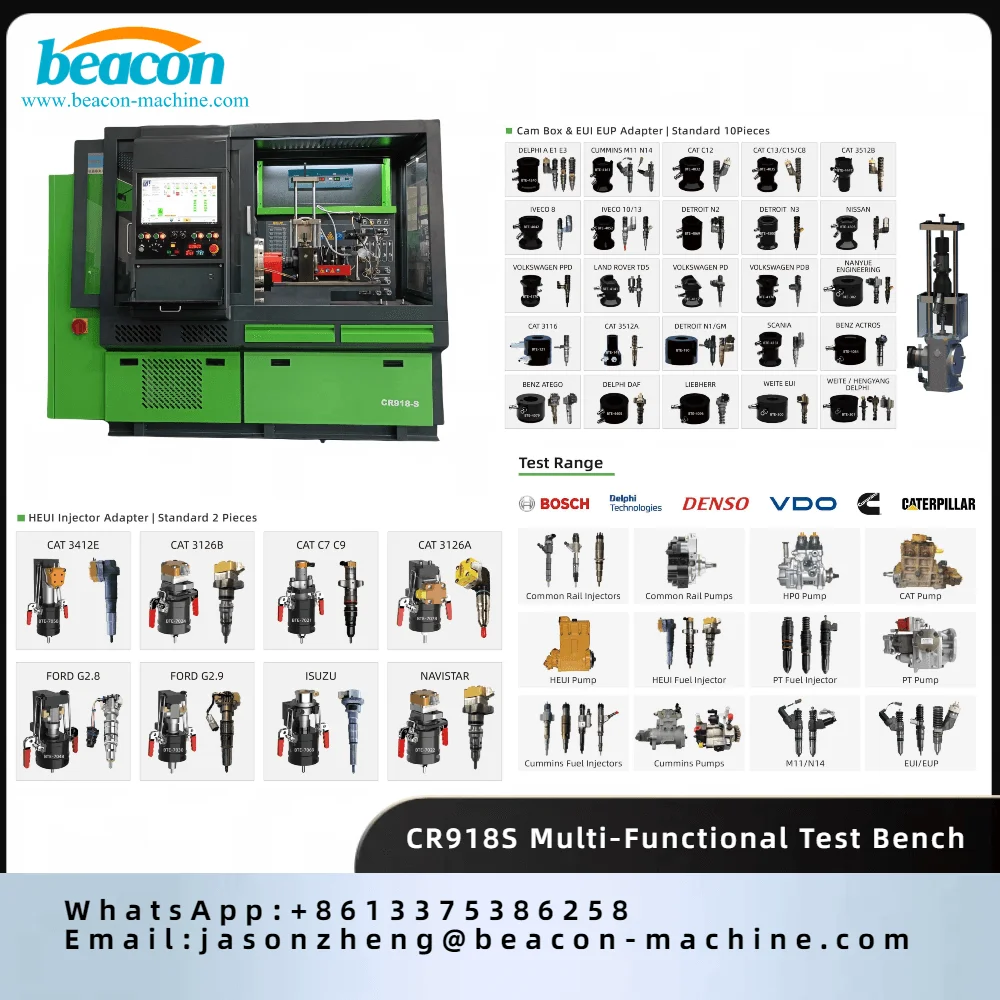

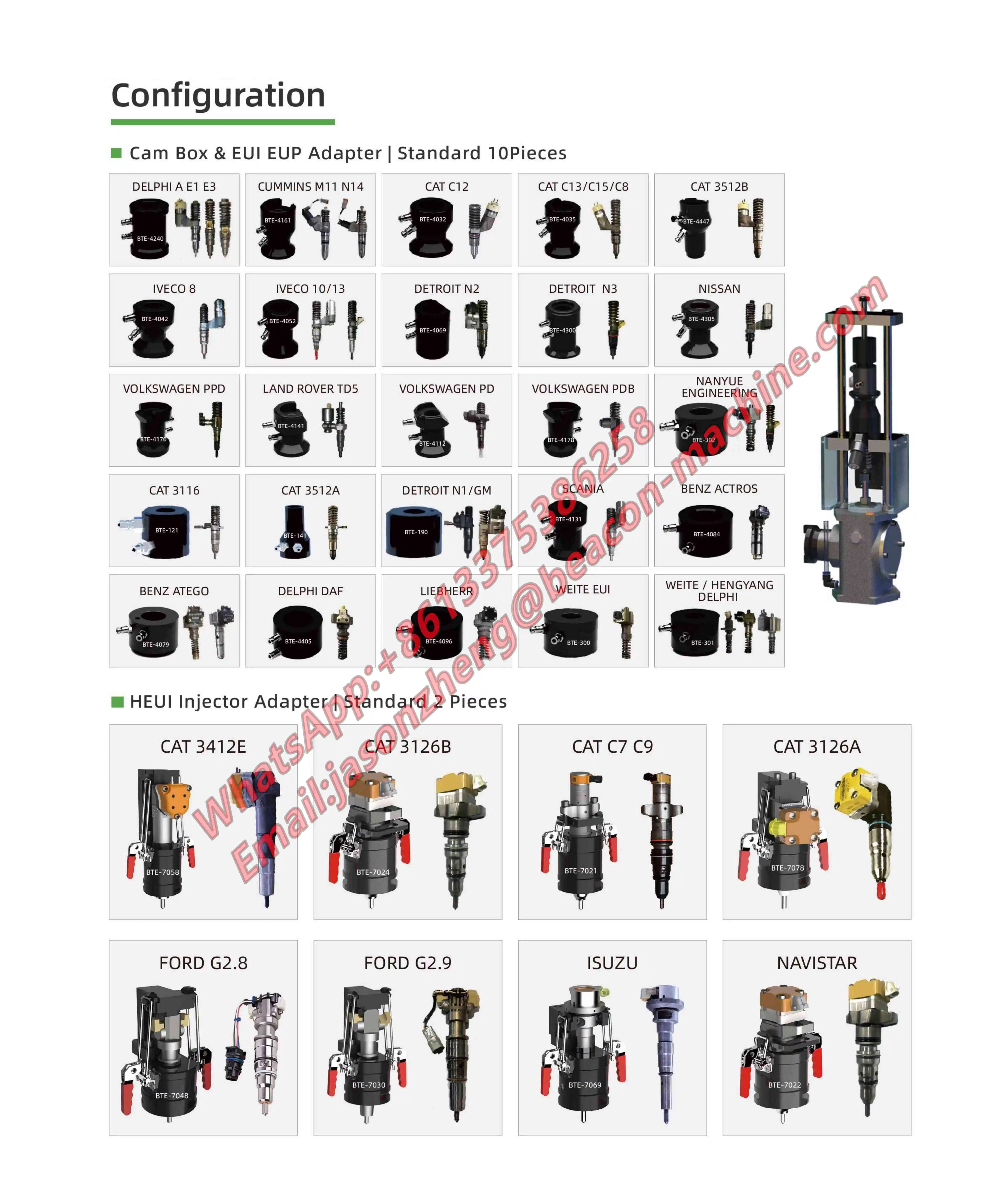

Item Description of Goods 1 Common rail test bench CR918-S (380V 3phase ) 1. Test high pressure common rail injector 2. Test the HPO pump 3. Test the CAT HEUI pump 4. Test the CAT 320D pump 5. Test the common rail piezoelectric injector 6. Test HEUI Injector  (c7 c9 3126b) (Choose 2 adapters from the list) 7. Test EUI EUP (Choose 10 adapters from the list) 8. Bosch IMA code generation Cummins code generation 6, 7, 8, 9, 10 digits Optional feature 1 Adaptateur EUI EUP (1/SET) 2 "E3 double valve needle pump nozzle special control system Cummins HPI Q60 X15" Pump Nozzle Special Control System 3 Test Cummins PT Pump PT Injector 4 HPI Q60 X15 Cummins 5 Test HEUI CAT 3412E 6 Test HEUI CAT 3126A 7 Test HEUI Ford G2.8 8 Test HEUI Ford G2.9 9 Test HEUI ISUZU 10 Test HEUI NAVISTAR 11 Denso HP5/HP6 Test kit 12 Denso HP7 Test Kit 13 Bosch 4-Pin Injector Test Kit 14 Smart Injector Test Kit

Features
[Features]
1.Combined flowmeter measurement method
2.C7 C9 injector quick tooling
3.CHEUI Injector Concealed Pipe Design
4.Cam Box Load Sensor Function
5.The response time of fuel injection and fuel return is measured at the same time, and the fuel return is tested at each step
6.Common rail injector, unit pump/pump nozzle, Carter medium pressure Three sets of independent drive systems
7.Inverter motor 22Kw
8.Equipped with a pump nozzle load sensor to detect the injection pressure of the pump nozzle.
9.Maximum speed 3500 rpm
10.Laser positioning pump nozzle clamping is consistent

[warranty service]
The whole machine is guaranteed for one year (except for wearing parts)

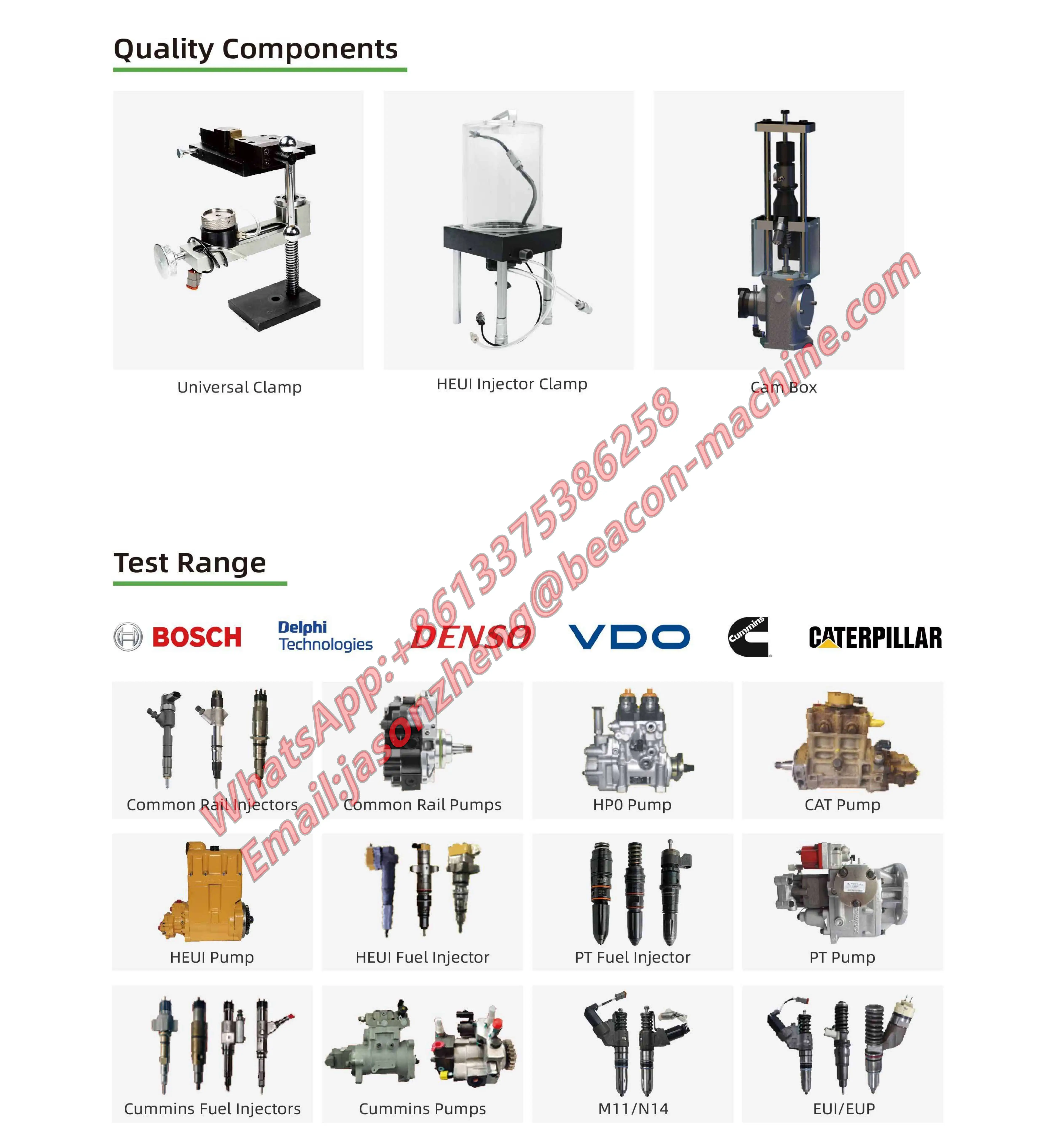

Test Range
[Standard features]
1.Bosch, Denso, Delphi, Siemens, Cummins, Carter high pressure common rail injectors
High pressure common rail Bosch oil pump, Denso oil pump, 2. 2. Cat medium pressure injector and actuating pump, Cummins common rail pump

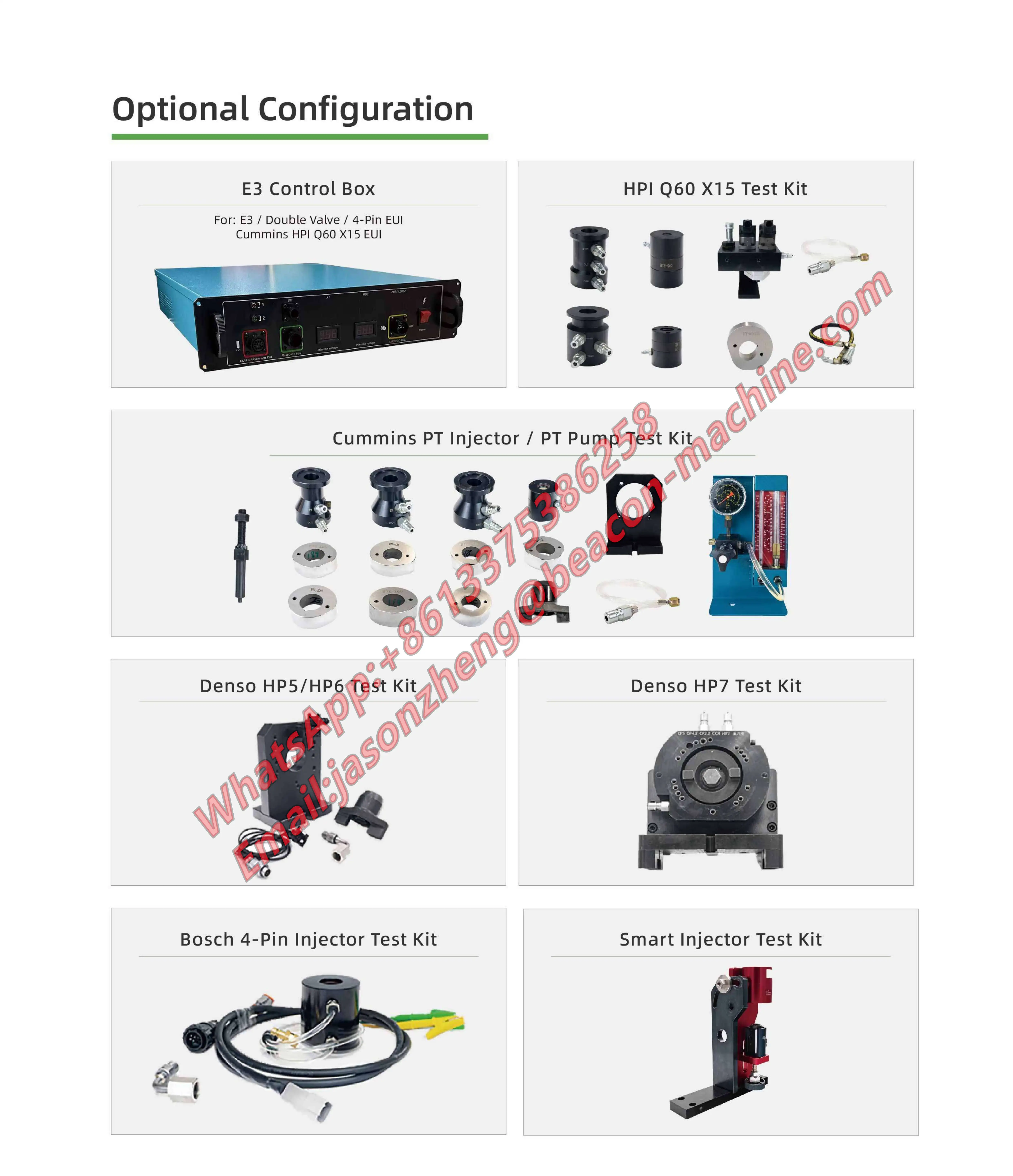

[Optional function]
1.Cummins PT injector, Cummins PT fuel pump
2.E3 control box, Cummins Q60X15 injector, Cummins Q60 X15 injector
[Detailed Features]
1.Maximum rail pressure 2700 bar
2.Testing Common Rail Injectors
3.Test the common rail pump
4.Test unit pump/pump nozzle
5.Testing HEUI injectors
6.Testing the HEUI Actuated Pump
7.Common Rail Pipe with Filtration
8.High pressure filter clogging reminder function
9.Waste oil tank overflow warning

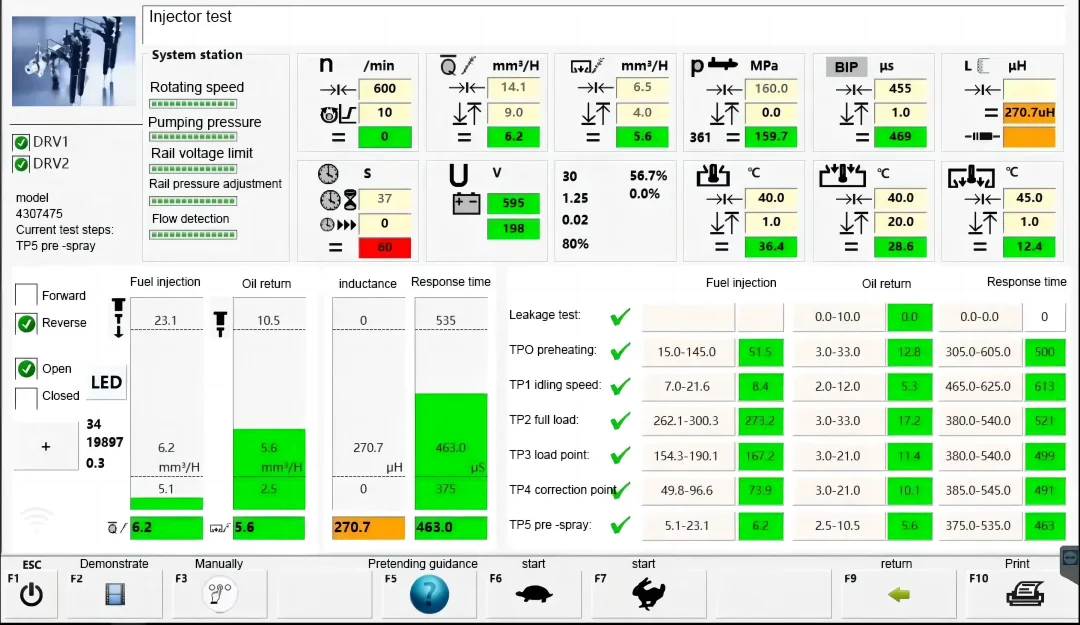

10.Simultaneous measurement of fuel injection, fuel return and response time, and fuel return at each step
11. The oil-actuated pump and the high-pressure common rail pump are integrated inside, reducing the operating space of the operating room and avoiding frequent switching
