0 180 Degree Inclined Observation Dental Operation Microscope

0 180 Degree Inclined Observation Dental Operation Microscope

Category: Microscopes >>>
Supplier: Ningbo Haishu Honyu Opto-Electro Co. Ltd.

Price:

Quantity:

Product Overview

Description

0-180 Degree Inclined Observation Dental Operation Microscope OPR.33.A180

Specification

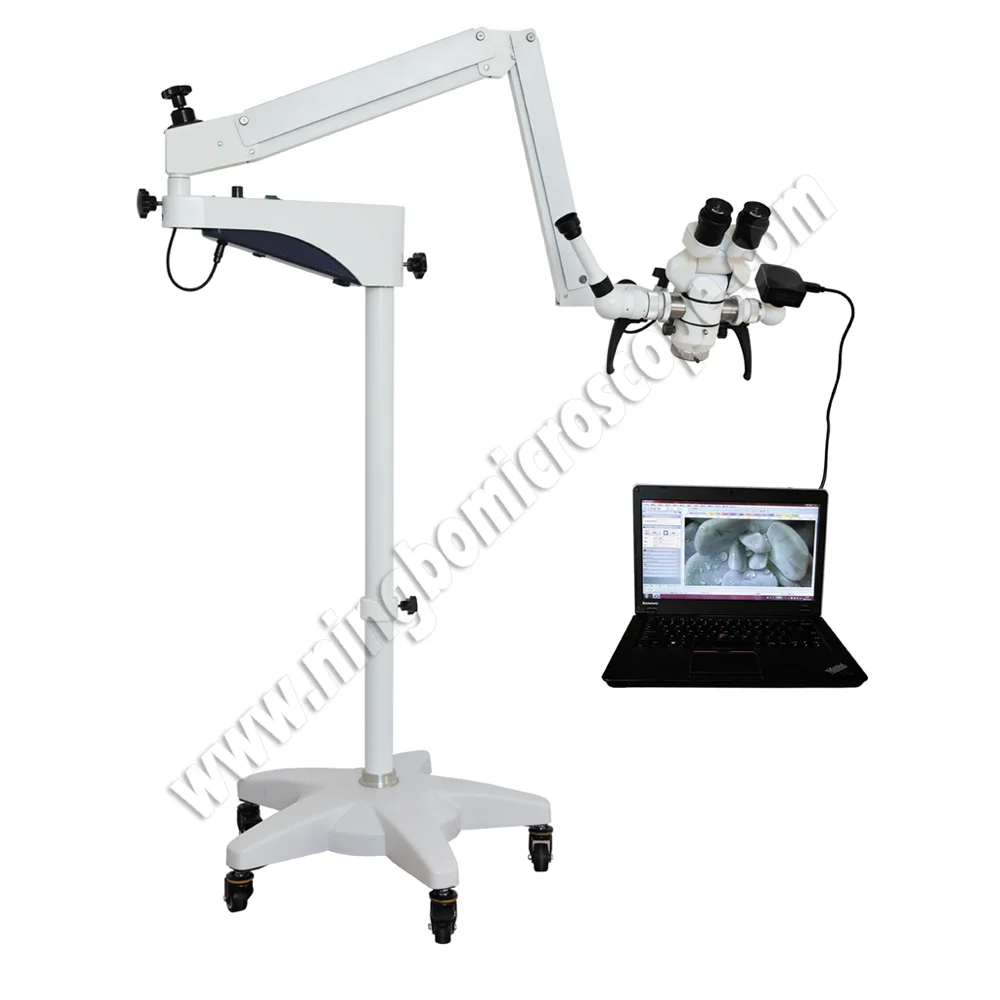

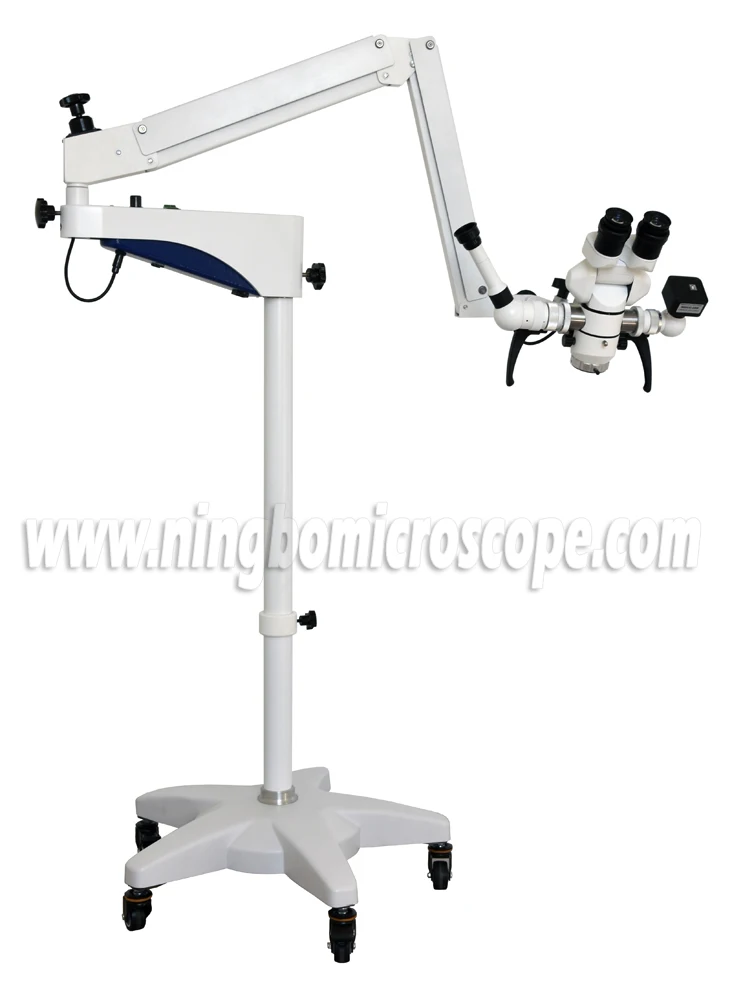

OPR.33.A180 is a comprehensive operation microscope. It is equipped with a 0-180 degree inclined binocular head, one pair of WF12.5X eyepiece, two long working distance objectives, coaxial LED illumination system and movable base. The 0-180 inclined binocular head can offers more comfort for operation. The standard magnification is 4.8x-16x( but with Optional objectives, the magnification can reach 3x-16x). The 10W LED illuminator can offer brightness over 40000 lux. This microscope is an idea instrument for ENT(otorhinolaryngologic), dental and ophthalmic inspection and operation.

Key Features

•3-step magnification adjustment: 0.6x, 1.0x, 1.6x

•Two objectives with different focusing distance

•High brightness 10W LED illumination

•Total Magnification: 3x-16x (with Optional objective)

Specification

Magnification of binocular	8X

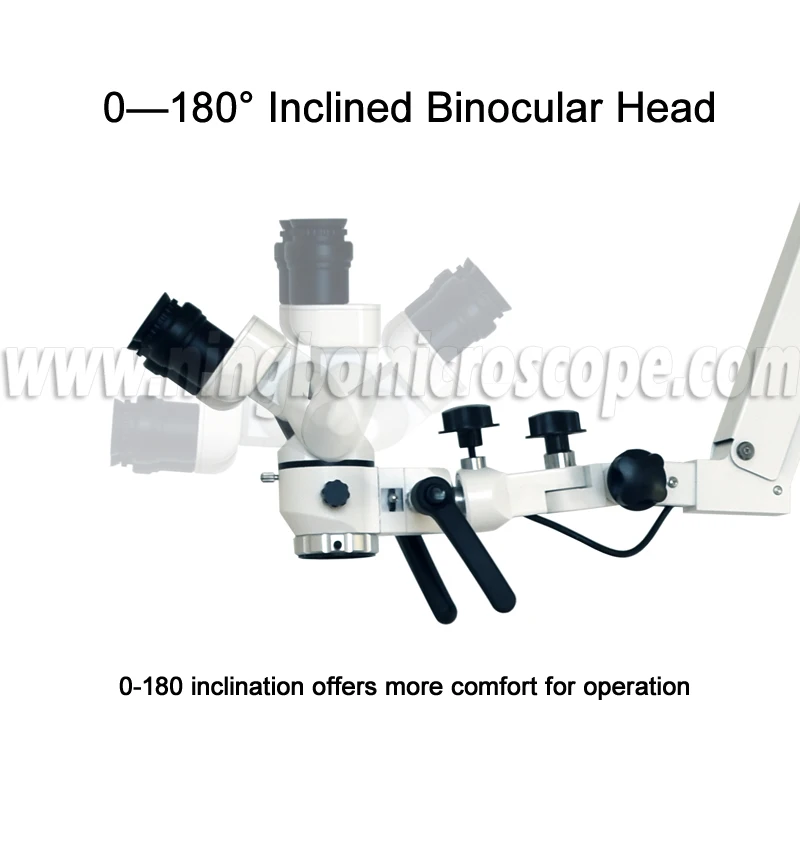

Binocular	0-180° inclinable
Magnification of eyepiece	12.5X
Interpupillary distance	50mm-80mm
Diopter adjustable	±7D
Focal length of objective	F=200mm and F=250mm two objectives
Magnification changer	3-step, 0.6X, 1X, 1.6X
Total magnification	4.8X, 8X, 12.8X, 6X, 10X, 16X
Linear field	50mm, 30mm, 19mm, 40mm, 24mm, 15mm
Fine focusing distance	10mm
Illumination	Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx
Filter	Build-in green and yellow filters
Balancing arm	2-part arm with universal joints, counterweight adjustable and can be locked
Floor stand	2-part column fitted on the five-star base with casters
Power supply	AC100V-AC240V
