Автоматическая машина для сушки ампул и стерилизации духовки
- Category: Drying Oven >>>
- Supplier: Shanghai Iven Pharmatech Engineering Co. Ltd.
Share on (60618706423):
Product Overview
Description
Product Description

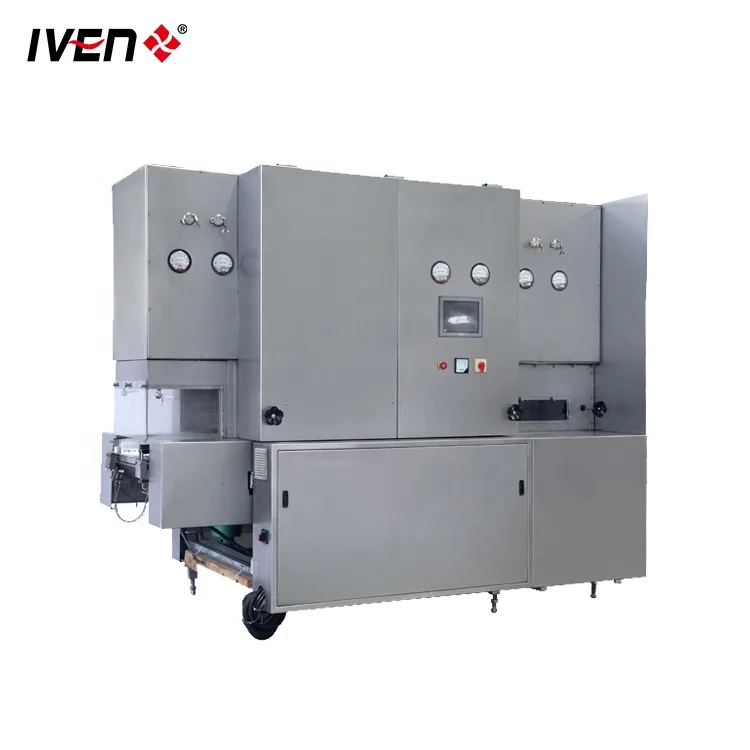

Automatic Ampoule Drying Sterilizing Oven Machine used for sterilizing and drying of ampoules, vials, oral liquid bottle, and other glass bottle in the pharmaceutical industry.
Machine can automatically complete whole procedure of bottle in-feeding, pre-heating, sterilizing, cooling and bottle out-feeding . Use laminar flow principle and hot air high-speed disinfection technology; make container in the sealed tunnel achieve the national cleanliness Class A standard. With the good heat distribution and depyrogenation, currently it’s the most popular and best drying and sterilizing equipment .
This unit can be used separately, also can be combined into a production line with bottle washing machine and filling machine.
RSM series technical parameters
| Model | Length (mm) | Width (mm) | Height (mm) | Heating power |
|---|---|---|---|---|
| RSM420/27 | 2800 | 1300 | 2400 | 27KW |
| RSM620/38 | 2800 | 1660 | 2400 | 38KW |
| RSM620/60 | 4300 | 1600 | 2400 | 60KW |
| RSM900/80 | 5260 | 1960 | 2480 | 80KW |
| RSM900/100 | 6800 | 1960 | 2480 | 100KW |
The innovative structure is easy for maintenance
Adopts new mesh belt with side plates conveying, use sprocket chain drive, avoid bottle drop, bottle broken and bottle collapse caused by the bottom belt and side belt deviation or crawling off.
High-temperature hot air blower use water circulation cooling system, take away bearing’s heat through the water circulation.
Stainless steel electrical heating, heat rapid and well-distributed.
Hinge type heating seat, maintenance more convenient.
Wide-open heating area, make equipment cleaning and maintenance more convenient.
Drawer type filter mounting seat, make replacement and maintenance more convenient.
Machine mainly used for sterilizing and drying of ampoules, vials, oral liquid bottle, and other glass bottle in the pharmaceutical industry.
Machine can automatically complete whole procedure of bottle in-feeding, pre-heating, sterilizing, cooling and bottle out-feeding . Use laminar flow principle and hot air high-speed disinfection technology; make container in the sealed tunnel achieve the national cleanliness Class A standard. With the good heat distribution and depyrogenation, currently it’s the most popular and best drying and sterilizing equipment .
This unit can be used separately, also can be combined into a production line with bottle washing machine and filling machine.
IVEN Can Do !
IVEN provides integrated engineering solution for worldwide pharmaceutical and medical factory include the clean room, auto-control and monitoring system, pharmaceutical water treatment system, solution preparing and conveying system, filling and packing system, automatic logistics system, quality control system and central laboratory and etc. According to the pharmaceutical industry's regulatory requirements of different countries and customer's individual demand, IVEN carefully customizes engineering solutions of turnkey projects and helps customers to win the target markets, IVEN creates value to customers.
Turnkey Project for IV Solution Plant from A to Z
• Project Design
• Pharmaceutical Water Treatment
• Solution Preparation
• IV Solution Production Line
• Sterilization
• Inspections Packing
• Clean Room & HVAC
• Stability Chamber
• Laboratory Instruments
• Utilities
• Documentation & Qualification
• Installation, Commissioning, Training
• Service
