ASME Code Stainless Steel 2:1 Elliptical Dished heads Conventional Tank Heads Tank ends Tank covers Pressure Vessel and Boilers
- Category: Pressure Vessels >>>
- Supplier: Henan Shenzhou Precision Manufacturing Co. Ltd.
Share on (60628604973):
Product Overview
Description
Product Description
ASME Code Stainless Steel Elliptical Dished heads Conventional Tank Heads Tank ends Tank covers for Pressure Vessel and Boilers
da\t= Outer diameter
di\t= Inner diameter
h1\t= Stepped-edge height
h2\t= Dish height
h3\t= Total height inner
r1\t= Dish radius
s\t= Wall thickness
Produce Capabilities

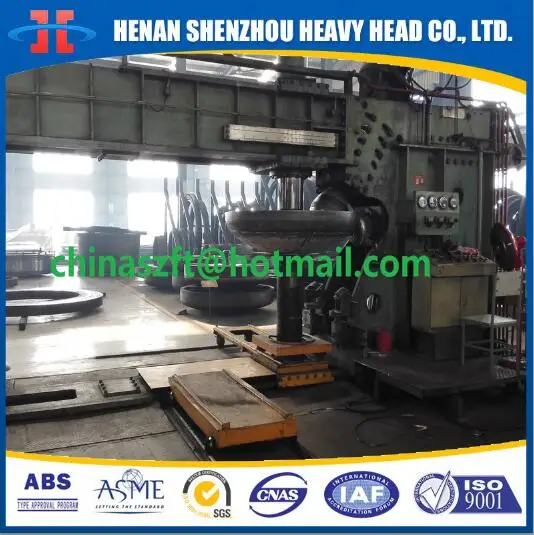

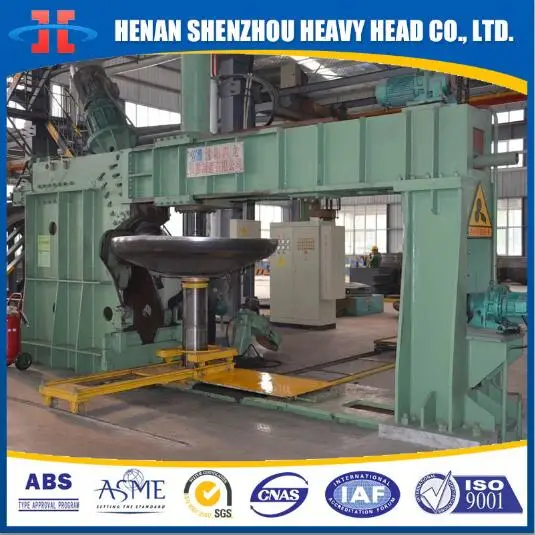

Process
1,Cold Formed
2,Hot Formed\tWelded (U stamp partial data report)
Welding Processes
Stick-Electrode Semi-Automatic Submerged Arc Gas Shielded
Edge Prepped
Trimmed /Untrimmed /Beveled / Tapered
Material
carbon, alloy, and low alloy steels, stainless clad, titanium, nickel, Aluminum, Tantalum etc.
Testing & Inspection
1,Radiographic Test 2,Ultrasonic Test 3,Liquid Penetrant Test 4,Magnetic Particle 5,Charpy V-Notch Tests 6,Brinell Hardness
1,Radiographic Test 2,Ultrasonic Test 3,Liquid Penetrant Test 4,Magnetic Particle 5,Charpy V-Notch Tests

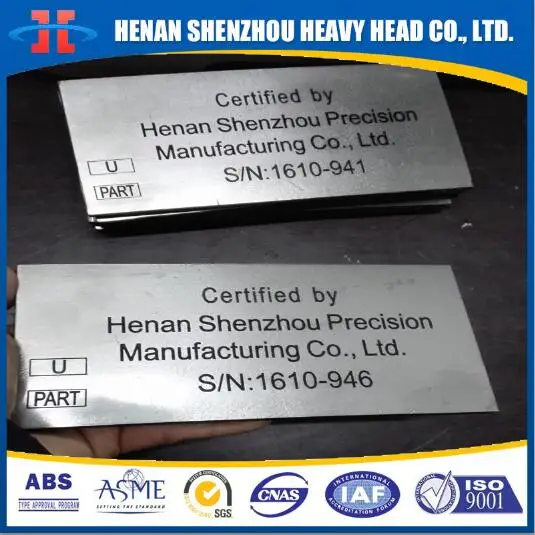

Partial Data Report
ASME U
Heat Treatment
1,Normalized
2,Annealed
3,Quenched and Tempered
4,Normalized and Tempered
Surfacce Treatment
Carbon Steel---Sand Blasting Stainless Steel----Acid Pickling
Industry Standards
ASME Section VIII, Division 1 (U stamp)
GB/T25198-2010
DIN28011 28013
Diameter
Manufacturing CONVENTIONAL TANK HEADS Com--- Diameter from 89mm to 7000mm，thickness from 3 to 40mm
SEGMENTS HEADS ----Diameter from 3000—20000mm, thickness from 4 to 300mm
Packing & Delivery
