Elliptical stainless steel pipe end cap for tank head
- Category: Pressure Vessels >>>
- Supplier: Henan Shenzhou Precision Manufacturing Co. Ltd.
Share on (60628640677):
Product Overview
Description
Product Description

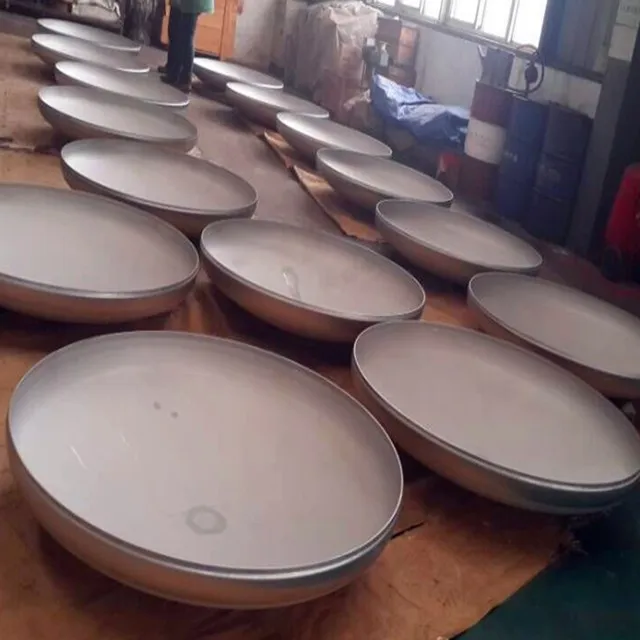

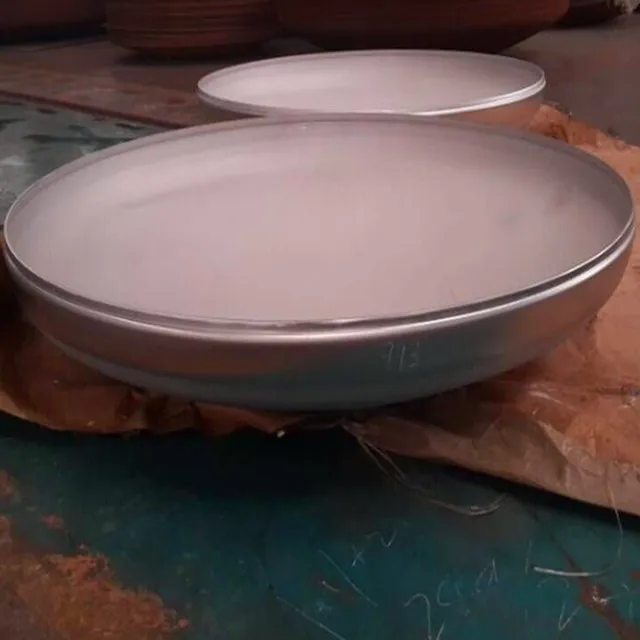

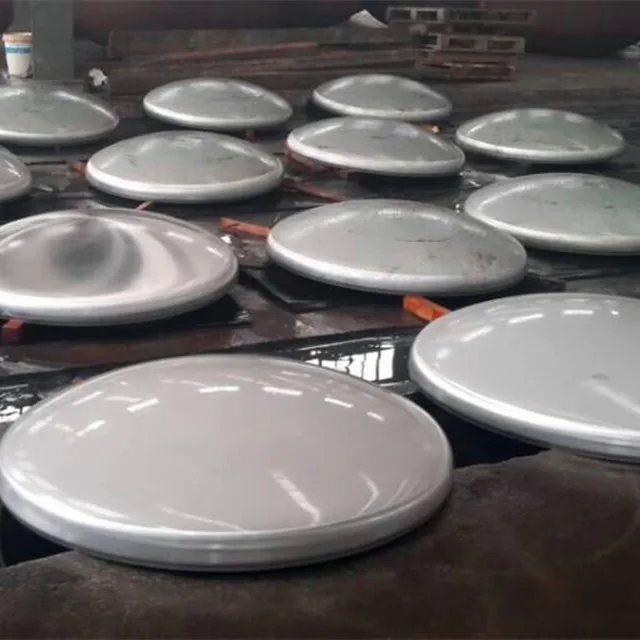

Elliptical stainless steel pipe end cap for tank head
α\t= Aperture Angle\tDa\t= Cylinder Diameter\tda\t= Outer diameter
H\t= Total height\th1\t= Stepped-edge height\tR\t= Knuckle radius
r\t= Neck Angle Radius\ts\t= Wall thickness\tzh\t= Neck Length
Produce Capabilities
Process
1,Cold Formed
2,Hot Formed\tWelded (U stamp partial data report)
Welding Processes
Stick-Electrode Semi-Automatic Submerged Arc Gas Shielded
Edge Prepped
Trimmed /Untrimmed /Beveled / Tapered
Material
carbon, alloy, and low alloy steels, stainless clad, titanium, nickel, Aluminum, Tantalum etc.
Testing & Inspection
1,Radiographic Test 2,Ultrasonic Test 3,Liquid Penetrant Test 4,Magnetic Particle 5,Charpy V-Notch Tests 6,Brinell Hardness
1,Radiographic Test 2,Ultrasonic Test 3,Liquid Penetrant Test 4,Magnetic Particle 5,Charpy V-Notch Tests
Partial Data Report
ASME U
Heat Treatment
1,Normalized
2,Annealed
3,Quenched and Tempered
4,Normalized and Tempered
Surfacce Treatment
Carbon Steel---Sand Blasting Stainless Steel----Acid Pickling
Industry Standards
ASME Section VIII, Division 1 (U stamp)
GB/T25198-2010
DIN28011 28013
Diameter
Manufacturing CONVENTIONAL TANK HEADS Com--- Diameter from 89mm to 7000mm,thickness from 3 to 40mm
SEGMENTS HEADS ----Diameter from 3000-20000mm, thickness from 4 to 300mm

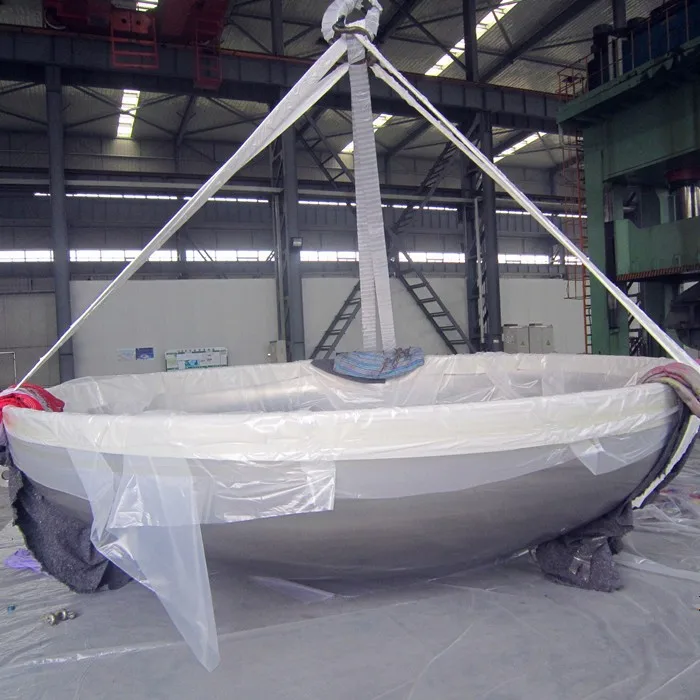

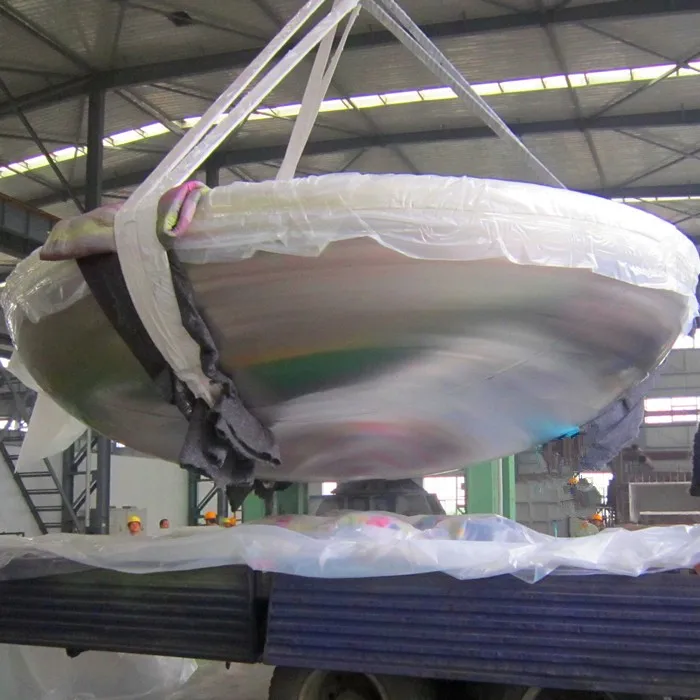

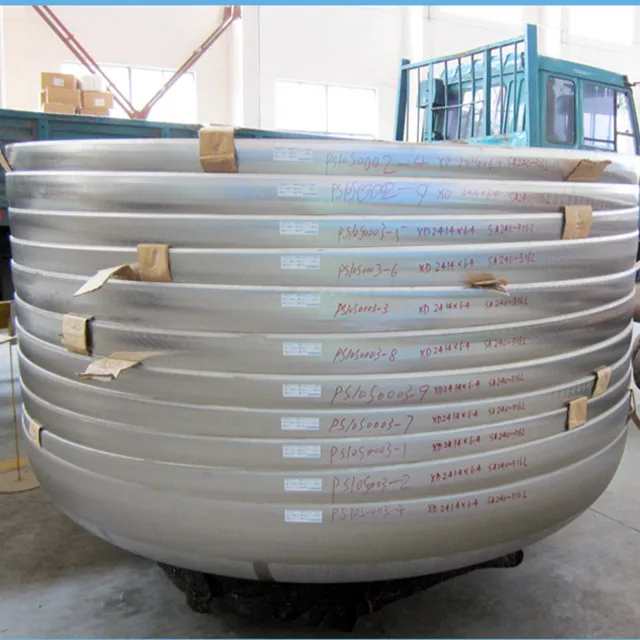

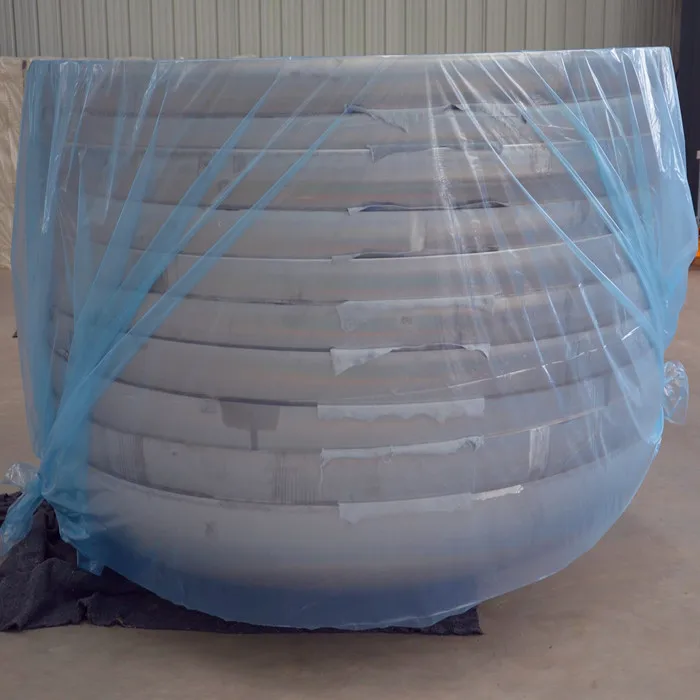

Packing & Delivery
