1. The Minimum bending diameter based on the pipe diameter
2.The Max bending diameter can according to the customer’s requirement
3.The Max length of mandrel can according to customer’s requirement
Max bending radius
R250mm
Min bending radius
According to pipe OD
Max bending angle
190°
Max feeding length
3500
feeding method
direct feeding/clamping feeding
Working speed
Bending speed
Max 150°/s
Rotary speed
Max 200°/s
Feeding speed
Max 1000mm/s
Working Accuracy
Controlled by Each Axis
Bending accuracy
±0.1°
Rotary accuracy
±0.1°
Feeding accuracy
±0.1mm
Bend –C axis
Hydraulic bending
Carriage-Y axis
Electric
Rotation-B axis
Electric
Information inputting method
axis(X . Y. Z)
working value(Y. B. C)
Bending method
Hydraulic bending
Power of rotary servo motor
750w
Power of feeding servo motor
1kw
Max bending unit
16 units (PLC)
Max storing components
1000 groups (PLC)
Motor power
4 kw
Oil pressure
12 Mpa
Size
3860 x 720 x 1230mm
Weight
1500kg
Packaging & Shipping
Iron case or wooden case
Lead Time :
Quantity(Piece)
1 - 2
>2
Est. Time(day)
20
To be negotiated

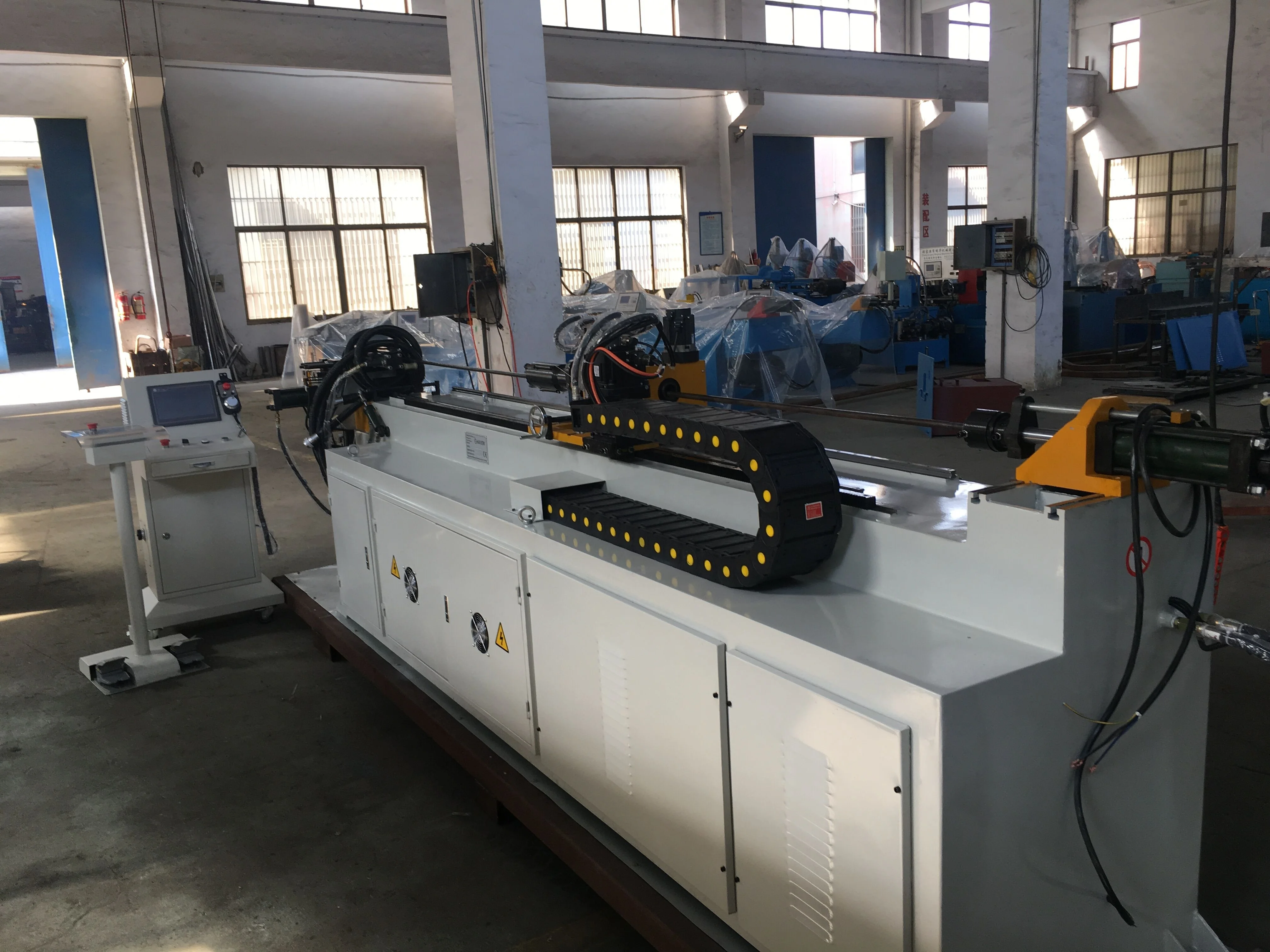

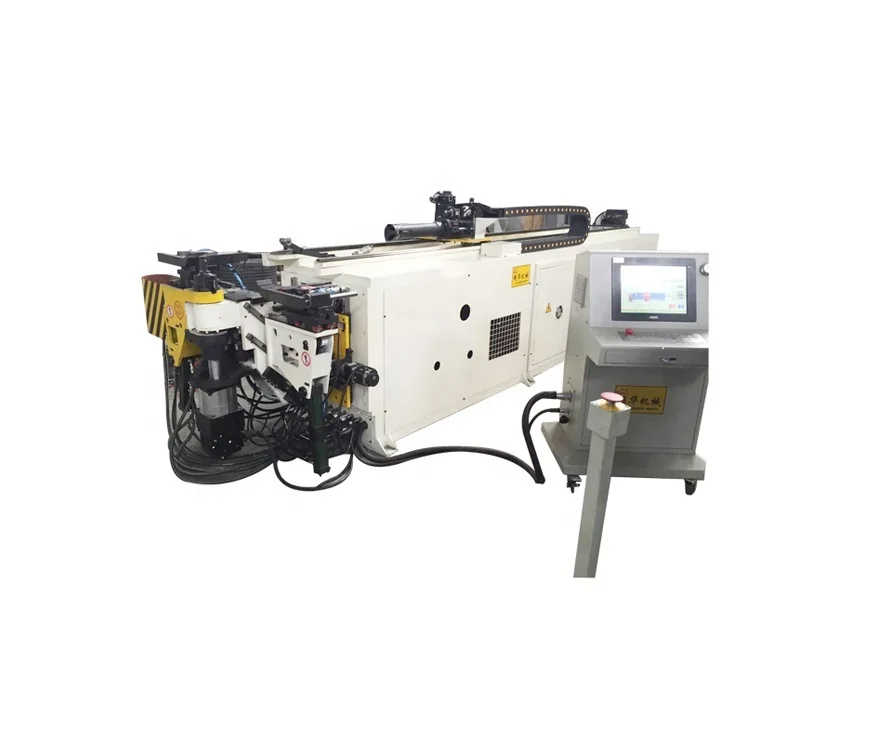

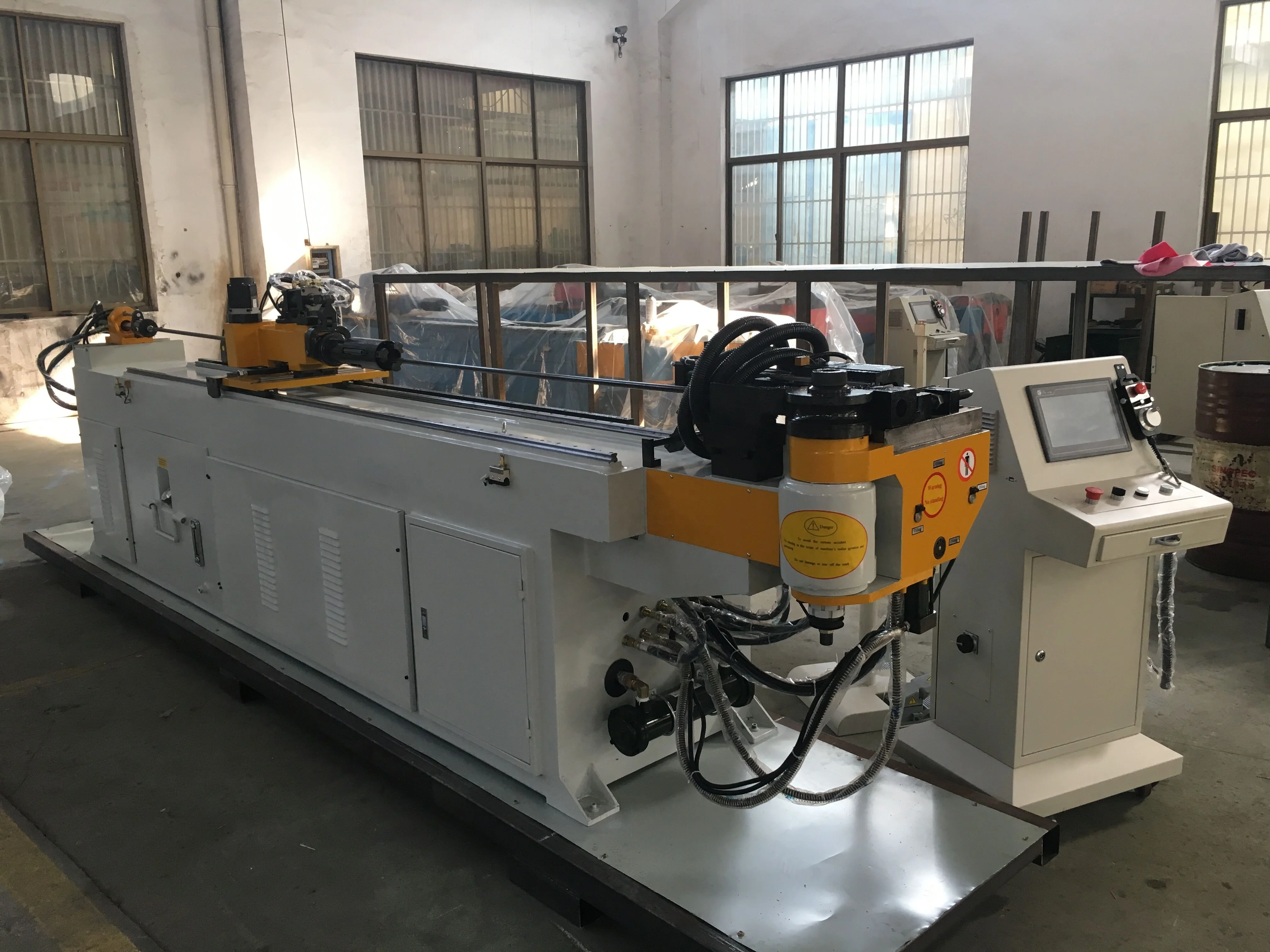

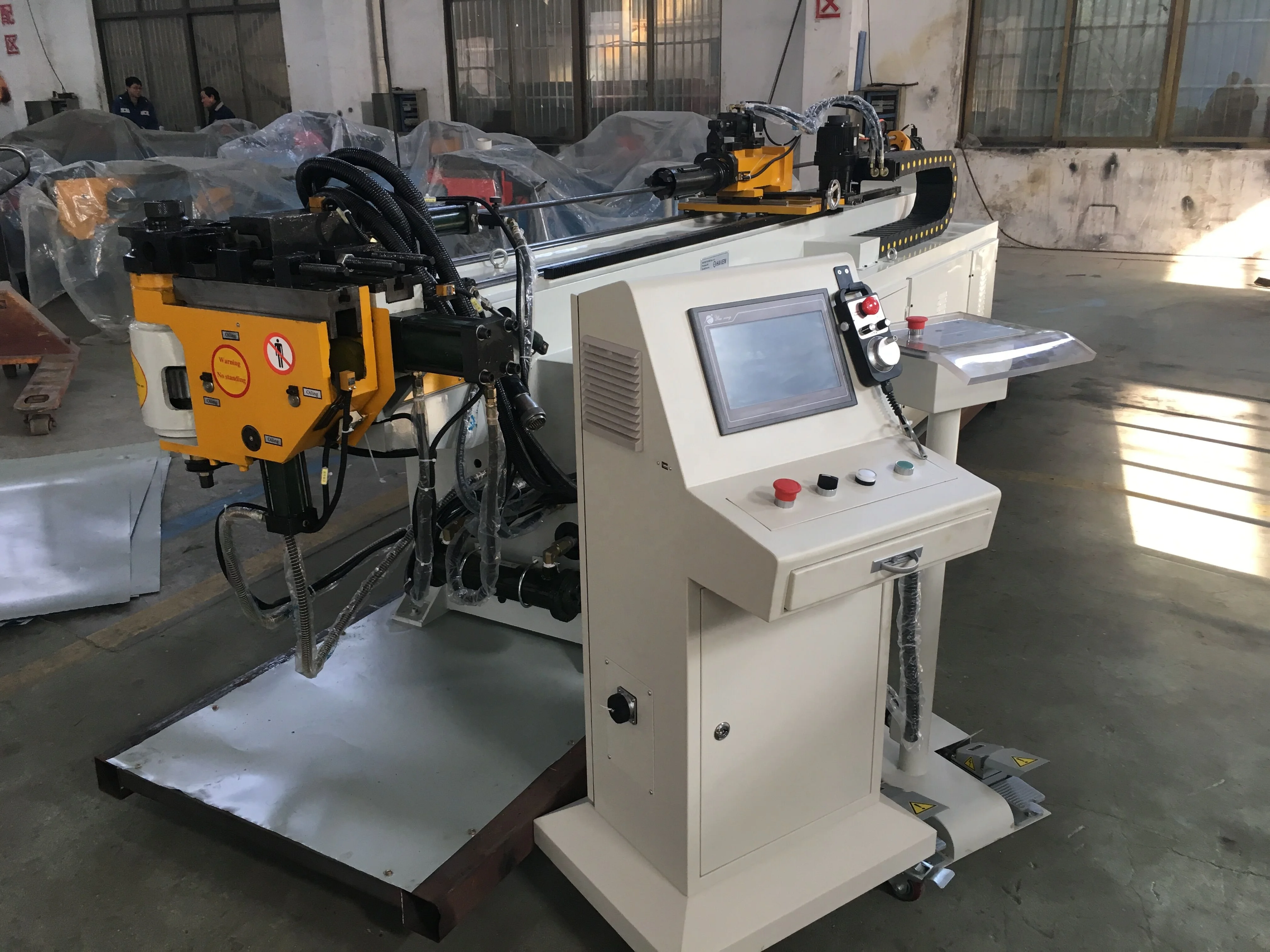

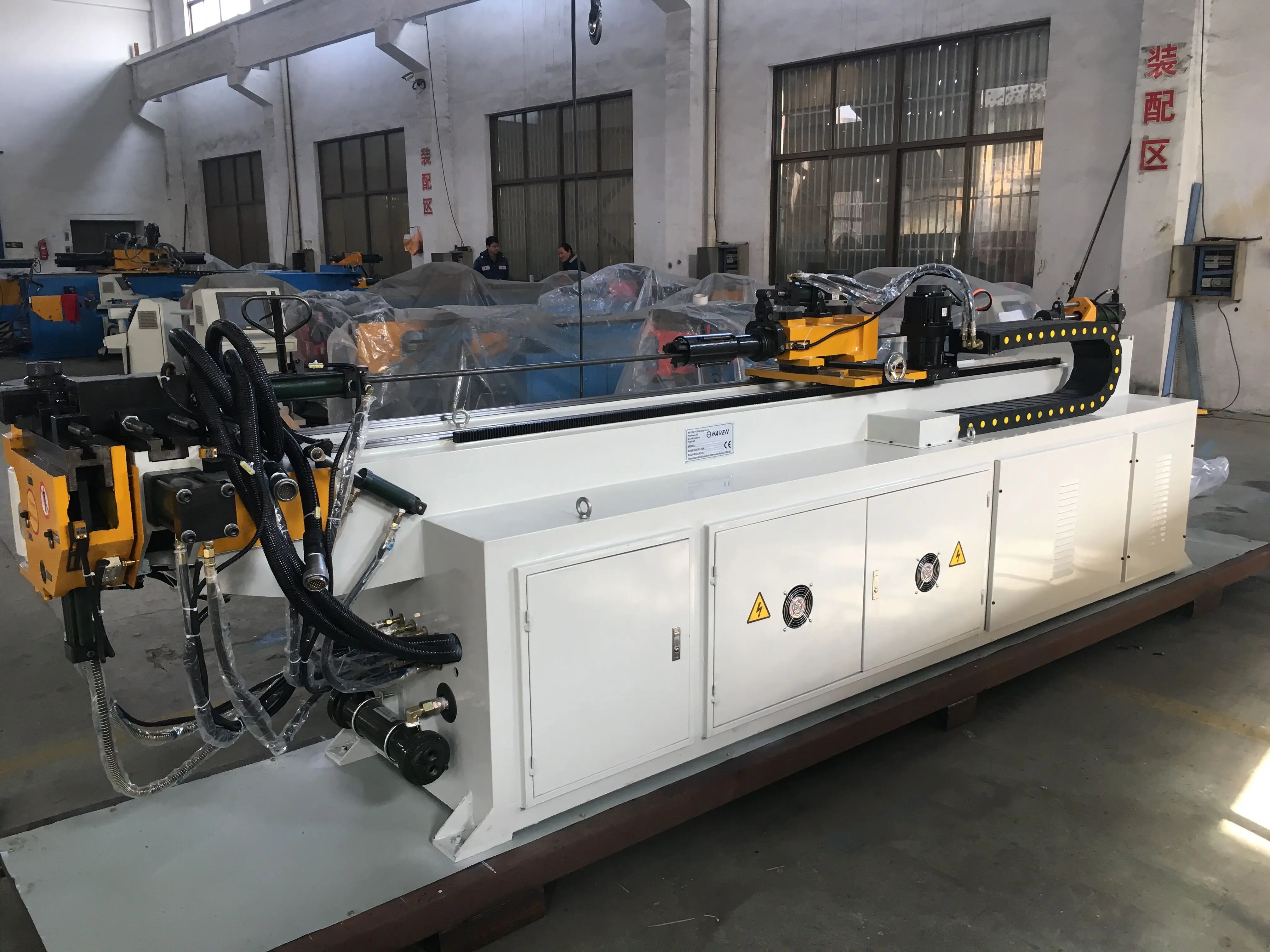

Detailed images
Our Services
1. Our guarantee time is one year, if any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
2. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by WhatsApp, Skype, Email and Telephone at any time, we provide 24 hours on-line service. Our factory also will make DVD to show the operation steps for the customer.
Company Information
Zhangjiagang Minghua Machinery Manufacture design and manufacture pipe bending machine, CNC bending machine, pipe cutting machine, CNC cutting machine, pipe end forming machine, rolling machine, saw blade sharpening machine, chamfering machine, saw blade sharpening machine, wildly used in all kinds of metal pipe processing.
Our Customer covered furniture making, automobile parts, motorcycle making, shipbuilding ,electronic parts, air-condition, baby car making and so on. And we have exported America, Europe, Africa , Austria, Middle East and whole Asia full of experience
Choose us, cooperate us, we will give you best quality machine and best service.
FAQ
1,Q: Are you a manufacturer or trading company? A: We are a manufacturer, We are dedicated to pipe processing equipment manufacturing.
2,Q: Where is the nearest airport and port from your factory? A: The nearest airport and port is shanghai.
3,Q:What is the spare parts about the machines? A:Pipe bender is seal components and valves. Pipe cutter is seal components and saw blades.
4,Q:how about the training and installment after we buy your machines? A: Our factory can send our engineer to the customer’s factory install,commission and training freely. The customer provide the double trip tickets,food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
