SP5225A Mini machine drill press belongs to one of our most Mini machine drill press. It is new condition not used Mini machine drill press. And it is medium in size and delicate in design. This medium size machine drill press is made in China, but have the similar quality with German drill press. The main features are as below:
1. Adjustable depth stop
2. Quiet belt drive operation
3. FWD/REV toggle switch
4. Headstock runs in precision-bearings
5. Speeds allow selection of optimum speeds at the work piece
6. Cast iron plastic handle, easy to operate
7. Humanized design, electromagnetic switch is available.
8. High precision.

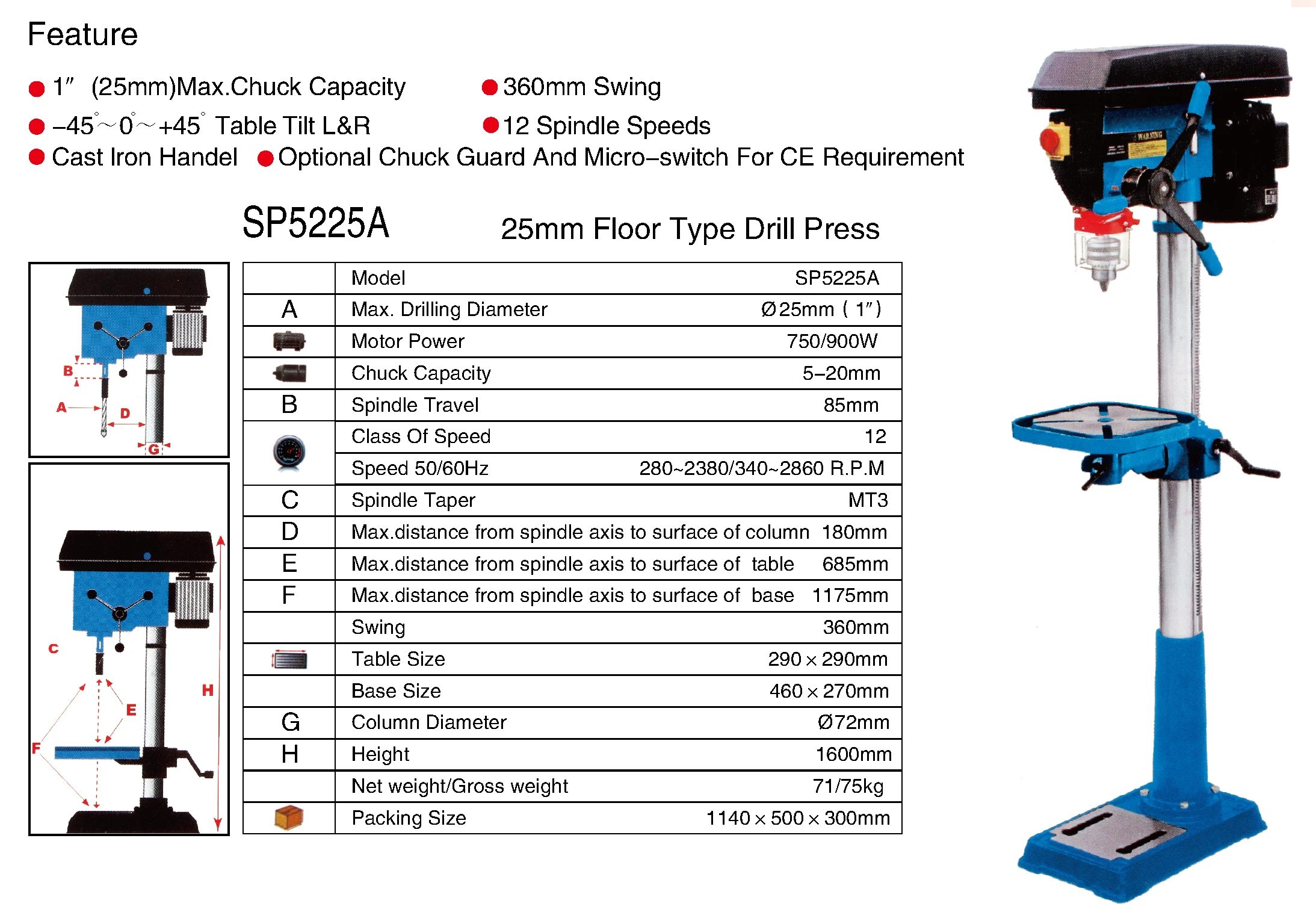

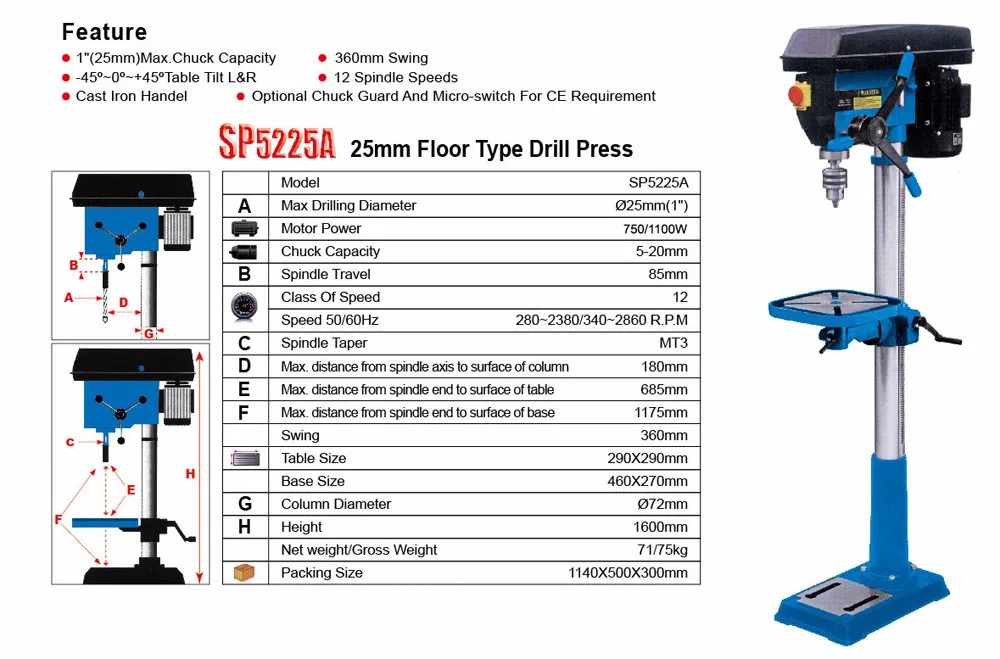

Specifications | ||
Model | SP5225A | |
Drilling capacity | Ø25mm(1") | |
Motor power | 750/900W | |
Chuck Capacity | 5-20mm | |
Spindle stroke | 85mm | |
Class Of Speed | 12 | |
Speed 50/60Hz | 280~2380/340~2860 R.P.M | |
Spindle taper | MT3 | |
Auto-feeding step of worktable | 180mm | |
Max.distance from spindle end to surface of table | 685mm | |
Max.distance from spindle end to surface of base | 1175mm | |
Swing | 360mm | |
Table size | 290X290mm | |
Base Size | 460X270mm | |
Column Diameter | Ø72mm | |
Height | 1600mm | |
N.W./G.W. | 71/75kg | |
Packing size | 1140X500X300mm | |



As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , CSA ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
