2 Ton Manual Hydraulic Stacker With Adjustable Forks For Sale
US $270.00-$550.00

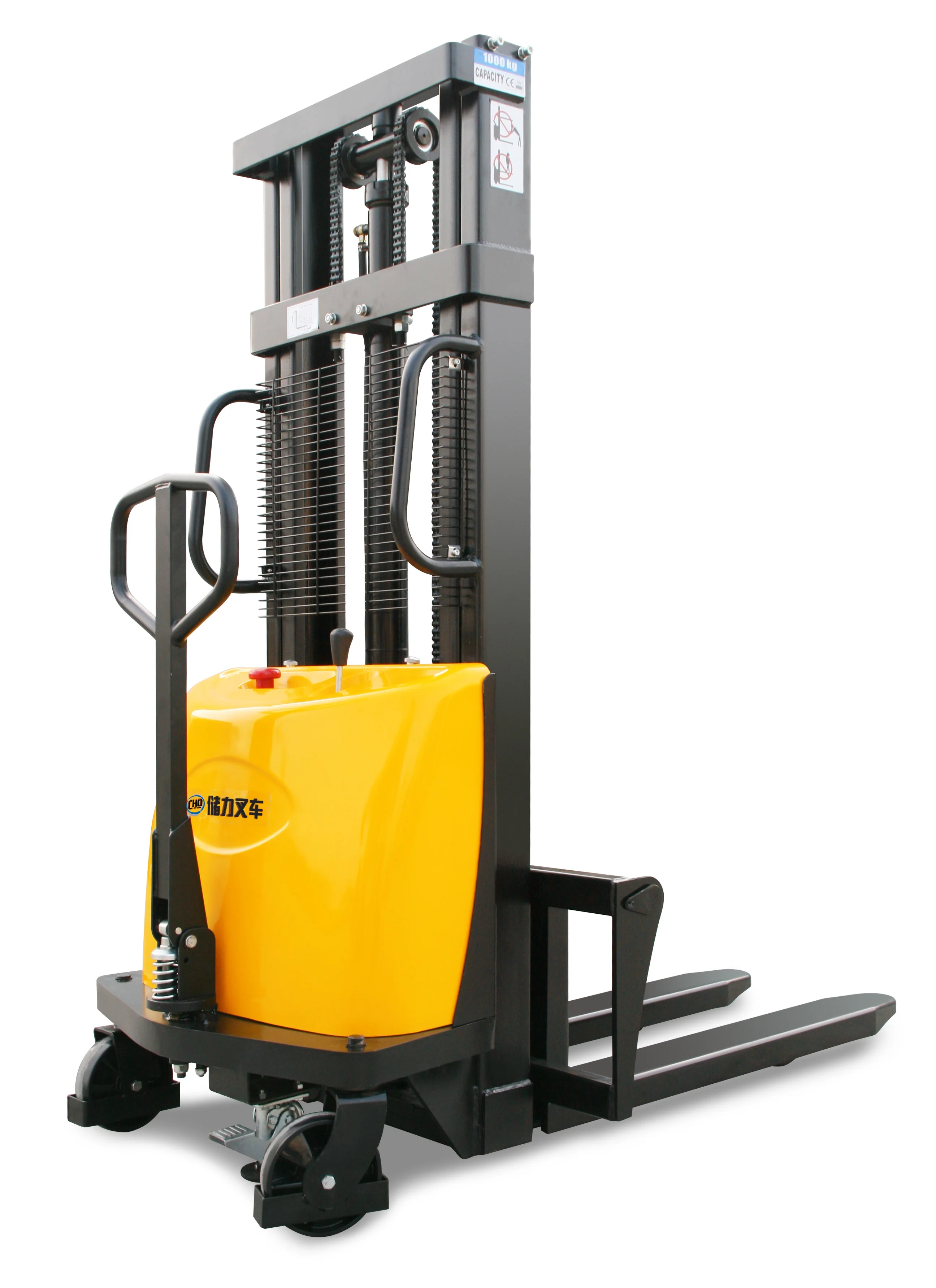

Hot Sale Semi Electric Stacker Reclaimer with CE
- Category: Stacker & Reclaimer >>>
- Supplier: Ningbo Cholift Forklift Co. Ltd.
Share on (60637134002):
Product Overview
Description

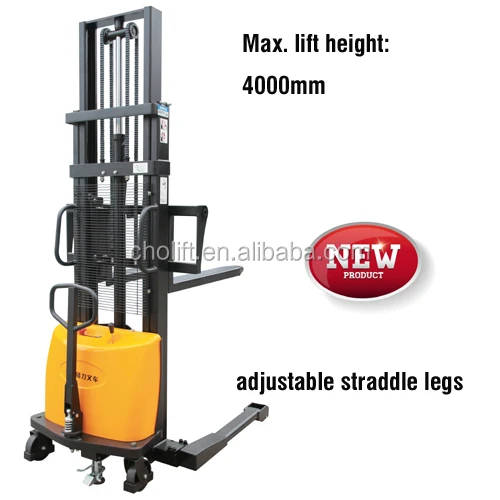

ADJUSTABLE FORKS semi electric forklift 1500 kgs ,Semi-electric stacker,Model: BDA
Capacity: 1000kgs/1500kgs/2000kgs
Fork size: 660x900/1070/1150mm
Adjustable forks and Straddle legs for option
Lifting height: 1600mm~3500mm
Strong mast material ensure high capacity

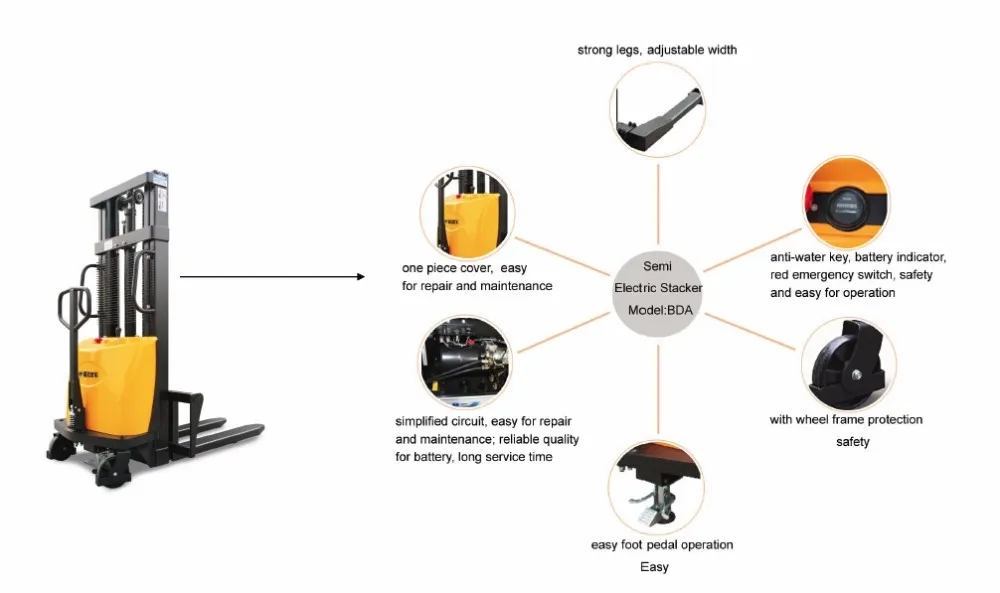

- Explosion-proof valve in the pump, to avoid rapid decline to protect the operator
- Over-discharge protection device greatly extends battery life
- Lifting speed keeps smooth regardless of loading weight, which is safe to use
- Maintenance-free design, ensures security, reduces service cost
- Three different types of forks are optional
|
MODEL |
BDA |
|
|
LOAD CAPACITY |
Q(kg) |
1000/1500/2000 |
|
LOAD CENTER |
c(mm) |
500 |
|
WHEEL BASE |
Y(mm) |
1145 |
|
WEIGHT (WITH BATTERY) |
kg |
265-350 |
|
WHEEL SIZE, FRONT |
(mm) |
φ80x70 |
|
WHEEL SIZE, REAR |
(mm) |
φ180x50 |
|
HEIGHT, MAST LOWERED |
h1(mm) |
2088 |
|
LIFTING HEIGHT |
h3(mm) |
1600/2500/3000/3300/3500 |
|
MAST HEIGHT AT MAX. LIFTING HEIGHT |
h4(mm) |
2088 |
|
LOWERED FORK HEIGHT |
h13(mm) |
90 |
|
OVERALL LENGTH |
l1(mm) |
1505 |
|
OVERALL WIDTH |
b1(mm) |
800(980) |
|
FORK LENGTH |
l(mm) |
900/1070/1150 |
|
FORK WIDTH |
b5(mm) |
550/660 |
|
MAST GROUND CLEARANCE |
m1(mm) |
28 |
|
AISLE WIDTH FOR PALLET1000x1200 (1200 CROSSWAYS) |
Ast(mm) |
1705 |
|
AISLE WIDTH FOR PALLET 800x1200 (1200 LENGTHWAYS) |
Ast(mm) |
1755 |
|
TURNING RADIUS |
Wa(mm) |
1210 |
|
LIFTING SPEED,LADEN/UNLADEN |
m/s |
135/150 |
|
LOWER SPEED,LADEN/UNLADEN |
m/s |
MANUAL |
|
LIFTING MOTOR POWER |
kW |
1.6 |
|
BATTERY VOLTAGE/NOMINAL CAPACITY |
V/Ah |
12/(120/135/150) |
