self loading garbage truck
- Category: >>>
- Supplier: Nantong Mingnuo Electric Technology Co. Ltd.
Share on (60639548644):
Product Overview
Description
Product Overview

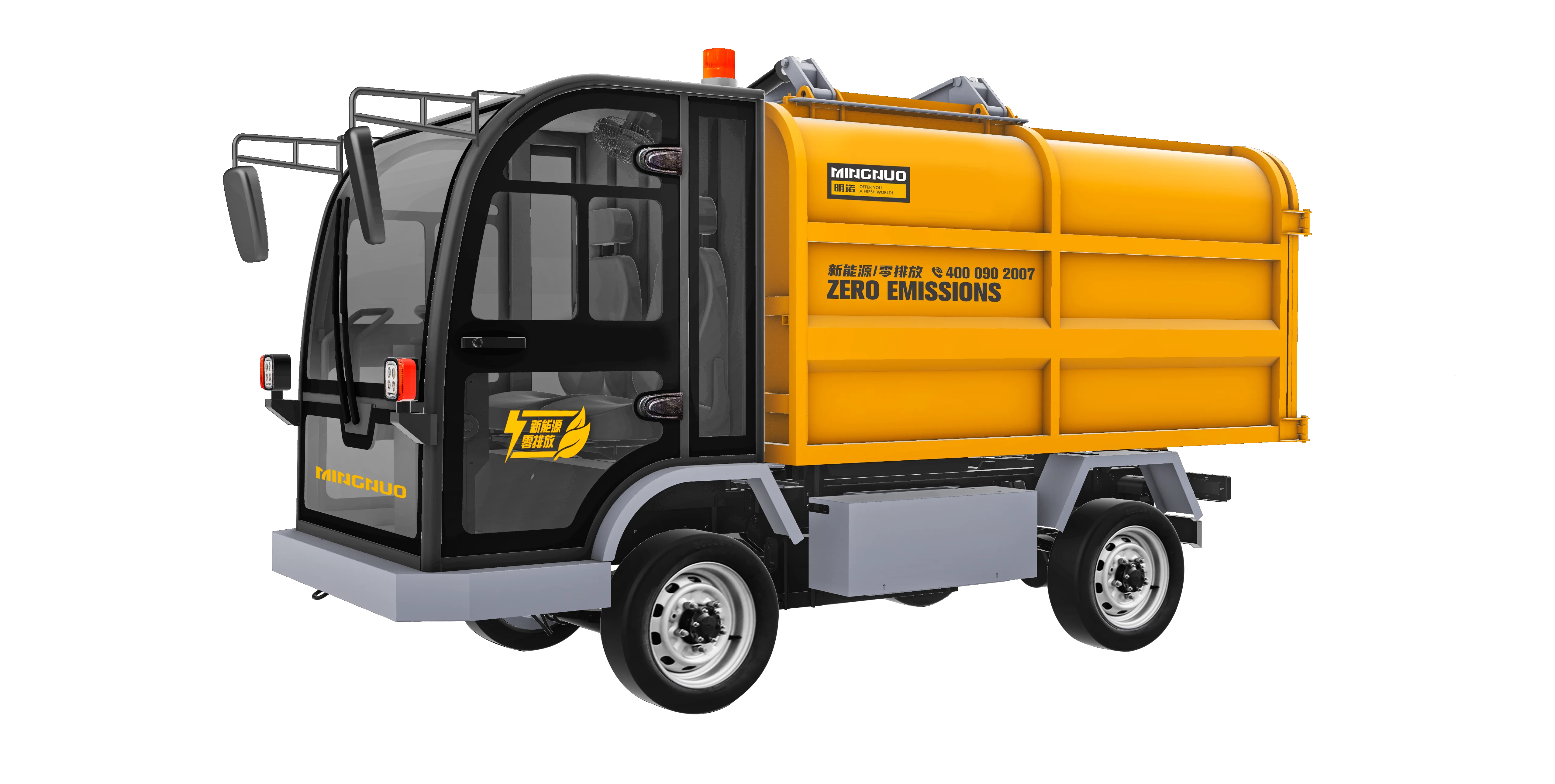

Electric self-loading garbage truck MN-H90
MN-H90 is a pure electric side loading garbage truck, which integrates dustbin lifting device and garbage dump, and is suitable for garbage transportation in environmental sanitation and cleaning departments.
FEATURES AT A GLANCE
Self loading design
Panoramic driving
Good trafficability
Optional of IOV
Optional of lithium battery
With window putting design
Hydraulic loading system

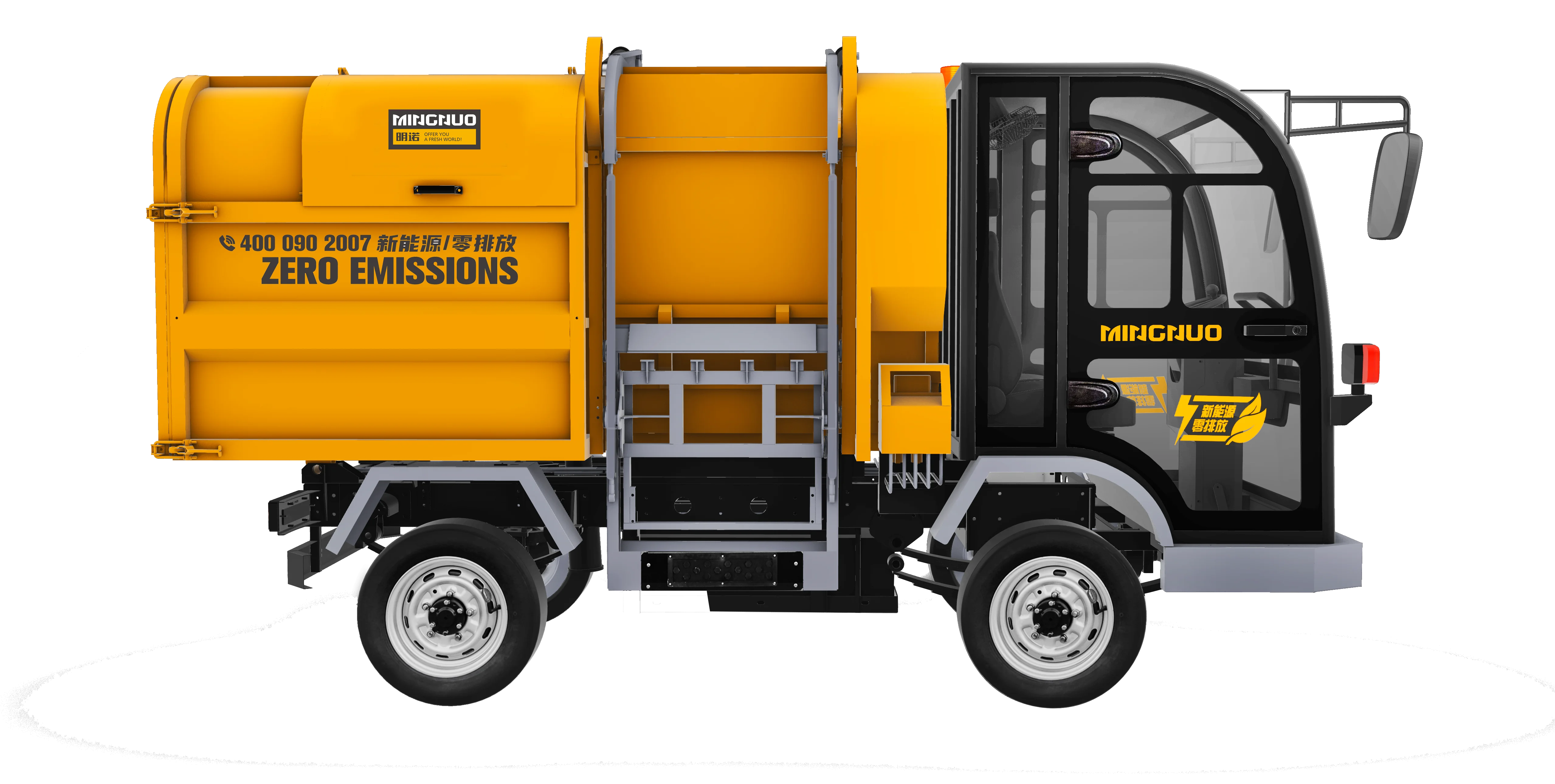

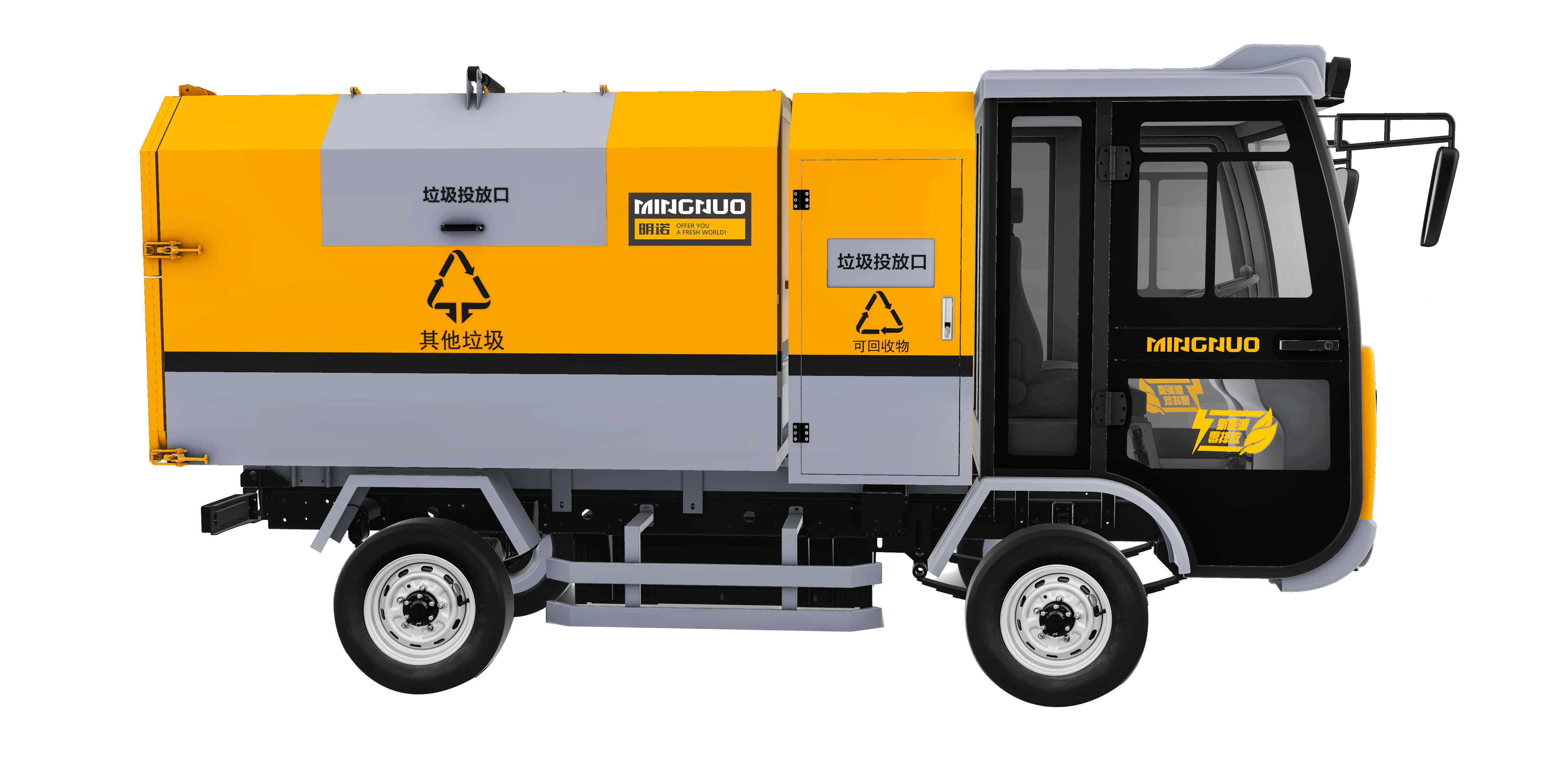

Side design

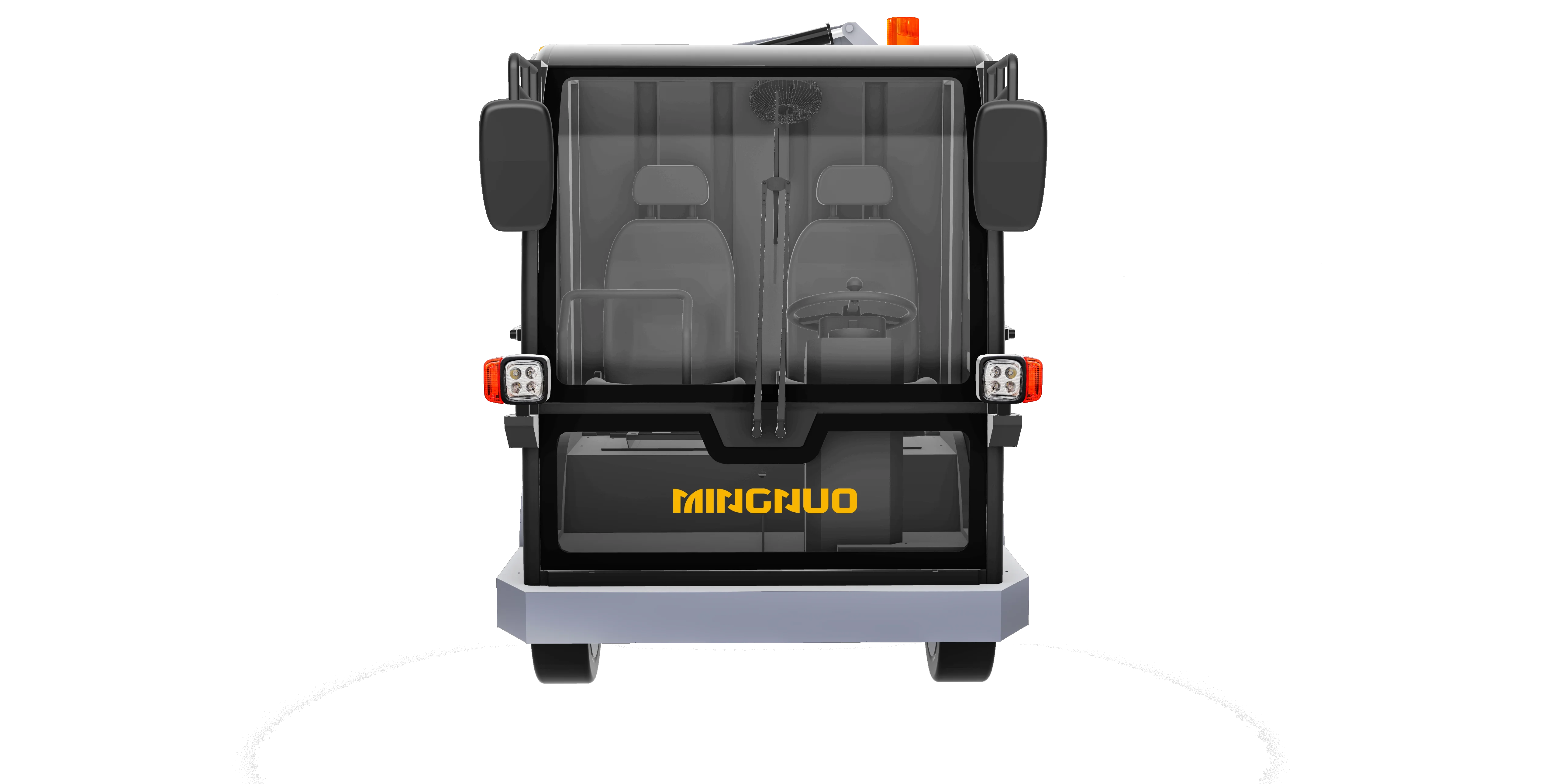

Front design

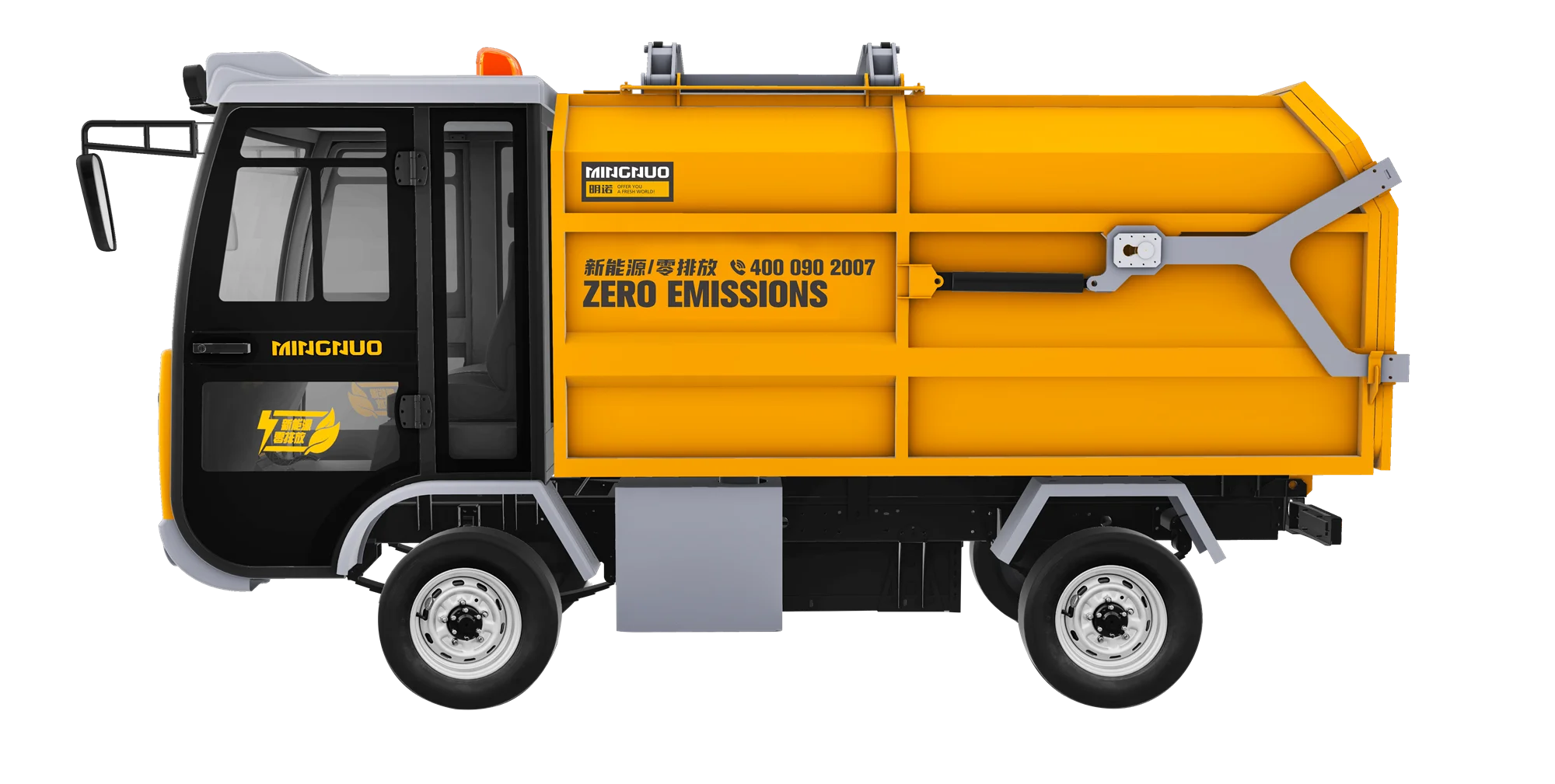

Left design
PRODUCT SPECIFICATIONS
No | Item | Data | |||
1 | dimension | 3660*1500*2100mm | 9 | driving motor power | 7.5kw |
2 | staff | 2 | 10 | oil pump power | 0.8kw |
3 | max driving speed | 30km/h | 11 | power supply | 72V |
4 | truning radius | 4m | 12 | min ground clearance | 200mm |
5 | endurance mileage | 60-80km | 13 | min brake distance | 4m |
6 | wheelbase | 1800mm | 14 | dustbin capacity | 2.7m3 |
7 | tread | 1200mm | 15 | rated loading capacity | 120/240L |
8 | gradeability | 20% | 16 | net weight | 1590kg |
17 | rated loading weight | 1000kg |
PRODUCT CONFIGURATION

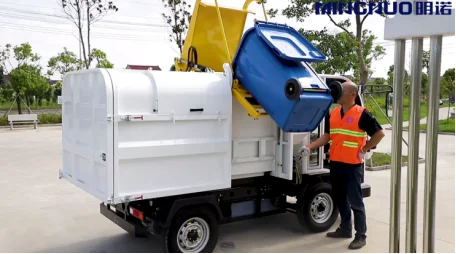

self-loading design
reversing camera system
hydraulic auto-dumping system
SALES AND SERVICE NETWORK
Successful Project
Project in givernment
Project in municipal council
Project in sanitation station
