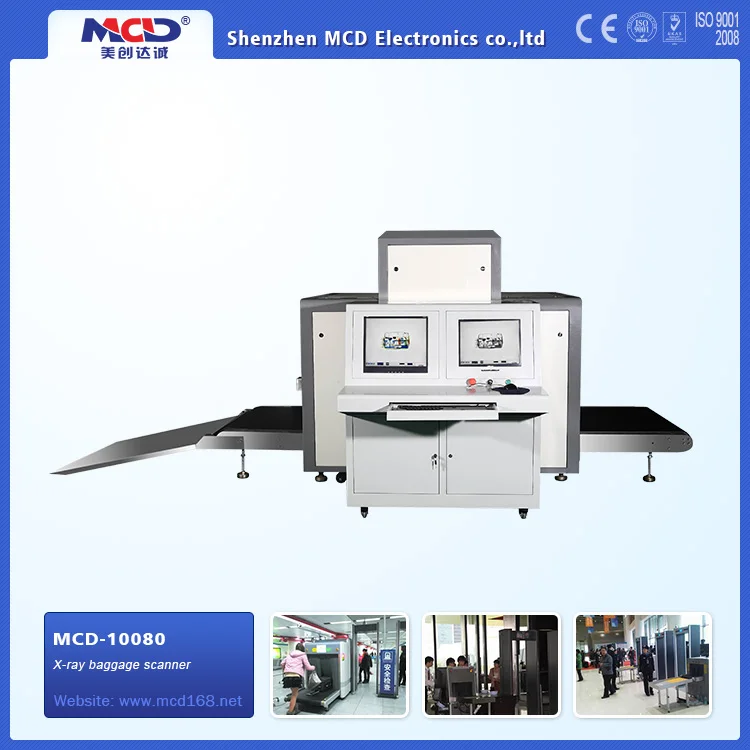

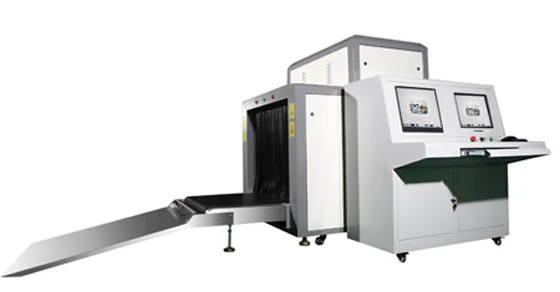

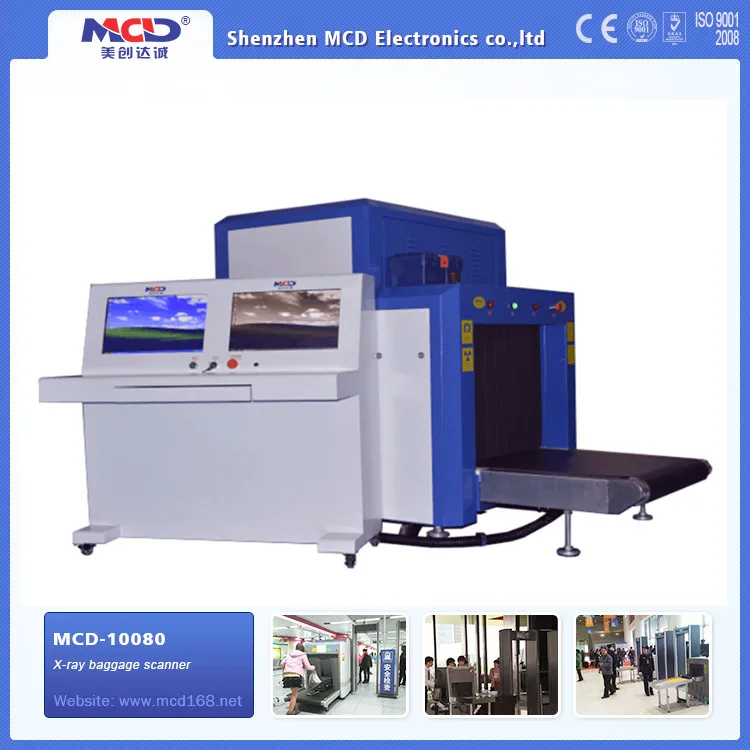

Large Sizes X Ray Baggage Scanner/Cargo Inspection   Ray  Machine, R-ray Luggage Scanner MCD-10080







MCD-10080 X-Ray Security Inspection Equipment



General  Parameter :

•  Exterior size:  4300 (l) *1330 (w) *1798 (h) mm


•  Tunnel size:  1000 (w) * 810 (h) mm


•  Conveyor speed:  0.23 m / s


•  Cinveyor maximum loading:  200 Kg


•  Single check close:  1 μ Gy, Guarantee ASA / ISO 1600 film


•  Resolving power:  0.16 mm metal wire ( model magnitude 30 mm steel )


•  Penetration:  27 mm Steel ( model magnitude 30 mm steel )


•  X-ray leakage:  2.5 μ Sv / h ( at a distance of 5 cm external housing )

X-ray  Generator :

•  Anode voltage:  140KV


•  Cooling / Duty cycle:  Enclosed oil / 100 %

Image  System :

•  X-ray sensor:  L-shaped photodiodes array


•  Image grey level:  65535


•  Image processing:  24 bit for processing real time


•  Image Presentation:  B / W, multi-energy, inorganic stripping, organic stripping, review, Penetration enhancement, negative


•  Storage image:  Storage 10000 pictures real time ( selectable function )


•  Zones  zoom:  Any regions; 2, 4, 8, 16 times enlarge


•  Hazardous Material:  Image Inserting ( selectable function )


•  Romote control:  ( selectable function )

Operation  Parameter :

•  Operation temperature:  0 ~ +50


•  Storage temperature:  -40 ~ +70


•  Opposite humidity:  10 % ~ 90 % ( non-condesing )


•  Operation power:  AC 220V ( +10 % ~ 15 % ) 50 Hz ±3 Hz


•  Power consumption:  1.0 KVA

Supply  Place :

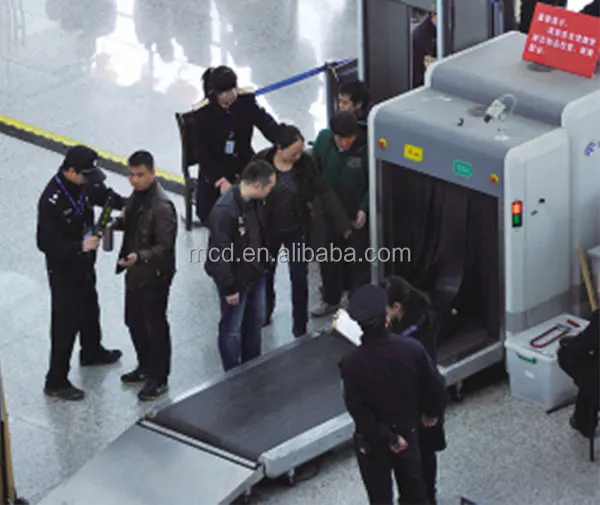

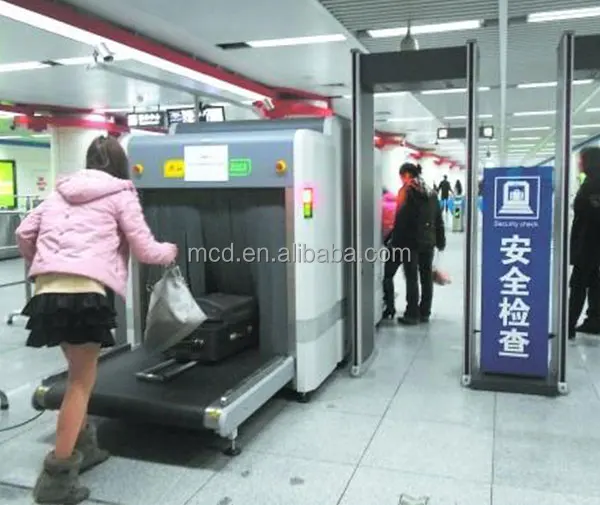

•  Designed for railway, high way, customs, port and public spots

Other  Function :

•  Date Time show, Operation condition show, Image minimize show


•  Luggage calculation show, Emergency stop indication, Operation self diagnose


•  Website connection system, Operation X-ray spray time calculation


•  Software update
