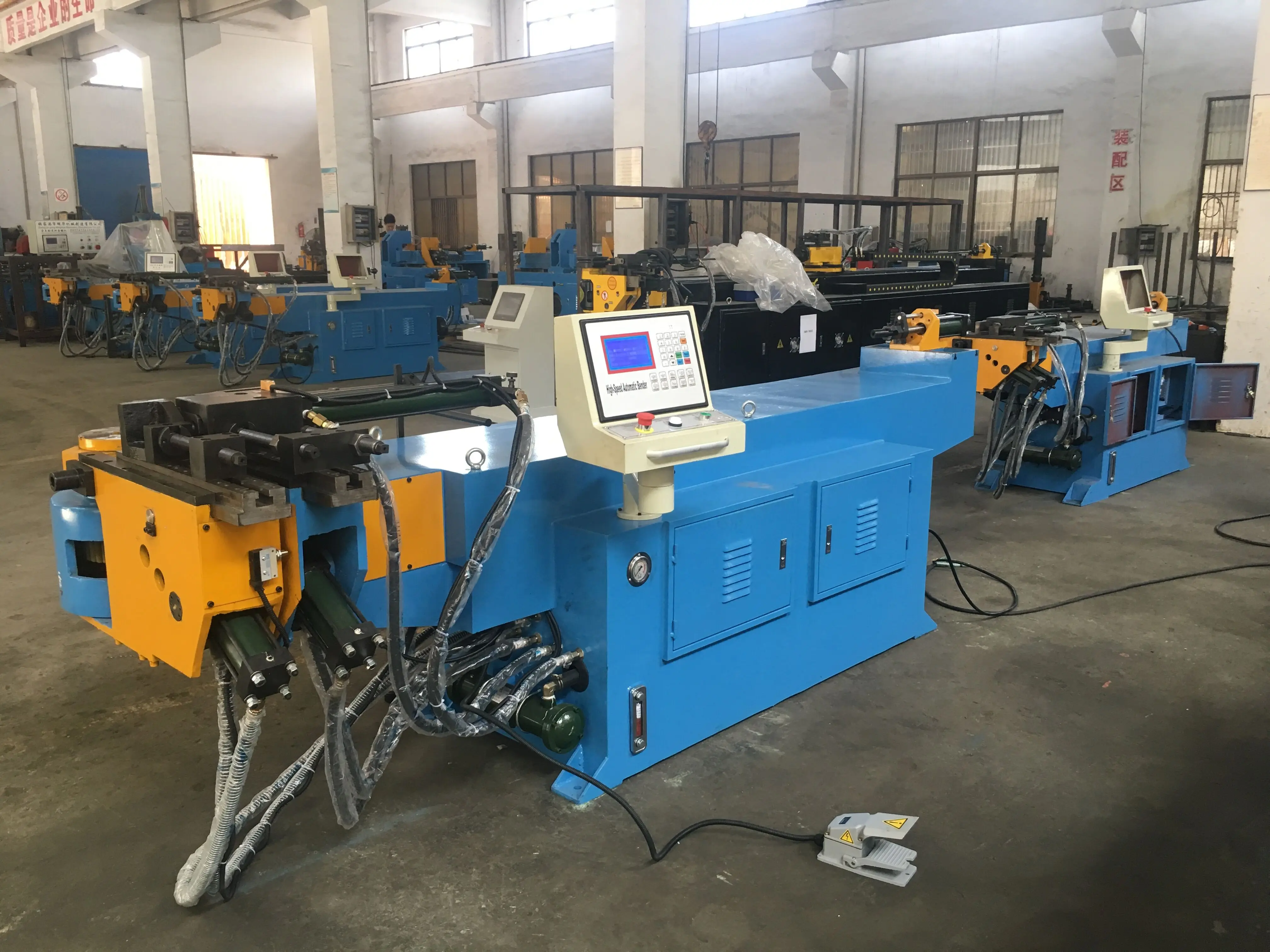

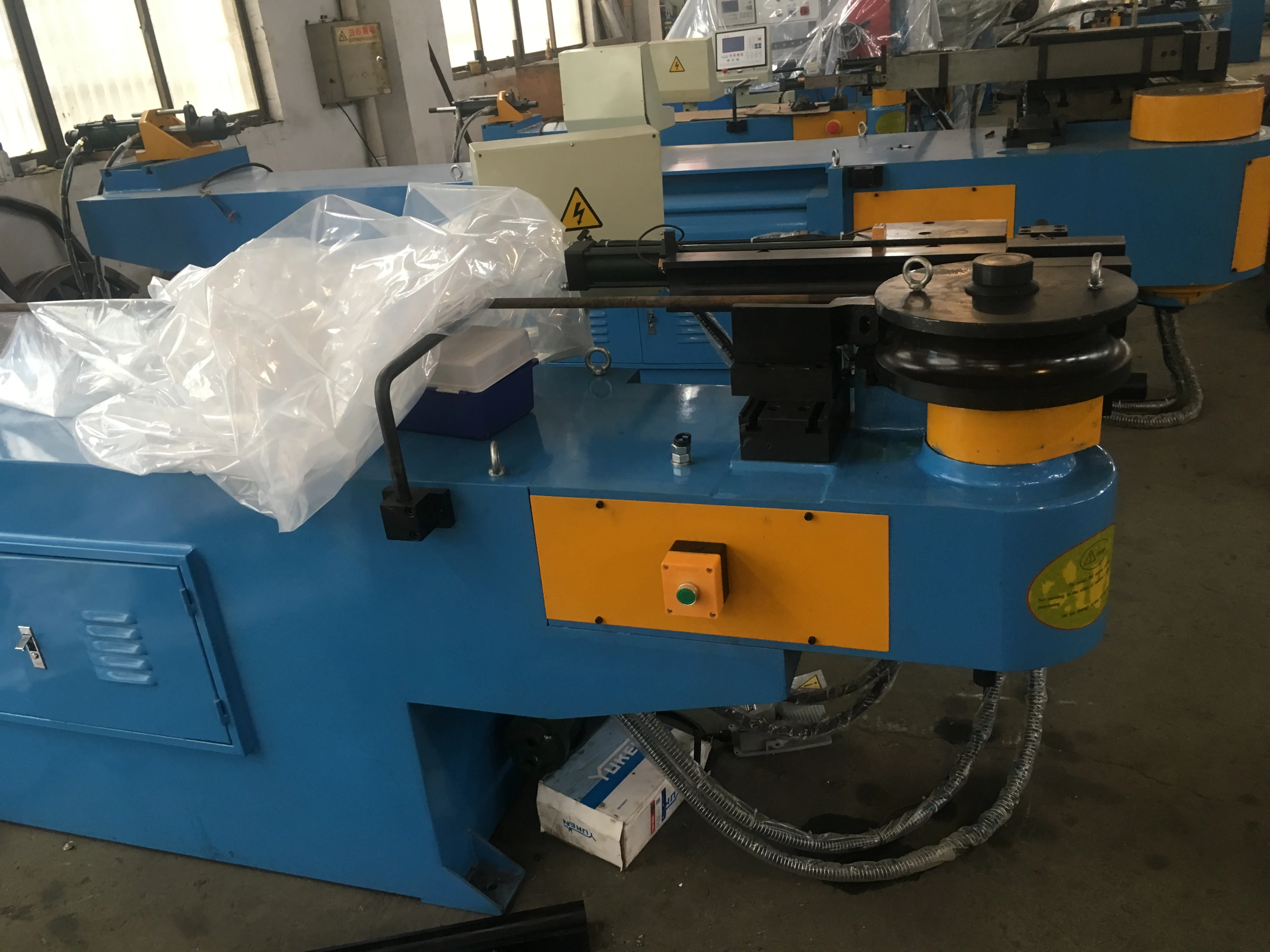

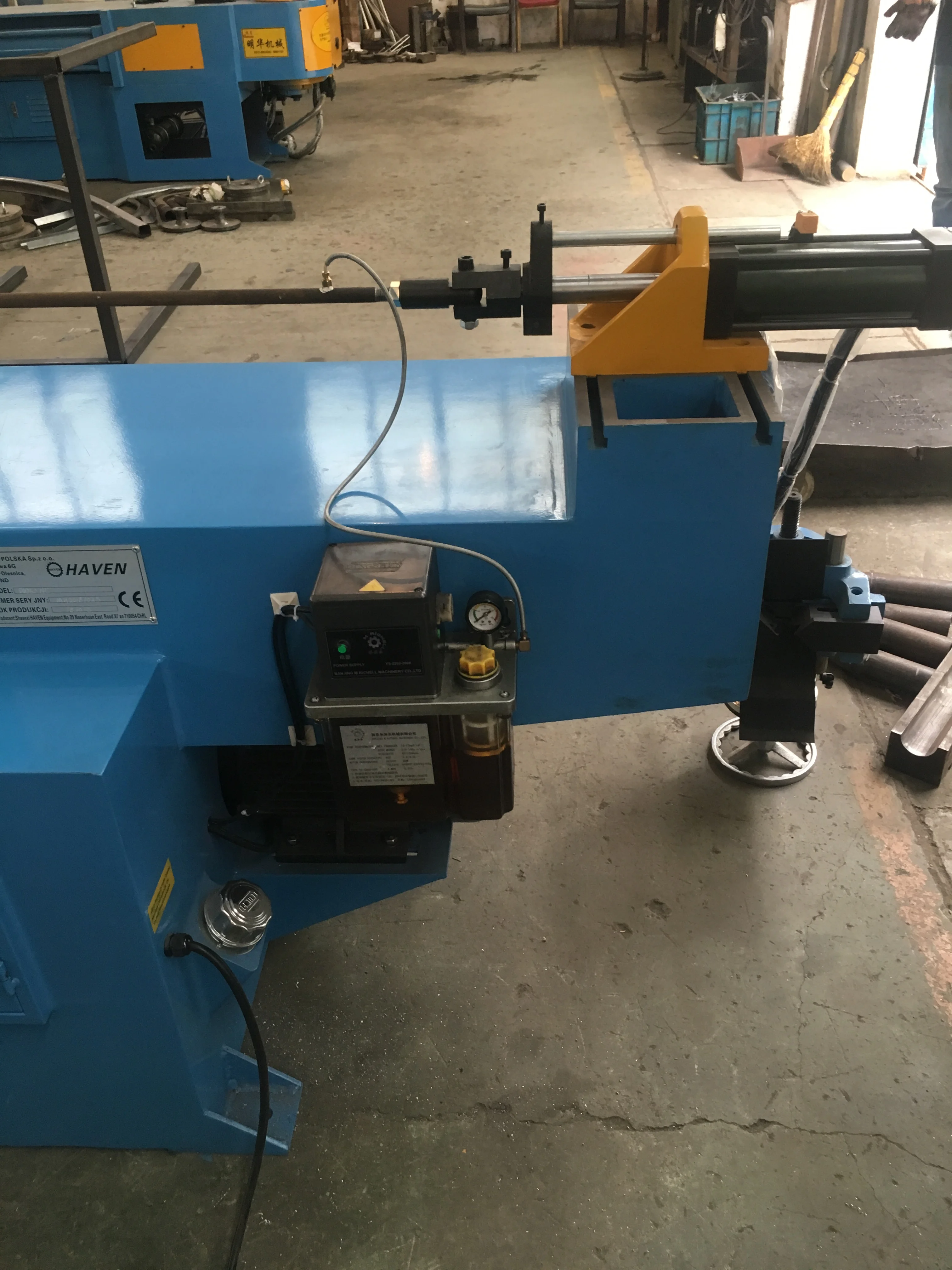

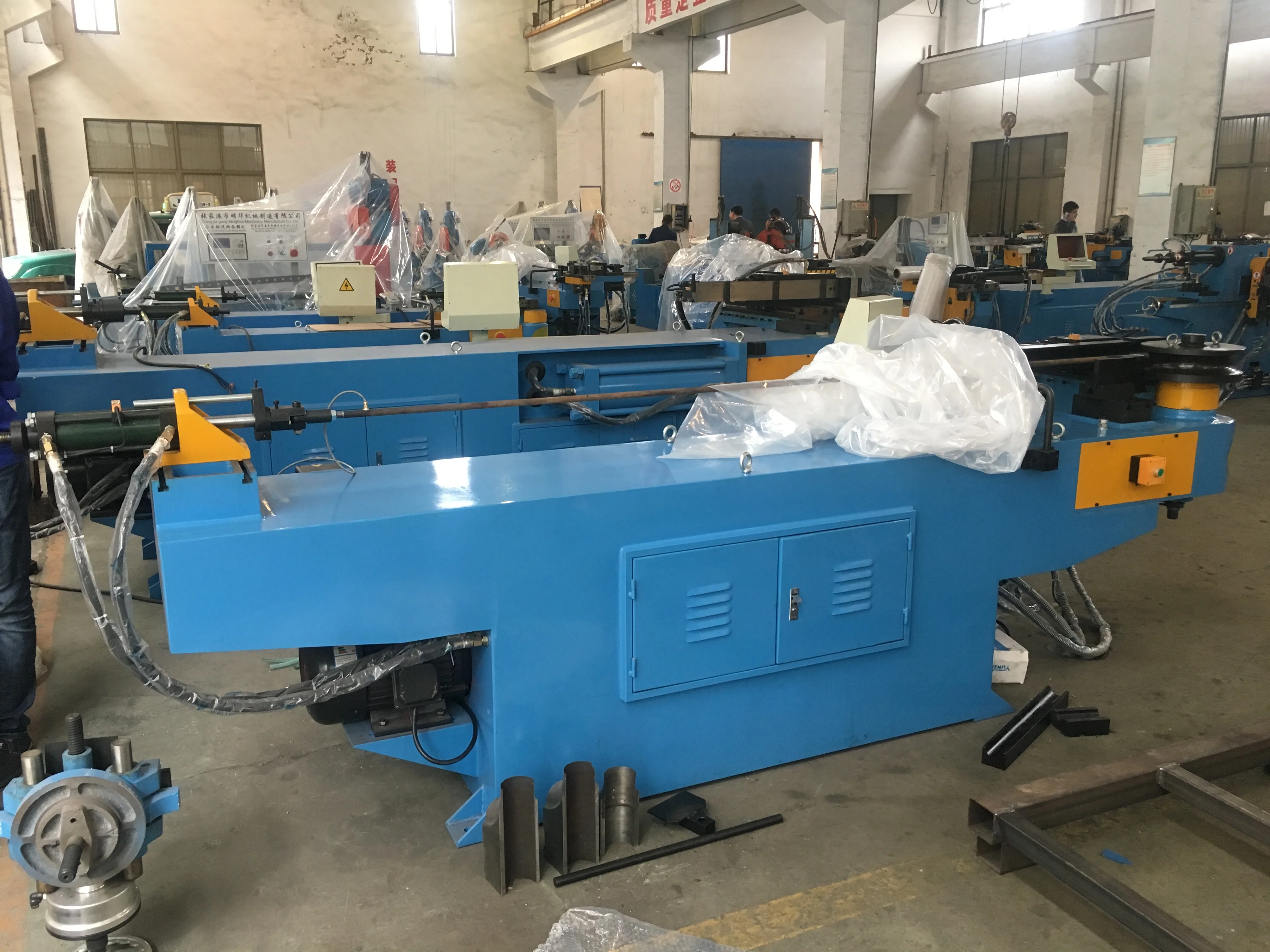

New design manderl tube bending machine made in China DW38NC
- Category: Pipe and Tube Bending Machines >>>
- Supplier: Zhangjiagang Minghua Machinery Manufacture Co. Ltd.
Share on (60642135429):
Product Overview
Description
Specification/Model | Unit | DW38NC | Remark |
Max bending capability(OD) | mm | Φ38×2 | 1. The Minimum bending diameter based on the pipe diameter 2.The Max bending diameter can according to the customer’s requirement 3.The Max length of mandrel can according to customer’s requirement |
Max bending radius | mm | R260 | |
Min bending radius | mm | According to the pipe diameter | |
Max bending angle | Degree | 190 | |
Max effective distance of mandrel | mm | 1600 | |

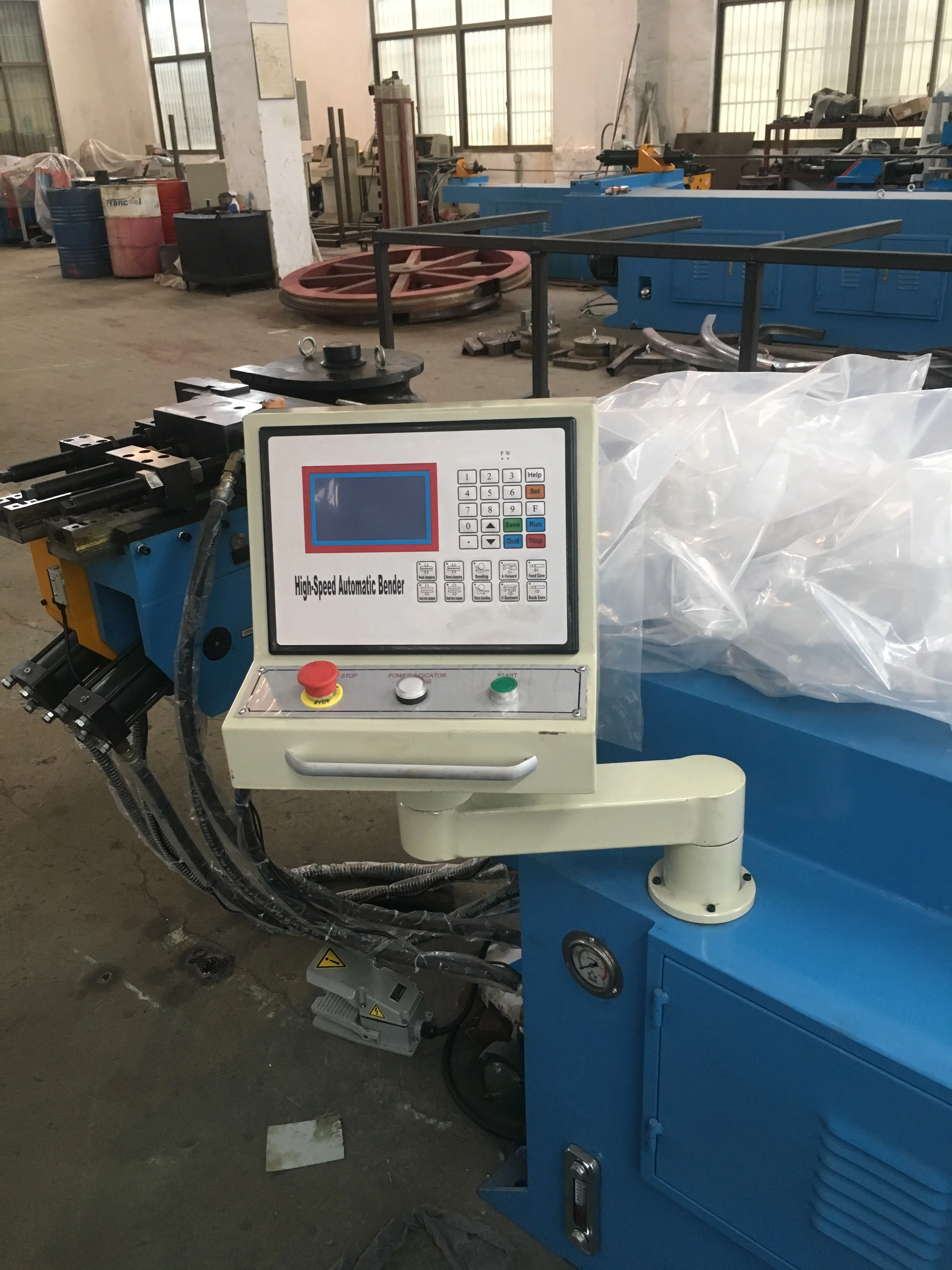

Control System |
| NC Control | |
Max elbow bend pipe | Unit | 16 | |
Max storable sections | Unit | 16×16 | |
Motor power | KW | 4 | |
Max. Hydraulic Pressure | Mpa | 12 | |
Hydraulic System Control |
| Electromagnetic Valve | |
Oil Tank Capacity | L | 110 | |
Measurement | mm | 3300×800×1430 | |
Weight of Machine | Kg | 1000 |
