New design Exhaust Pipe Tube bender machine with CE certificate
- Category: Pipe and Tube Bending Machines >>>
- Supplier: Zhangjiagang Minghua Machinery Manufacture Co. Ltd.
Share on (60642145829):
Product Overview
Description
DW75CNC automatic bending machine details:
Key Specifications | 1. DW75CNC-2A-1S | Notes | |
maximum bending diameter × wall thickness | Φ75mm × 4mm | 1. Minimum bending radius according to pipe diameter 2. Maximum bending radius according to customer requirements 3. Maximum core length of wear based on customer requirements | |
maximum bending radius | R250mm | ||
minimum bend radius | R30mm | ||
maximum bending angle | 190 ° | ||
maximum feed length | 2850mm | ||
Feeding | direct- pinch | ||
pace of work | bending speed | Max 40 ° /s | |
Rotary speed | Max 160 ° /s | ||
feeding rate | Max 800mm /s | ||
working precision | bending precision | ± 0.1 ° | |
Rotary precision | ± 0.1 ° | ||
feeding accuracy | ± 0.1mm | ||
data input | 1. coordinates (X. Y. Z) | ||
bending mode | 1. servo pipe: 1kw (axis above) | ||
Rotary servo motor power | 1.5kw | ||
feeding servo motor power | 2kw | ||
elbow pipe to allow the number of | 1. 12 | ||
| 1. 330 | ||
hydraulic motor power | 11kw | ||
system pressure | 12 Mpa | ||
machine size | 4950 x1350 x 1230mm | ||
Weight | 4500kg | ||
Packaging & Shipping
- Packaging Details
- The Machine is packed in wooden or iron case
- Port
- Shanghai
- Lead Time :
-
Quantity(Pieces) 1 - 1 >1 Est. Time(day) 40 To be negotiated

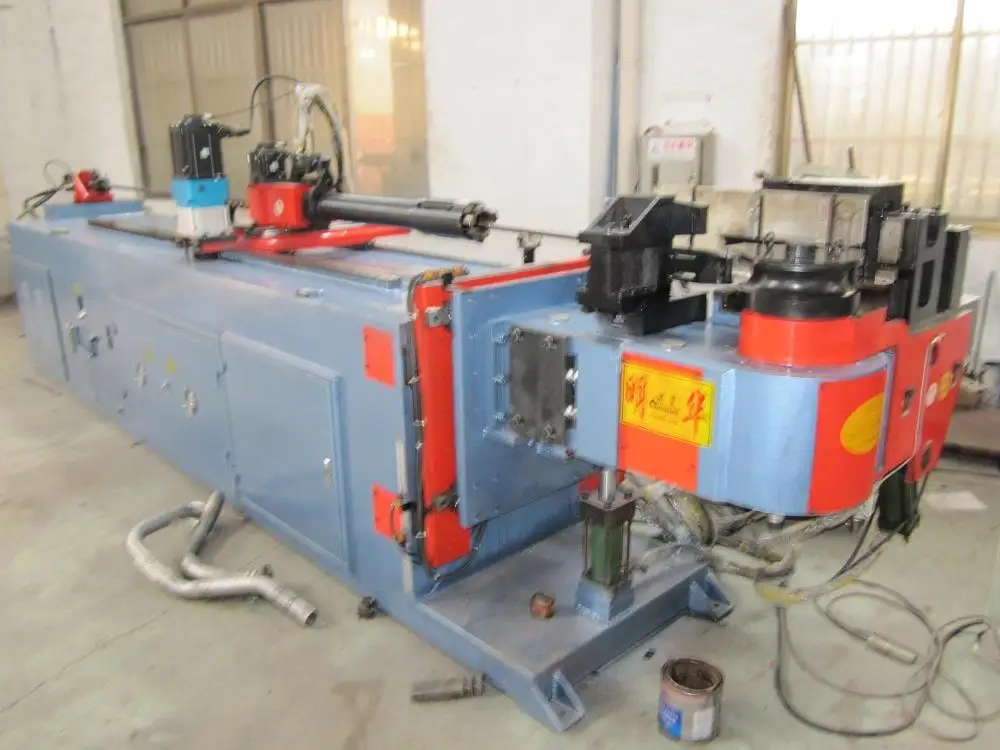

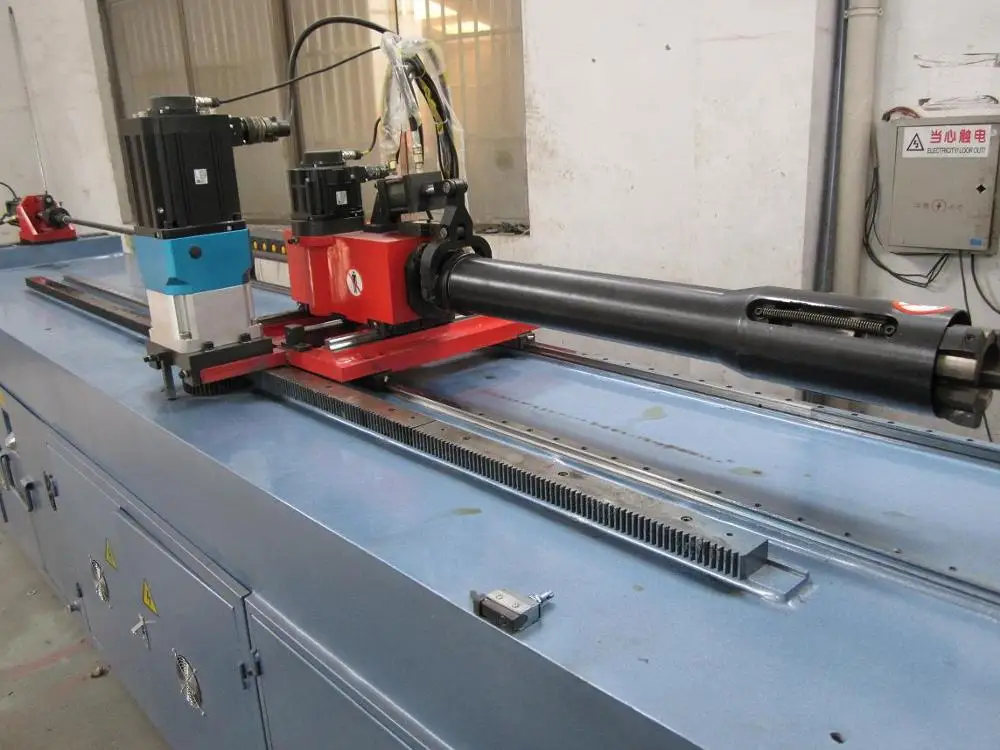

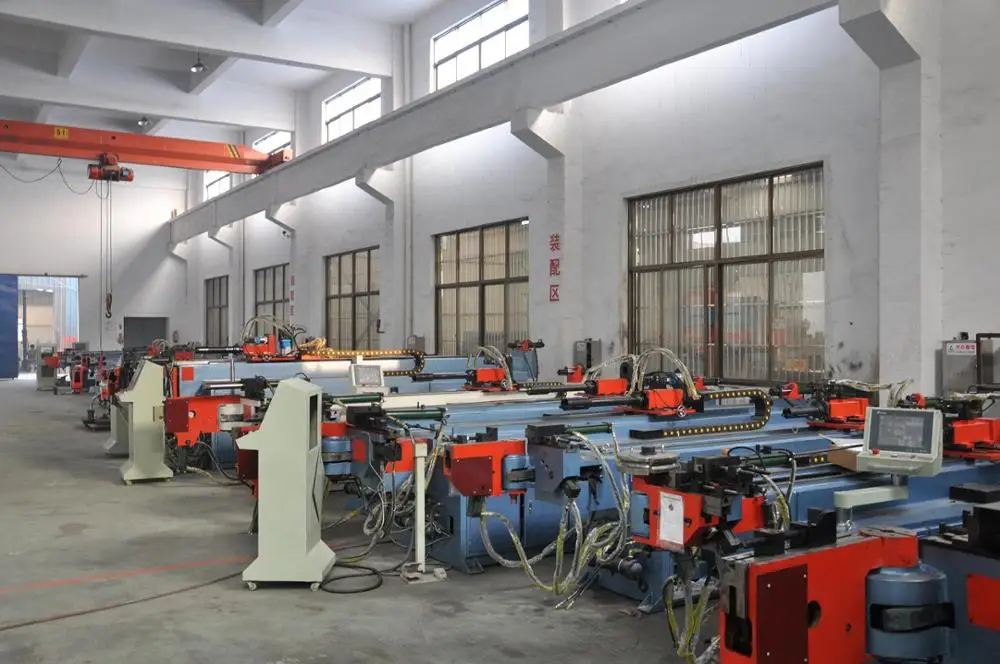

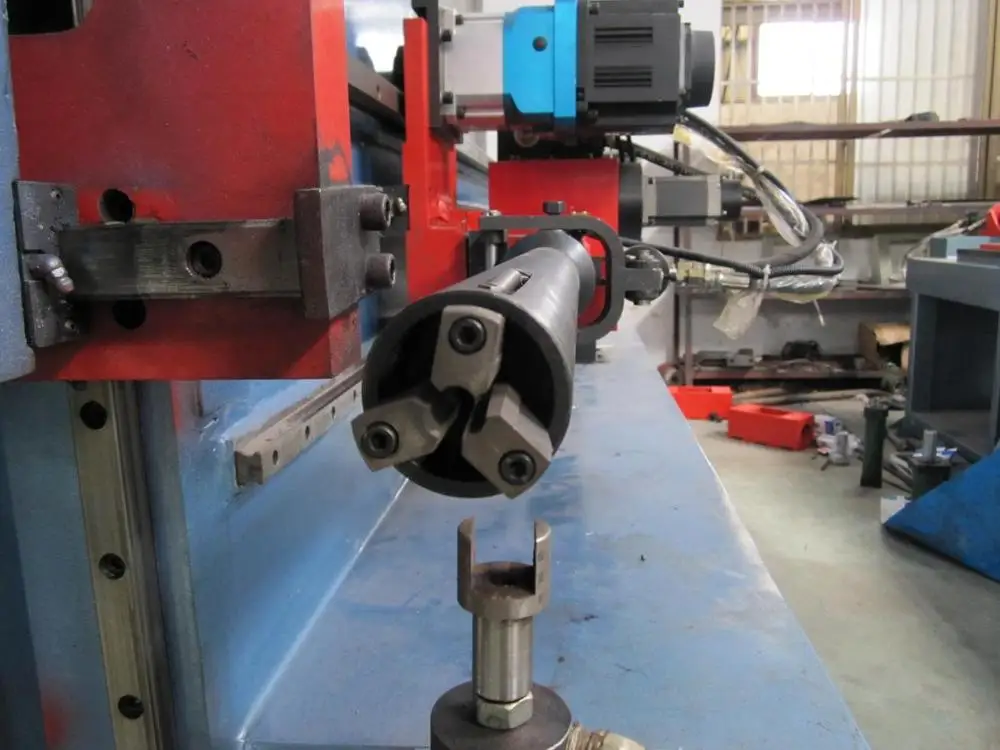

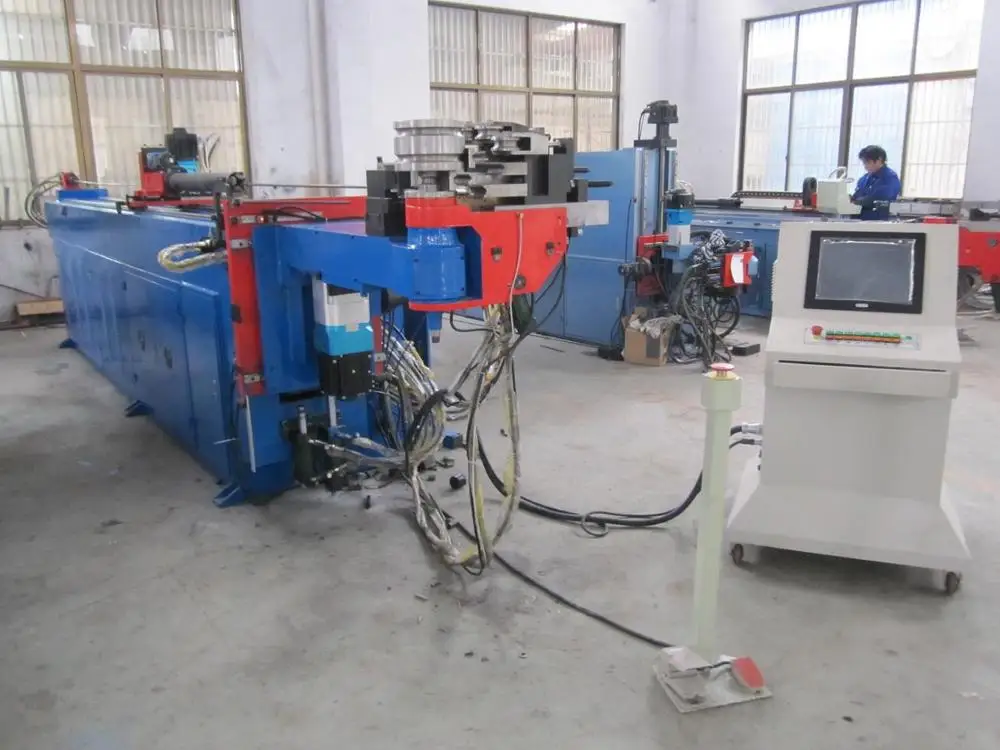

Detailed images
Our Services
1. Our guarantee time is one year, if any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
2. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by WhatsApp, Skype, Email and Telephone at any time, we provide 24 hours on-line service. Our factory also will make DVD to show the operation steps for the customer.
FAQ
1,Q: Are you a manufacturer or trading company?
A: We are a manufacturer, We are dedicated to pipe processing equipment manufacturing.
2,Q: Where is the nearest airport and port from your factory?
A: The nearest airport and port is shanghai.
3,Q:What is the spare parts about the machines?
A:Pipe bender is seal components and valves.
Pipe cutter is seal components and saw blades.
4,Q:how about the training and installment after we buy your machines?
A: Our factory can send our engineer to the customer’s factory install,commission and training freely. The customer provide the double trip tickets,food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
