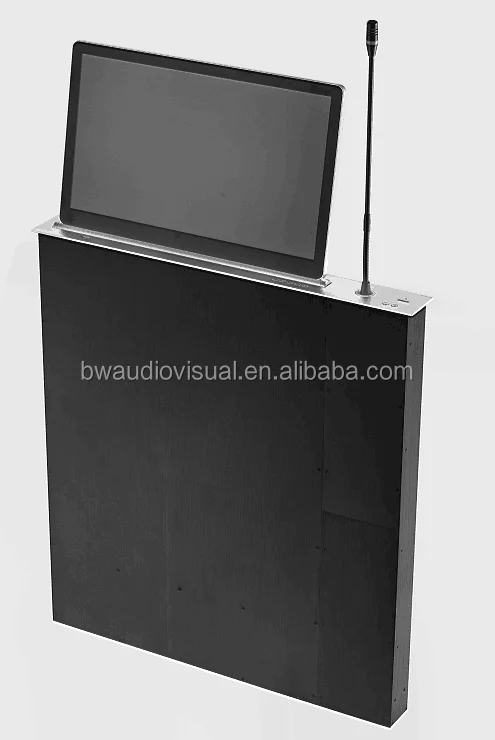

BW-HSLU Ultra-Thin Design All Aluminum Case Desk With Monitor Lift/Pop Up Retractable Motorized Lifting With HD Screen

   BW-HSLU ultra-thin LCD lift is designed for the advanced conference system to provide an efficient solution and enjoyable experience in conference communication especially for enormous information share like data, image and sound. Besides its ultrathin design, this item also featured by the aluminum button switch which is easily controlled by a soft touch. It's no longer a lift only but also accompanied with the full HD screen.



Characteristics:

      1. it is integrated with HD screen all in one lifting system. The screen will be up automatically by touch switch and remote control; after use finished, will be hidden into table automatically to tidy up the desktop;

2. especially for ultra-slim LCD/LED monitors as thin as 5mm depth;

3. HD screen for choosing: 15.6 inch, 17.3 inch, 18.4 inch, 21.5 inch, touch or non touch 1920*1080; others can be customized, like all in one PC, microphone etc.

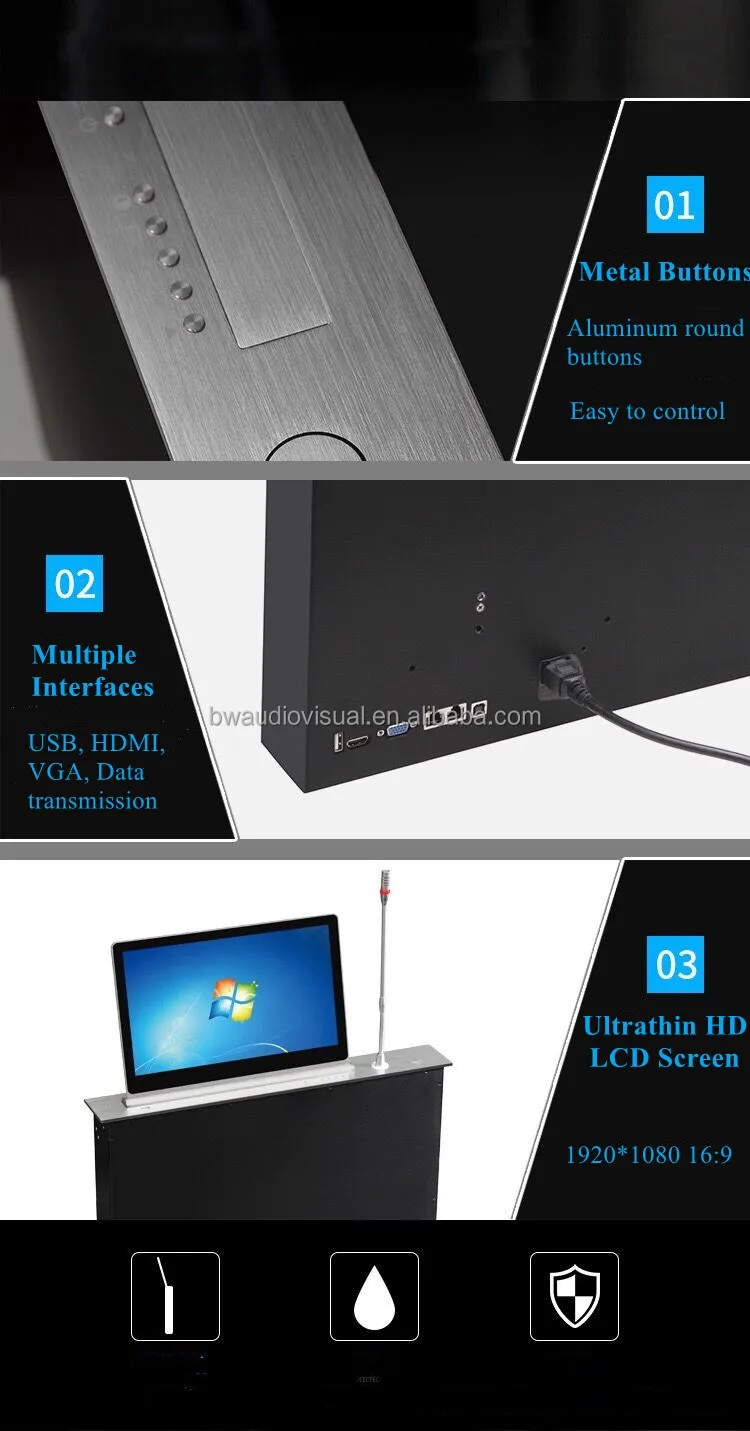

4. total aluminum case for HD screen & lift box and aluminum wiredrawing surface treatment on top panel;

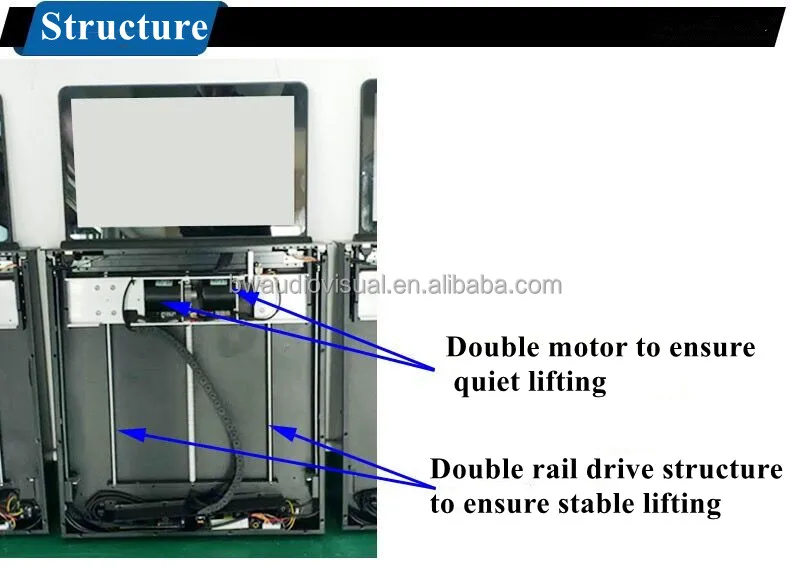

5. adopting synchronous belt gearing to assure quiet lifting;

6. two qualified mute motors, one for up and down, the other for angel adjusting, with magnetic clutch, to ensure stable lifting and the ability to lift itself to the proper position;

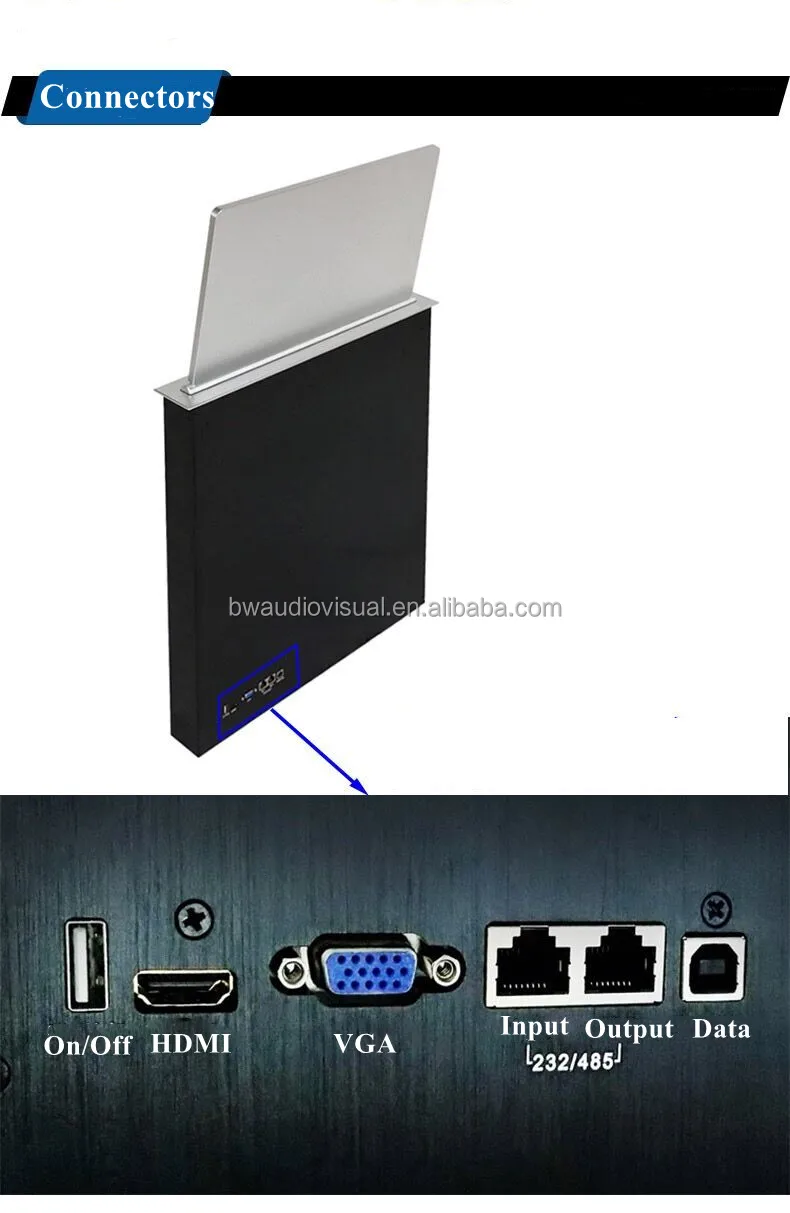

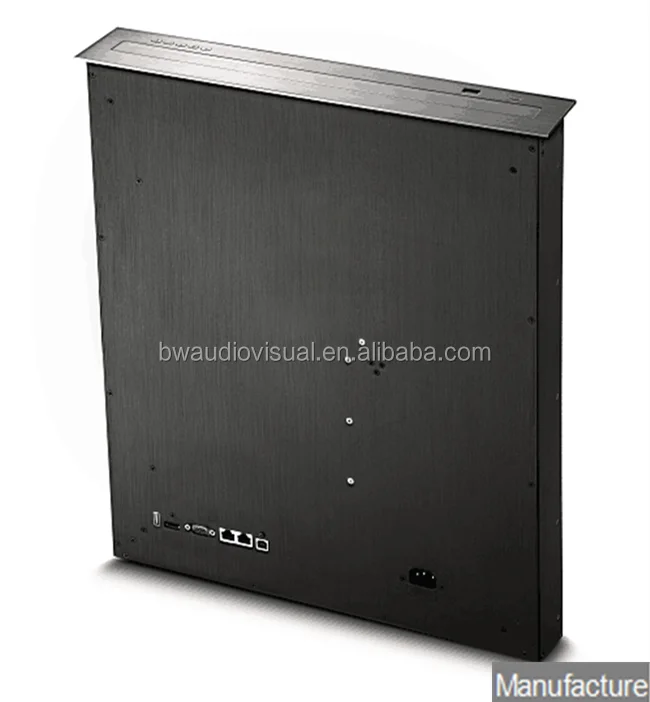

7. connectors: 1 HDMI, 2 USB, 1 VGA, 1 Power, 2 RJ45 for RS232/RS485;

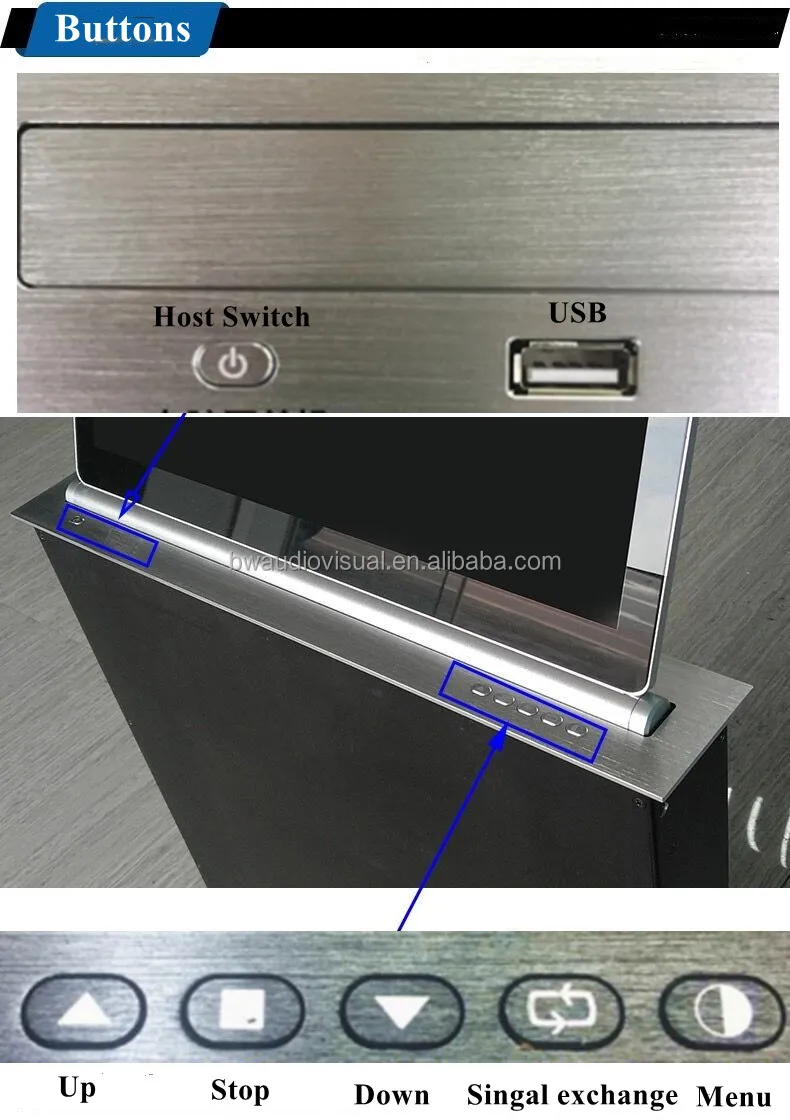

8. buttons on panel: up, down, stop, signal switch, menu, on/off switch, 1 USB for data;

9. control: infrared remote control, central control and touch button control;

     10. circuit board protection system: supply power automatically when the monitor lifts up; power off automatically when lift down to help reduce energy consumption;

     11. CE CCC approved and one year warranty.





Operation:

1. Before used, check terminal power and connection lines;

2. Code proofreading of remote control if needed, details refer to manual pls;

3. Press “UP” button on the panel or controller to lift up the monitor;

4. After the lift is up, the screen will be at suitable angel, if still need to adjust angle, press “up” & “down” buttons;

5. After use finished, press “down” button to lift down the monitor;

6. The power will be automatically off after lift down;

7. Plug off the power and connection lines.



Parameters



Item NO.	BW-HSLU15.6	BW-HSLU17.3	BW-HSLU18.4	BW-HSLU21.5
Configuration	LCD lift+HD screen+ power cable+remote control
Panel size	430*70*3mm	476*70*3mm	510*70*3mm	580*70*3mm
Box size	415*60*497mm	460*60*518mm	495*60*547mm	565*60*562mm
Product size	430*70*500mm	476*70*521mm	510*70*550mm	580*70*565mm
Monitor	15.6" HD screen	17.3" HD screen	18.4" HD screen	21.5" HD screen
Resolution	1920*1080  16:9		1920*1080  16:9
N.W	7KG	8KG	9KG	12KG
Connectors	2 USB, 1 HDMI, 1 VGA, 1 Power, 2 Data for RS232/RS485
Panel Buttons	1 USB, ON/OFF switch for computer host, up, stop, down, VGA TO HDMI Signal Change, Menu
2 Motors	For Up & Down: 18W,5r/min                                                                                   For Pitch Angle: 14W,5r/min
Pitch angle	15°-30°
Voltage	AC220V±10% 50HZ
Working Temp.	0-45°
Material	all aluminum including lift box

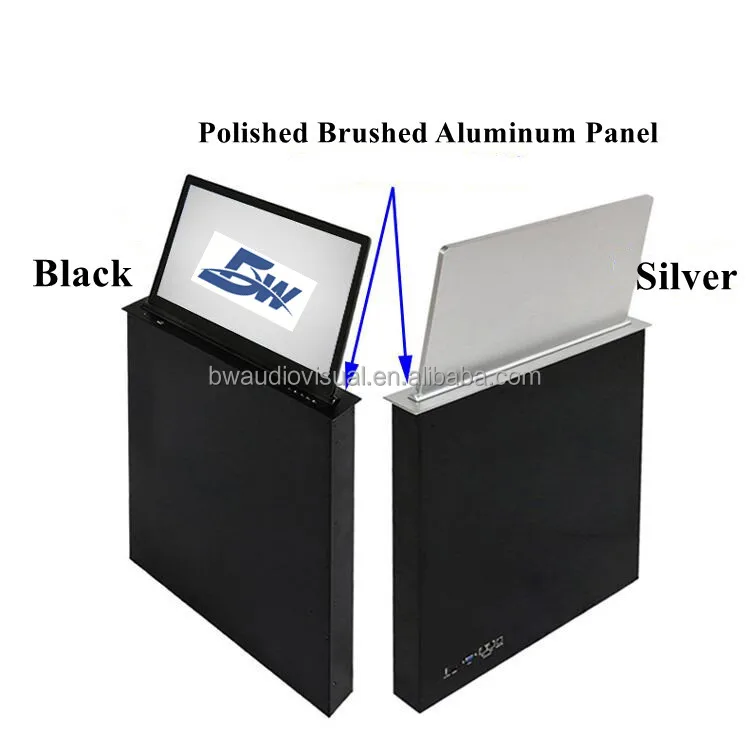

Color	silver/black
