0 10V LED Driver PWM Dimmer,Model:DM9100

SUMMARIZE:

This series is 0/1-10V dimmer for led strip and other constant voltage or constant current led lamps.AC/DC products we have.No flicker on low brightness.Logarithmic brightness curve we use to get smooth and good sense for our eyes.They all compatible with products of Lutron,Dynalite,

Clipsal,LDS,Osram,Philips,ABB,Schneider,Levition,JUNG,BerKer,Be Lichtregler etc.

Keywords:0-10V DIMMER,1-10V DIMMER,PWM DIMMER,0-10V DRIVER,1-10V DRIVER,LED DIMMER,LED DIMMABLE DRIVER.

Features of 0-10V LED Driver PWM Dimmer

1, Analog Signal driver,receive 1-10V dimming signal.

2, Single channel constant voltage output,Max.10A per channel.

3, Support active and passive to use.

4, With the self-test function, support short circuit and over current protection functions.

5, When the power turn off,it has memory function.

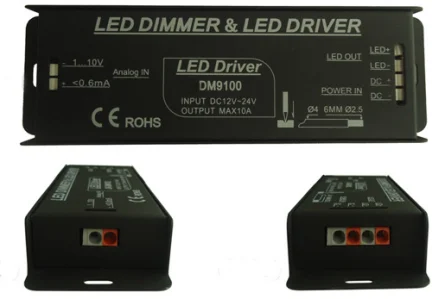

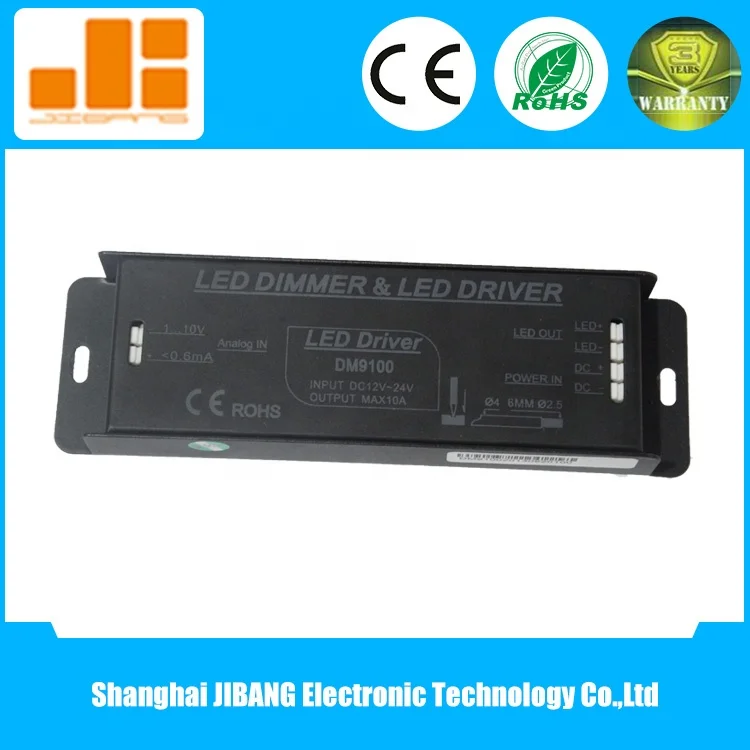

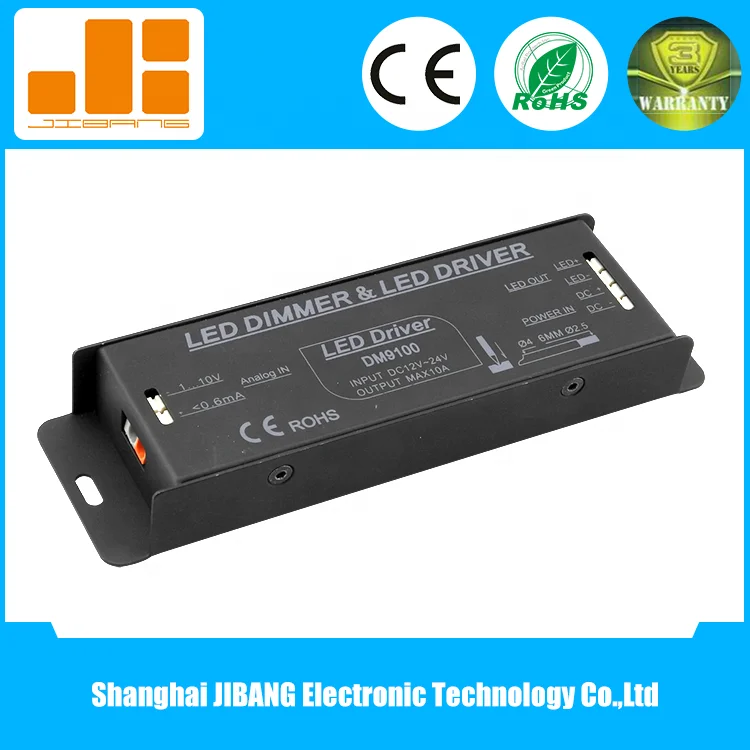

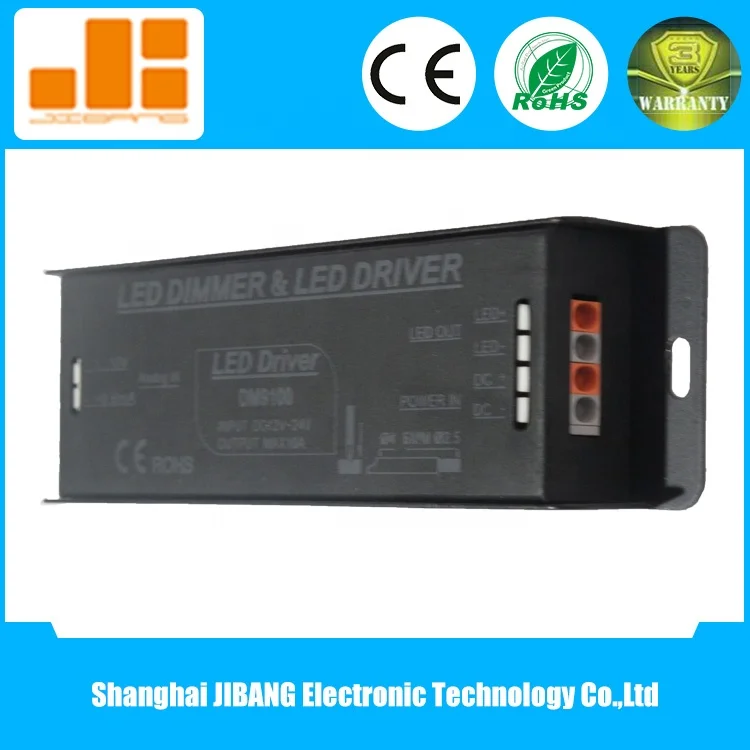

Details of 0-10V LED Driver PWM Dimmer

Function Instructions of 0-10V LED Driver PWM Dimmer

1,According to the product connection diagram, active 0/1-10 v voltage regulator, or passive 1-10 v dimmer,LED load,power by positive and negative to connect to the right port, open the power supply, adjust the 0/1-10 v voltage regulator, so as to change the output of the controller, until get the satisfactory of LED output brightness.

2,When the [ Analog IN ]port breaking, controller all light output; When the[ Analog IN ] port two terminals short circuit, the output shut down.

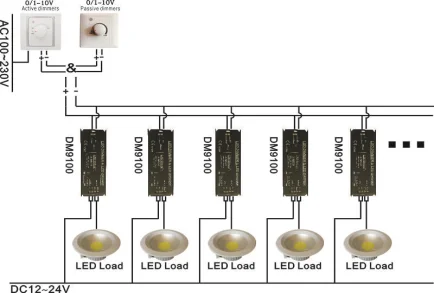

Wiring Diagram

Remark:

1. Please choose regulating curve smooth 0/1-10 V dimmer, otherwise it may directly affect the LED dimming smoothness.

2. Load LED's voltage and the controller of power supply voltage must be consistent, and must be in the product prescribed voltage input range.

3,0/1-10V Active and Passive dim signal input can get 0-100% brightness output and the dimming curved path is proportional to the dim signal.
