Product Overview

Description


Product Description

Standard

IEC 60245-6: Rubber insulated cables - Rated voltages up to and including 450/750V - Part 6: Arc welding electrode cables

Application

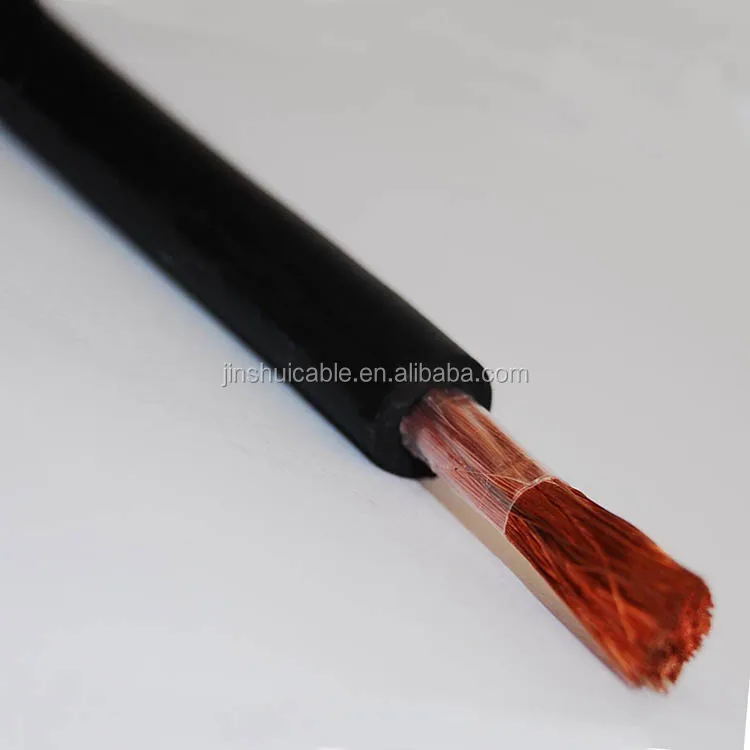

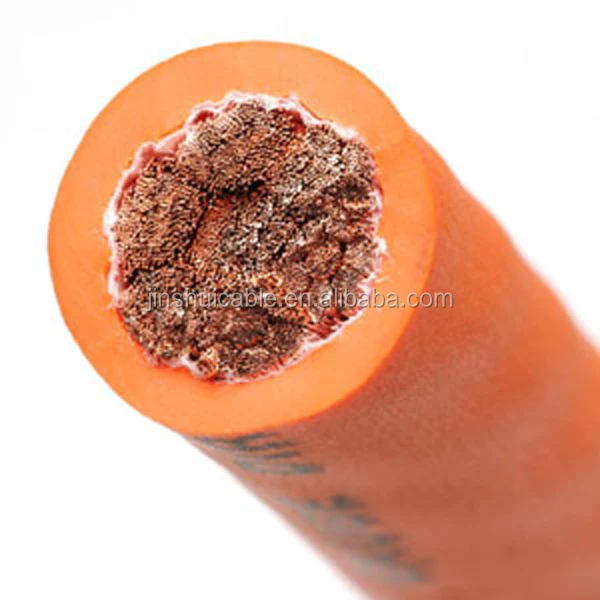

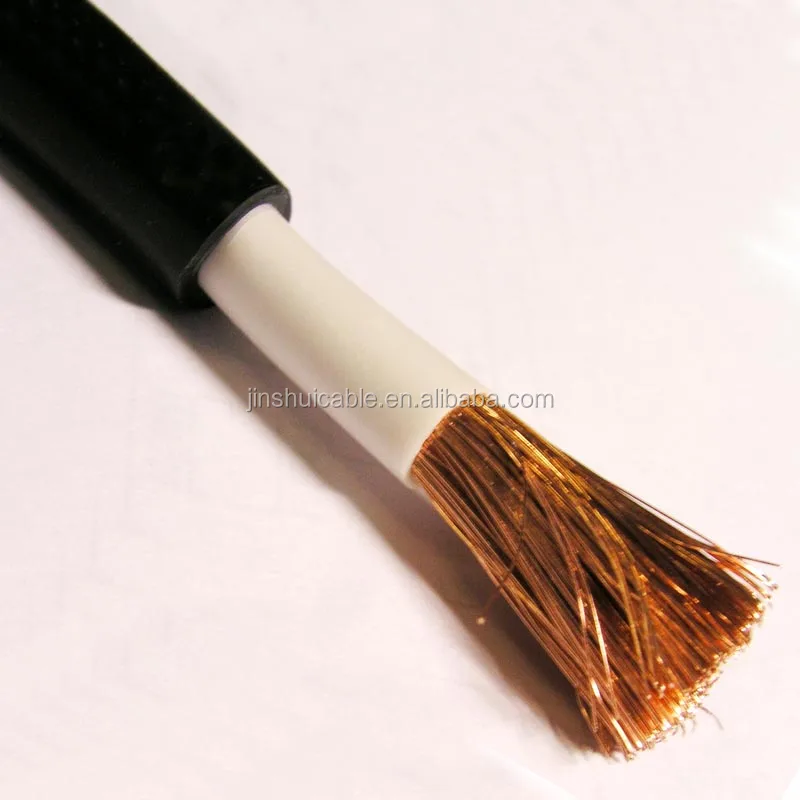

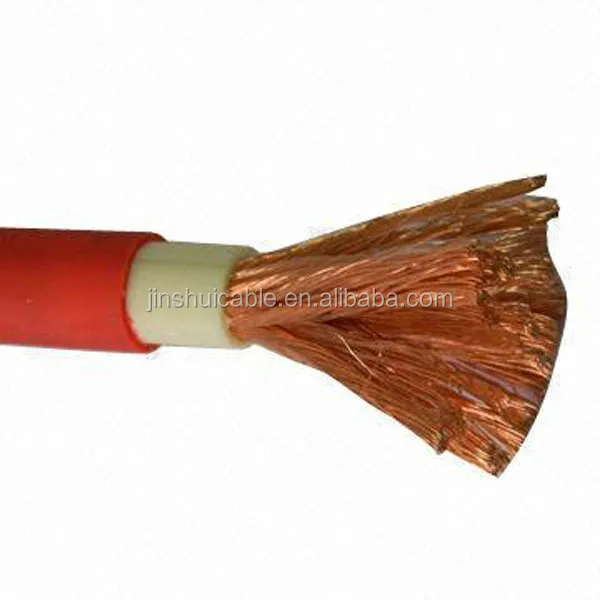

This rubber insulated copper core welding cable is used for connecting the electrode to the welding machine. It has super flexibility and oil-resistant performance. It can also be used in other movable applications where high flexibility is required.

Product details

1) Conductor: class 5 or 6 copper

2) Sectional area: 10~185 mm2

3) Insulation: rubber

4) No. of cores: 1

5) Outer sheath: rubber

6) Max. working temperature: 90 degrees

\t
Sectional Area
(mm2)
\t
Insulation Thick.
(mm)
\t
Overall Dia.
(mm)
\t
Approx. Weight
(kg/km)
\t
Max. DC Resist. @ 20 degrees
(ohm/km)
\t
10
\t
1.8
\t
9.2
\t
170
\t
1.95
\t
16
\t
2.0
\t
10.5
\t
240
\t
1.24
\t
25
\t
2.0
\t
11.9
\t
340
\t
0.795
\t
35
\t
2.2
\t
13.4
\t
450
\t
0.565
\t
50
\t
2.4
\t
15.5
\t
615
\t
0.393
\t
70
\t
2.6
\t
18.3
\t
850
\t
0.277
\t
95
\t
2.8
\t
20.2
\t
1140
\t
0.210
\t
120
\t
3.0
\t
22.5
\t
1400
\t
0.164
\t
150
\t
3.2
\t
25.0
\t
1720
\t
0.132
\t
185
\t
3.5
\t
27.0
\t
2010
\t
0.108
Certifications
Factory & Equipment
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Provide one-step cable solution according to customer's requirements

After-Sales Service

* Provide installation guidance.

* Engineers available to service overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
50cm (L) * 50cm (W) * 20cm (H) and below
\t
Weight
\t
30 kg and below
\t



Packaging Details
\t
1) Usually used for cables with a diameter less than 10mm.
2) 100 meters (or other length required by the customer) per roll.
3) Polyethylene film or tape is used for the outer packaging.
\t
Packaging
\t
Size
\t
180cm (L) * 110cm (W) * 180cm (H)
\t
Weight
\t
3 T
\t



Packaging Details
\t
1) Wood or wood drum (110cm and smaller size) or steel-wood drum (over 110cm) is used for packaging the cables with a diameter of 10mm and above.
2) Packing length as per customer's requirements
