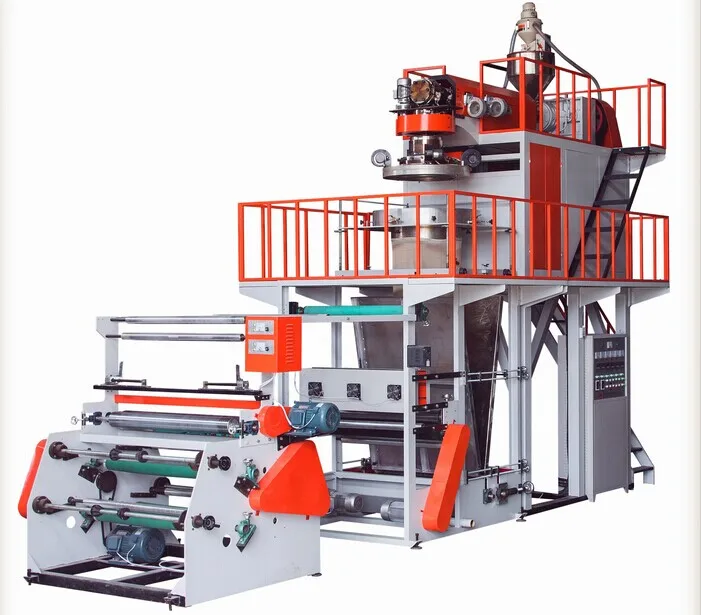

PLASTAR 1500mm Plastic Abc 3-Layer Film Blowing Machine
US $110000-$120000
pp plastic film blowing machine price
- Category: Blown Film Production Line >>>
- Supplier: Ruian Hongguang Machinery Co. Ltd. [Zhejiang China]Ruian
Share on (60646941985):
Product Overview
Description
pp plastic film blowing machine price
Application:
This unit is suitable in blows the system polypropylene(PP) plastic film, widely uses in goods for civilians and the industrial product and so on food, clothing, textile, daily necessities packing.
Feature:
1. This screw material cylinder is elaborately made of 38 CRMOALA alloy steel after nitrogen treatment and has best rigidity and corrosion resistance
2. The mould head is plated with hard chromium and has screw mandrel structure with uniform and smooth material discharging characteristic as uniform air-jut quantity, automatic temperature control and automatic heating.
3. The volume takes the installment to use the pressure friction to receive the volume or the center receives the volume, uses the moment of force electrical machinery adjustment, and receives the volume smoothly, to trade the volume to be convenient.
Main Technical Variables
MODEL | SD/PP-45 | SD/PP-55 | SD/PP-65 |
SUITABLE MATERIAL | PP | ||
FILM WIDTH(mm) | 100-500 | 150-600 | 200-800 |
FILM THICKNESS(mm) | 0.03-0.11 | 0.03-0.11 | 0.03-0.11 |
MAX.EXTRUSION OUTPUT | 30 | 45 | 60 |
SCREW DIAMETER(mm) | φ45 | φ55 | φ65 |
SCREW L/D LENGTH | 28:1 | ||
CYLINDER COOLING | 370w×2 | 370w×2 | 370w×3 |
DRIVING MOTOR(Kw) | 11 | 15 | 18.5 |
DIE SIZE(mm) | φ150 | φ250 | φ300 |
AIR BLOWER(Kw) | 1.5 | 1.5 | 2.2 |
PINCH ROLLER (Dia. WIDTH)mm | φ165×550 | φ165×650 | φ165×850 |
TAKE-UP MOTOR(Kw) | 5-60 | ||
TAKE-UP SPEED(m/min) | 0.75 | ||
WINDING SPEED(m/min) | 5-60 | ||
WINDING MOTOR(N.m) | 5 | 5 | 6 |
COVER DIMENSION(m) | 3.5×2×3.5 | 4.2×2.5×4 | 4.6×2.8×4.5 |
OPTIONAL EQUIPMENT1) AUTO LOADER 2) FILM SURFACE TREATER3) DIE ROTARY DEVICE4) AIR COMPRESSOR
