Дорожный грейдер для трактора 215hp GR215A
- Category: Motor Graders >>>
- Supplier: Xuzhou Focus Industry Group Co. Ltd.
Share on (60649236832):
Product Overview
Description

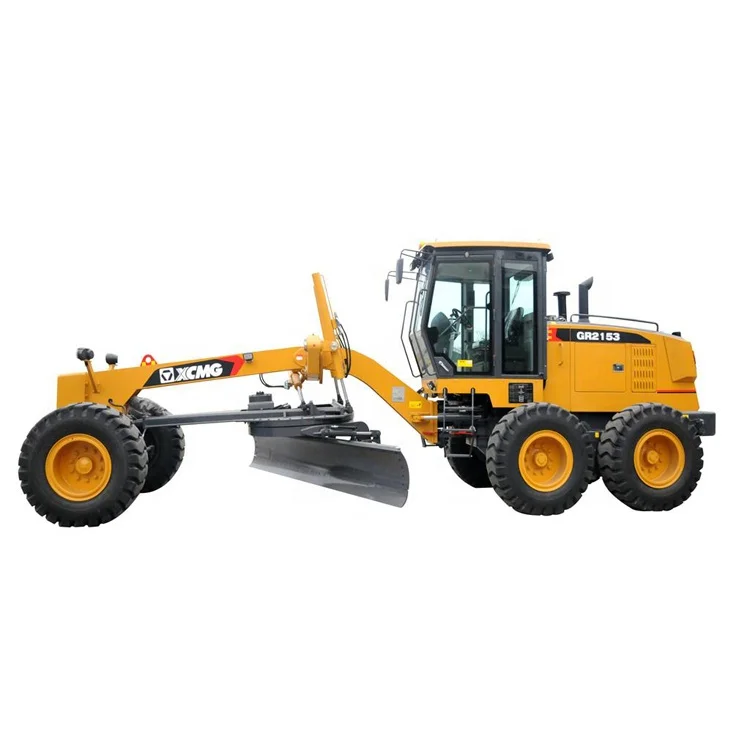

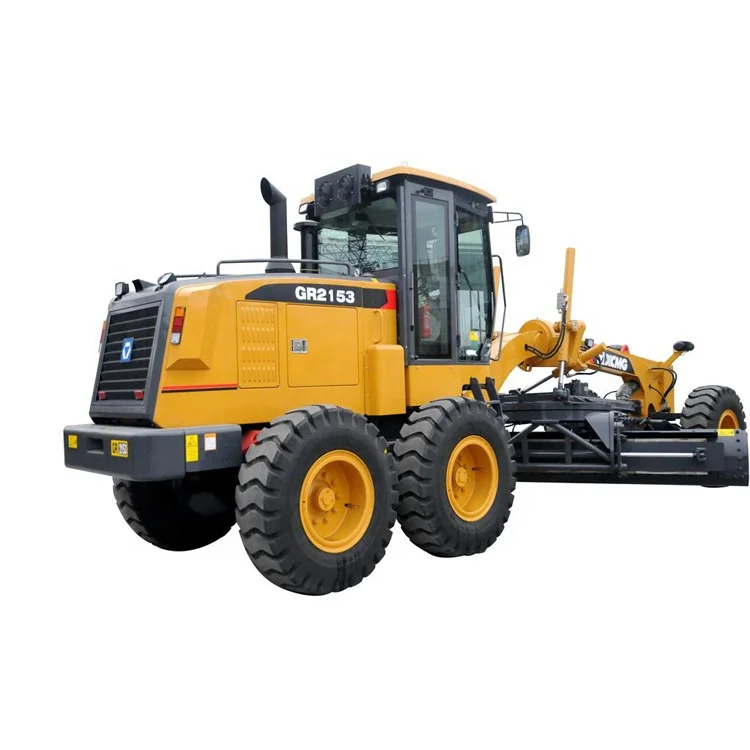

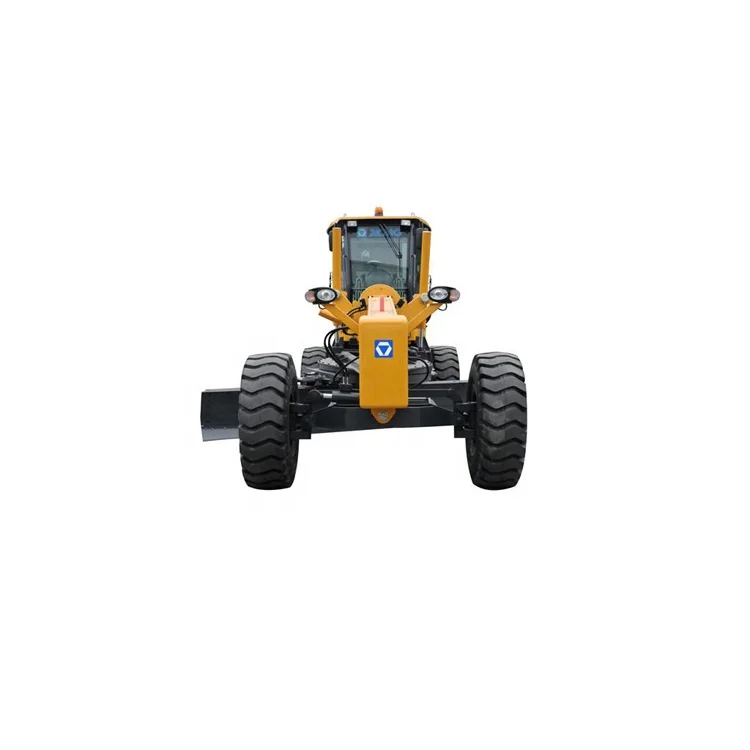

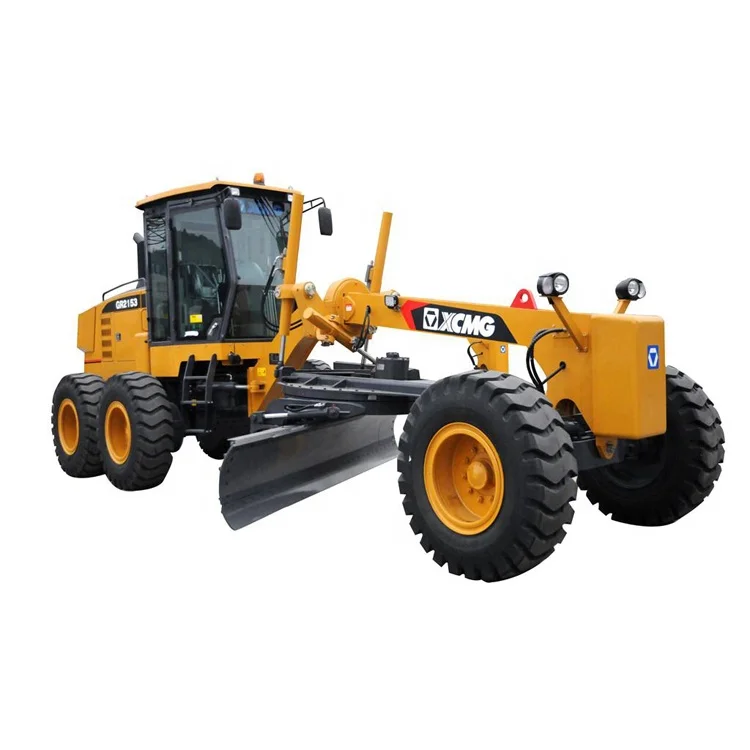

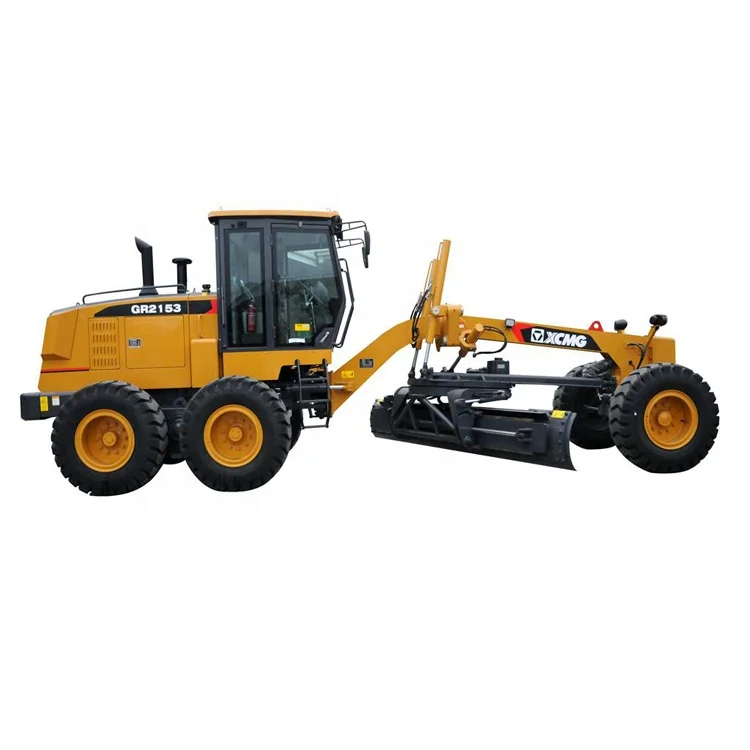

215hp XCM Grader GR215A Road Grader for Tractor
Main parameters:
Operating weight :16 tons ,
Moldboard : 4270×610mm,
Detailed configuration
* 6CTA8.3 engine,
* XCMG driving axle ,
* XCMG air conditioner driving cabin ,
* Imported differential mechanism .
Advantages
Strong power ,Comfortable driving environment .
Adopt imported hydraulic parts .Great working performance .
Optional parts
* Front mouldboard ,
* Rear scarifier ,
* Shovel blade
*Configuration for low temperature area .
GR215 | GR215A | |
Engine model | 6CTA8.3 | 6CTA8.3 |
Rated power/speed | 160kW/2200rpm | 160kW/2200rpm |
Dimension(LxWxH) | 8970×2625×3470mm | 9180×2625×3300mm |
Operating weight(Standard) | 16500kg | 16100kg |
Performance specification |
|
|
Travelling speed ,forward | 5,8,11,19,23,38 km/h | 5,8,11,19,23,38 km/h |
Travelling speed ,reverse | 5,11,23 km/h | 5,11,23 km/h |
Tractive force(f=0.75) | 82KN | 82KN |
Max. gradeability | 20% | 20% |
Tire inflation pressure | 260 kPa | 260 kPa |
Working hydraulic pressure | 16 MPa | 16 MPa |
Transmission pressure | 1.3~1.8MPa | 1.3~1.8MPa |
Operating specification |
|
|
Max. steering angle of front wheels | ±50° | ±17° |
Max. lean angle of front wheels | ±17° | ±15° |
Max. oscillation angle of front axle | ±15° | 15 |
Max. oscillation angle of balance box | 15 | ±27° |
Frame articulation angle | ±27° | 7.3m |
Min. turning radius using articulation | 7.3m |
|
Biade |
|
|
Maximum lift above ground | 450mm | 500mm |
Maximum blade position angle | 90° | 28°—70° |
Circle reversing rotation | 360° | 360° |
Moldboard width X height | 4270×610mm | 4270×610mm |
