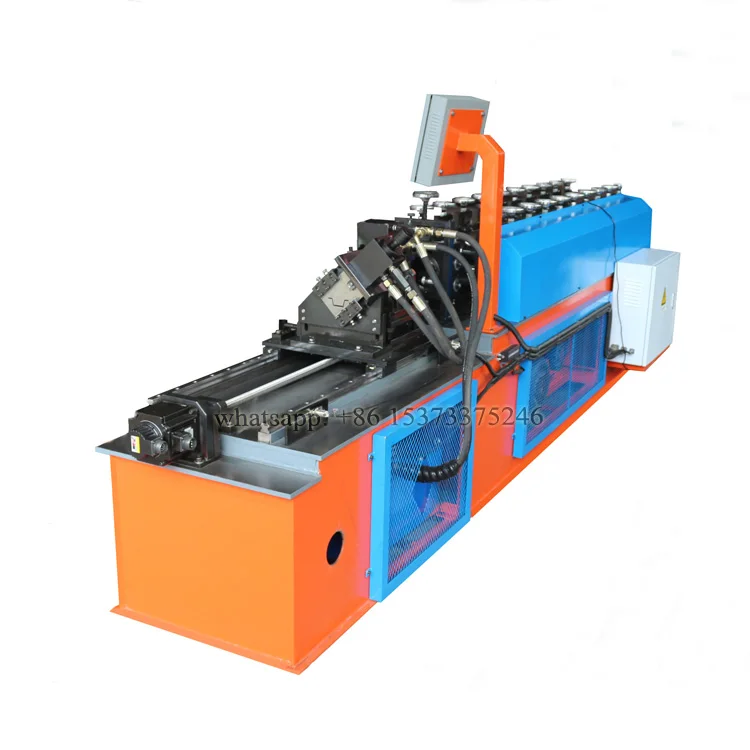

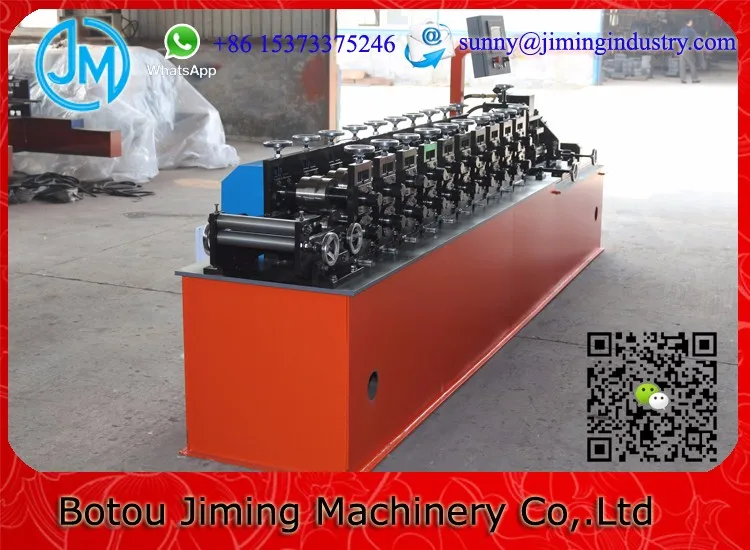

Hydraulic stud track and truss roll forming machine with innovative cutting tool

Product Overview

Description

Hot sale  --drywall stud andtrack roll forming machine

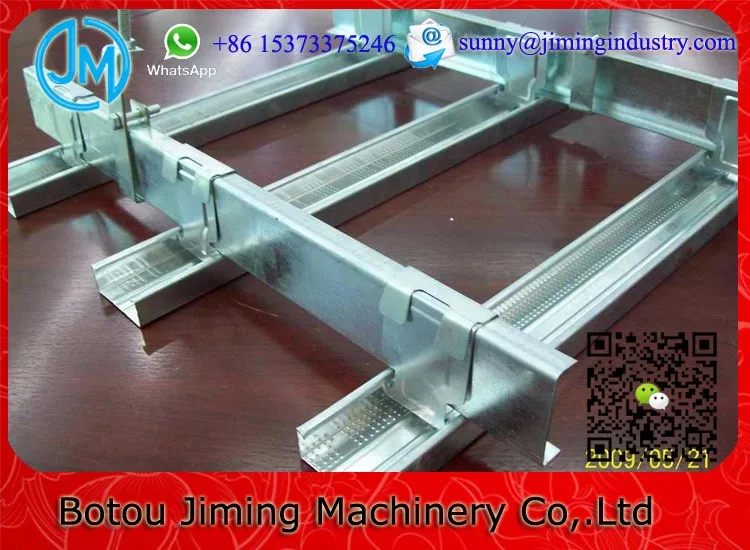

                  furning and UD channel ceiling  forming machine



Our machine has passed CE and ISO certificated





SPECIFICATIONS FOR ROLL FORMING MACHINE
Main roll forming machine	Raw material width	mm	150-350
	Working Speed	m/min	25-45
	roller stations	station	11-13
Motor power	Main motor power	kw	7.5
	Hydraulic Station Power	kw	7.5
	Hydraulic Station Pressure	Mpa	12
Otehrs	Electrical Control System	PLC brand	famous brand
	Material Thickness	mm	0.6-1.2mm
	Cutting accuracy	mm	±2





 19,850usd ----server of 10 year free!



Before loading ,we test the full machine line with long steel coil ,not shot one!



E.Q ----export quality series



High speed product speed---25-45m/min

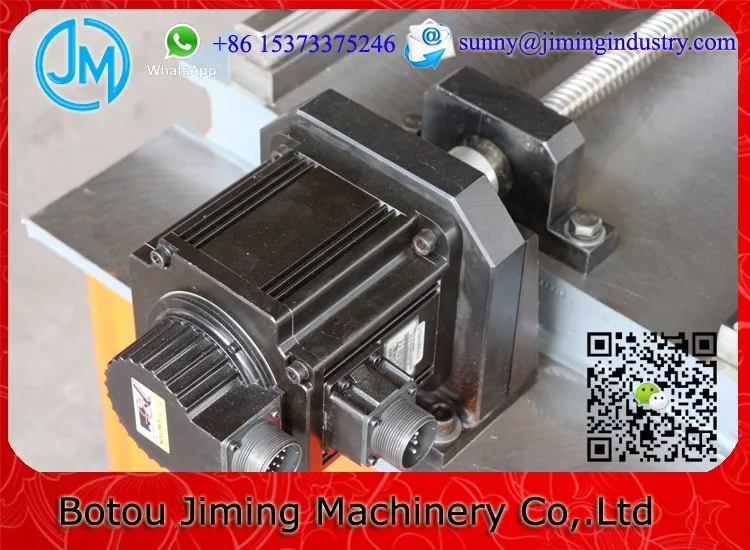

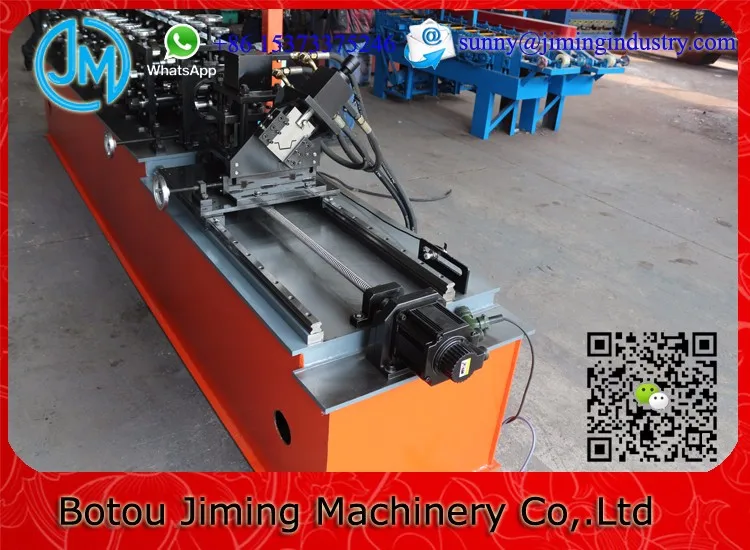

flying cutter-servo motor pwer with ball screw pulling





Stronger frame --T25 steel panel welding box

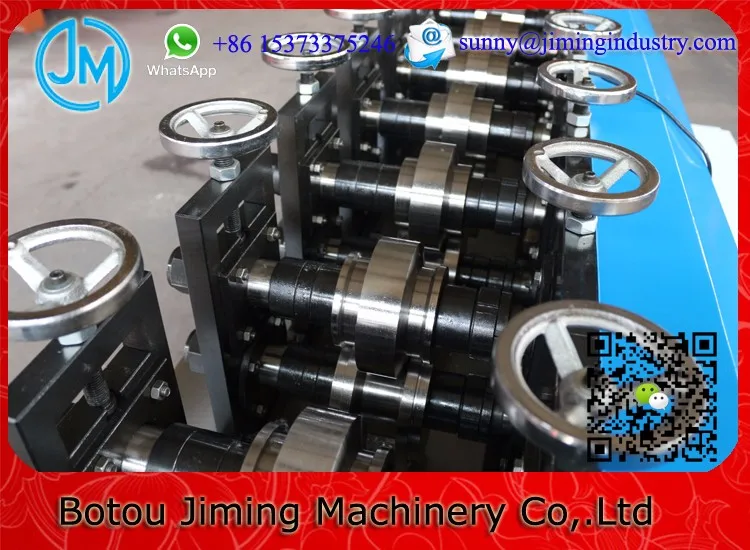

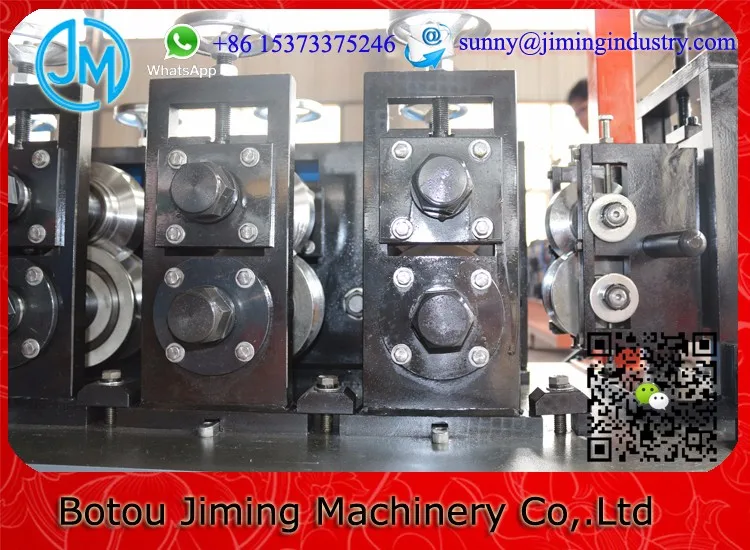

Cr12 hard steel rollers--special for high speed



Shaft bear support boxs





Double head and easy extrunable decoiler(can be chosed)

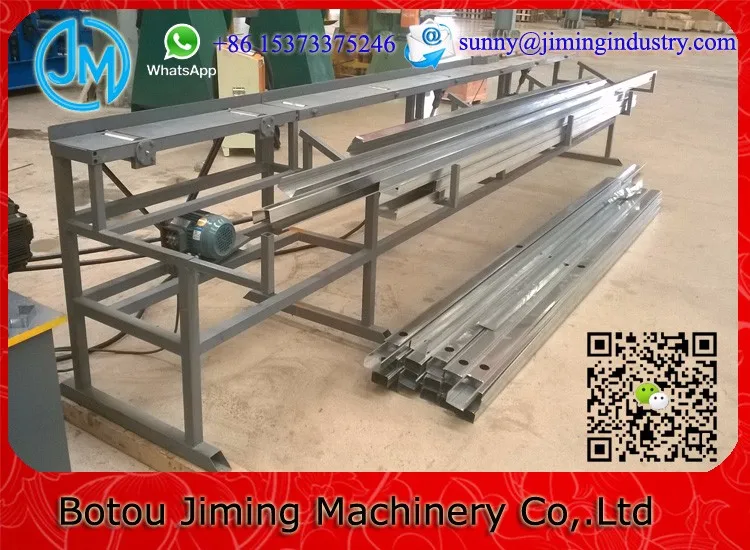

5m auto stacker (can be chosed)

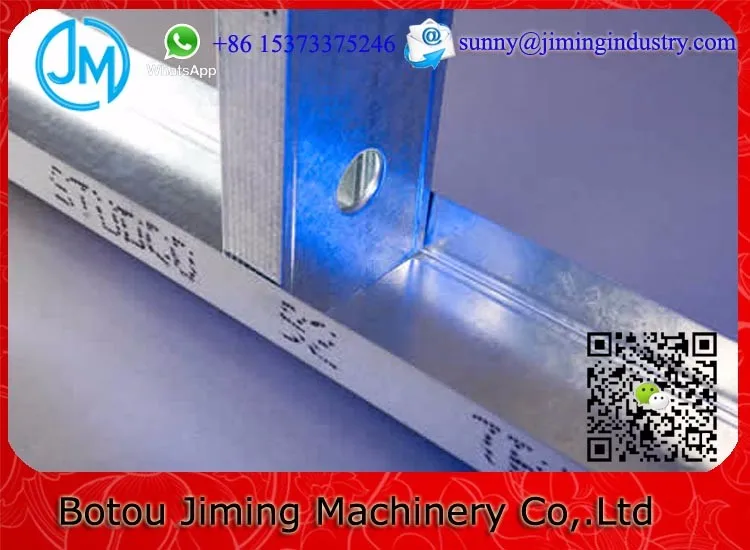

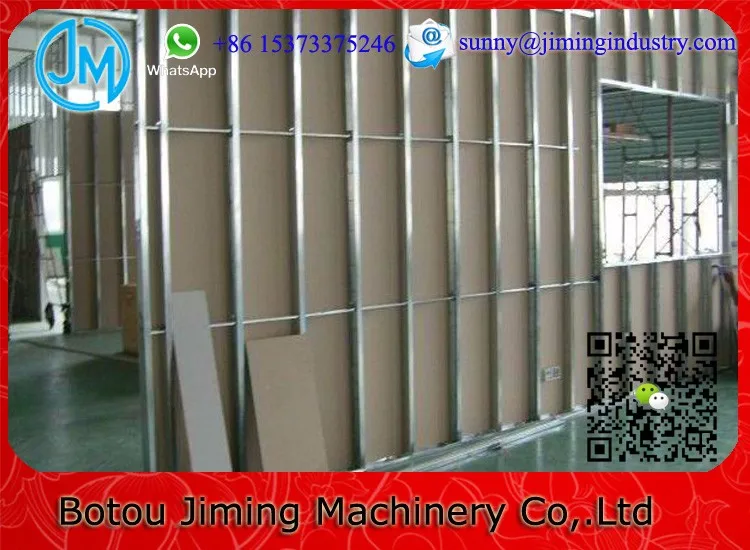

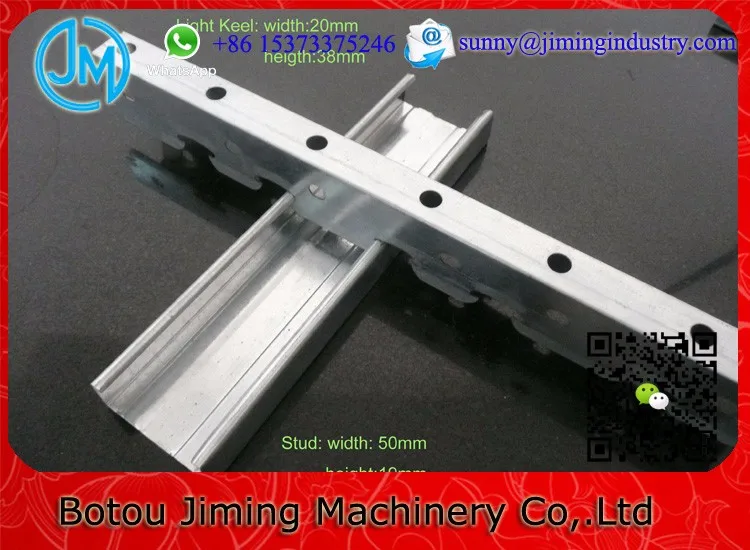

Used for light keel frame house:

















Botou Jiming machinery Co,.Ltd



Botou Jiming Machinery CO,LTD, located in the beautiful coastal city-Cangzhou,is a high-tech enterprise and won several technology patents.We are the ownership of cutting system(size adjustable,don't need to replace cutting mold),purlin size fast changing system(choose any size in range),coaxial C/Z interchanging system(CZ combined one machine) and many new type machines cradle.For many years,the company has focused on the research and develop of new tehnologies of CZ purlin equipment.As a result,it has initiated the application of fast cutting system and coaxial C/Z interchanging system and promoted a trend of upgrading of the whole CZ processing area.The company has developed single product to a category,thus creating a new model for successful operation of independent brand in rolled steel industry.
