Wastewater evaporators price
US $7800
5L Vertical Rotary Evaporator With Vacuum Pump And Chiller As Optional
- Category: Evaporator >>>
- Supplier: Guangzhou Fan Bo Lun Import And Export Trade Co. Ltd.
Share on (60657342186):
Product Overview
Description

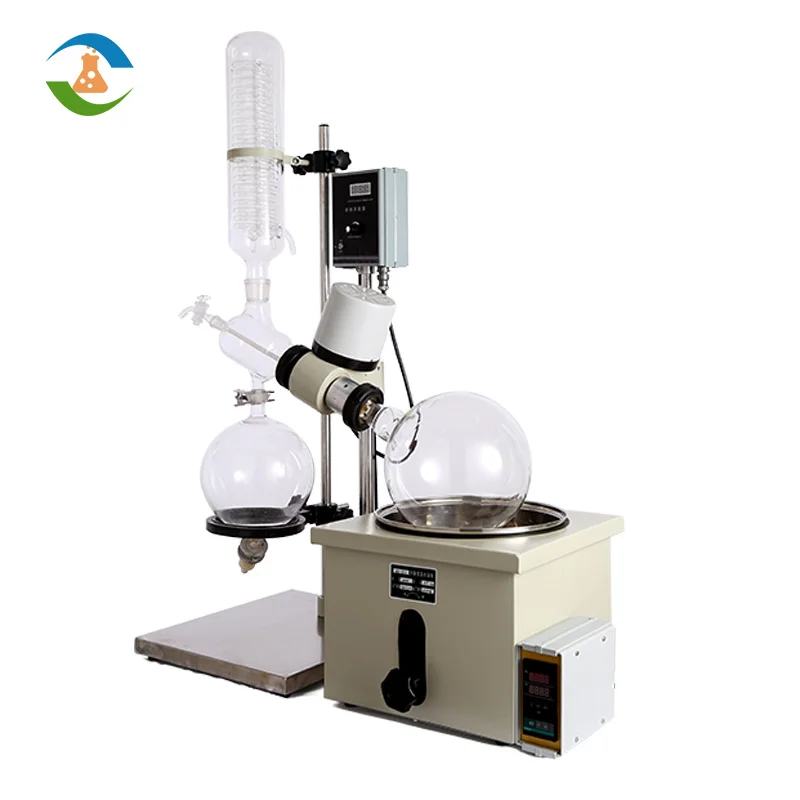

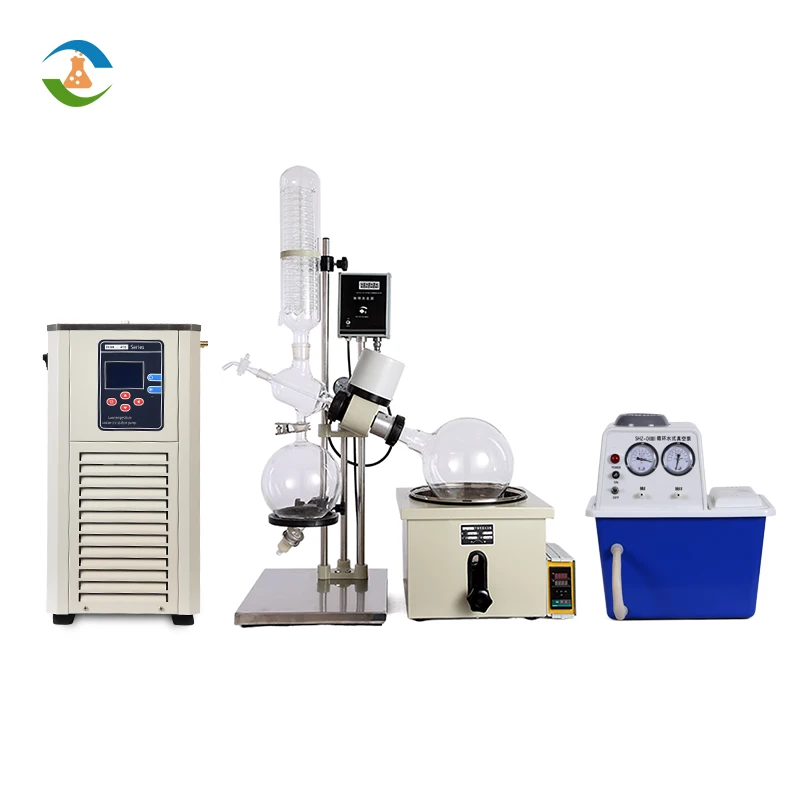

5L Vertical Rotary Evaporator With Vacuum Pump And Chiller
Product Description
The rotary evaporator is heated by a water bath(oil bath) to form a thin film under the adverse pressure condition, evaporate highly, then condense and recycle the solvent simultaneously. The apparatus is particularly suitable for the heat-sensitivity material’s condensation, crystallization, separation, recovery and so on. And reflux extraction can be avaliable for parts evaporator models.
Model | RE-201D | RE-301 | RE-501 |
Evaporating flask(L) | 2 | 3 | 5 |
Receiving flask(L) | 1 | 2 | 3 |
Rotating motor(W) | 40 (Stepless speed regulation) | ||
Rotating Speed(R/min) | 0-120 | ||
Water (Oil) Bath Power(W) | 1200 | 1500 | |
Temp control mode/range | Intelligent digital/RT-399℃ | ||
Temp resolution | ±2℃ | ||
Evaporation rate(L/H2O) | ≥1 | ≥1.5 | ≥1.5 |
Max. vacuum degree | <133pa(1.33mbar, 1Torr, 0.098Mpa) | ||
Lifting height(MM) | 0-150 | 0-120 | 0-120 |
Water bath size | Φ24*15 | Φ26*15 | Φ28*17 |
Condenser | Vertical with charge pipe, large condenser, evaporating pipe | ||
Lifting mode | Oil bath manual lifting | ||
Voltage | 220V/ 50 HZ | ||
Sealing mode | PTFE, fluoro rubber sealing | ||

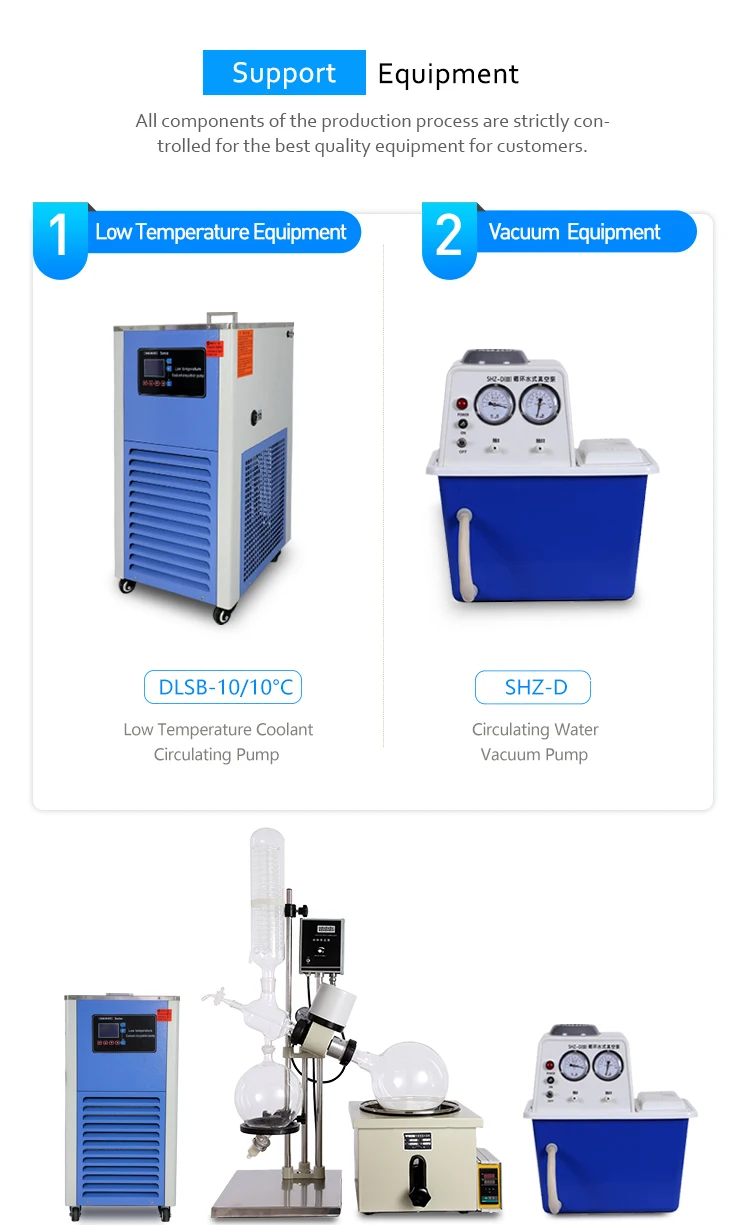

Ancillary Equipment
Other Models
Company Information
CE
Packaging & Shipping
Packaging
-Export plywood case or carton.
-Both neutral and customized packaging are available.
Shipping
-Usually, we ship the goods by International Express such as DHL, TNT, EMS, FedEx and UPS for small volume goods, and ship the big volume goods by air or ocean.
After-Sales Service
FAQ
1. What's the minimum order quantity?
One set at present.
2. When can the goods be delivered?
2-5 working days after payment for regular models and 5-10 working days for a customized model.
3. Can you accept OEM or ODM?
Yes, we can.
4. How to choose the suitable equipment?
Tell us your requirements, our professional sales will introduce you the most suitable model.
