PE Mini Film Blowing Machine Polyethylene Plastic Film Blowing Machine Price(Kings Brand)
Product Description
1) It is used for blowingplastic film like low density polyethylene(LDPE),high density polyethylene(HDPE)and linear low density polyethylene(LLDPE)etc, which are widely used for packing industrial products, garments and food and for covering farmland.
2) The cylinders and the screw are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.
3) The machine is equipped with a platform for making operation easy.
4) The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
Main Technical Variables:
Model
SJ-50/FM600
SJ-55/FM800
SJ-60/FM1000
Screw Diameter
50mm
55mm
60mm
Screw Ratio
L/D30:1
L/D30:1
L/D28:1
Screw Speed
10-100r/min
10-100r/min
10-100r/min
Power of Main Motor
7.5kw
11kw
15kw
Max. Extrusion output
35kg/h
50kg/h
65kg/h
Max. Folding Width of Film
600mm
800mm
1000mm
Single-sided
Thickness of Film
0.006-0.10mm
0.006-0.10mm
0.006-0.10mm
Total Power
18kw
22kw
28kw
Weight of machine
2000kg
2200kg
2800kg
Overall Dimensions(L*W*H)
4200X1800X3600mm
4400X2000X4000mm
4600X2300X4200mm
Accessories
The Spare List of HDPE-LDPE Dual Purpose Film Blowing Machine
1
Name
Number
Remark
2
Friction plate
2 pcs
3
Band heater
2 pcs
4
Inner hexagonal spanner
1 handful
A tool M5-M16
5
Oil gun
1 handful
A tool
6
Electric bag
1 bag
A tool
7
Electric pen
1 pc
A tool
8
Instruction manual
1 pc
A tool
9
Screw driver
1 handful
10
Long nosed pliers
1 handful
11
Hammer
1 handful
12
Activity spanner
1 handful
13
Temperature watch
1 pc
14
Heat electric
I pc
15
AC relay
1 pc
16
Ammeter
1 pc
17
C45 switch 1P
1 pc
16A
18
C45 switch 1P
1 pc
63A

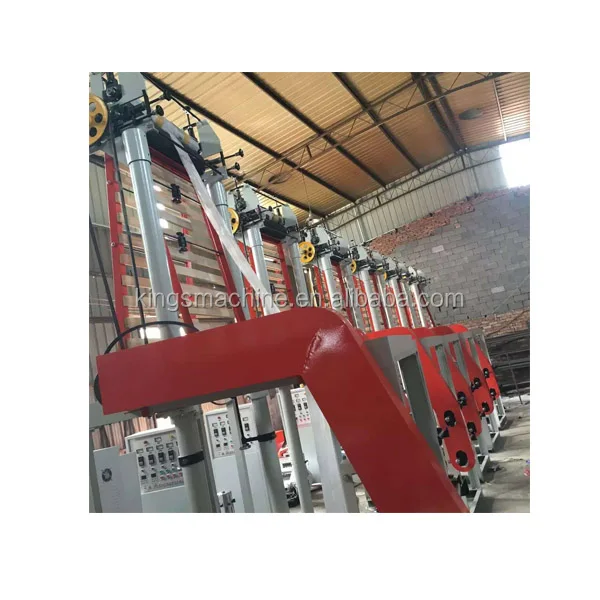

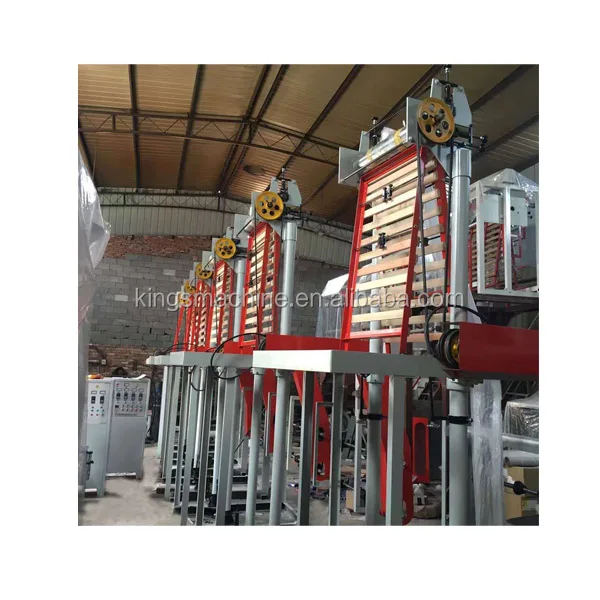

Detailed Images
