China Factory Drilling And Tapping CNC Machine Tool
US $1500-$32000

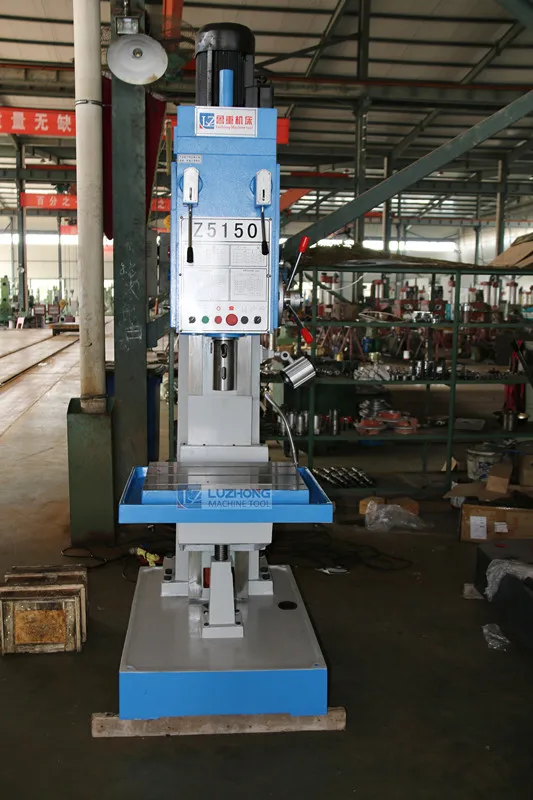

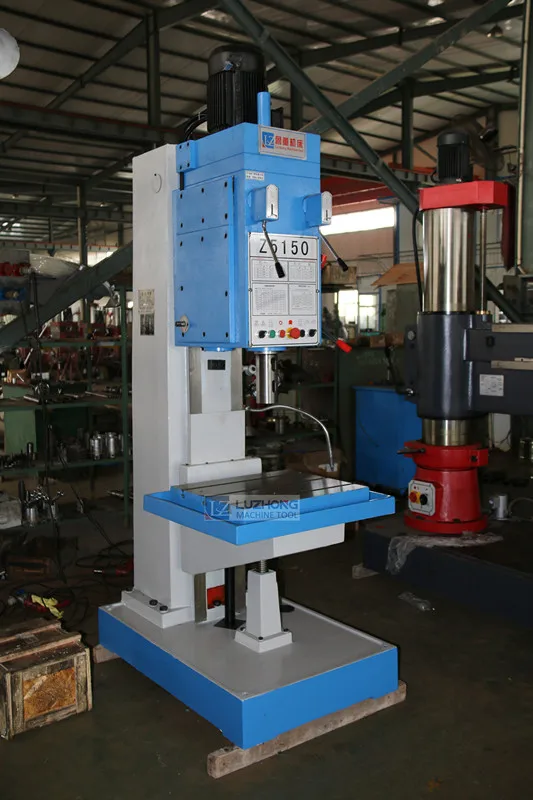

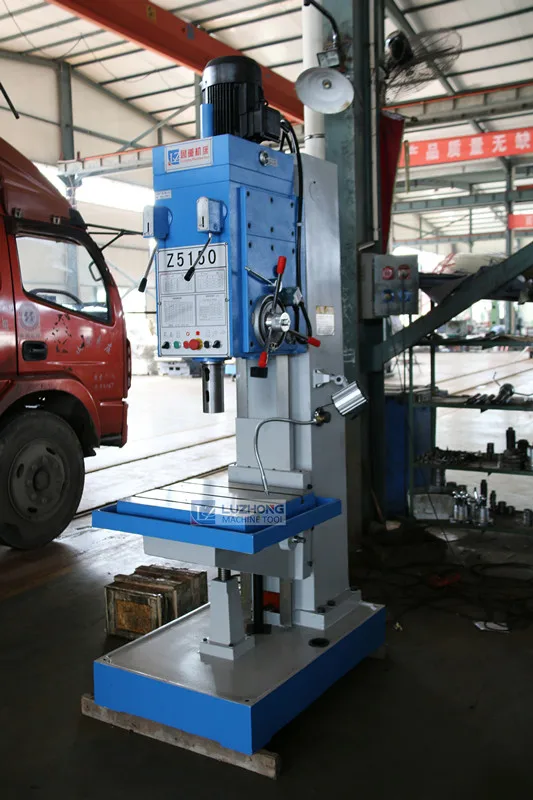

Stand Metal Square Column Vertical Drilling Z5150 Drilling Machine
- Category: Drilling Machines >>>
- Supplier: Shandong Luzhong Machine Tool Co. Ltd.
Share on (60659963415):
Product Overview
Description
Product Description
Specifications | Z5150 |
Max drilling dia | 50mm |
Spindle taper | MT5 |
Spindle stroke | 250mm |
Headstock travel(manual) | 200mm |
Spindle speeds | 31.5-1400r/min 12 steps |
Feed range | 0.056-1.80mm/r 9 steps |
Table size | 560x480mm |
Table vertical travel | 300mm |
Max.distance spindle nose to table | 750mm |
Main motor power | 3kw |
Overall dimension | 1090*905*2465mm |
N/W | 1350kg |

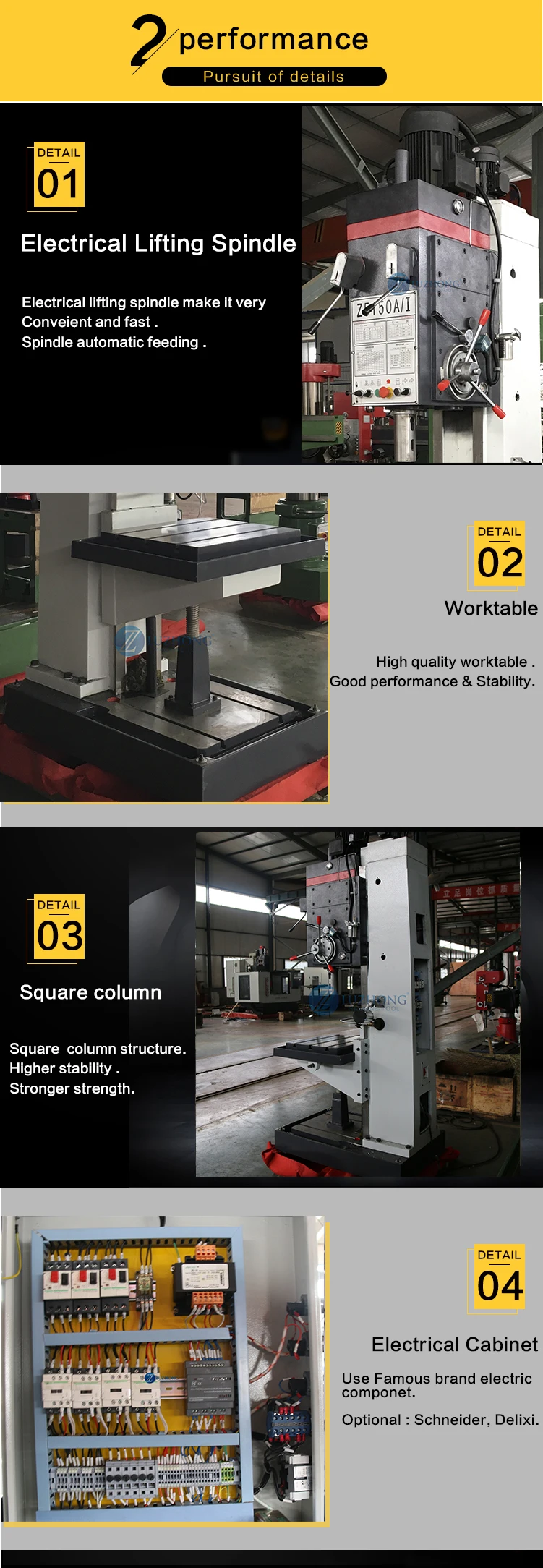

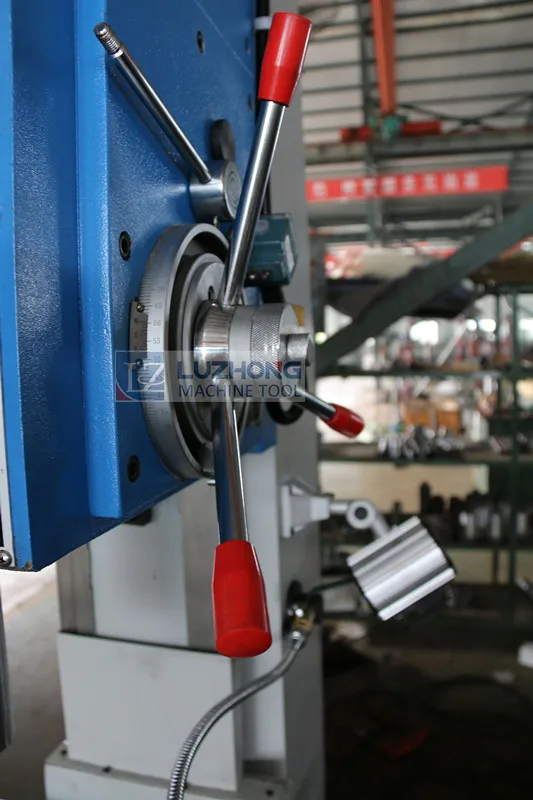

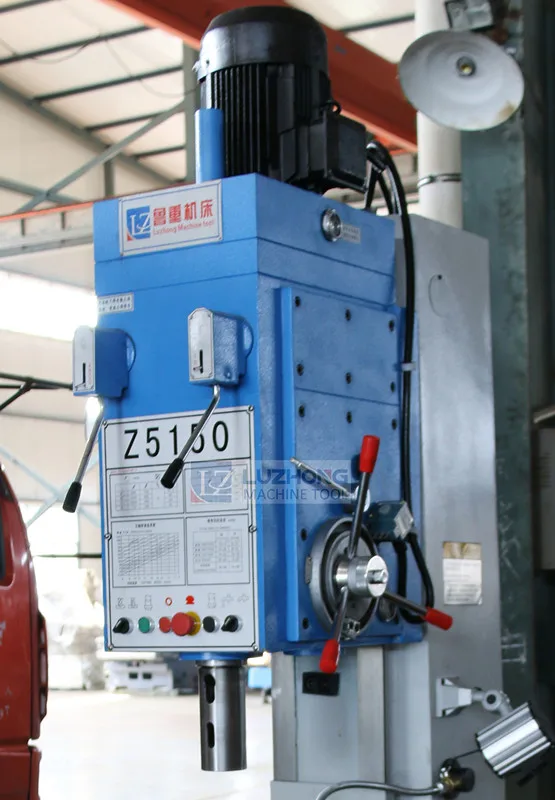

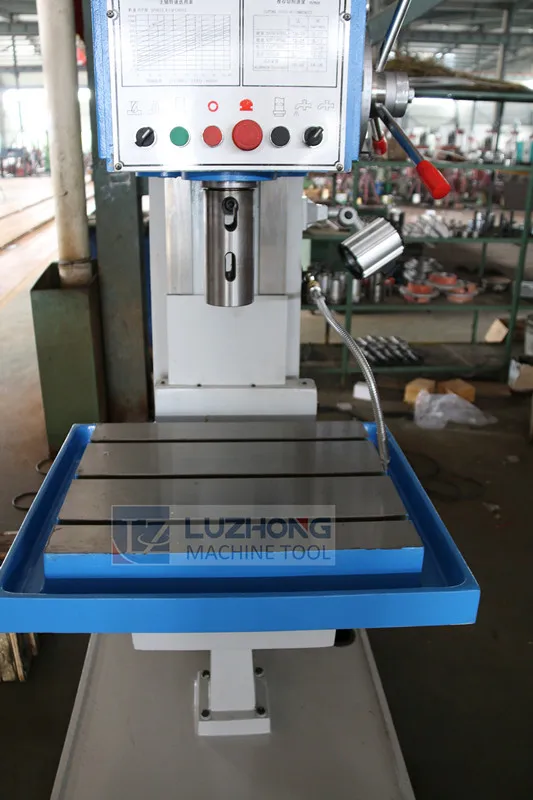

Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
