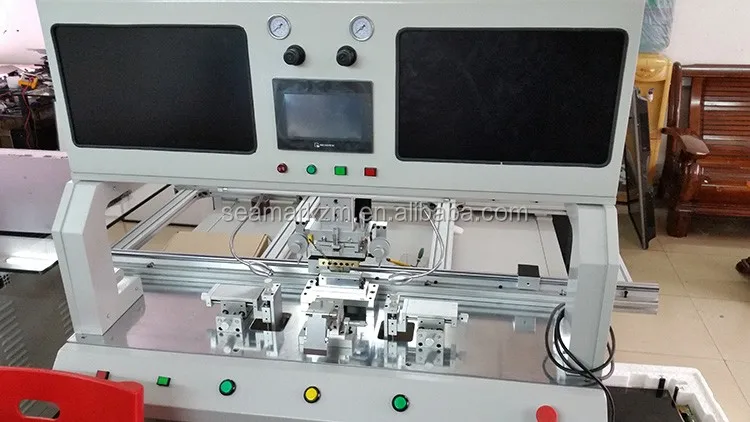

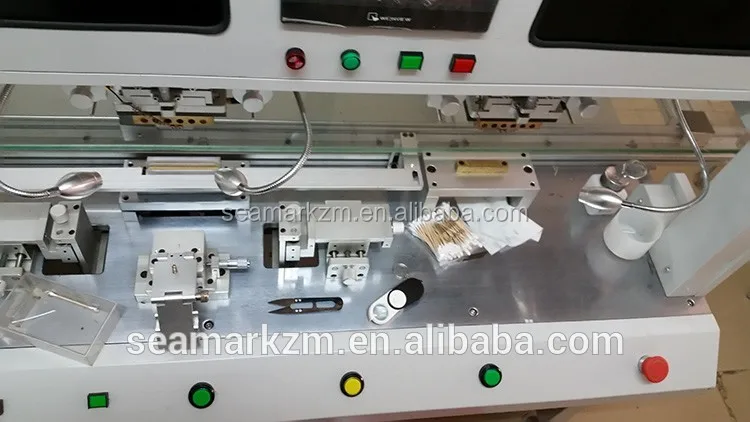

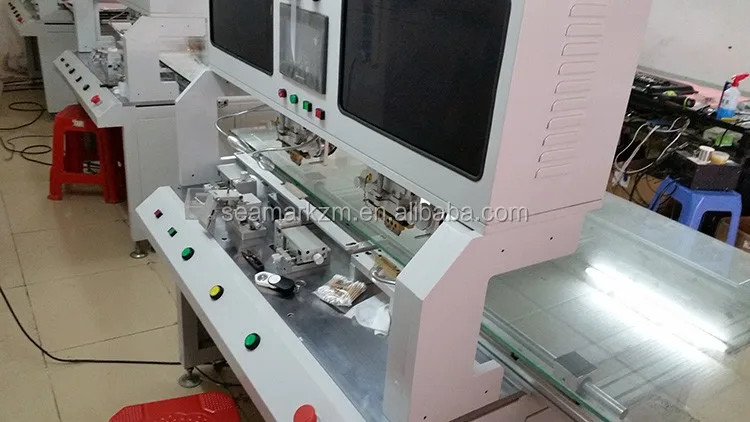

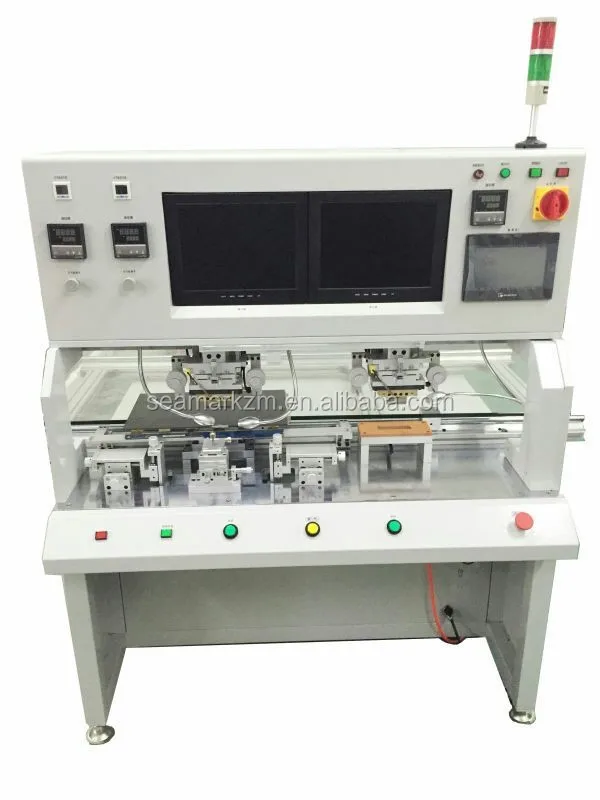

COF TAB ACF склеивающая машина для ремонта ЖК экрана телевизора

COF TAB ACF bonding machine for TV lcd screen repair

Main Features:

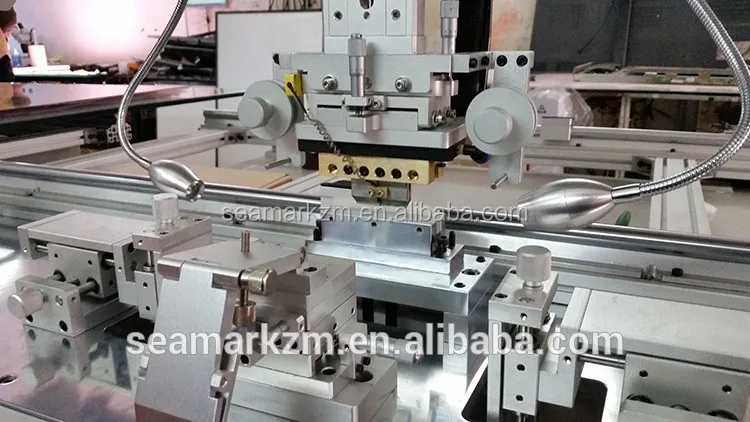

1, PLC control, pulse heating mode, combined with titanium alloy extrusion head, rapid heating and rapid cooling, can be set up four heating, accurate temperature control.

2, 5.7 "color touch screen LCD display input, realizing the temperature curve, according to the Chinese menu, all the parameters set browse concise and straightforward.

3, large load platform, stepper motor drive, multiple IC can be preset position, the platform automatically move the pressure to stay.

4, under the high magnification camera system, ensure that the product clearly counterpoint.

5, powerful software, perfect the system debugging, automatically detect fault and alarm function.

What Problem it Can Repair :

Vertical, horizontal, black belt, the black line, the color line, ribbons, multi-line, flower screen, black screen, white show, horizontal, vertical half and half fault, and so on.

Application: suitable for 12-80inch TFT Panel and TAB, FPC and LCD or PCB board combination bonding.

The LCD Bonding machine Demo Video Link:

https://youtu.be/oni6onC7Ifw

The LCD Bonding machine Detailed Operation Commentary Video:

https://youtu.be/WhqPs_WAdeI
https://youtu.be/UJubPdoUvSA
https://youtu.be/h_Lv9xPO6iI
https://youtu.be/GaJC2nKRy0I
https://youtu.be/8nNbs7auPhw
https://youtu.be/cOLNe3QBjkg
https://youtu.be/SHX4Ii_NsI0
https://youtu.be/ockBqLWt2IM
https://youtu.be/1zGK4vx1ZWE
https://youtu.be/xTlS0t2iwjk
https://youtu.be/LfvzTxdScuw
https://youtu.be/iIGrI6Nl1pM

Technical Parameters:

Power:                              AC220V±10%, 50Hz, 4500W

Work environment:          10~60℃, 40%~ 95%

Work pressure:                0.5 ~ 0.7 Mpa

Welding stress:                5 ~ 28 KGF

Temperature Settings:      one to four paragraphs

Temperature Settings:      RT ~ 399 ℃

Hot pressing time:            1 ~ 99 s

Hot-pressing precision:     pitch 45um

Production capacity:         35 s/TAB or COF package

Hot pressing head size:     MAX 60 x 8 mm

Fuselage size:             1508 mm (L) x 1245 mm (W) x 1483 mm (H)

weight:                             About 300 kg

Other machine:

1. How about the package ? Is it safe during the delivery ?

All machine is packed Safely, by standard strong wooden carton with foam inside.

COF TAB ACF bonding machine for TV lcd screen repair

2. What is the delivery way ? How many days will the machine arrrive us ?

We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.

Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.

Or by Sea to the seaport,  Minium CBM requirement : 1 CBM, around 30days to arrive.

COF TAB ACF bonding machine for TV lcd screen repair

3. Do you provide the Warranty ? How about the after sales service ?

1 year warranty free for spare parts, Whole life technicial support.

We have professional after sales team, if any question, assistant videos are also provided in after-sale service.

COF TAB ACF bonding machine for TV lcd screen repair

4, This machine is easy to use ? if I have no experience, I can also operate it well ?

Do you provide the user manual and operating videos to support us ?

Yes, our machine is designed to use easily, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.We will provide the English user manual for free , and the operation video is available.

COF TAB ACF bonding machine for TV lcd screen repair

5, If we come to your factory, you will provide the free training ?

Yes, warmly welcome you to visit our factory, we will arrange the free training for you.

COF TAB ACF bonding machine for TV lcd screen repair

6. What is the payment way ?

We accept the payment terms: Bank transfer, WesterUnion, Moneygram, Paypal, etc.
