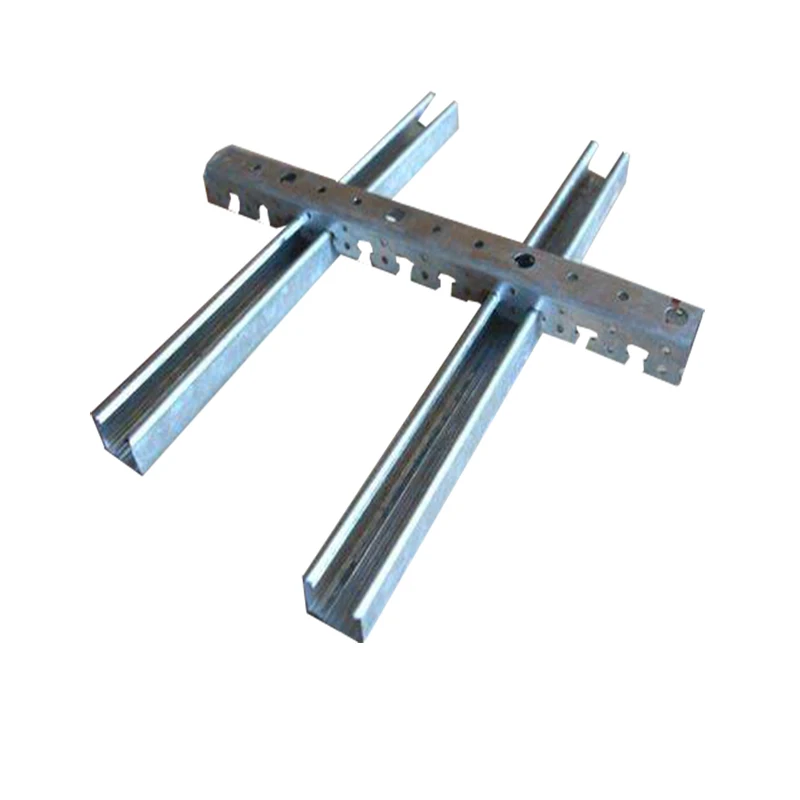

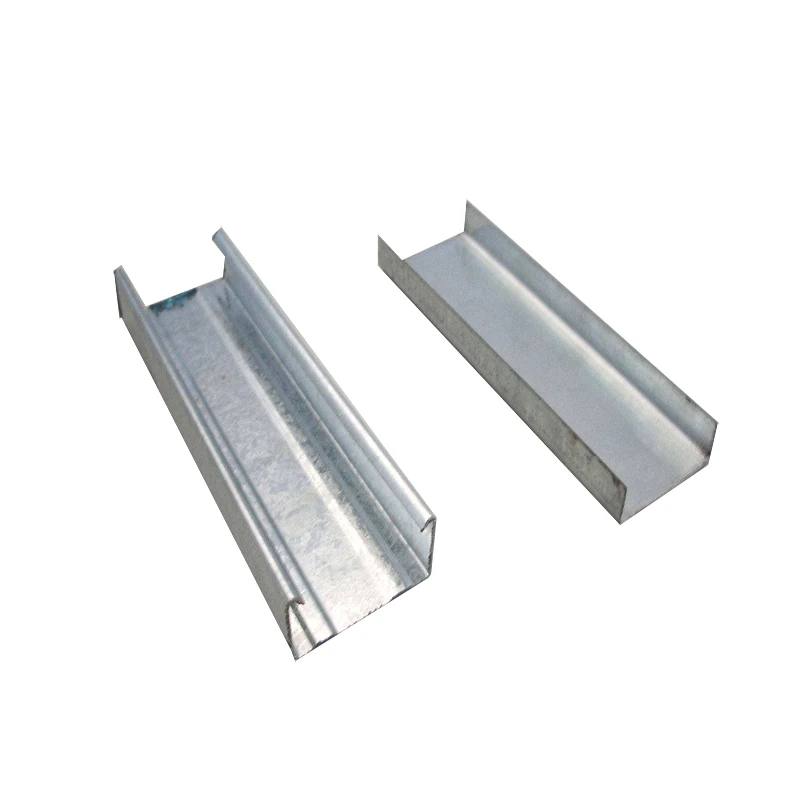

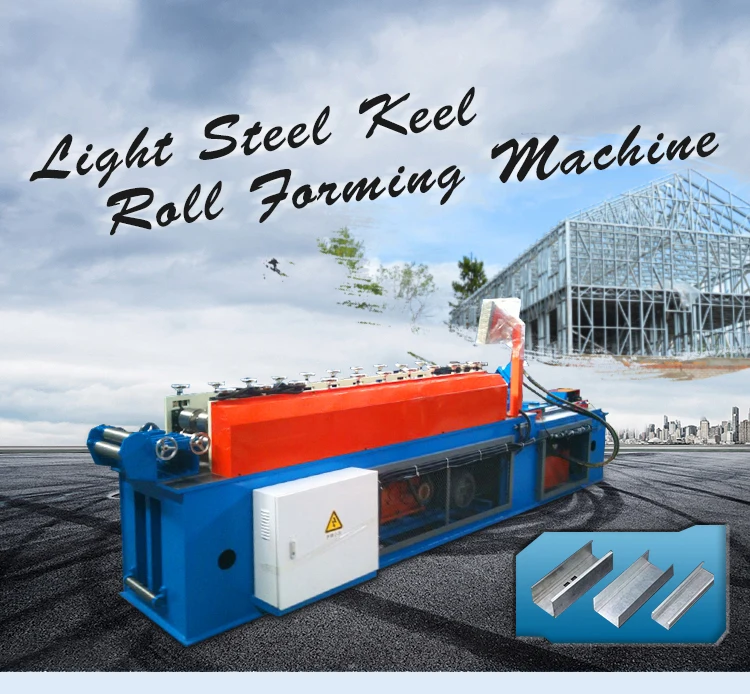

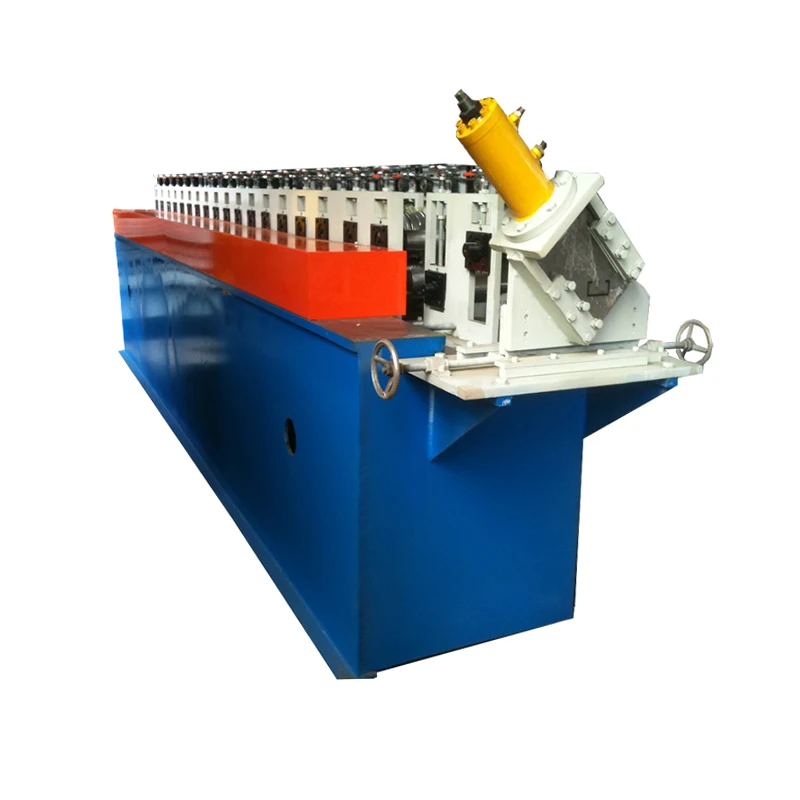

Metal Ring Rolling Light Keel Roll Forming Machine



Length of equipment installation

11.8m

(depend on design)

Effective width of equipment

1.4m

(depend on design)

Equipment height

1.8m

(depend on design)

Equipment molding

process

A passive uncoiling machine,Seven axis automatic leveling machine,

Automatic punching equipment,Main molding equipment,

Automatic trip cutting equipment



Motor

 power

Automatic Kaiping machine



1.5kw



Punching machine



5.5kw



Host



4.0kw

Working

voltage

380V+220kw

Production speed

8 - 13 meters / min.

 The main motor is adjustable speed motor

Drive mode

Chain drive stop cutting

Machine

forming shaft

A total of 13 rows of shaft / frame: 14 thick steel plate welding molding, vertical plate thickness 18mm

Shaft material

Bearing steel shaft diameter: 55mm solid shaft

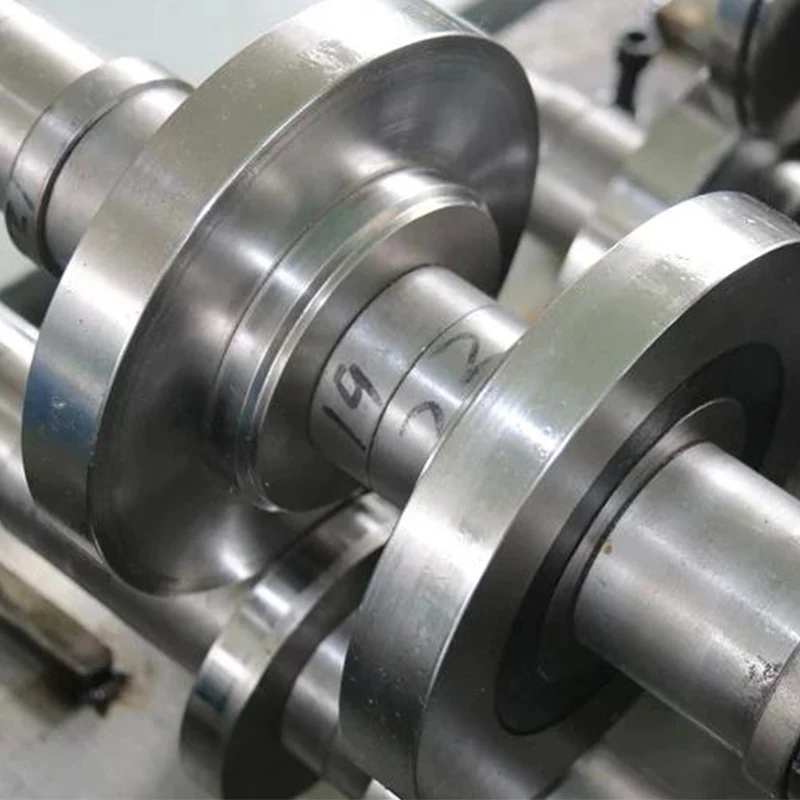

Wheel material

Bearing steel; quenched and hardened by high frequency quenching

Molding

 part

The utility model is divided into a fine type wheel, the shape is rotated, the shaping effect is good, the friction between the wheel and the raw material is reduced, and the debugging is convenient and quick.

Numerical control system

PLC panel,

KEL-320 display

Counter

The domestic photoelectric rotary encoder is adopted,

A40S6-600-2-12-ACP

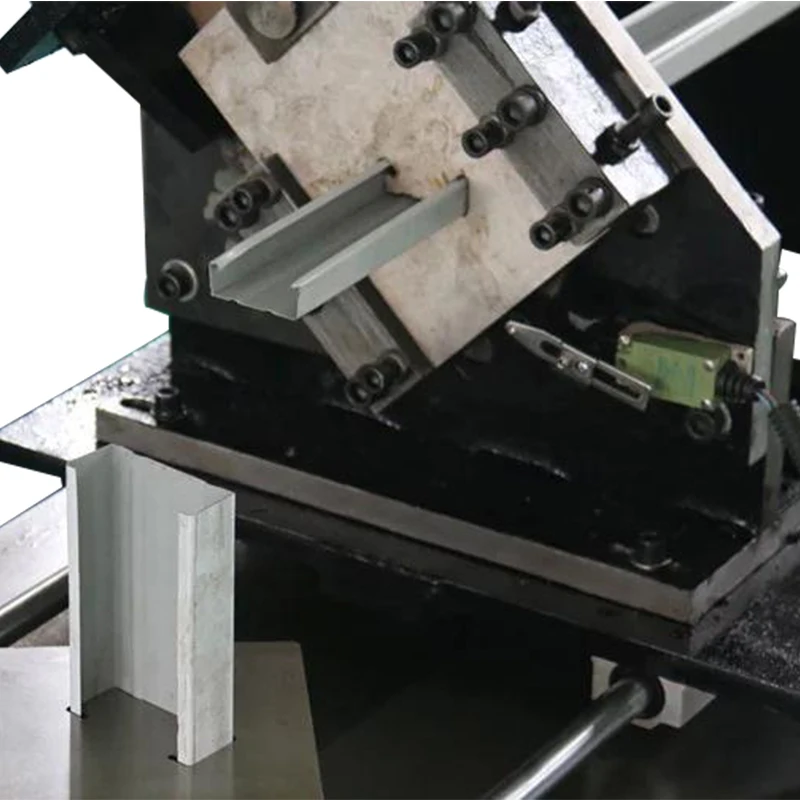

Cutting

mode

3Kw pumping station drives hydraulic shearing

equipment to realize automatic cutting

Technological process

Open book: seven axis leveling: hydraulic punching,

rolling forming, hydraulic cutting and blanking table

Thickness of pressboard

0.3 - 0.8 mm

Warranty

 period

12 months



Product details


Related Products

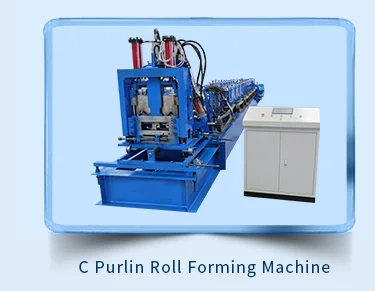

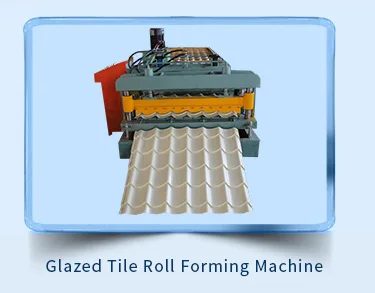

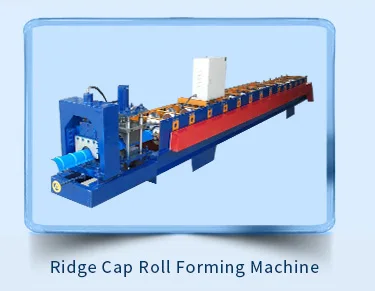

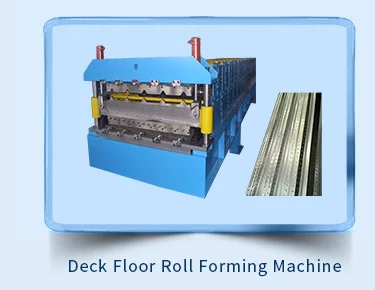

_04_06_07_08_09_10_11

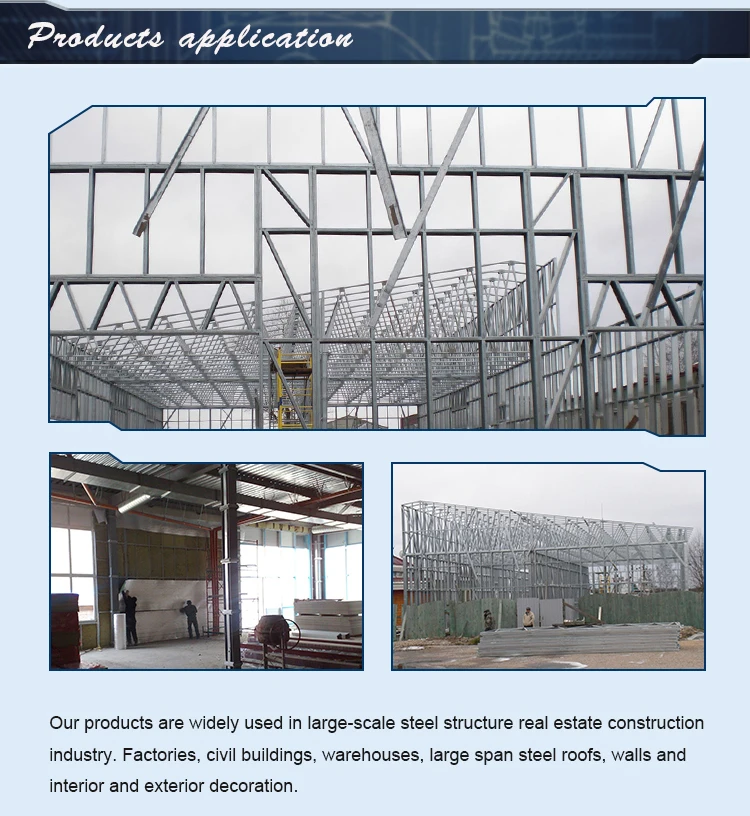

Products application

_03_02

Packaging & Shipping

 _03_04

Company information

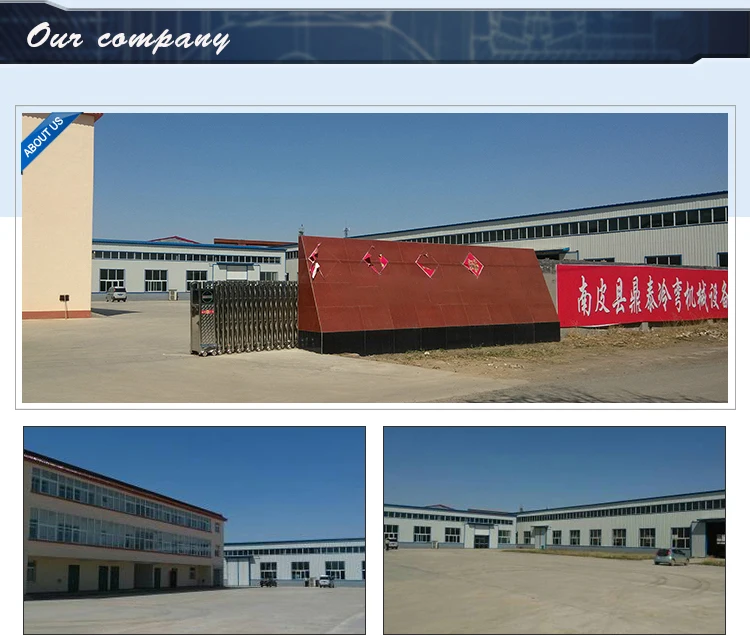

_03_06

Nanpi Dingtai cold bending machinery equipment Co., Ltd. has been engaged in steel structure roofing and wall pressure tile machine equipment production, at the same time committed to various related new product development and development for more than 10 years.

Dingtai has advanced production equipment and excellent development and design personnel, products with high efficiency, high precision, low processing and consumption characteristics, ranking high level in the same industry.

Our products vary from the ordinary roof and wall panel pressure tile machine to ten series steel production line equipment and equipment, all kinds of pipe bending guardrail cold bending equipment, which can fully meet the needs of steel structure building and the rail industry.

Dingtai has strong technical force, advanced and complete production line and processing equipment, and perfect testing process.

We have first-class mechanical processing equipment, physics laboratory equipment, nondestructive testing equipment and chemical analysis room. The most advanced full digital computer test method is used to produce quality grid and light steel structures and equipment.Our various equipment products have been exported to Canada, South Korea, Suriname, Sri Lanka, Mongolia and other countries.

Dingtai owns a perfect customer service service team, to provide full support to your customer service, help you get the most satisfactory equipment, ensure that you promptly solve all the problems encountered in the process of equipment usage, and our service.

Your interests and concerns are always our priority which inspires us to improve efficiency, reduce costs, enhance competitiveness to service you.

Listen carefully to your requirements and requirements, design and manufacture fully in accordance with your requirements and needs, and help you get the most reasonable equipment.

We sincerely hope to cooperate with you, mutual benefit and win-win situation.



_03_08



FAQ

1.How to maintain the machine?

Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.



2. Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components.



3.How many workers to operate the machine?

A:Only 1-2 workers.



4. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West  Station(1 hour), then we can pick you up .

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.



5. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.



6.How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
     2) Please visit company and test machine if convenient.
