LCD/LED TV maintain hot press machine MD-816SH
US $3400-$3600
Импульсный горячий пресс для гибкого плоского кабеля FFC, плоская печатная плата, сварочная машина ACF для склеивания
- Category: Electronic Products Machinery >>>
- Supplier: Shenzhen Jiutu Technology Co. Limited
Share on (60667258971):
Product Overview
Description
Product Description

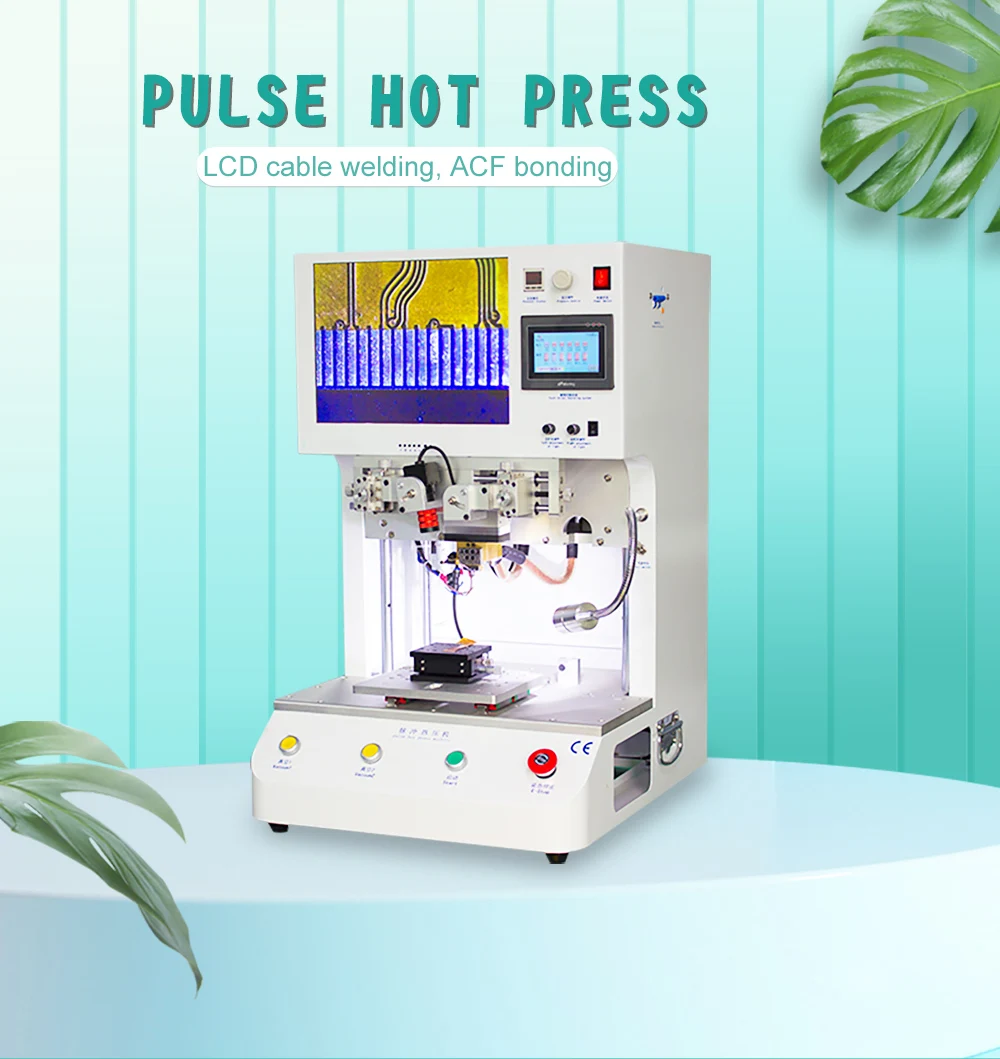

Pulse Hot Press For Flexible Flat Cable FFC Hard Circuit Board Welding ACF Bonding Machine
* PLC Control System
* 4.3 inch touch screen both in Chinese and English
* 18—23 seconds /pcs (depend on different lcd screen)
* For LCD screen cable, touch screen cable soldering, USB cable soldering, FFC flexible cable and FPC flexible circuit
* 4.3 inch touch screen both in Chinese and English
* 18—23 seconds /pcs (depend on different lcd screen)
* For LCD screen cable, touch screen cable soldering, USB cable soldering, FFC flexible cable and FPC flexible circuit
board or PCB board soldering, etc.
* ONE YEAR guarantee with Free Video training, buy with confidence!
Main Features :
1, Suitable for flexible materials, wire hot-press welding , soldering and resin bonding
2, Multiple solder joints are completed at one time with high efficiency, good consistency and high welding strength
3, Beautiful solder joints and easy operation
4, FPC To PCB / HSC To FPC (Flexible circuit board ) HCS to LCD/TAB To PCB TAB Producting Soldering
Fit for following industrial field :
1, LCD PDP,Smartphone electronic products flexible circuit hot press ，soldering
2, Cables in communication devices such as USB interface and HDMI interface, soldering of connectors
3, Soldering of CMOS CCD and FPC board for digital cameras, mobile phones, etc.
4, Resin thermocompression bonding for computers, printers, compact cameras, etc
5, Hot wire bonding of gold wire inside microwave device
6, Smart home appliances, automotive supplies, medical equipment HSC zebra cable / FPC flexible wire welding
* ONE YEAR guarantee with Free Video training, buy with confidence!
Main Features :
1, Suitable for flexible materials, wire hot-press welding , soldering and resin bonding
2, Multiple solder joints are completed at one time with high efficiency, good consistency and high welding strength
3, Beautiful solder joints and easy operation
4, FPC To PCB / HSC To FPC (Flexible circuit board ) HCS to LCD/TAB To PCB TAB Producting Soldering
Fit for following industrial field :
1, LCD PDP,Smartphone electronic products flexible circuit hot press ，soldering
2, Cables in communication devices such as USB interface and HDMI interface, soldering of connectors
3, Soldering of CMOS CCD and FPC board for digital cameras, mobile phones, etc.
4, Resin thermocompression bonding for computers, printers, compact cameras, etc
5, Hot wire bonding of gold wire inside microwave device
6, Smart home appliances, automotive supplies, medical equipment HSC zebra cable / FPC flexible wire welding
Specification
P/N | 9TU-M039 |
Model | Pulse Flex Machine Parameter |
Fit for | LCD screen cable, touch screen cable soldering, USB cable soldering, FFC flexible cable and FPC flexible circuit board or PCB board soldering, etc. |
Power | AC220V 50HZ |
Watts | 1200W |
Working pressue | 0.5MPa—0.6MPa (Dry gas source) |
Supply pressure | 4-6Kgf/cm⊃2; |
Control System | PLC Control System |
Operation interface | 4.3 inch touch screen both in Chinese and English |
Drive mode | Cylinder drive |

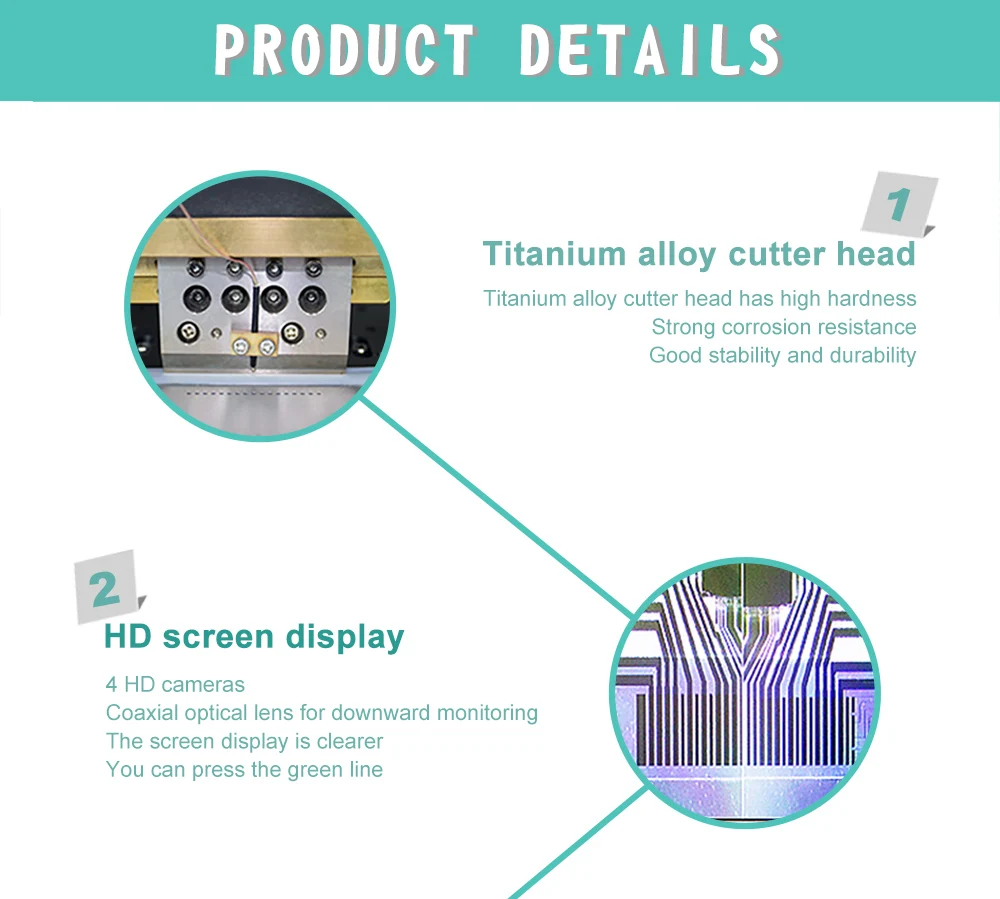

Alignment Method | Up and down high-definition camera, the lower camera uses a coaxial light lens (adjustable brightness) |

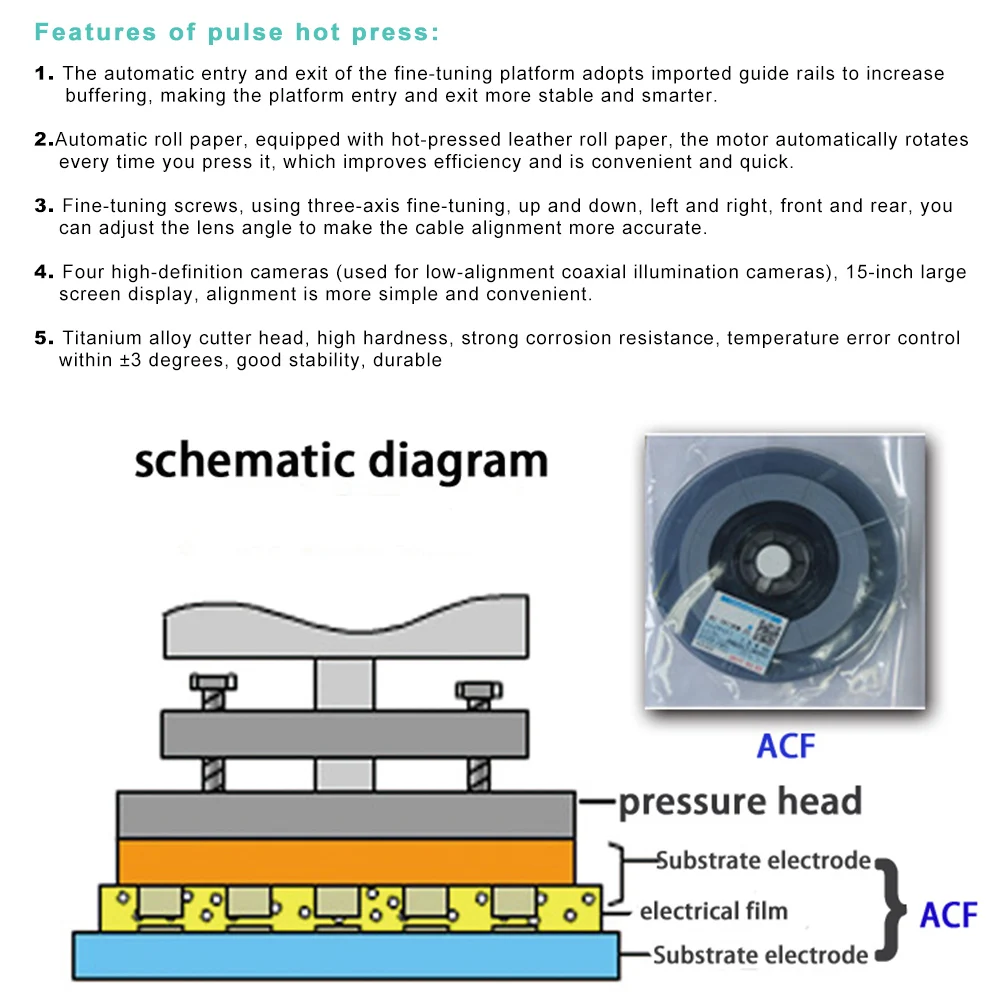

Heating Method | Built-in pulse heating |
Safety | Emergency Button |
Productivity | 18—23 seconds /pcs (depend on different lcd screen) |
Working Environment | 10—60℃ |
Working Humidity | 40%—95%RH |
Device Size | L53cm*W62cm*H82cm |
Net Weight | 66Kg |
After-service | Professional Technical Support will be Provided Until You Can Do With Perfect Results |
Fast Delivery | Ship Within 2 Working Days After Payment is Done |
Model | Pulse Flex Cable Machine |
Function | Repair Damaged LCD Screen Flex Cable |
Feature | Applicable to a variety of different products and is easy to operate. |
Feature 2 | Purchasingcolor camera, ensure that position clear and accurate. |
Work Pressure | 0.4-0.6Mpa |
Voltage | 220V /500W |
Feature 1 | Easy setup ,works great for Cold Press Part and Edge LCD Series |
Product Effieiency | 80 to 200pcs/hours |
Warranty | 1 year |
Packing | Customized Box for Shipping |
