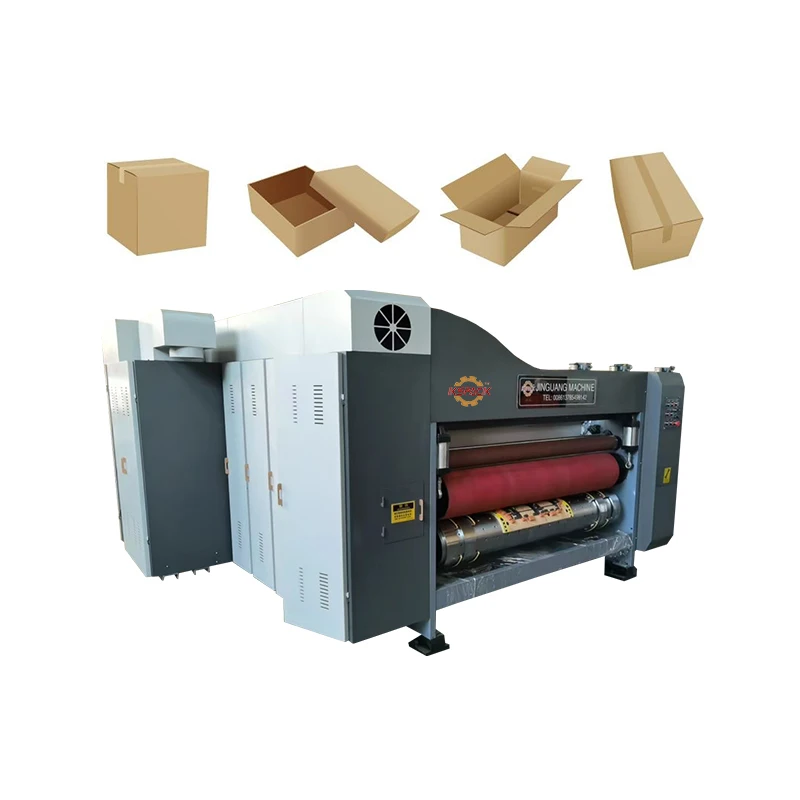

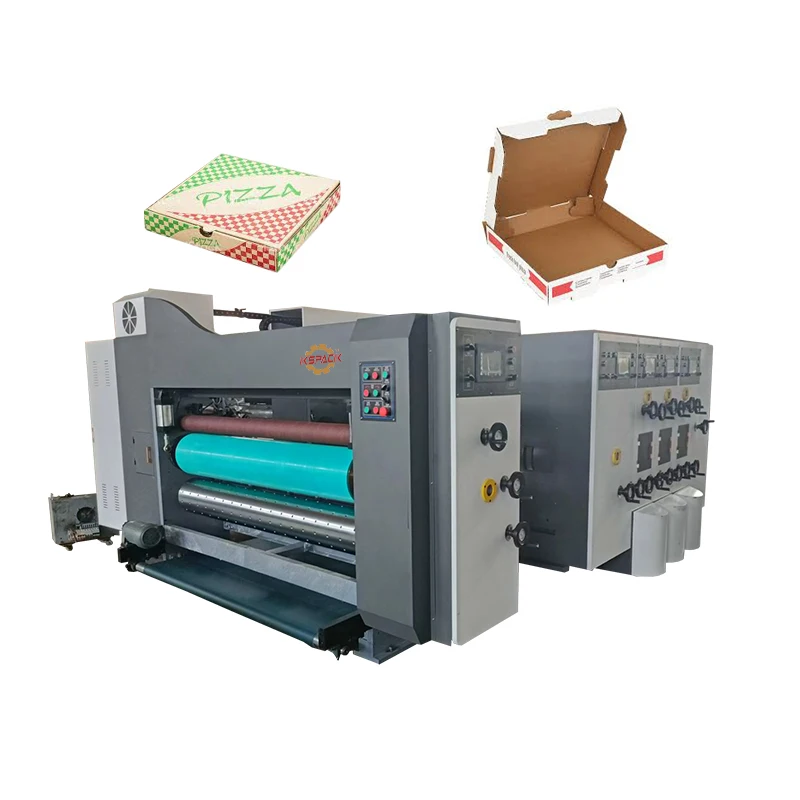

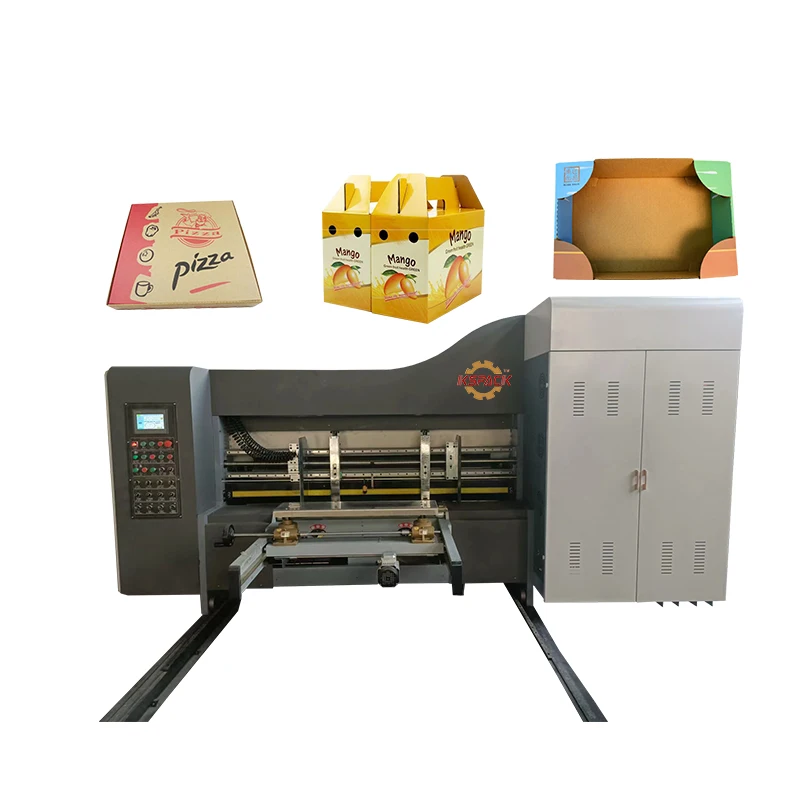

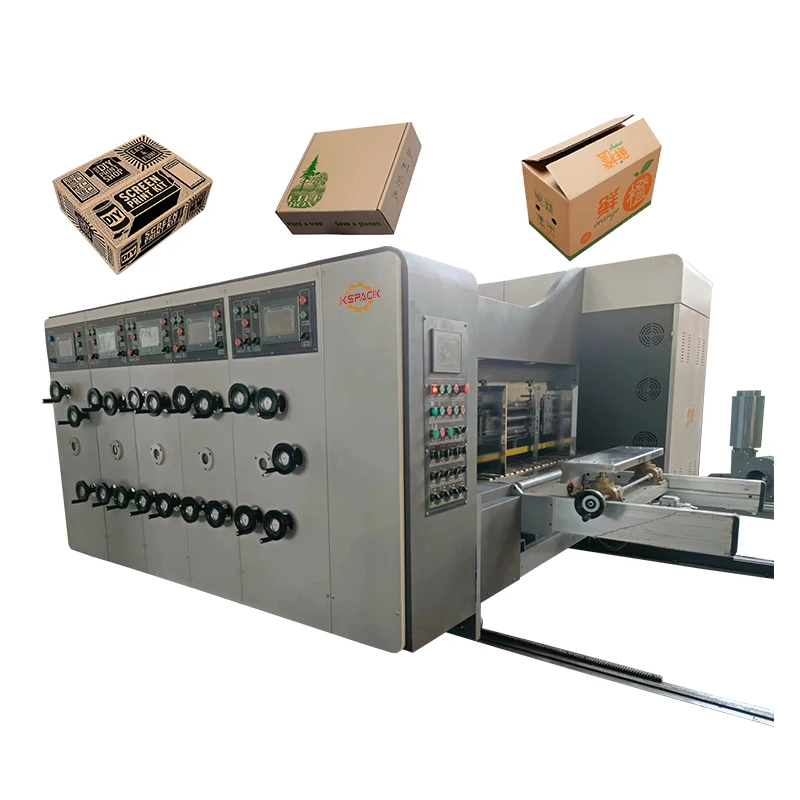

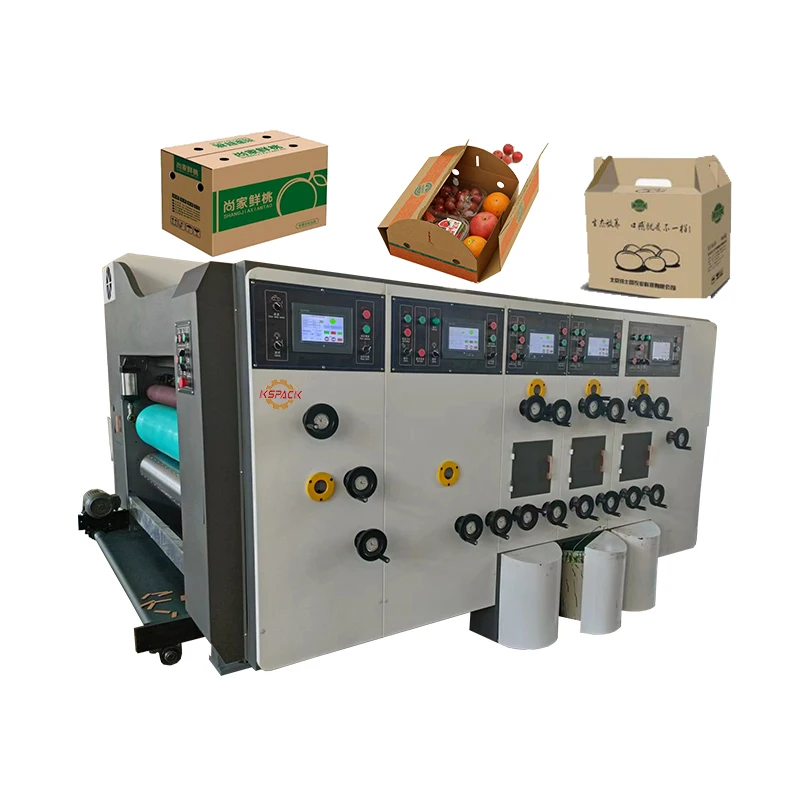

automatic paper products corrugated carton box pizza box printing machine three color printing slotter die cutting machine
- Category: Flexographic Printers >>>
- Supplier: Cangzhou Kingsun Imp.& Exp. Co. Ltd.
Share on (60670352928):
Product Overview
Description
Printing slotting die cutting corrugated board high speed die-cutter flexo printer machine
automatic corrugated carton box printing machine three color printing slotter machine
lead edge feeder automatic carton box multi color printer slotter machine
Speed 150-180pcs per mins ,
for make the corrugated box ,pizza box, vegetable box ,industry box ,food box ,express box and so on
The board : 3 ply 5 ply 7 ply corrgated board thickness 2-12mmm color : 1-5 color automatic corrugated mach
ine carton box pizza box printing three color printing slotter machine
lead edge feeder part .
【1】 electric control machine from the alarm
bell, continuous ringing warning, to ensure the safety of workers.
【2】 drive shaft with friction clutch, to avoid misuse and damage to the machine.
【3】 pneumatic interlock device.
【4】 The host motor starts the protection device. (The machine is not locked, the host can not start running)
bell, continuous ringing warning, to ensure the safety of workers.
【2】 drive shaft with friction clutch, to avoid misuse and damage to the machine.
【3】 pneumatic interlock device.
【4】 The host motor starts the protection device. (The machine is not locked, the host can not start running)
printer unit
【1】 diameter of 396(¢ 468 ) mm (with diameter of( ¢ 480 mm).
[2] high-quality steel surface grinding, axial reference scale, hard chrome plating.
[3] to do the balance correction, smooth operation, to adapt to high-speed operation.
[2] high-quality steel surface grinding, axial reference scale, hard chrome plating.
[3] to do the balance correction, smooth operation, to adapt to high-speed operation.
4】 ratchet fixed scroll plate, with hanging
plate ditch, to adapt to the rapid version of the installation convenient and quick.
plate ditch, to adapt to the rapid version of the installation convenient and quick.
diecutter unit
【1】 outside diameter ¢ 360 for 408model and 430mm for 7480 model (without cutter).
[2] cast iron surface grinding, hard chrome plating, balance correction, increase operational stability.
【3】die fixed screw hole spacing, axial 100mm; radial 18 equal parts. Applicable tool height 25.4mm.
【4】Wood template thickness: 16mm (for three-layer paperboard) 13 mm (for five-layer paperboard)
[2] cast iron surface grinding, hard chrome plating, balance correction, increase operational stability.
【3】die fixed screw hole spacing, axial 100mm; radial 18 equal parts. Applicable tool height 25.4mm.
【4】Wood template thickness: 16mm (for three-layer paperboard) 13 mm (for five-layer paperboard)
MODEL | KYG-A Series High Speed Printer Diecutter automatic corrugated machine carton box pizza box printing three color printing slotter machine |
PRINTER COLOR | MULTI COLOR |
MNACHINE SIZE | WALL BOARD TO WALL BOARD SIZE 2000/2200/2400/2600/2800/3000MM |
MACHINE DESIGN SPEED | DESIGN SPEED 120PCS /MIN |
WORK SPEED | 100PCS /MIN |
MACHINE WALL BOARD SIZE （mm） | 50 |
GERA THICKNESS （mm） | 50 |
MAX PASSING PAPER SIZE （mm） | 1200 X(1800/2000/2200/2400/2600/2800MM) for 408 diameter 1450X(1800/2000/2200/2400/2600/2800MM) for 480 diameter |
MIN PAPER PASSING SIZE （mm） | 420x860mm(for 480diameter ) 380X860MM( for 408 diameter) |
SKIP PAEER SIZE （mm） | 1350X(1800/2000/2200/2400/2600/2800MM) for 408 diameter 1600X(1800/2000/2200/2400/2600/2800MM) for 480 diameter |
MAX PRINT SIZE （mm） | 1200/1400X(1600/1800/2000/2200/2400/2600MM) |
THINKCNESS OF THE PLATE （mm） | 3.2---7.2 |
BOARD THICKNESS （mm） | 3---12 |
BOARD PRINT ACCURATE （mm） | PRINT ±0.5/ SLOT OPEN ACCURATE ±1.5 |
Our Service
Company information
Customer visit
Certificate

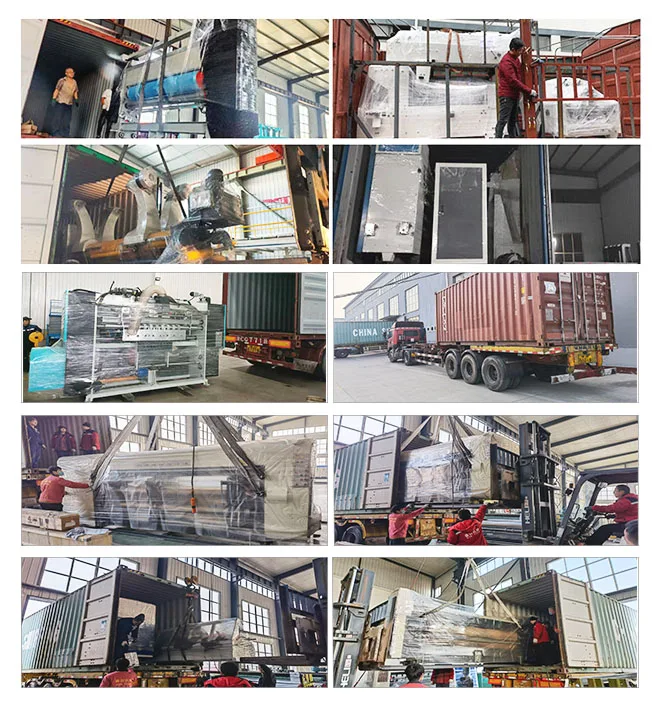

Logistics and transportation
