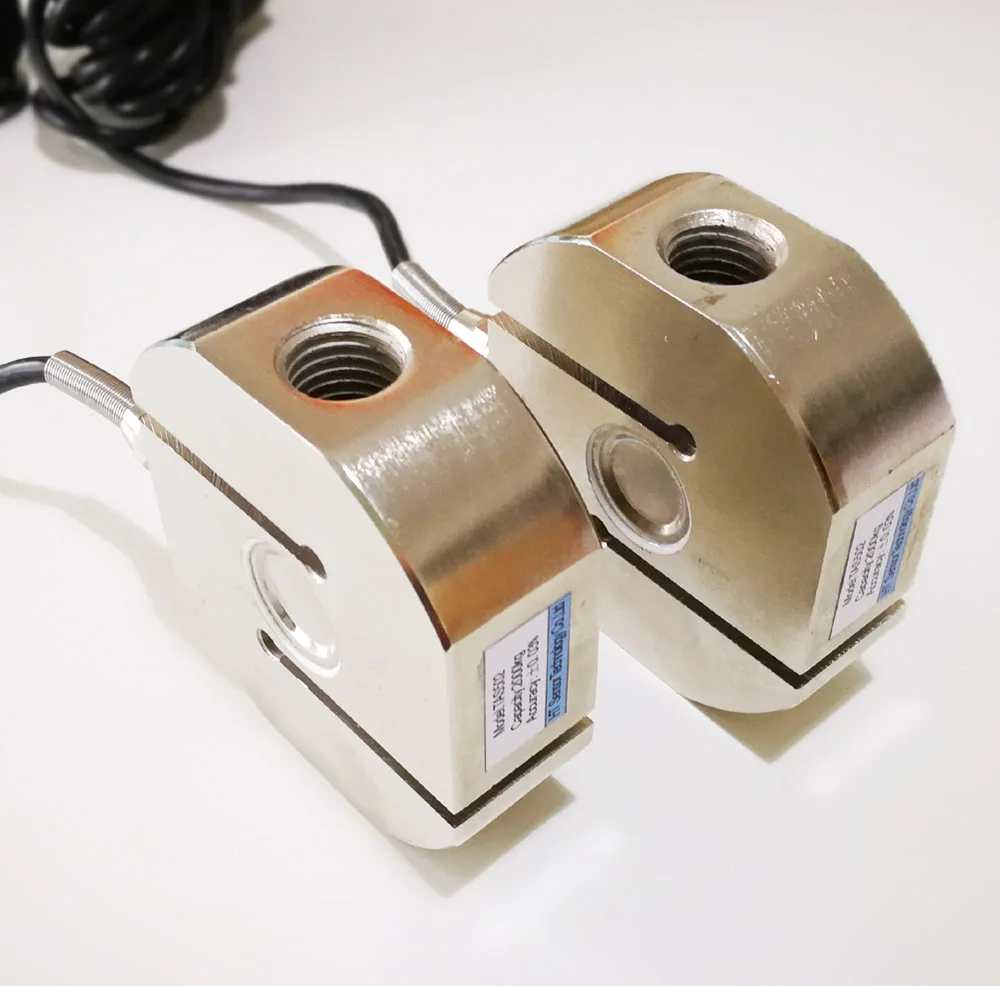

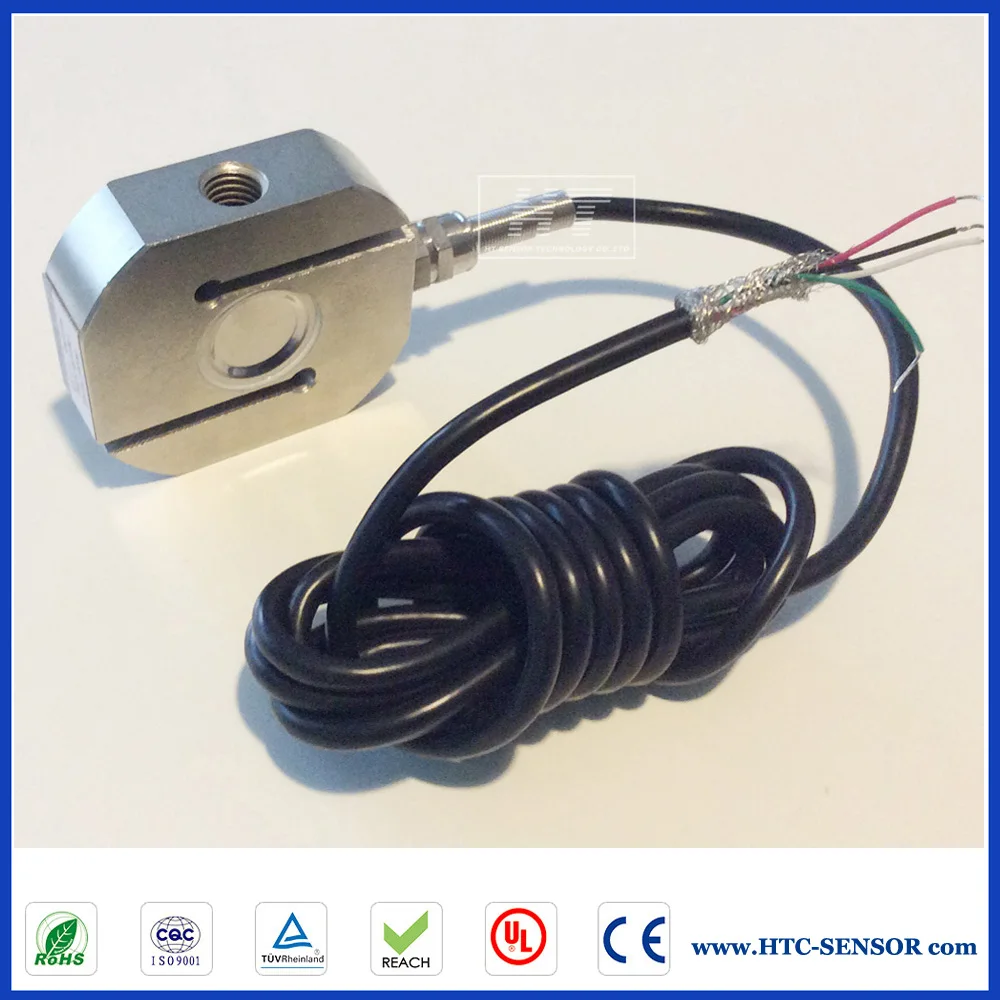

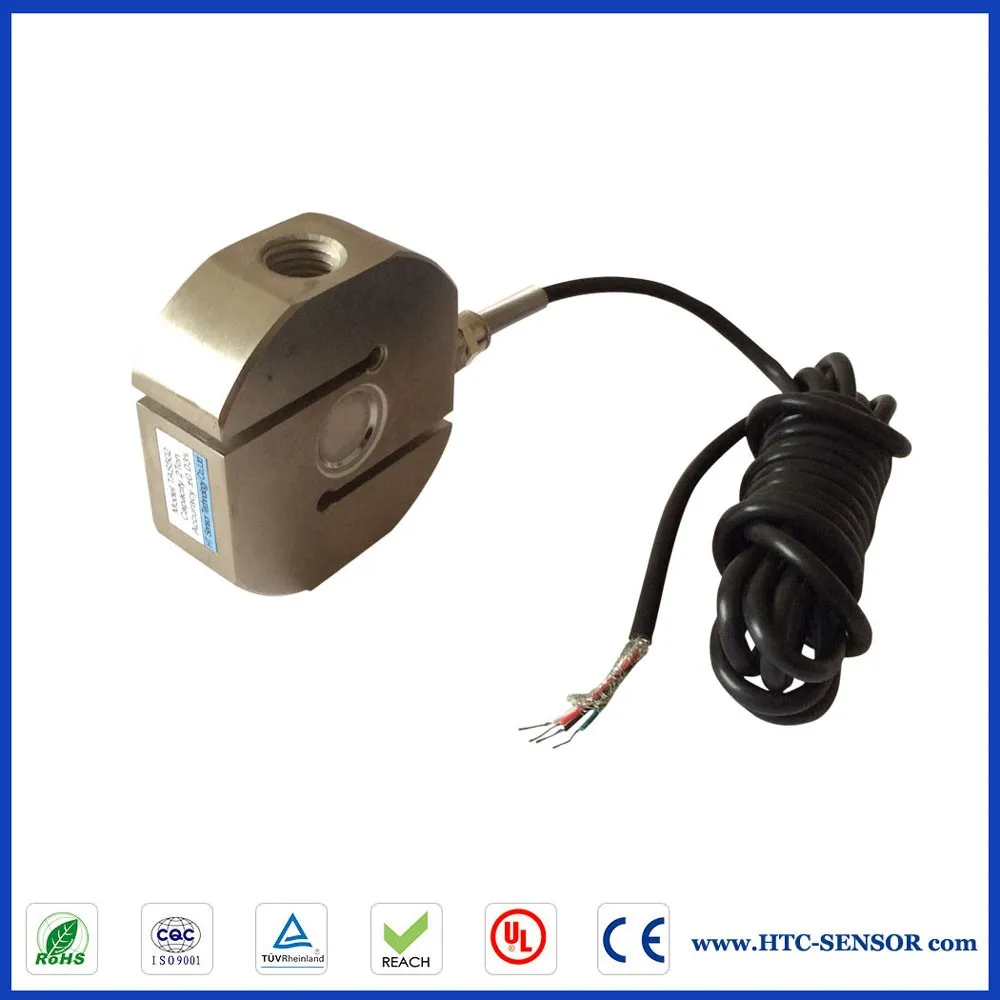

universal force measurement S type tension load cell sensor 2Ton

Share on (60670815252):


Price:

Quantity:


Product Overview

Description


Product Description

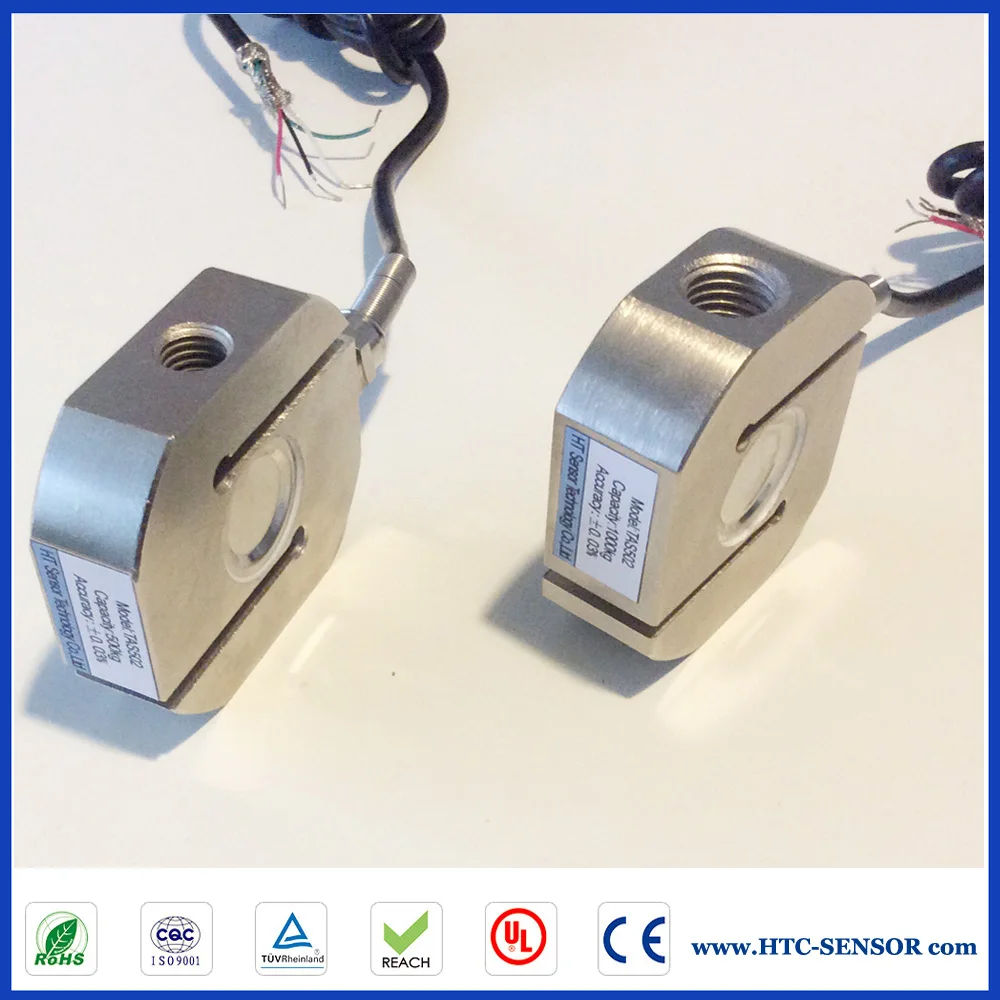

TAS502    S TYPE LOAD CELL


◆Capacity :1~5000Kg
◆Material: alloy steel
◆Type: S type
◆Defend grade: IP67
◆Application: batching scale, electro mechanic scale, crane scale, packing scale, belt scale

and other industrial scale.

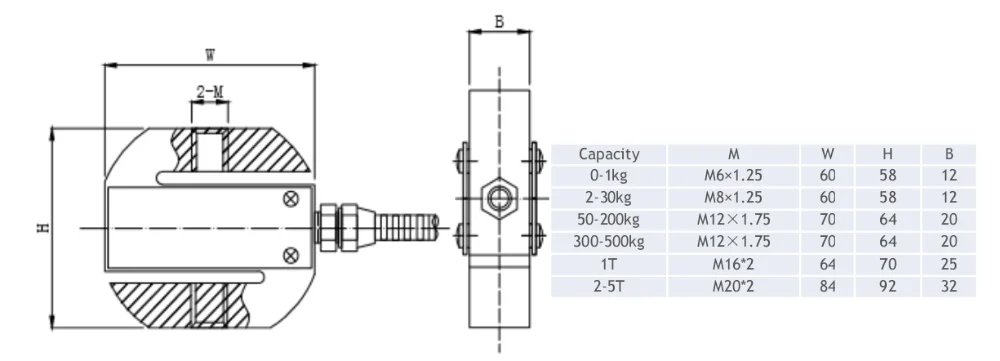

Dimensions
Specifications
\t
capacity
\t
kg
\t
5,10,20,30,50,100,200,300,500,1000,3000,5000kg
\t
safe overload
\t
%FS
\t
150
\t
ultimate overload

\t
%FS
\t
200
\t
rated output

\t
mV/V
\t
1.0-3.0 ± 0.05
\t
excitation voltage

\t
Vdc
\t
5~ 15
\t
combined error
\t
%FS
\t
± 0.03
\t
zero balance

\t
%FS
\t
± 1.0
\t
non-linearity

\t
%FS
\t
± 0.03
\t
hysteresis

\t
%FS
\t
± 0.03
\t
repeatability

\t
%FS
\t
± 0.03
\t
creep
\t
%FS/30min

\t
± 0.03
\t
input resistance
\t
Ω
\t
350±20
\t
output resistance

\t
Ω
\t
350±5
\t
insulation resistance
\t
M Ω
\t
≥ 5000 @ 50 Vdc
\t
operating temperature range

\t
\t
-20 ~ +50
\t
compensated temperature range

\t
\t
-10 ~ +40
\t
temperature coefficient of SPAN

\t
%FS/10℃

\t
± 0.03
\t
temperature coefficient of ZERO

\t
%FS/10℃

\t
± 0.03
\t

Electrical    connection
\t

cable
\t
4 core shielded PVC cable, Ø 4.6 × 2m
excitation(+):Red excitation(-):Black
signal(+):Green signal(-):White

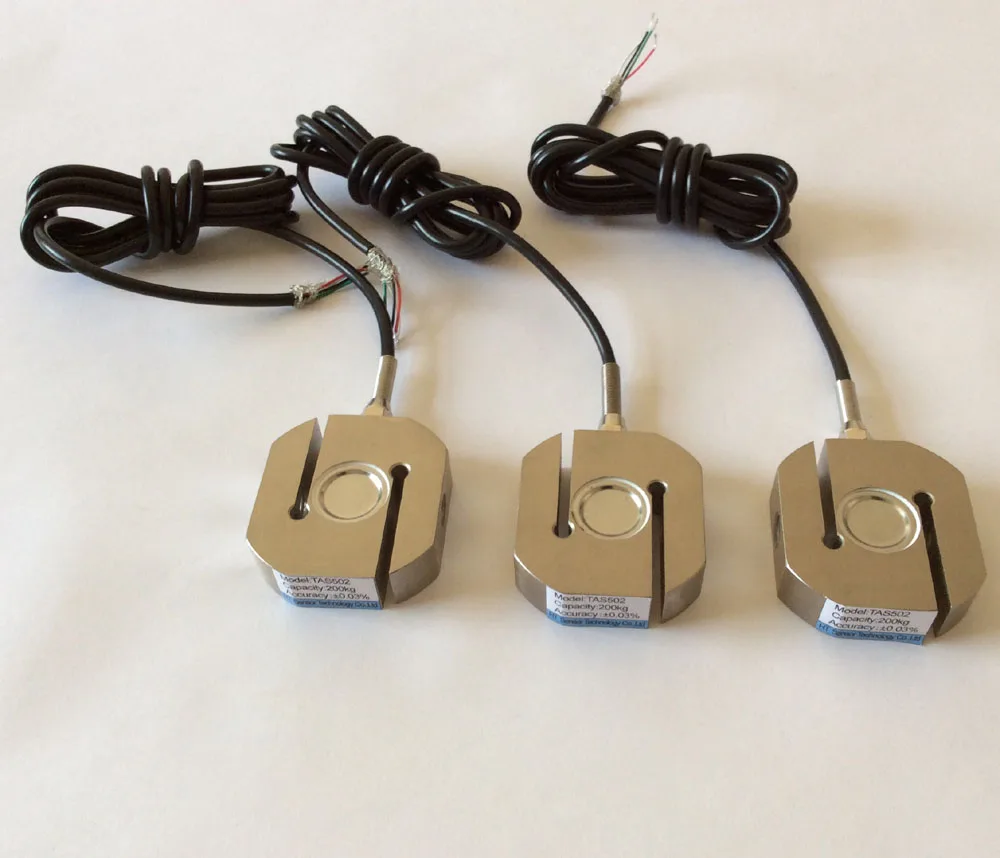

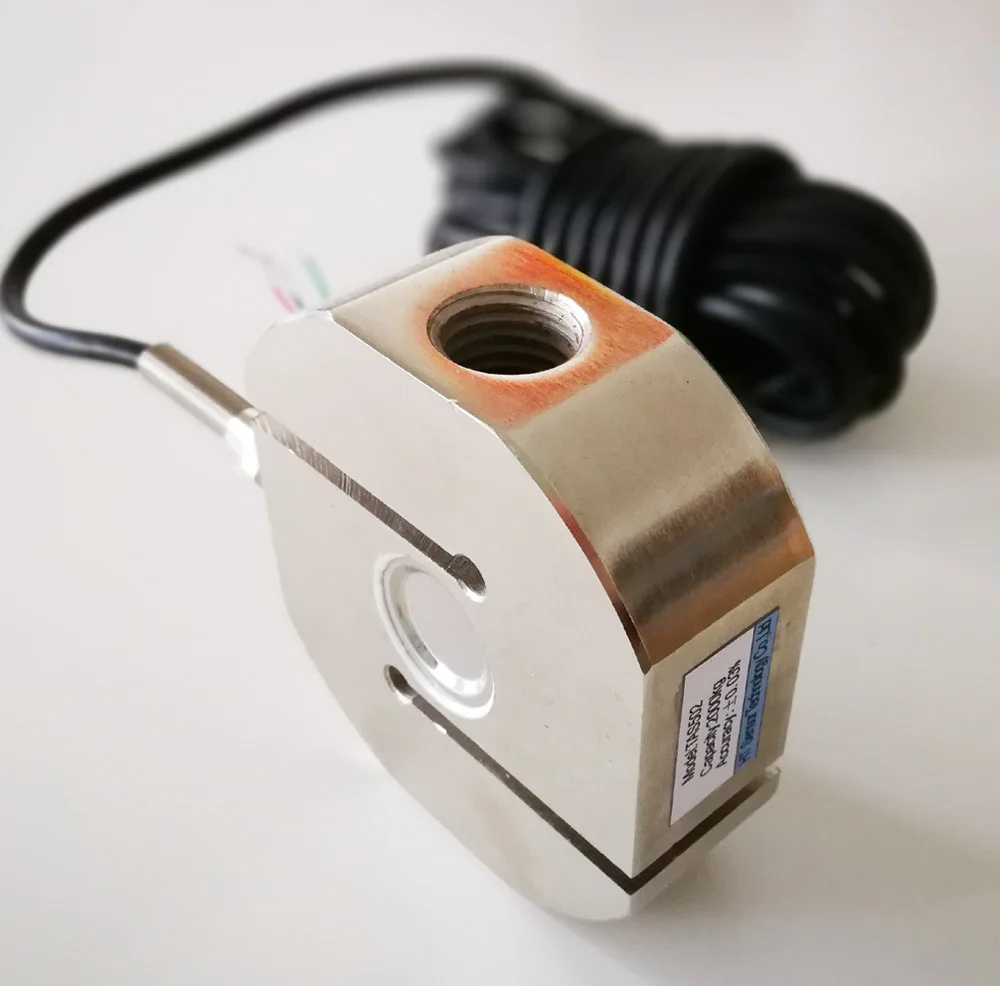

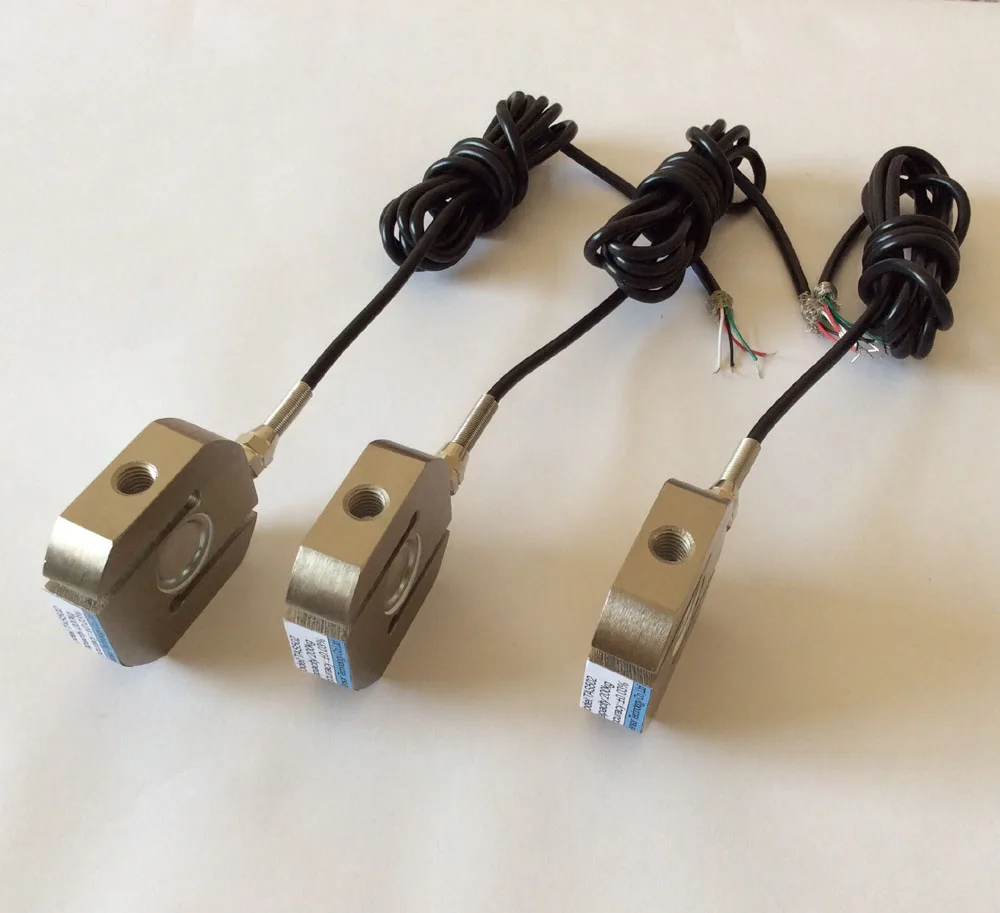

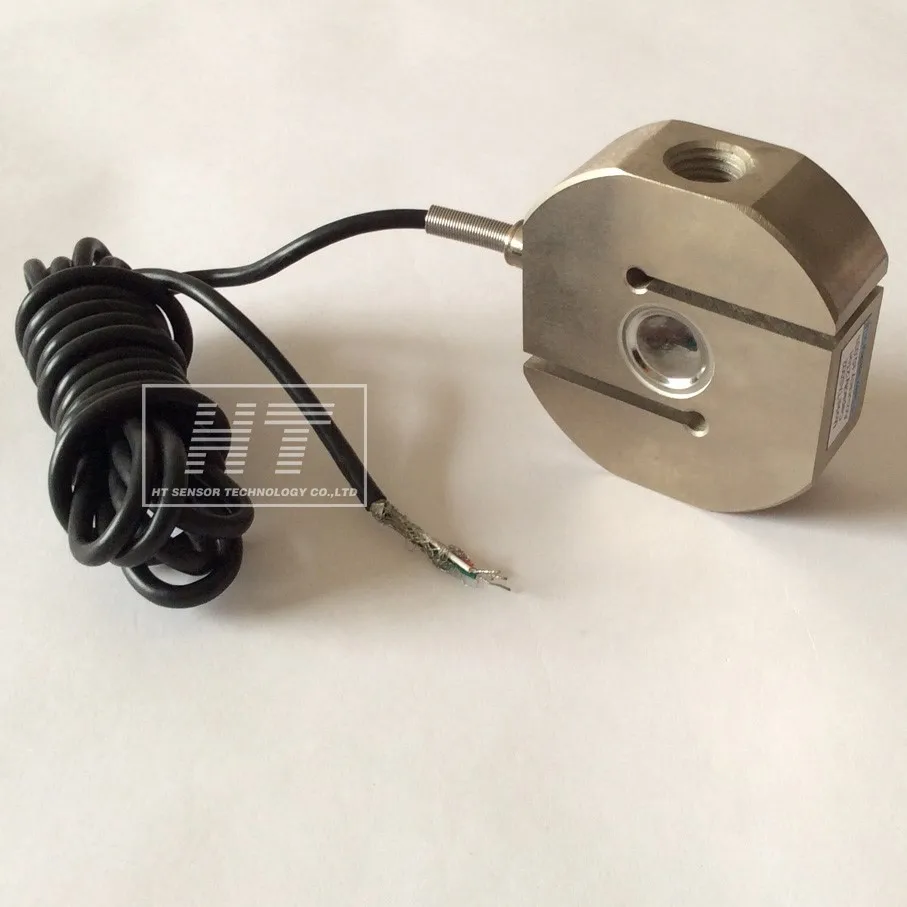

Detailed Image

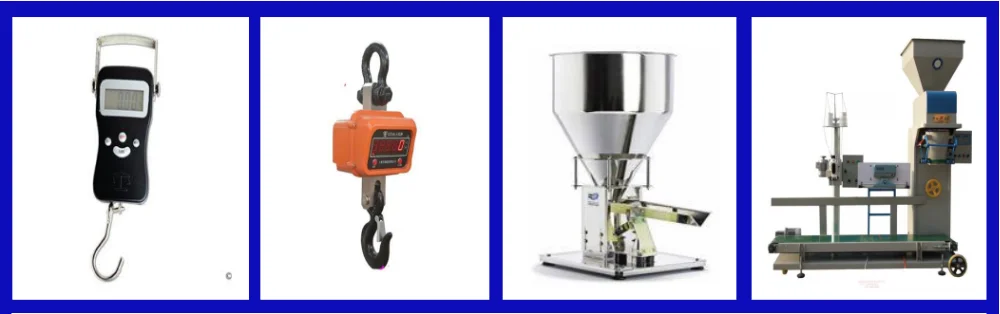

Application
Related Products

     TAS501A Capacity:\t1~500kg

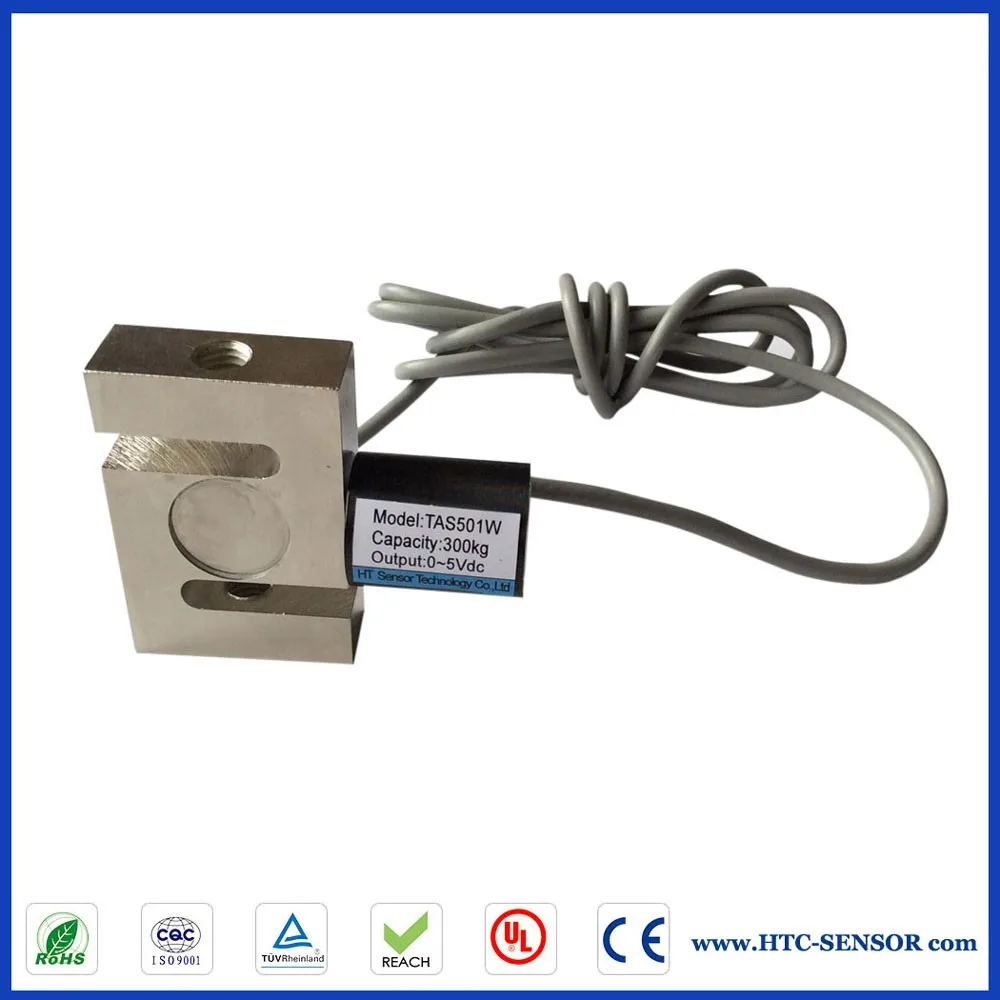

  TAS501W Capacity:\t100~1000kg

        TAL501L Capacity:\t2-100kg

Packing & Delivery

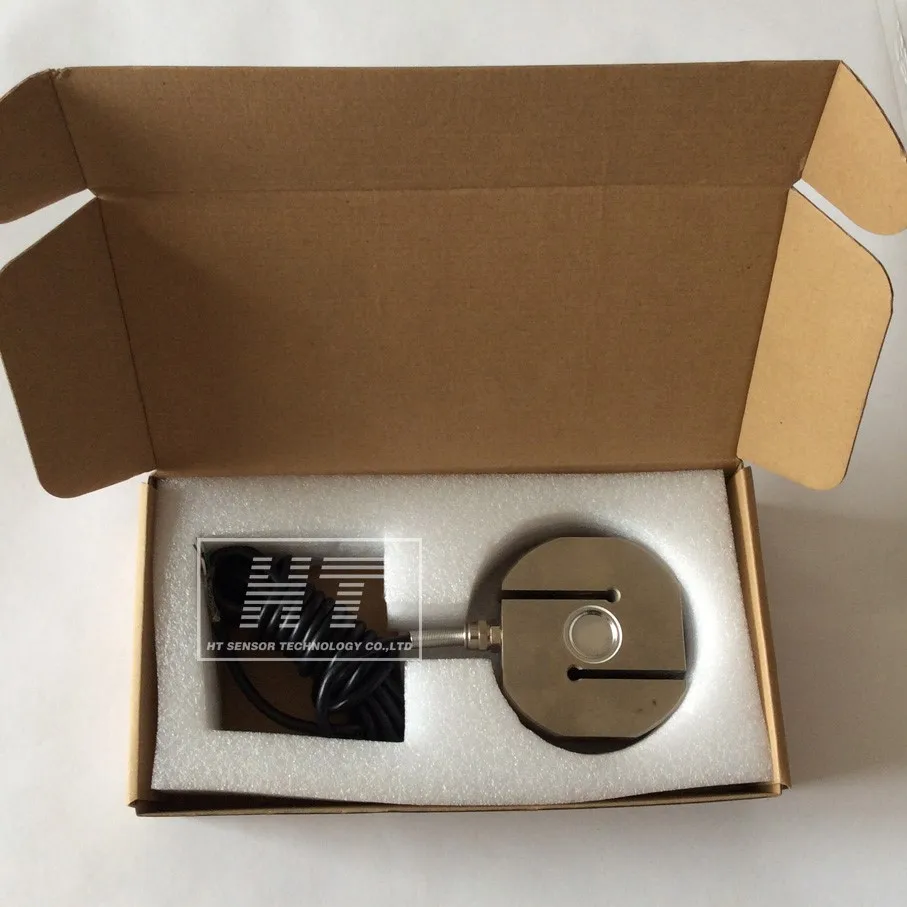

Packing

Inner packing: 1pcs /plastic bag/ box
Outer packing : standard exporting carton
As the customer's requirments

Delivery

Normal products:  7-10 days
OEM products: 30days
DHL/UPS/TNT/FedEx/SF/EMS by Air/Sea etc
