250ft 12/2 solid CU MC lite cable Aluminum Armored Cables for USA Market THHN Cable
- Category: Wires, Cables & Cable Assemblies >>>
- Supplier: Shenzhen Jixing Electric Wire & Cable Co. Ltd.
Share on (60672174401):
Product Overview
Description
250ft 12/2 solid CU MC lite cable Aluminum Armored Cables for USA Market THHN Cable
Product Description
| Porduct name | UL719 Romex NM-B 600V 12-2 Building Wire Romex wire |
| size(awg) | 2,3,4 |
| Insulation Material | PVC+NYLON |
| Sheath/Jack/coating Material | Interlocked galvanized lightweight steel armor is applied over the entire assembly. |
| Conductor Material | Anaerobic Copper Wire:Pure 99.99% Copper Conductor |
| Rated Voltage(V) | 600 |
| Pakege(ft) | 25', 50', 100', 250', 500', 1000' RL/EZ, 5000' Reels |
| Delivery period | 20-40 days,depending on your order quantity and destination |
| Sample service | support |
ENGINEERING SPECIFICATIONS
Standards
Underwriters Laboratories Standards UL-83, UL-1569, UL-1581, UL-2556 for type MC; Federal Specification A-A59544, NEMA RV 1-2014;
IEEE 1202 (70,000 Btu/hr) Vertical Cable Tray Flame Test; NFPA 70 (NEC®) Article 330; ARRA 2009 Section 1605 “Buy American” Compliant;
RoHS Compliant; MasterSpec Division 26 Sections 260519, 260523; UL Listing #E-301130
Applications
Type MC cable shall be permitted as follows:
• Permitted multiple circuits use for branch circuits in residential, commercial, industrial, and non-patient care areas/spaces of health care facilities;
• Acceptable for power, lighting, control, and signal circuits;
• Allowable in concealed or exposed systems;
• Permitted use in dry locations and embedded in plaster finish on brick or other masonry except in damp or wet locations;
• Utilized for environmental air-handling spaces (NEC 300.22(C)(1);
• Allowable in assembly occupancies (NEC 518.4);
• Permissible in theaters, audience areas of motion pictures, television studios, and similar locations (NEC 520.5);
• Allowable installations in approved raceways and cable trays (NEC 392);
• Suitable for installation under raised floors for IT equipment (NEC 645.5(E));
• Permitted in Class I Div. 2, Class II Div. 2, and Class III Div. 1 Hazardous Locations;
• Listed for use with UL 1479 - 1, 2, and 3 Hour Through-Penetration Firestop Systems.

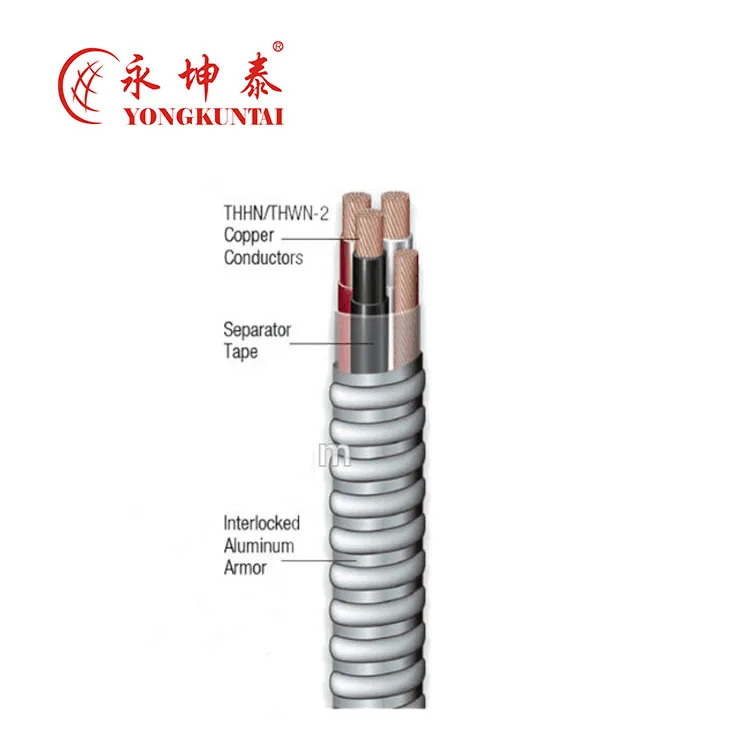

CONSTRUCTION
Available in sizes 12 AWG and 10 AWG with an oversized neutral conductor and a green insulated ground conductor. Encore Wire Metal-Clad Cable is constructed with soft-drawn copper,
Type THHN/THWN-2 conductors rated 90°C dry locations. All conductors are cabled together with a separator tape containing the identification print legend to form the cable core. Interlocked
galvanized lightweight steel armor is applied over the entire assembly.
This table is just part of the date.If you are not sure where it is what you need,you need our support.
Packaging & Shipping
package 1:2+4+5
package 2:1+5
package 3:3+5
package 4:6 (this package is use for big size cable.)
Which package as you wish.
