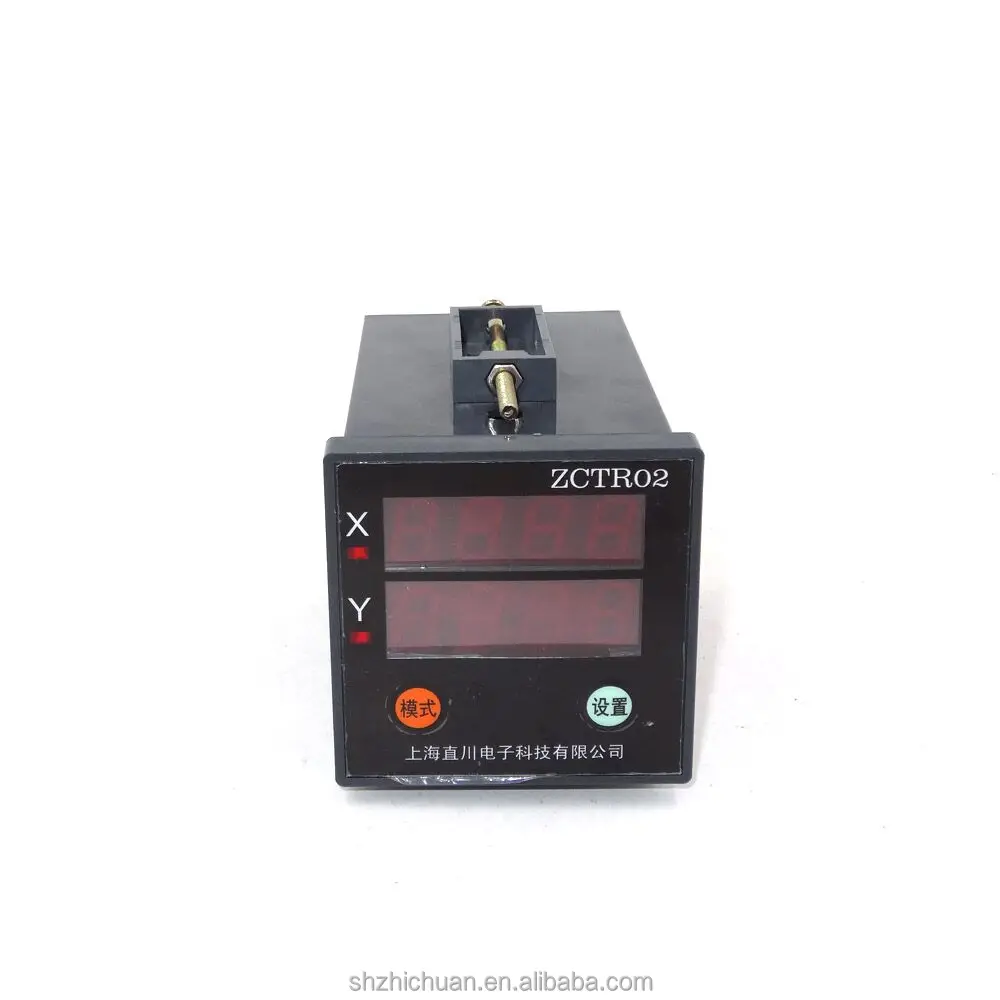

Low cost Inclinometer with readout for drill rig machine

ZCTR02A  series inclinometers  are with high cost performance , and popularly used for drill rig  and other angle inclination with readout applications.

It is with high accuracy of 0.5 degree, higher resolution of 0.1 degree, with max measuring range of +-60degree.

The readout support communication with 232,TTL and 485 type inclinometers.

Dual axis LED display, get readout easily .

Absolute / Relative mode can be simply shift according to the actual applications.

Inclinometer for forest machine

Inclinometer for trailer

Inclinometer for tail lift

Shanghai Zhichuan Electronic Tech Co., Ltd. was established in 2002. Our company is a high-tech company integrating the research, development, production and sale of inclinometer sensors, tilt switches and magnetic survey instruments. Our products have got 3 main series, including inclinometer tilt survey series, inclinometer system series and prospecting magnetometer series.

Our products are widely used in many industrial fields, such as static and dynamic object orientation inspecting, horizontal and tilt inspecting and magnetite exploration. They sell well both in domestic and international markets.

Robust package,three level protections: bubble bags, buffer foam, and 3 layer carton package.

Special pack methods also available, such as wooden protection box, buffer strength luggage and so on.

Short lead time, and fast delivery time.

Urgent parcels, EXPRESS, such as DHL ,TNT and so on could be available.

Q: Why tilt switch alarm in mistake? How to dispose the tilt switches alarm in mistake?

A:Bump or around interference will lead to switch on / off angle info is changed .

Please confirm if the above condition is existed, if not and after test, the sensor still alarm in mistake, please contact with us.

Q: How to settle down output jitter problem?

A:Firstly check if the power supply is stable, supply voltage fluctuation will lead to output jitter, especially for DC 5V supply.

For digital output inclinometer, normally it is with filter parameter set, the parameter is relevant response frequency, greater the filter parameter, more stable of the output and lower response frequency. User can set it according to needs.

Q:the output data are abnormal?

A: First please check the mounting .the wrong mounting will cause wrong abnormal output .

In generally speaking , Biaxial inclinometer are horizontally mounted , single axis inclimometers are vertically mounted. Please refer to the datasheet and mount correctly.
